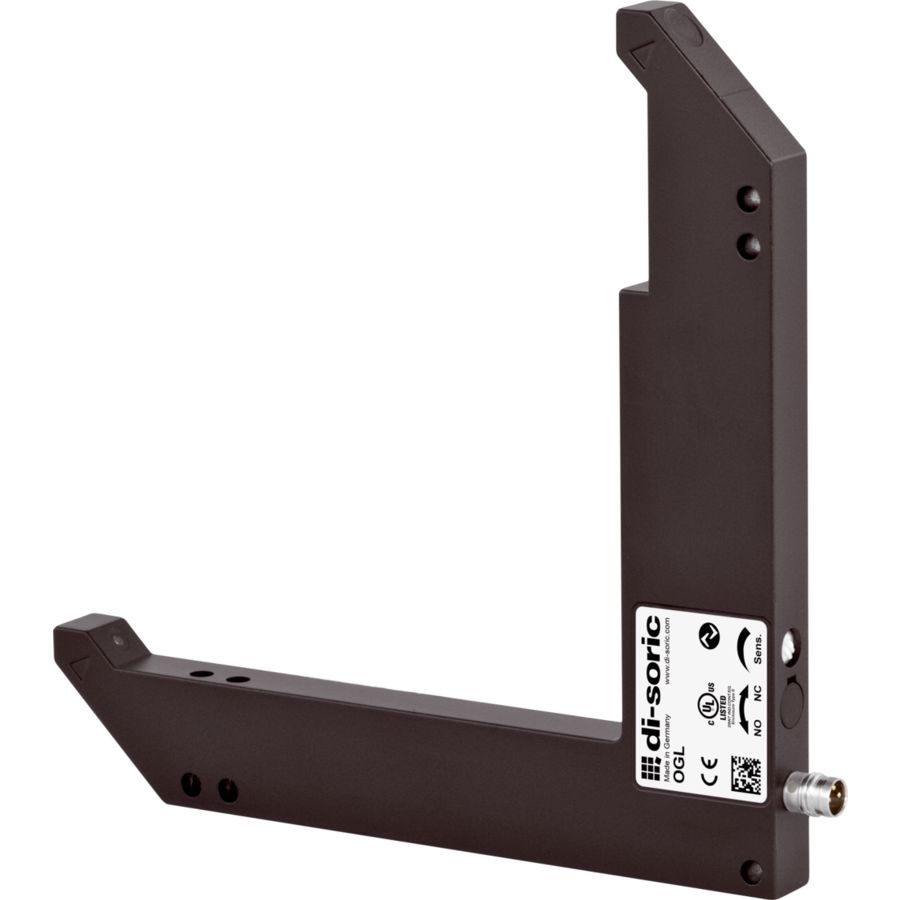

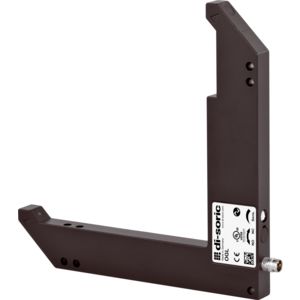

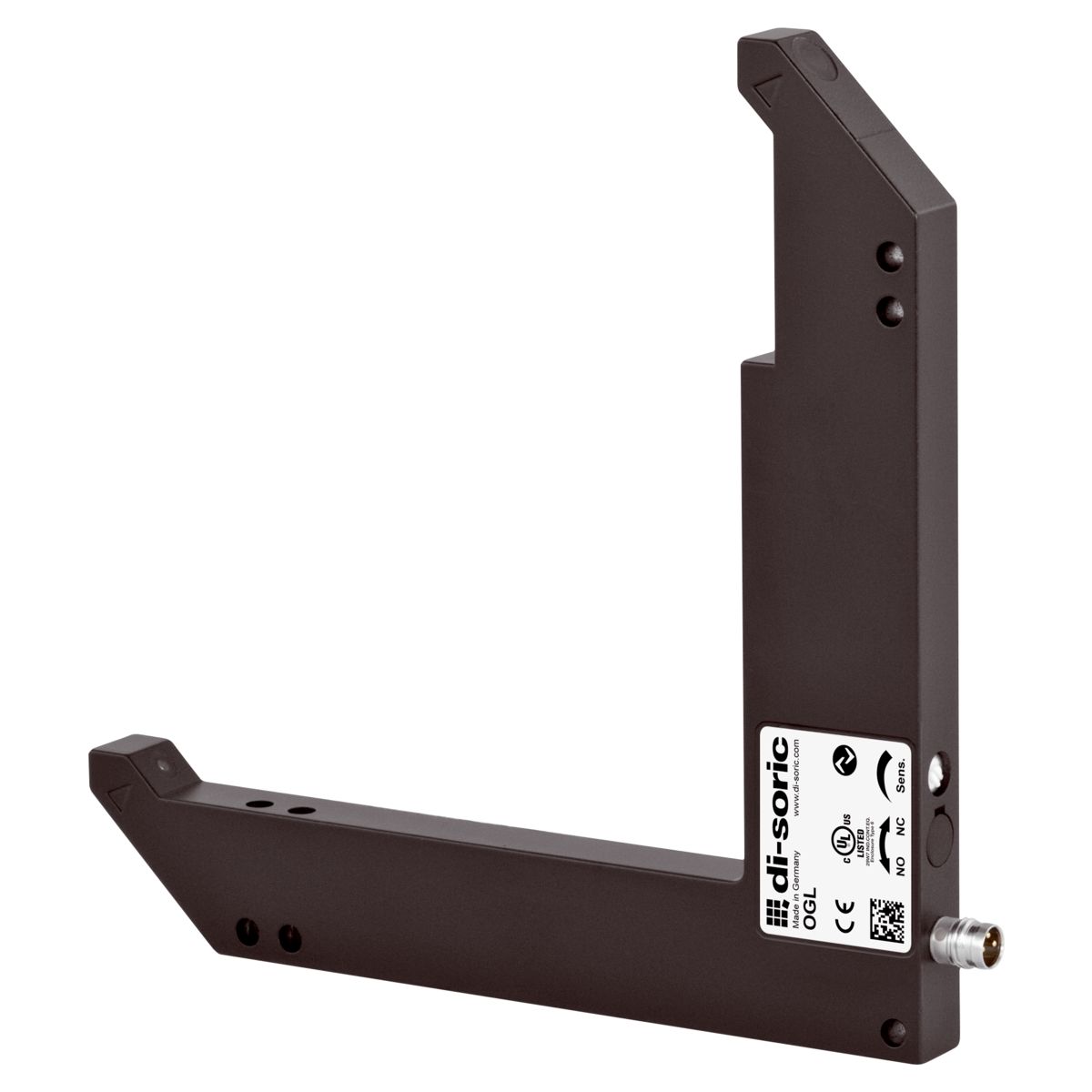

Angled Light Barrier - OGL 121 G3-T3

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	LED
Light color	red / 660 nm
Leg length internal	120 mm, 120 mm
Service voltage	10 … 30 V DC (Supply Class 2)
No-load current (max.)	40 mA
Switching output	(Push-pull), 200 mA, NO/NC
Interface	IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Housing material	Die-cast zinc (powder-coated)

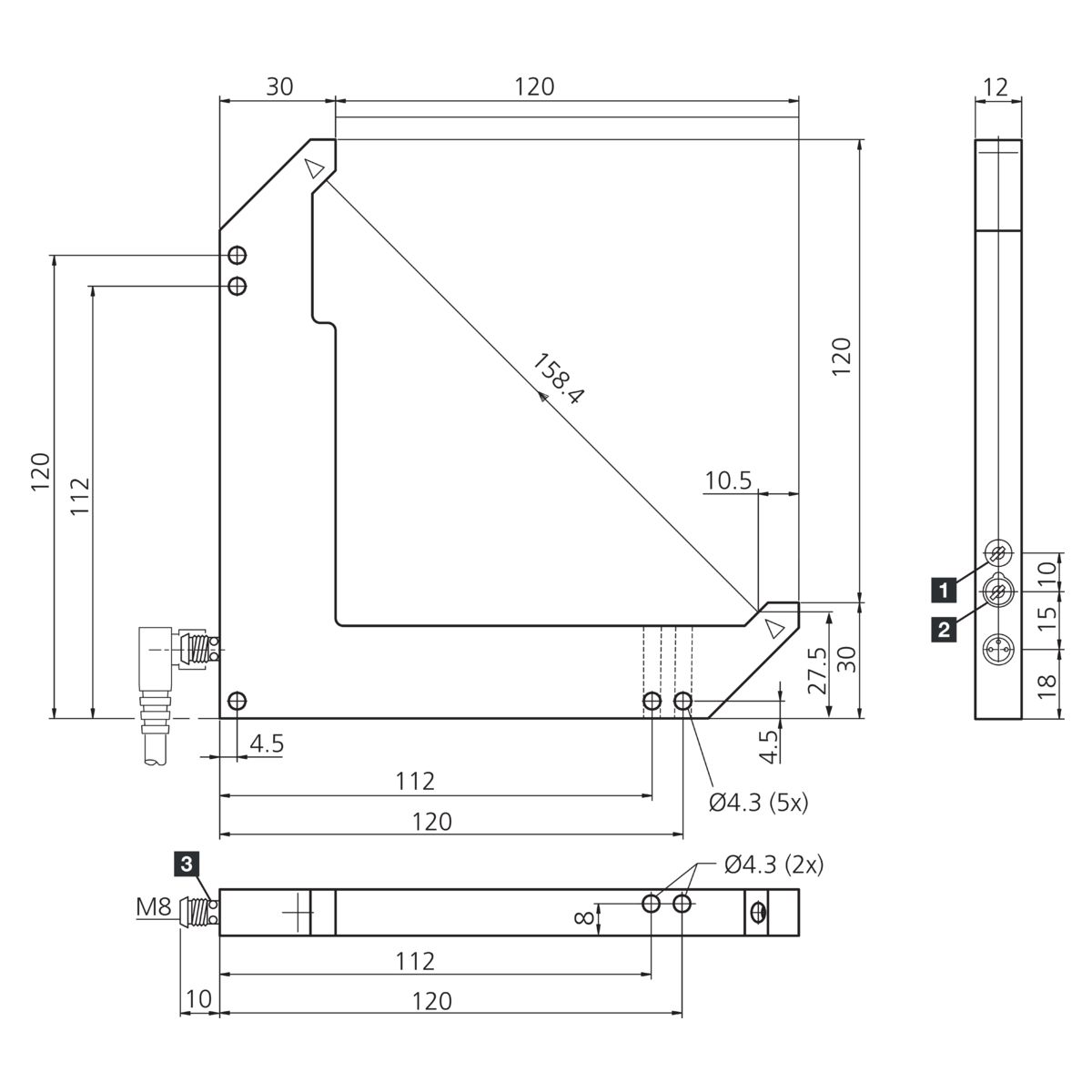

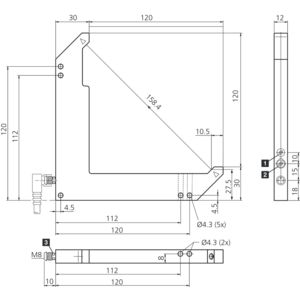

Size	150 x 150 x 12 mm
Ambient temperature during operation	-25 … +60 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
