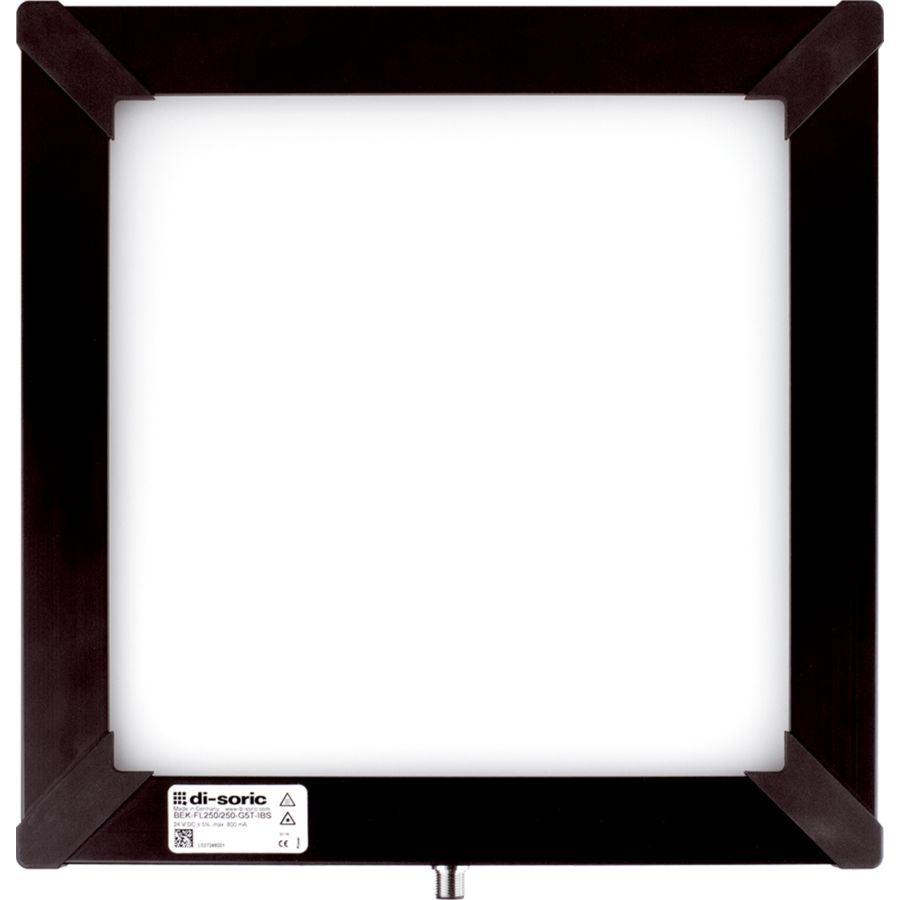

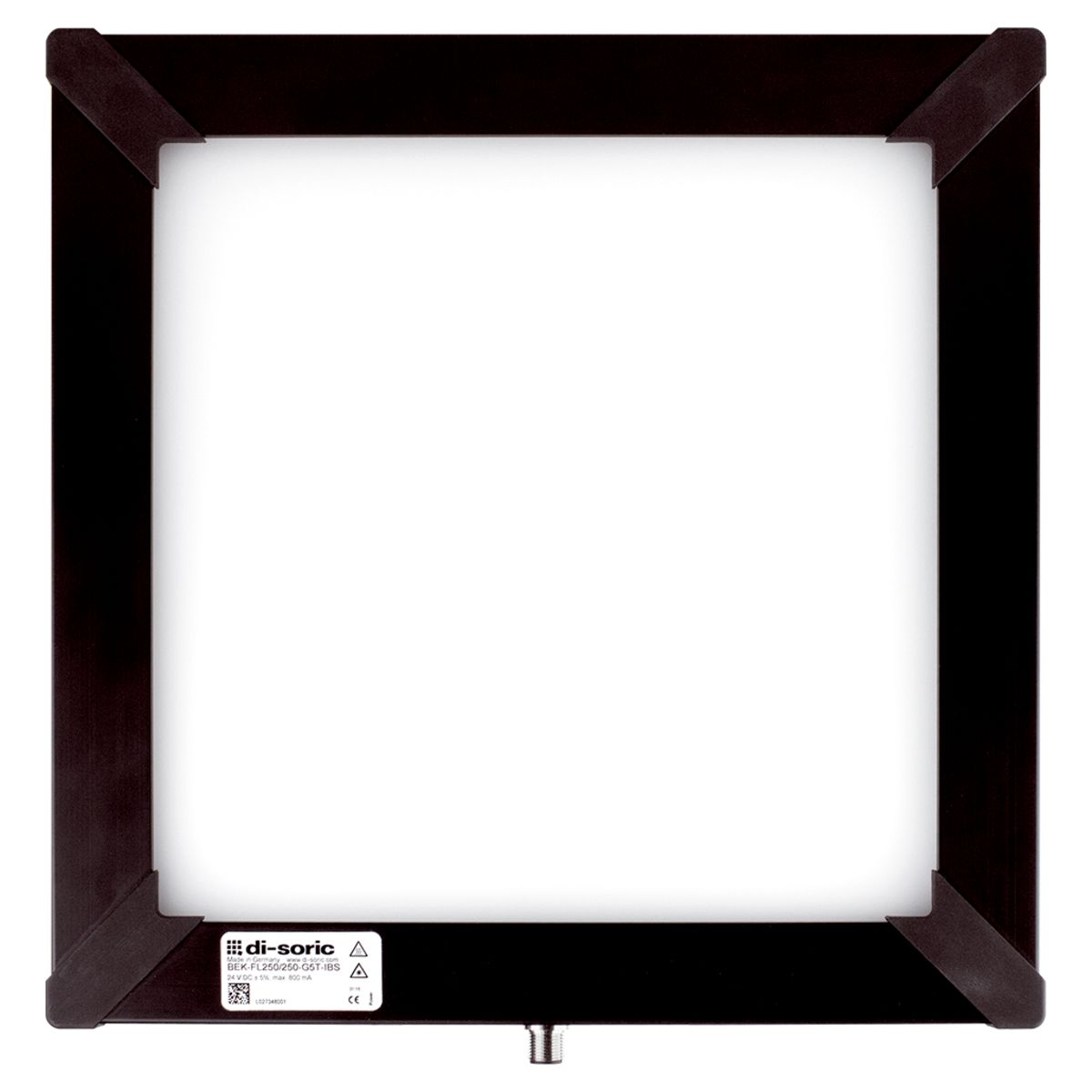

Area Light - BEK-FL250/250-G1T-IBS
Part Number: BEK-FL250/250-G1T-IBS
Article Number: 211021
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Transmitter light source | LED |
|---|---|
| Lichtfarbe | red, 620 nm |
| Illuminated area | 250 x 250 mm |
| Service voltage | 24 V DC (± 1,2 V) |
| Housing material | Aluminum, Black (Anodized) |

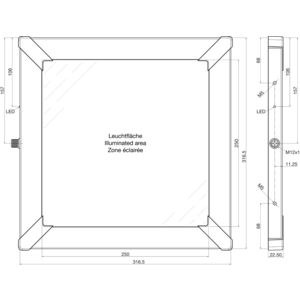

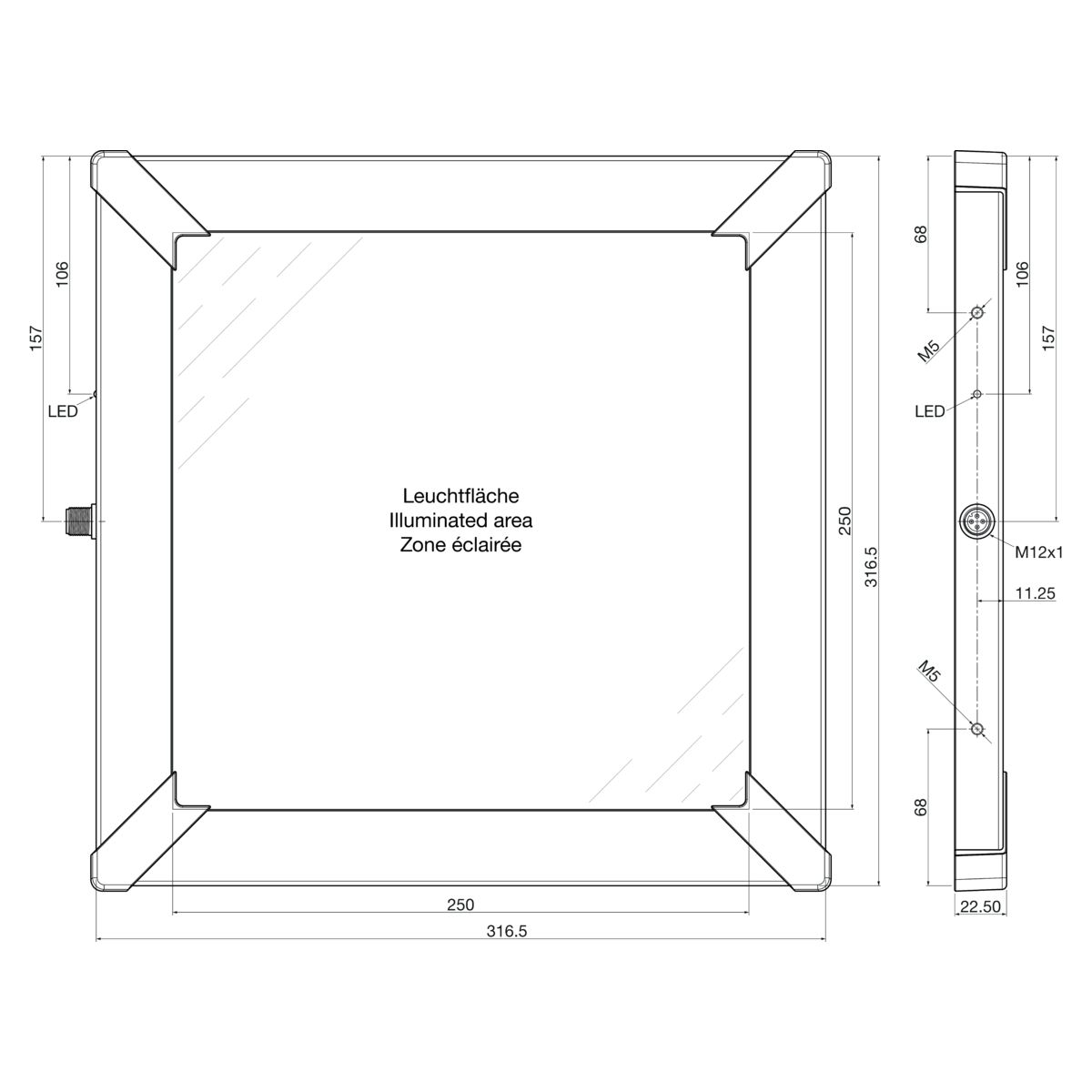

| Größe | 317 x 317 x 23 mm |
| Ambient temperature during operation | 0 … +40 °C |
| Protection type | IP 20 |
| Risk group (DIN EN 62471) | Free group |
| Protection class | III, operation on protective low voltage |

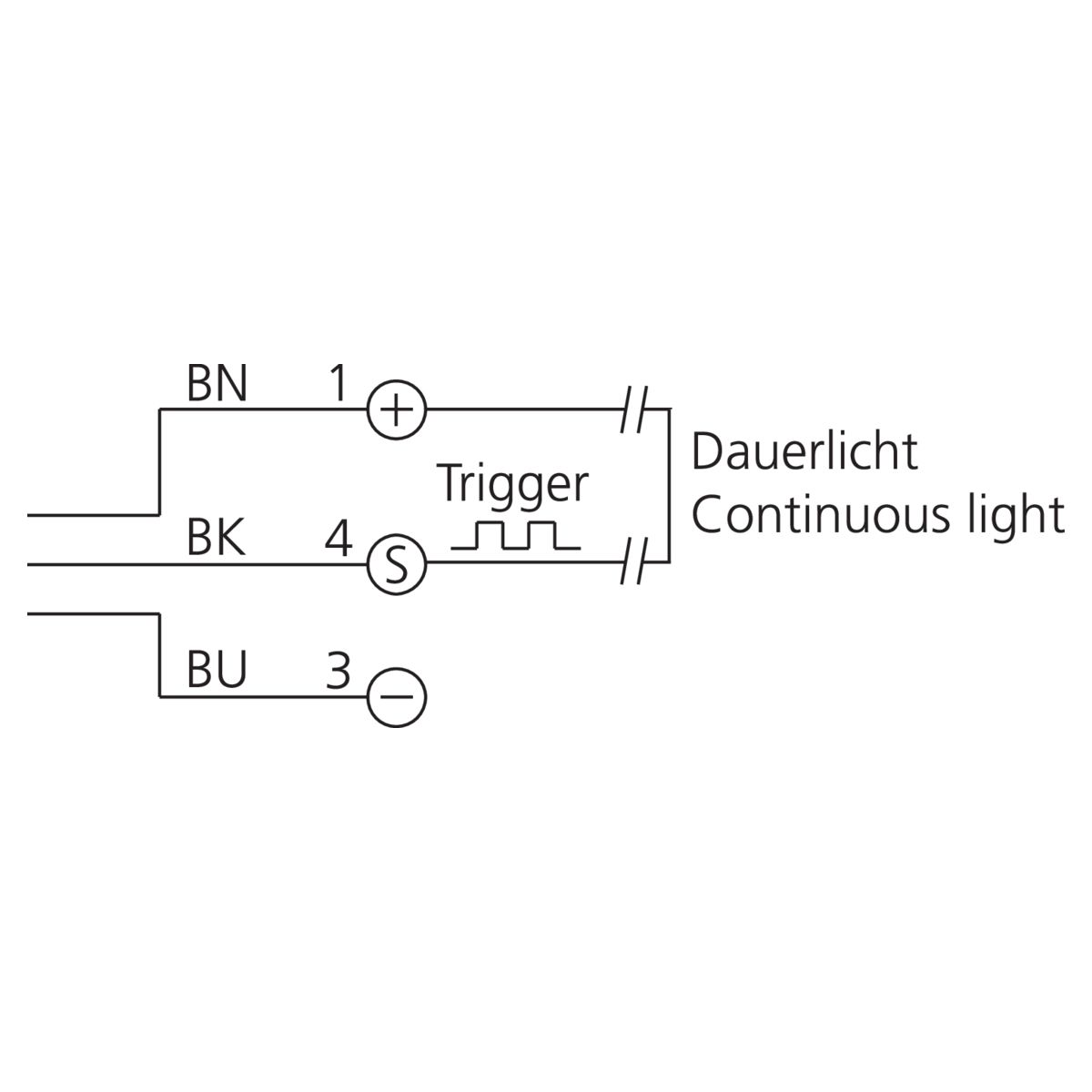

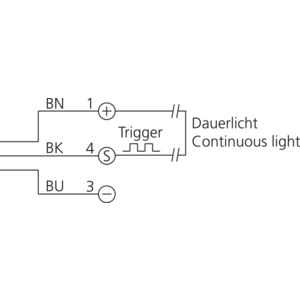

| Anschluss | Connector, M12, 3-pin |
