Barlight - BE 1-A240/120-G2-K-BS
Part Number: BE 1-A240/120-G2-K-BS
Article Number: 206311
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Transmitter light source | LED |
|---|---|
| Light color | green, 525 nm |
| Service voltage | 24 V DC (Supply Class 2) |
| No-load current (max.) | 260 mA (24 V DC) |
| Housing material | Aluminum (Anodized) |
| Größe | 16 x 20 x 254 mm |
| Ambient temperature during operation | 0 … +40 °C |
| Protection type | IP 20 |
| Risk group (DIN EN 62471) | Free group |
| Protection class | III, operation on protective low voltage |

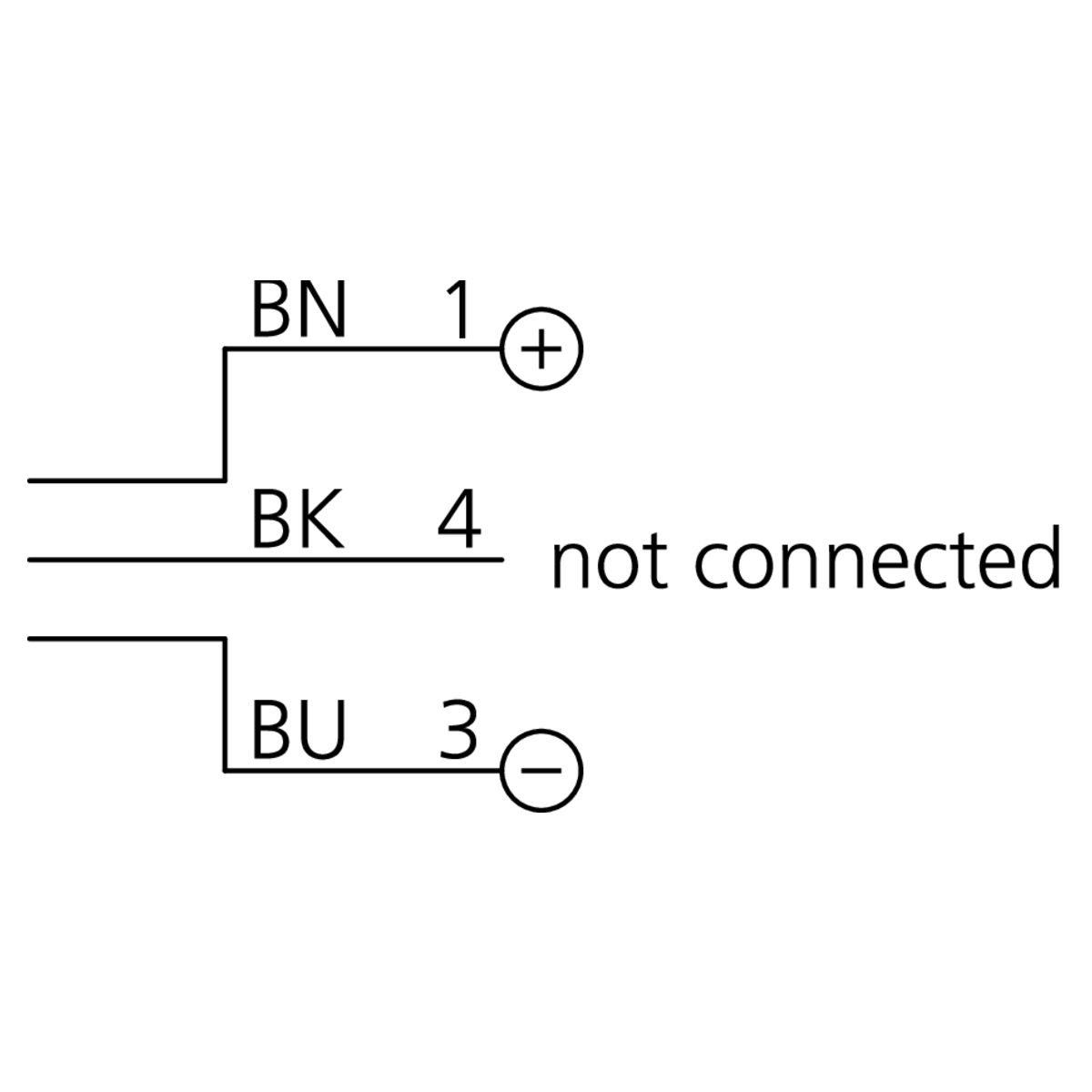

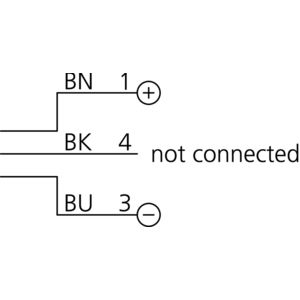

| Anschluss | Cable/connector, 0,3 m, M12 |
