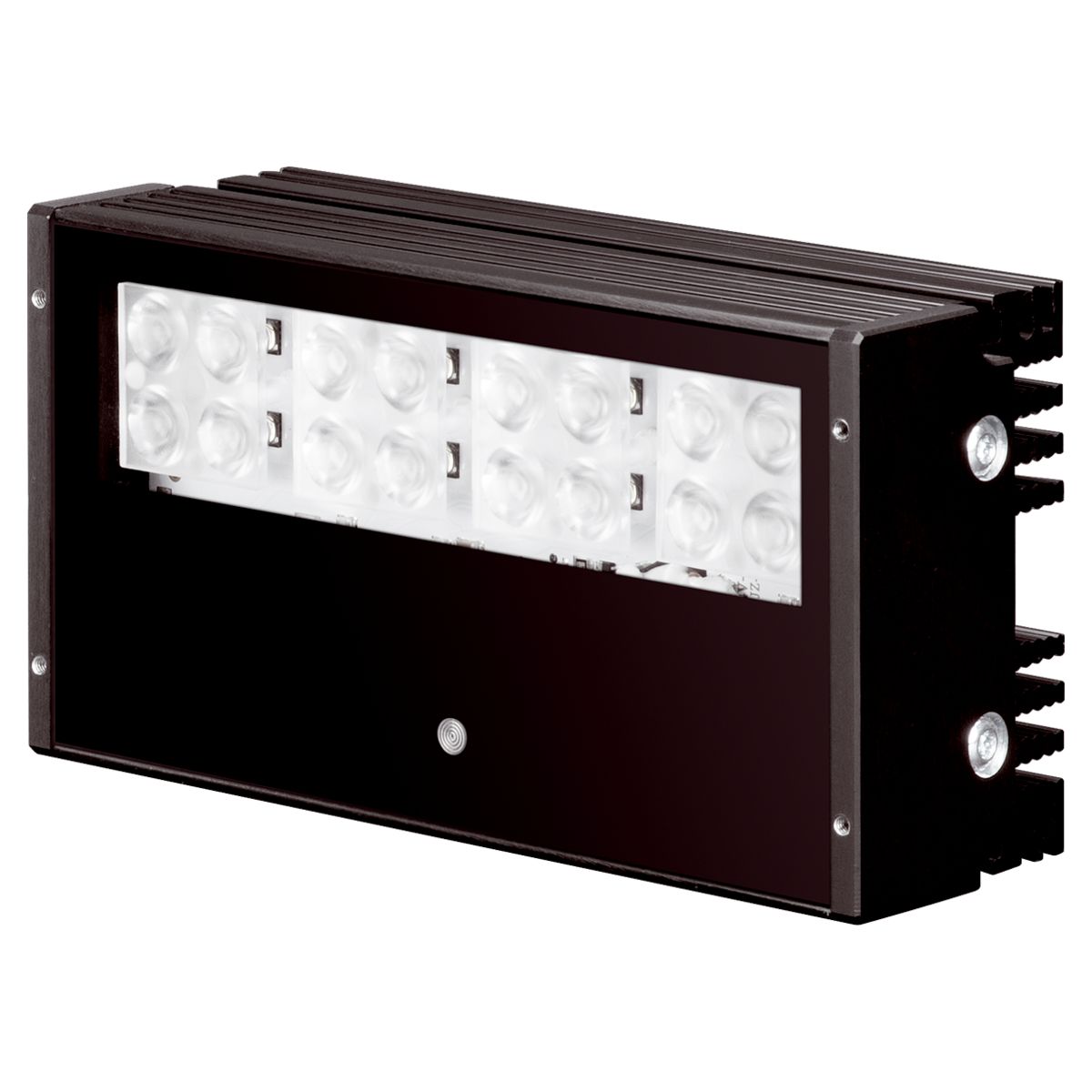

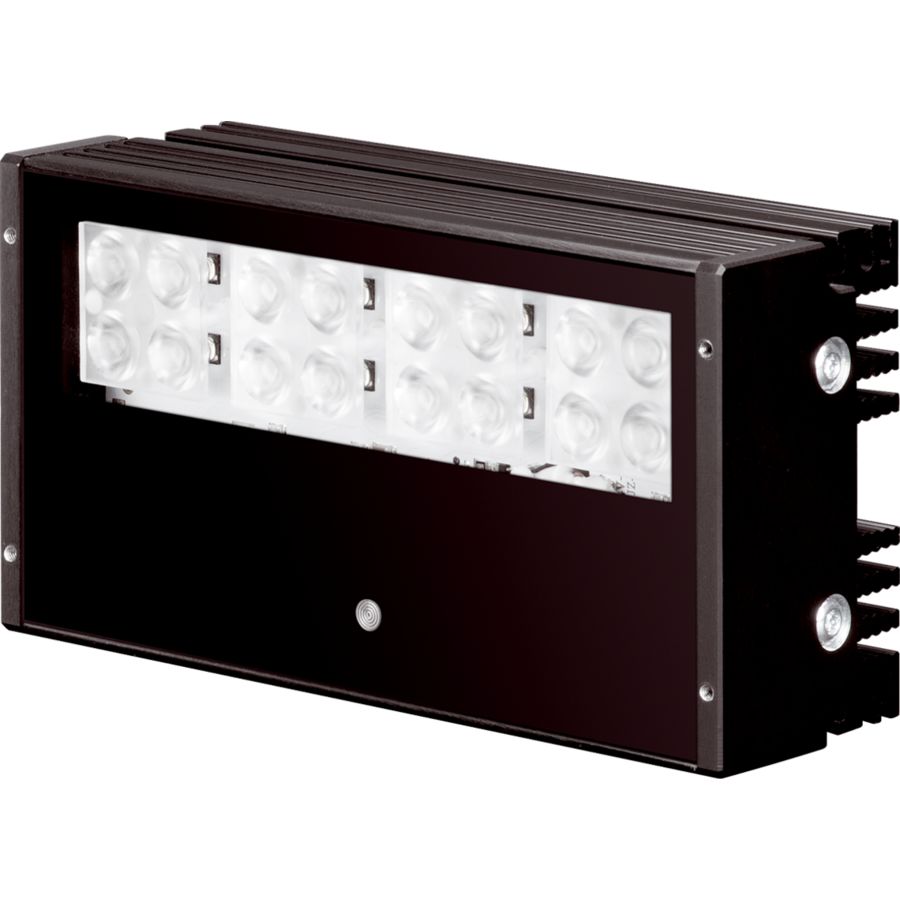

Barlight - BEK-A100-G0T-K-BS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Transmitter light source	LED
Light color	Infrared, 850 nm
Service voltage	18 … 30 V DC (Supply Class 2)
No-load current (max.)	550 mA (24 V DC)
Housing material	Aluminum, Black (Anodized)

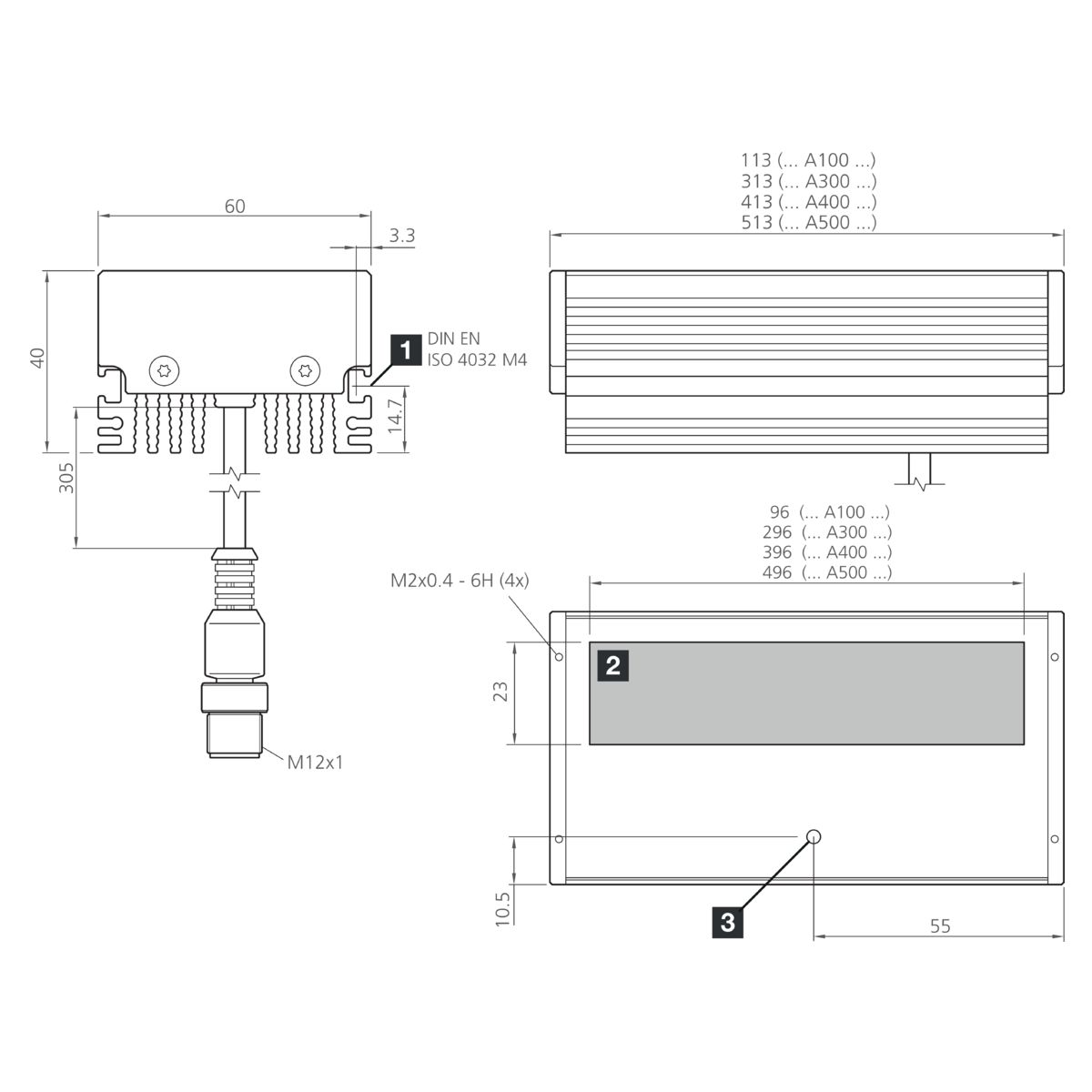

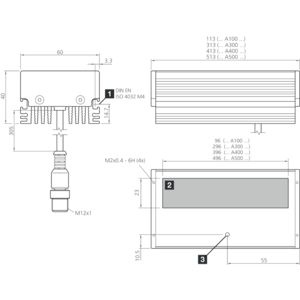

Größe	40 x 60 x 113 mm
Ambient temperature during operation	0 … +40 °C
Protection type	IP 67
Risk group (DIN EN 62471)	Risk group 1
Protection class	III, operation on protective low voltage
Anschluss	Cable/connector, 0,3 m
