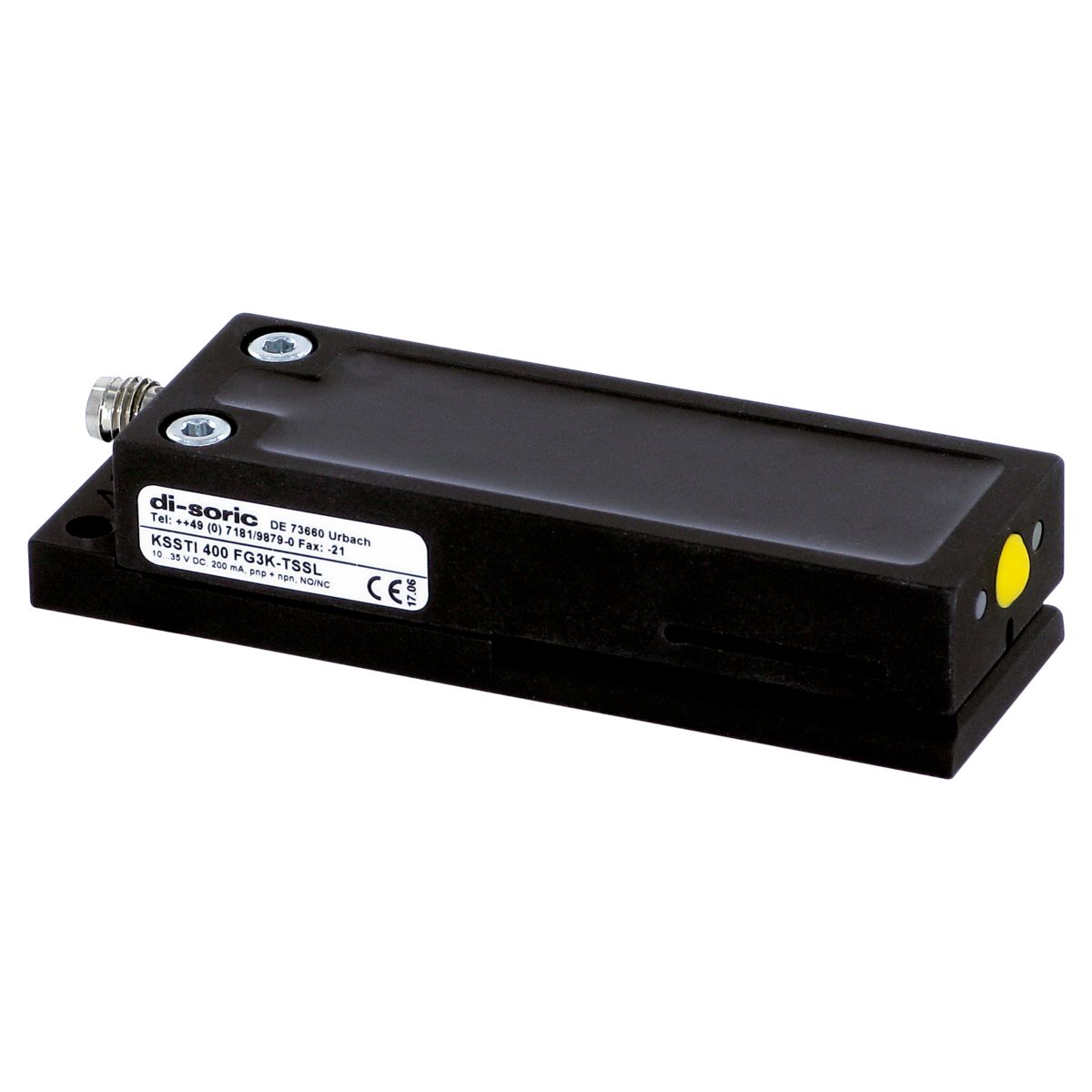

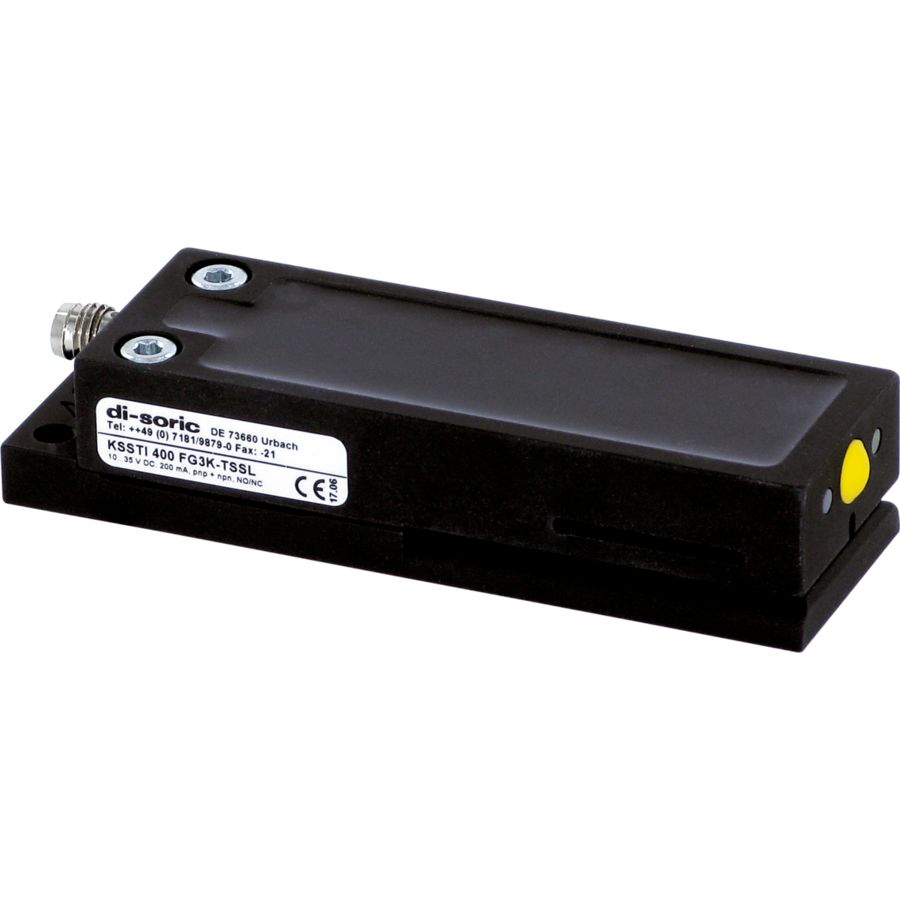

Capacitive Label Sensor - KSSTI 400 G3K-TSSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Capacitive
Sensitivity adjustment	Teach button

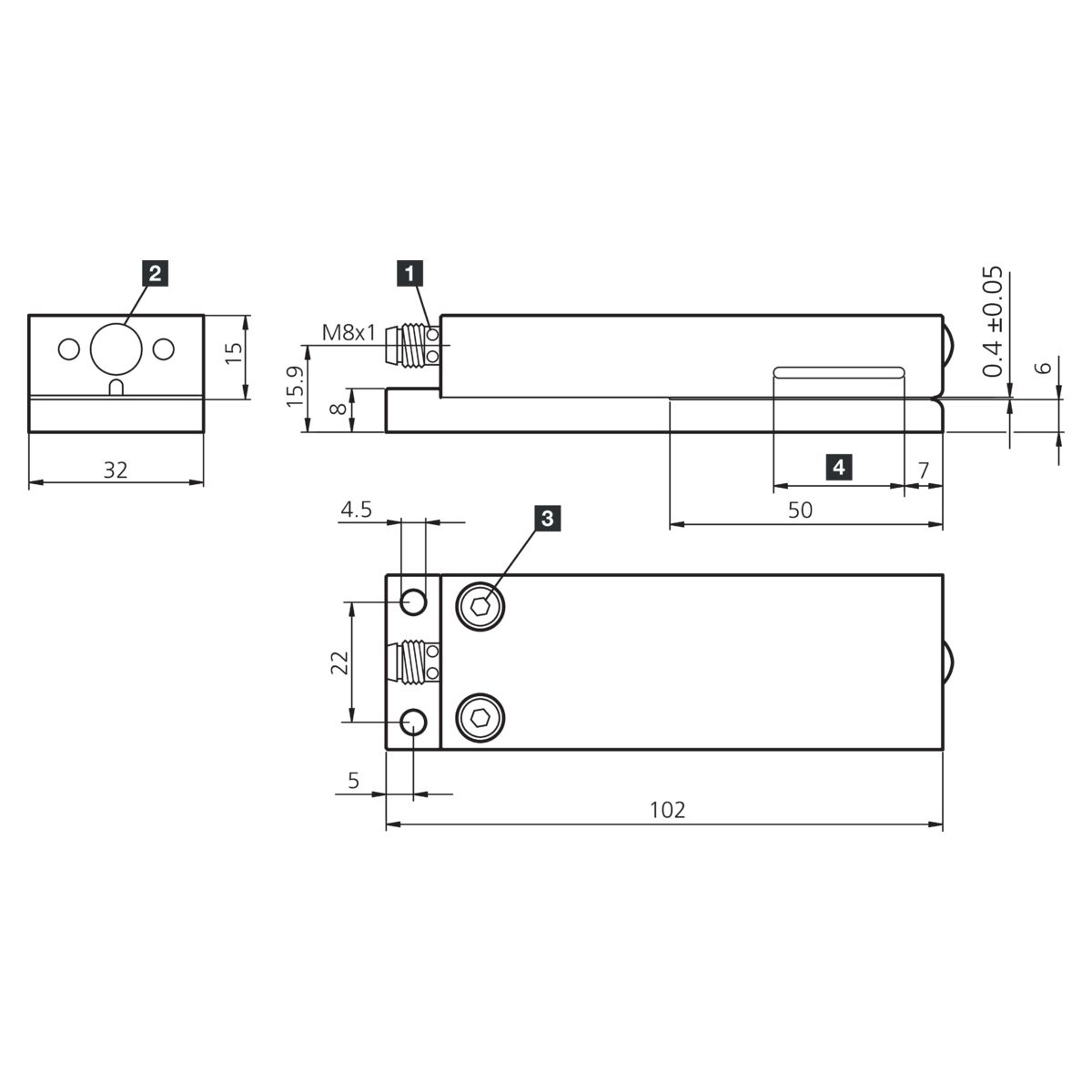

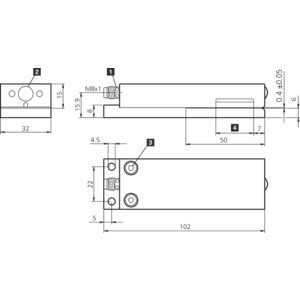

Fork opening	0,4 mm
Leg length internal	50 mm
Service voltage	10 … 35 V DC
No-load current (max.)	70 mA
Switching output	Push-pull, 200 mA, NO/NC
Ambient temperature during operation	0 … +60 °C
Protection type	IP 65

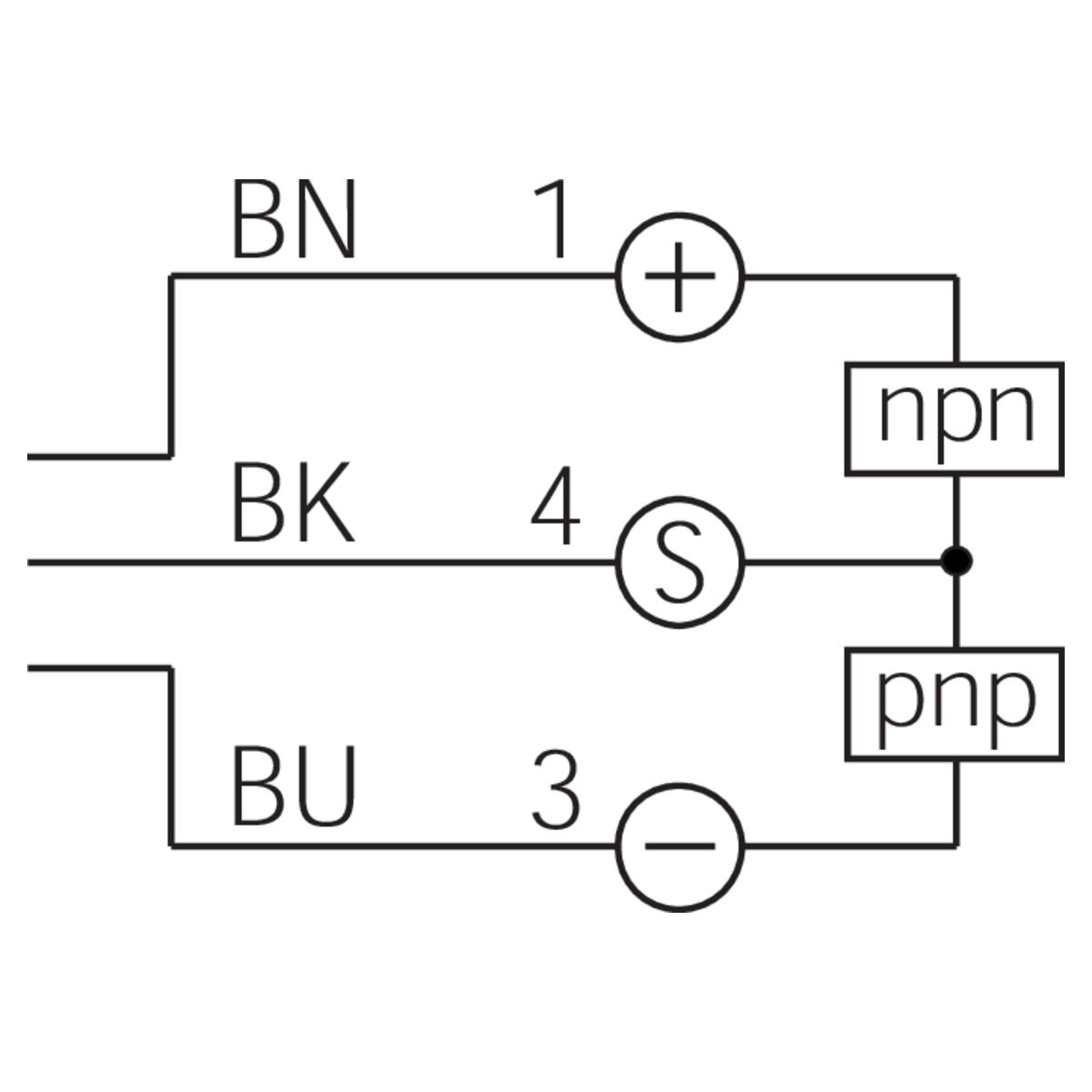

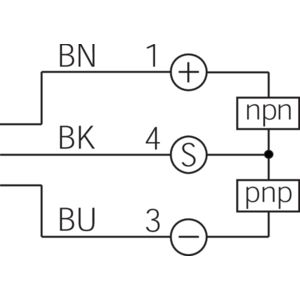

Connection	Connector, M8, 3-pin
