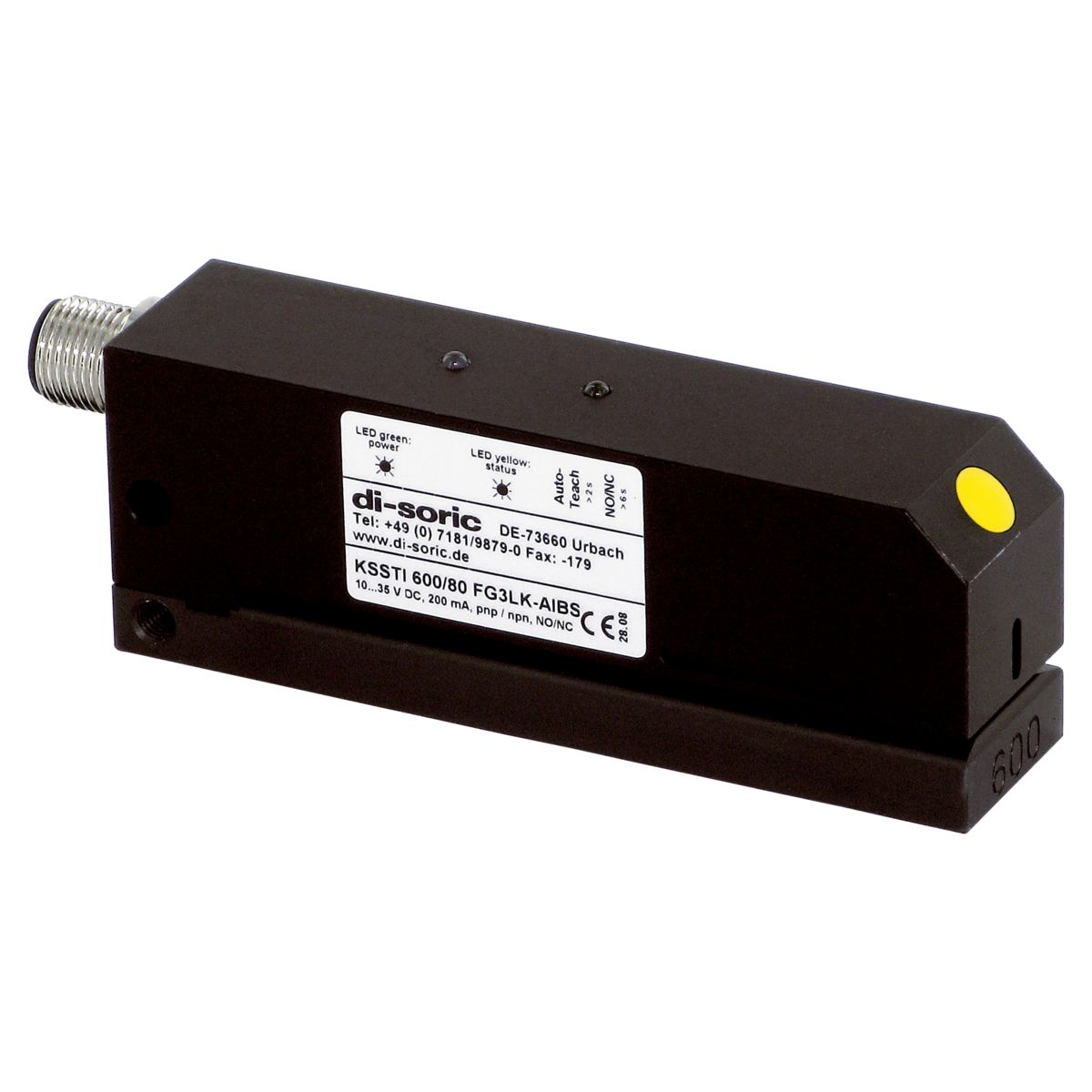

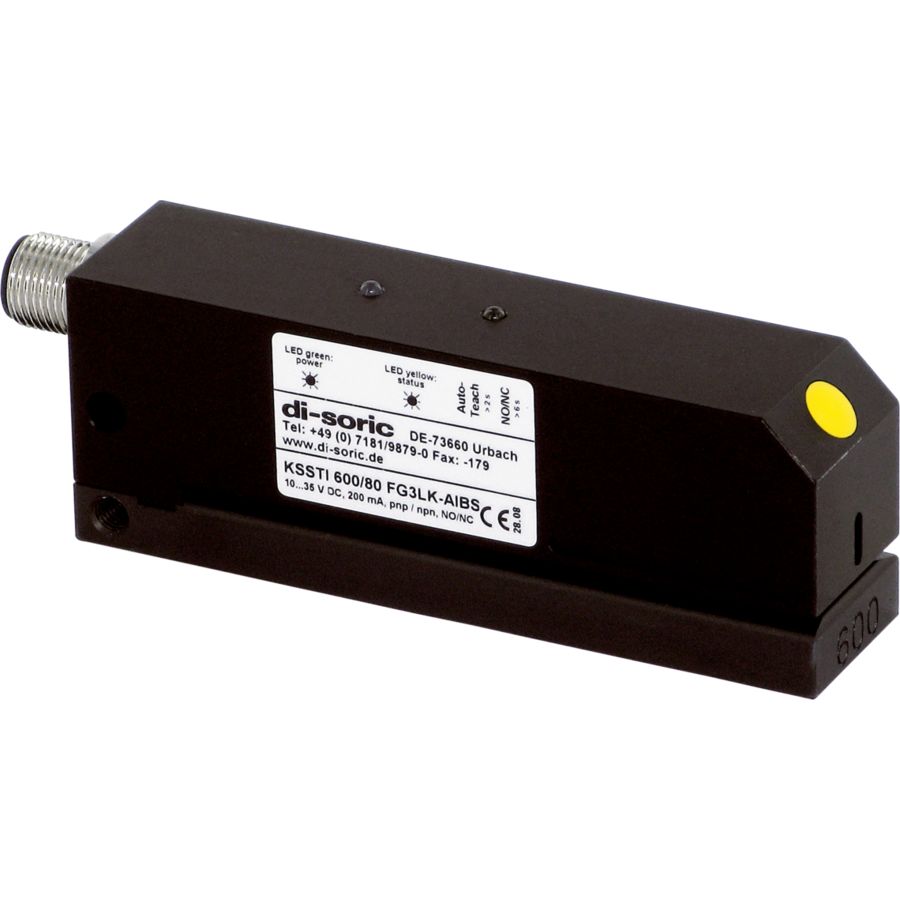

Capacitive Label Sensor - KSSTI 600/80 FG3LK-AIBS
Part Number: KSSTI 600/80 FG3LK-AIBS
Article Number: 203937
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Operating principle | Capacitive |
---|---|
Sensitivity adjustment | Teach button, Remote teach |
Fork opening | 0,6 mm |
Leg length internal | 85 mm |
Service voltage | 10 … 35 V DC |
No-load current (max.) | 70 mA |
Switching output | Push-pull, 200 mA, NO/NC |
Ambient temperature during operation | 0 … +60 °C |
Protection type | IP 65 |
Connection | Connector, M12, 4-pin |
