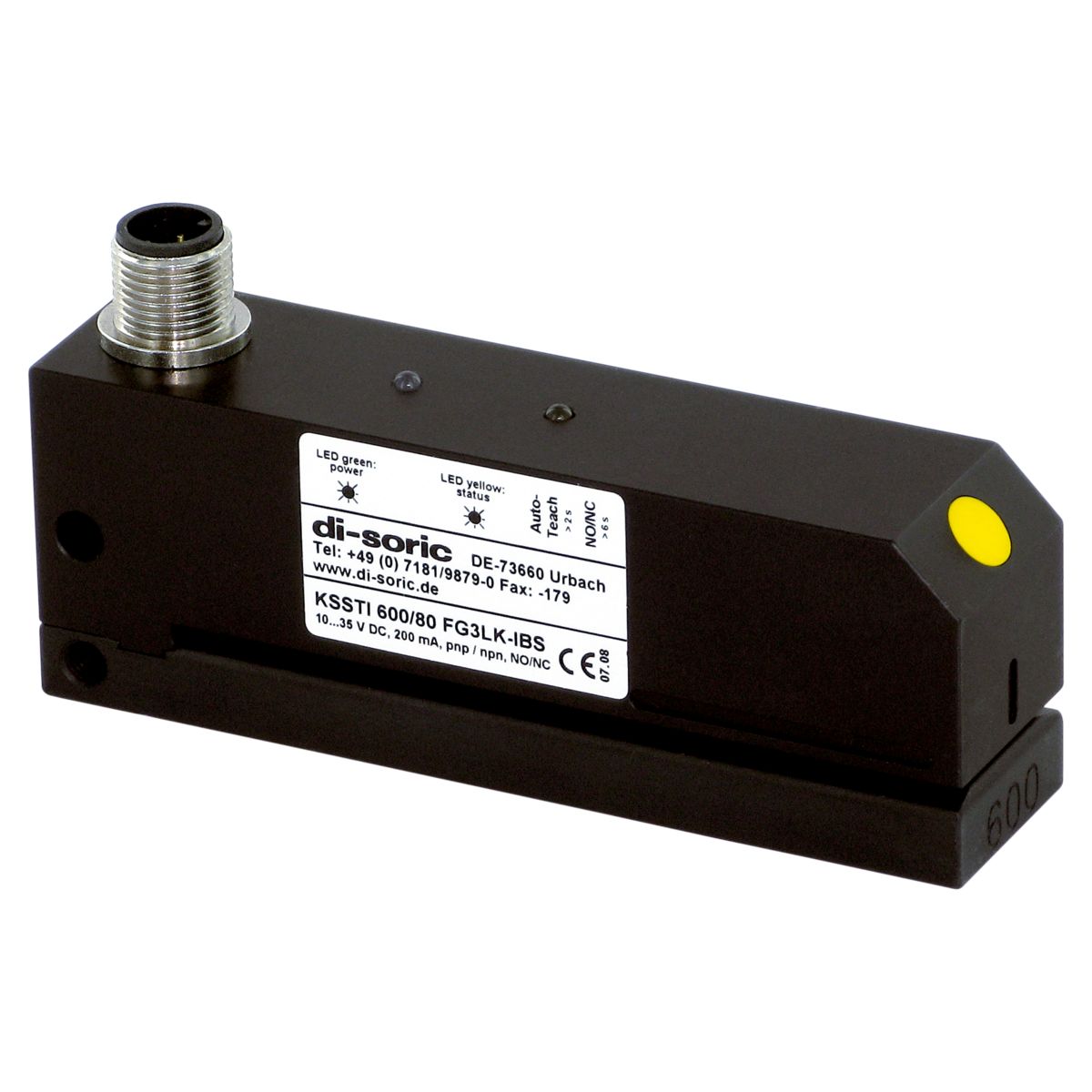

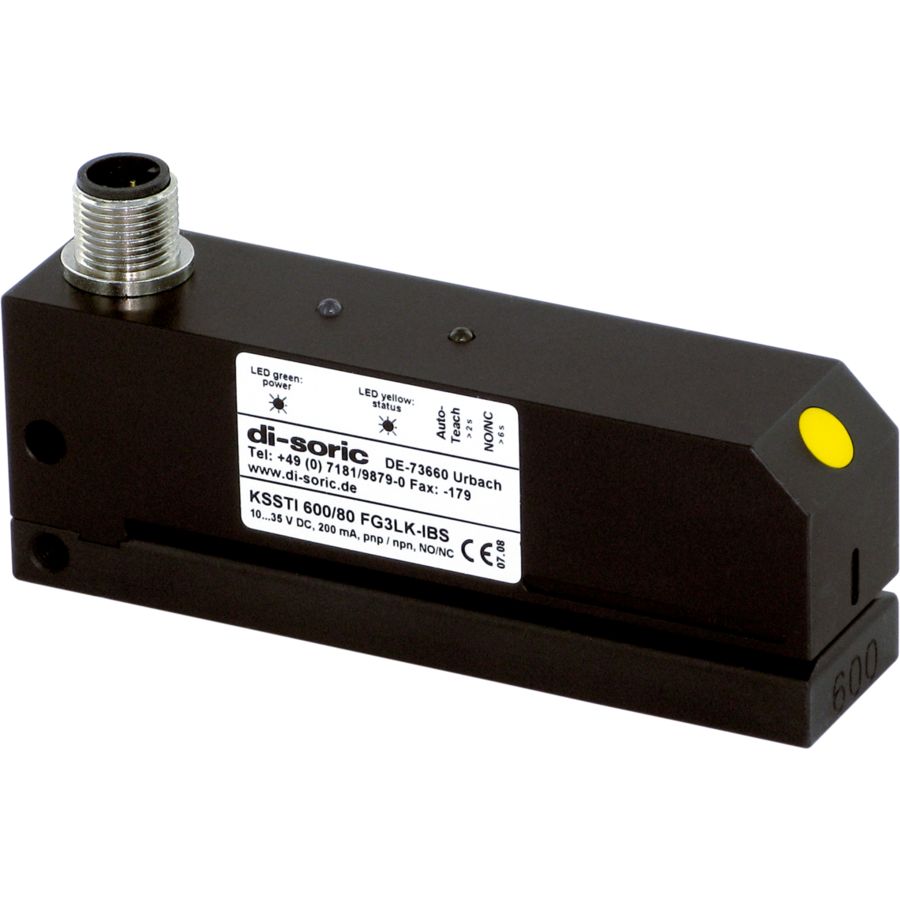

Capacitive Label Sensor - KSSTI 600/80 FG3LK-IBS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Capacitive
Sensitivity adjustment	Teach button, Remote teach
Fork opening	0,6 mm
Leg length internal	85 mm
Service voltage	10 … 35 V DC
No-load current (max.)	70 mA

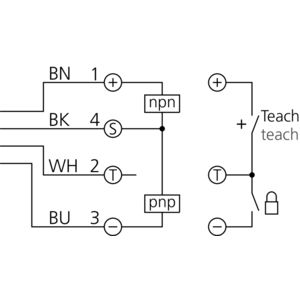

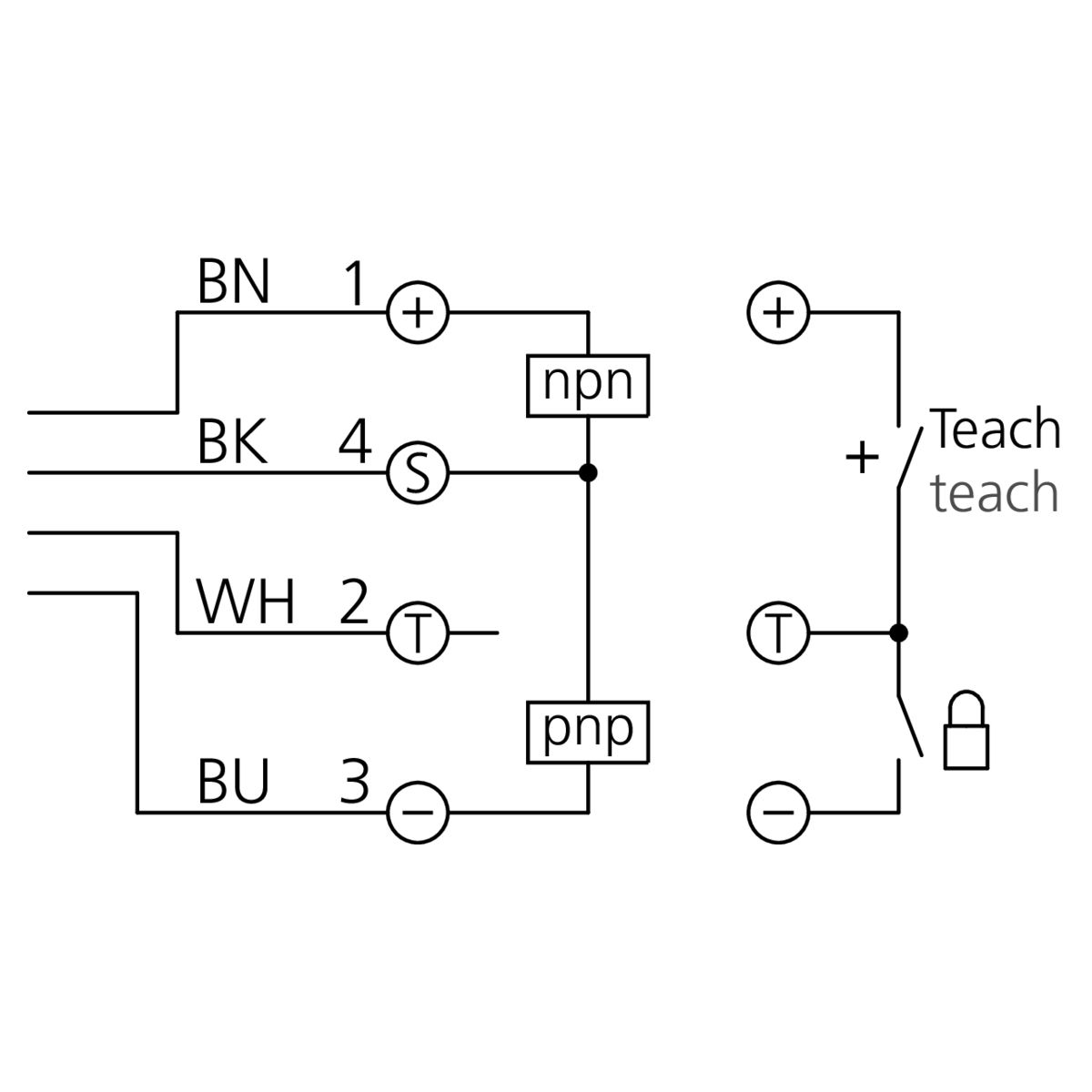

Switching output	Push-pull, 200 mA, NO/NC
Ambient temperature during operation	0 … +60 °C
Protection type	IP 65
Connection	Connector, M12, 4-pin
