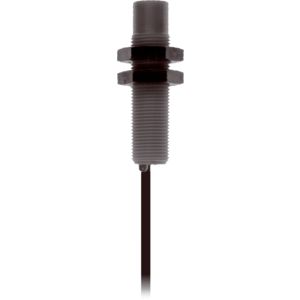

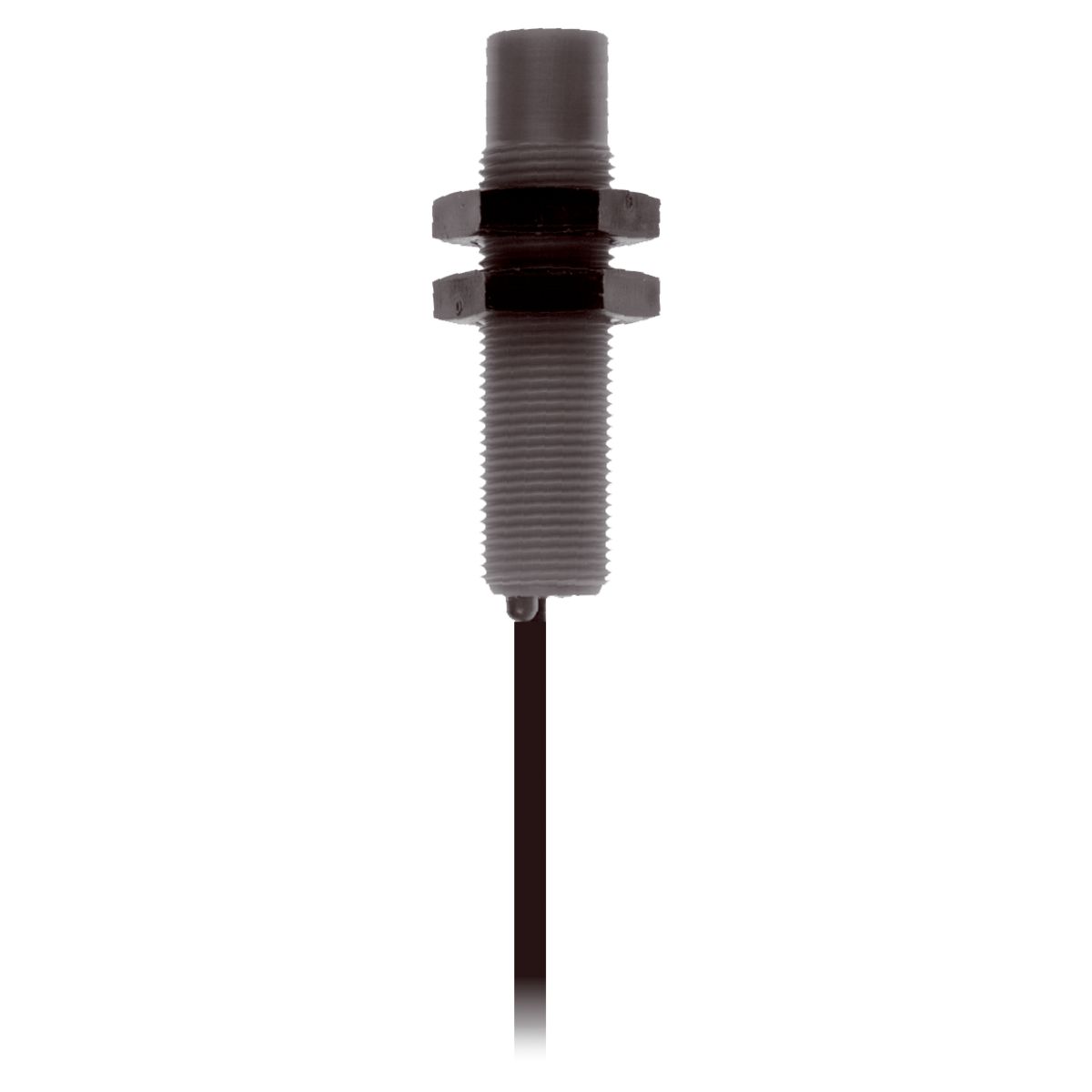

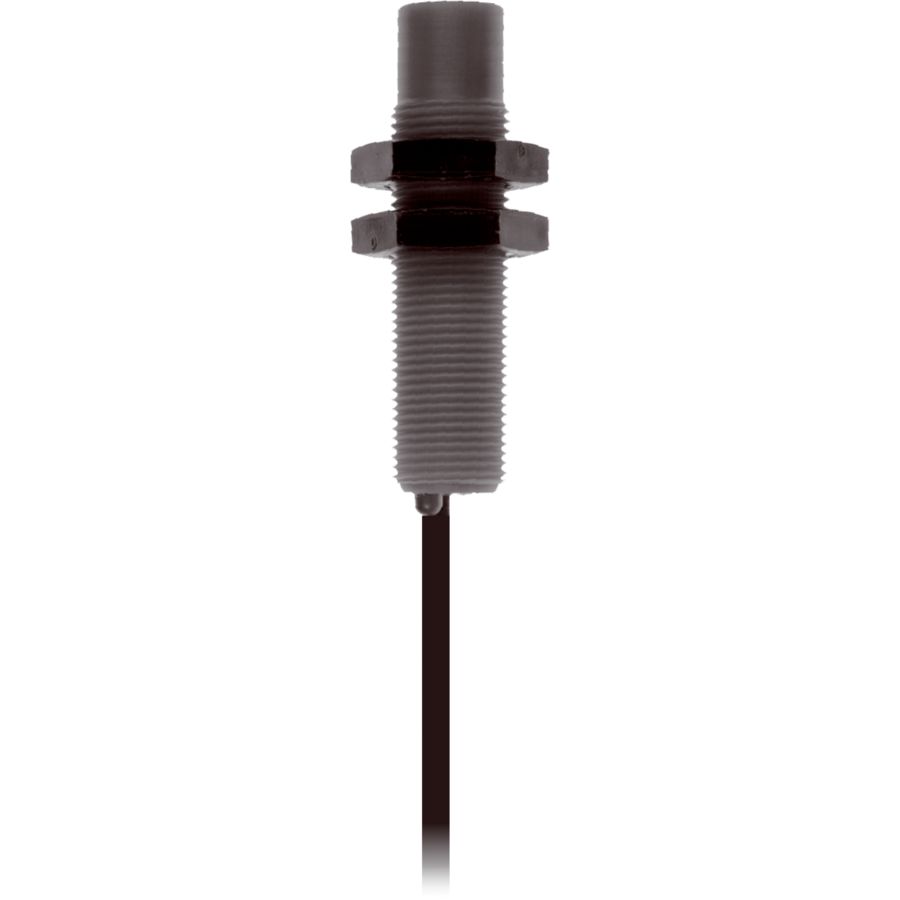

Capacitive Proximity Switch - KDC 12 K 08 POLK
Part Number: KDC 12 K 08 POLK
Article Number: 200817
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Capacitive |
|---|---|
| Installation type | non-flush |
| Switching distance | 8 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 100 mA, NC |
| No-load current (max.) | 13 mA (24 V DC) |
| Evaluation | digital |
| Design | Thread |
| Housing material | Plastic, Plastic |

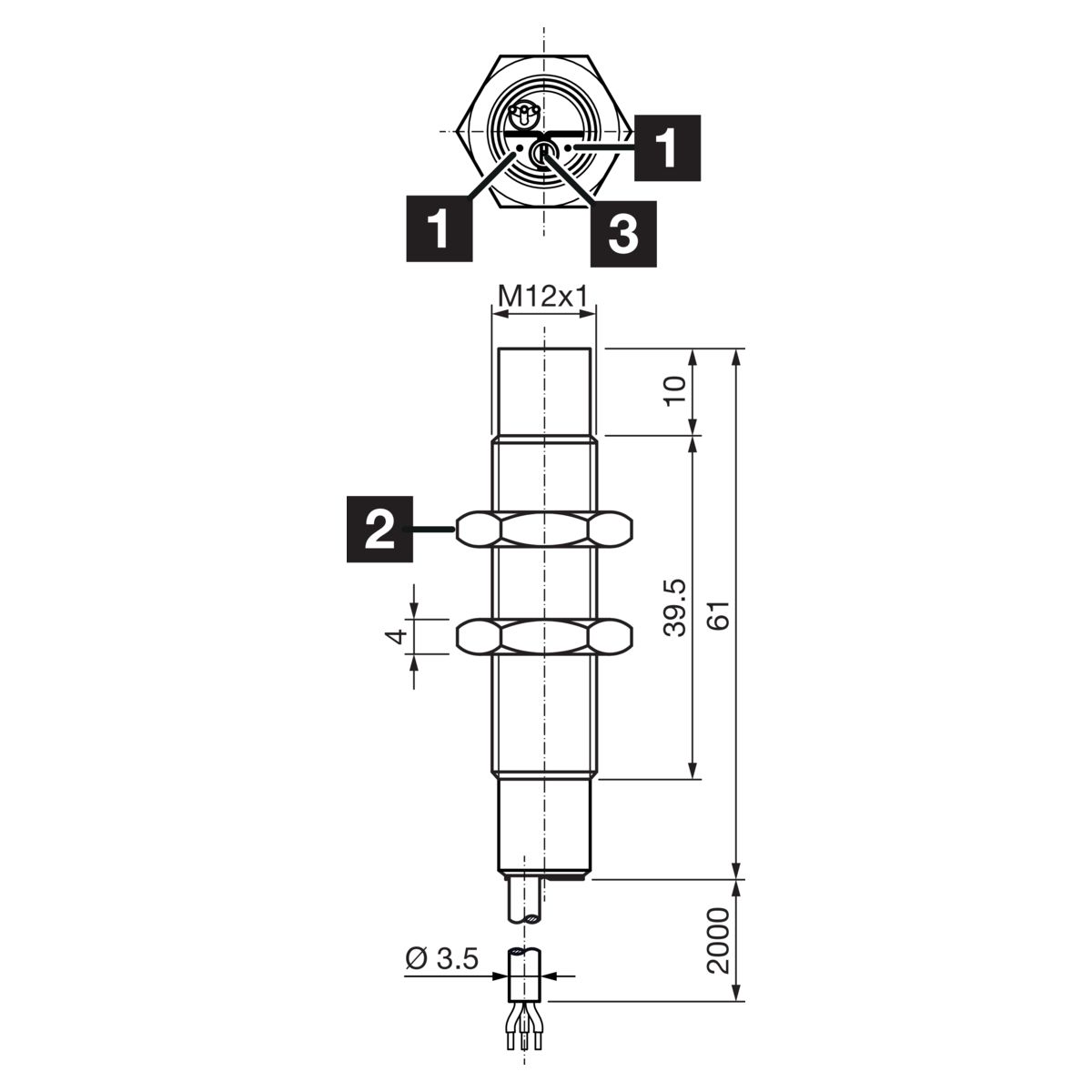

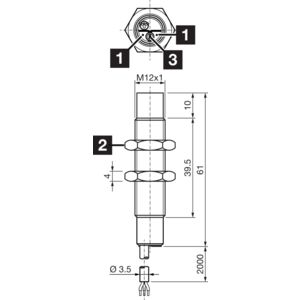

| Size | M12 x 1 |
| Protection type | IP 67 |
| Ambient temperature during operation | -25 … +85 °C |
| Connection | Cable, 2 m, 3-pin |
