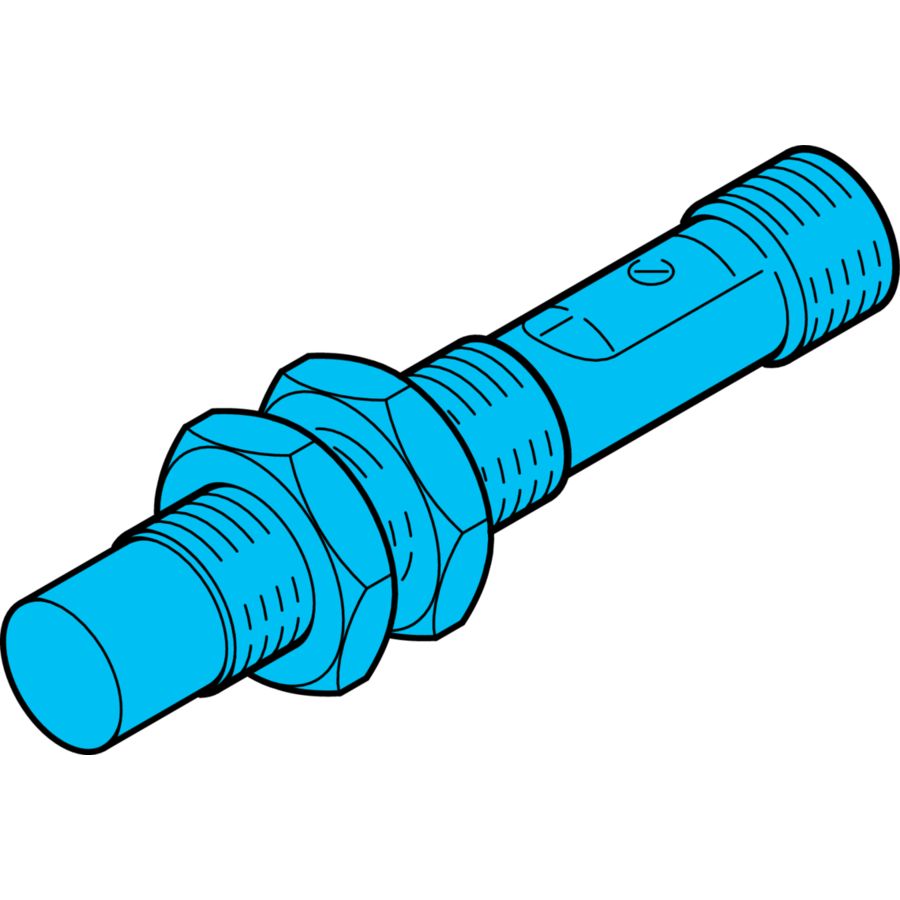

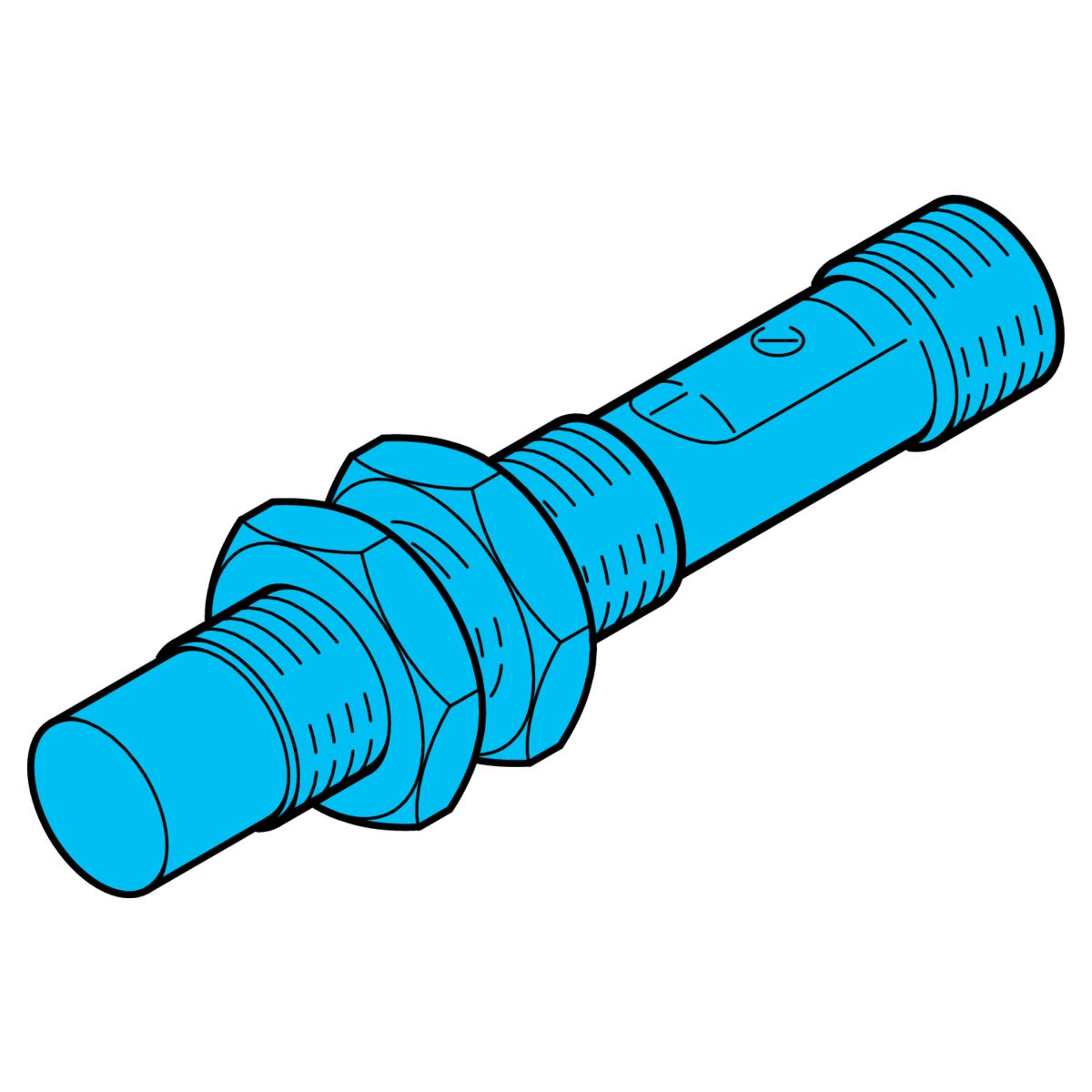

Capacitive Proximity Switch - KDC 12 K 08L PSK-IBSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Capacitive
Installation type	non-flush
Switching distance	8 mm
Service voltage	10 … 30 V DC
Switching output	pnp, 100 mA, NO
No-load current (max.)	13 mA
Evaluation	digital
Design	Thread
Housing material	Plastic

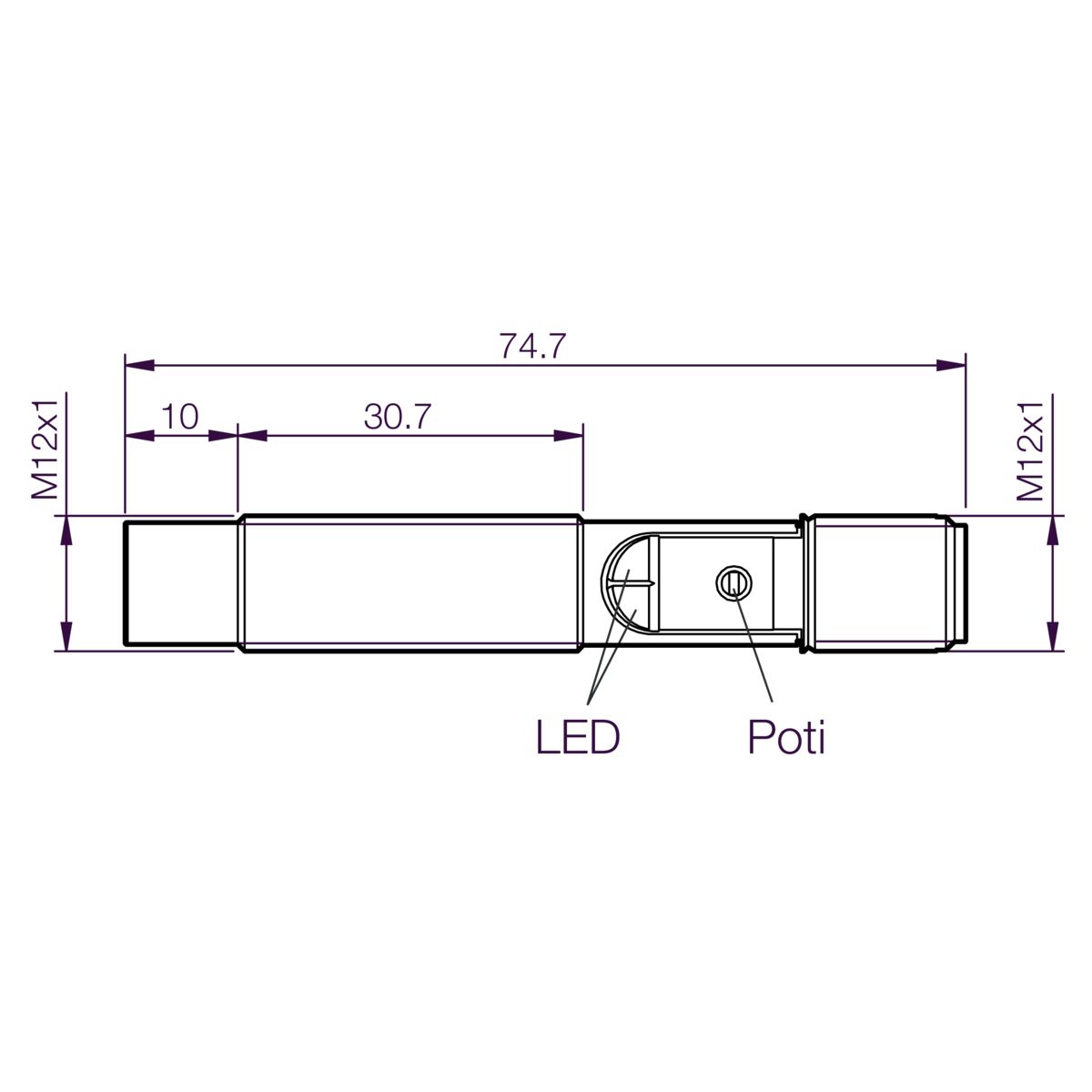

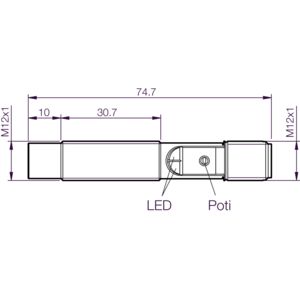

Size	M12 x 1
Protection type	IP 67
Ambient temperature during operation	-25 … +85 °C
Connection	Connector, M12 x 1, 4-pin
