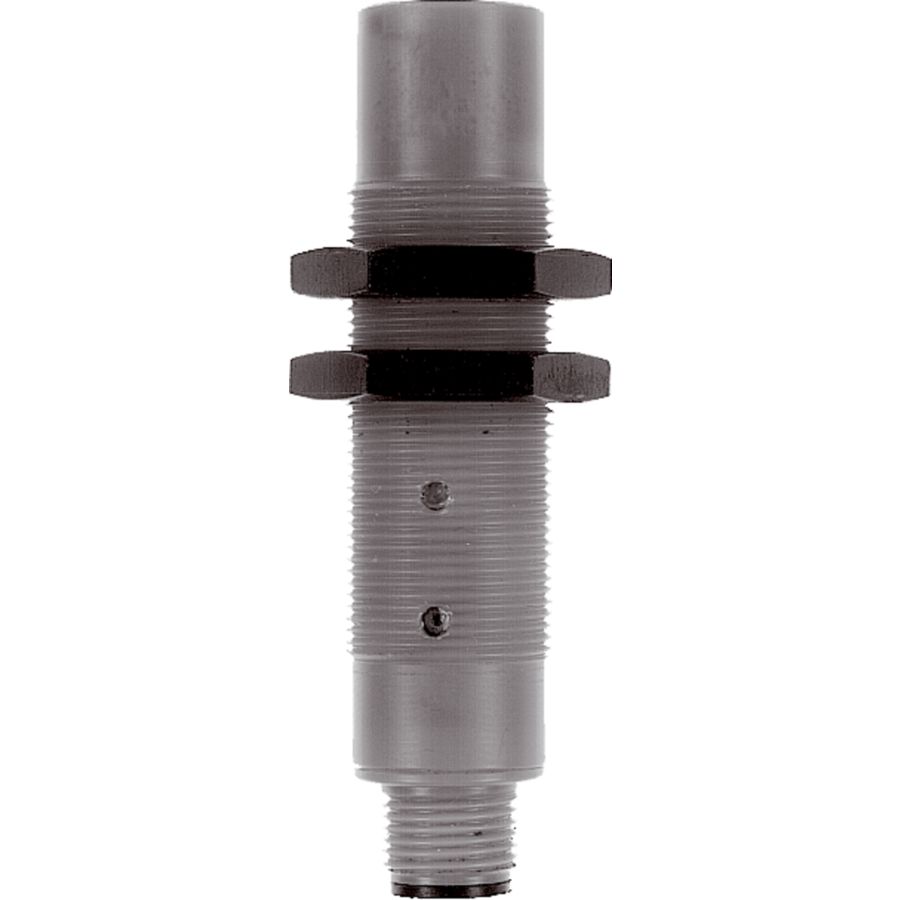

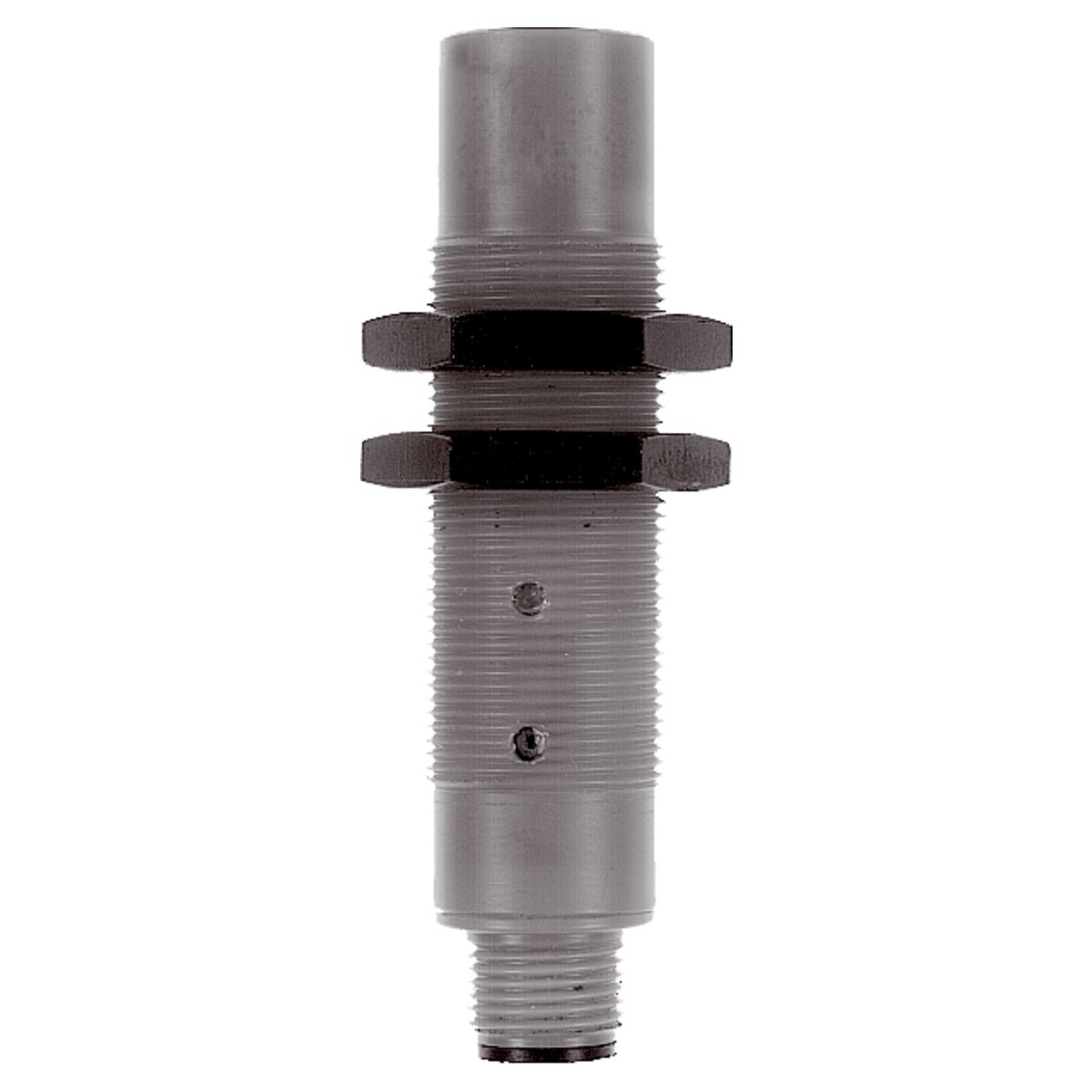

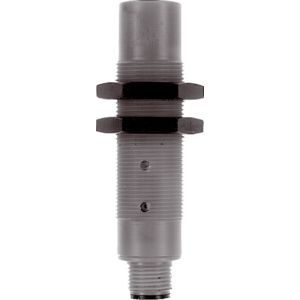

Capacitive Proximity Switch - KDC 18 K 15 POK-IBSL
Part Number: KDC 18 K 15 POK-IBSL
Article Number: 200828
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Capacitive |
|---|---|
| Installation type | non-flush |
| Switching distance | 15 mm |
| Service voltage | 10 … 35 V DC |
| Switching output | pnp, 200 mA, NC |
| No-load current (max.) | 10 mA |
| Evaluation | digital |
| Design | Thread |
| Housing material | Plastic |
| Size | M18 x 1 |
| Protection type | IP 67 |
| Ambient temperature during operation | -30 … +70 °C |
| Connection | Connector, M12, 3-pin |
