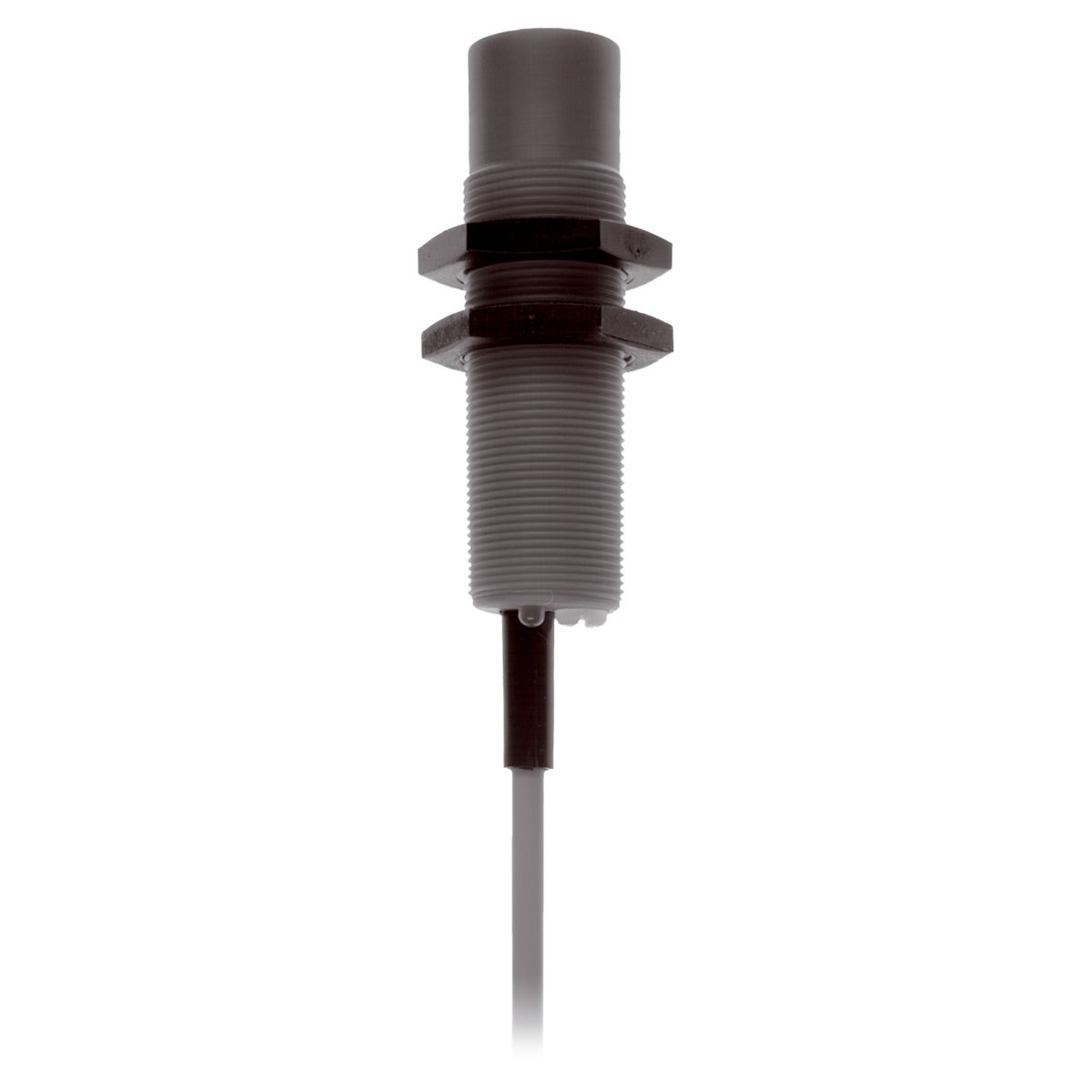

Capacitive Proximity Switch - KDC 18 K 15S PSLK

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Capacitive
Installation type	non-flush
Switching distance	15 mm
Service voltage	10 … 35 V DC
Switching output	pnp, 200 mA, NO
No-load current (max.)	10 mA
Evaluation	digital
Design	Thread
Housing material	Plastic

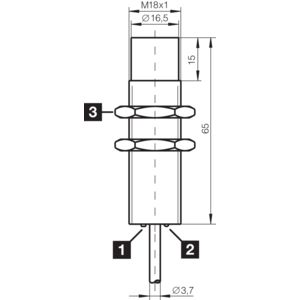

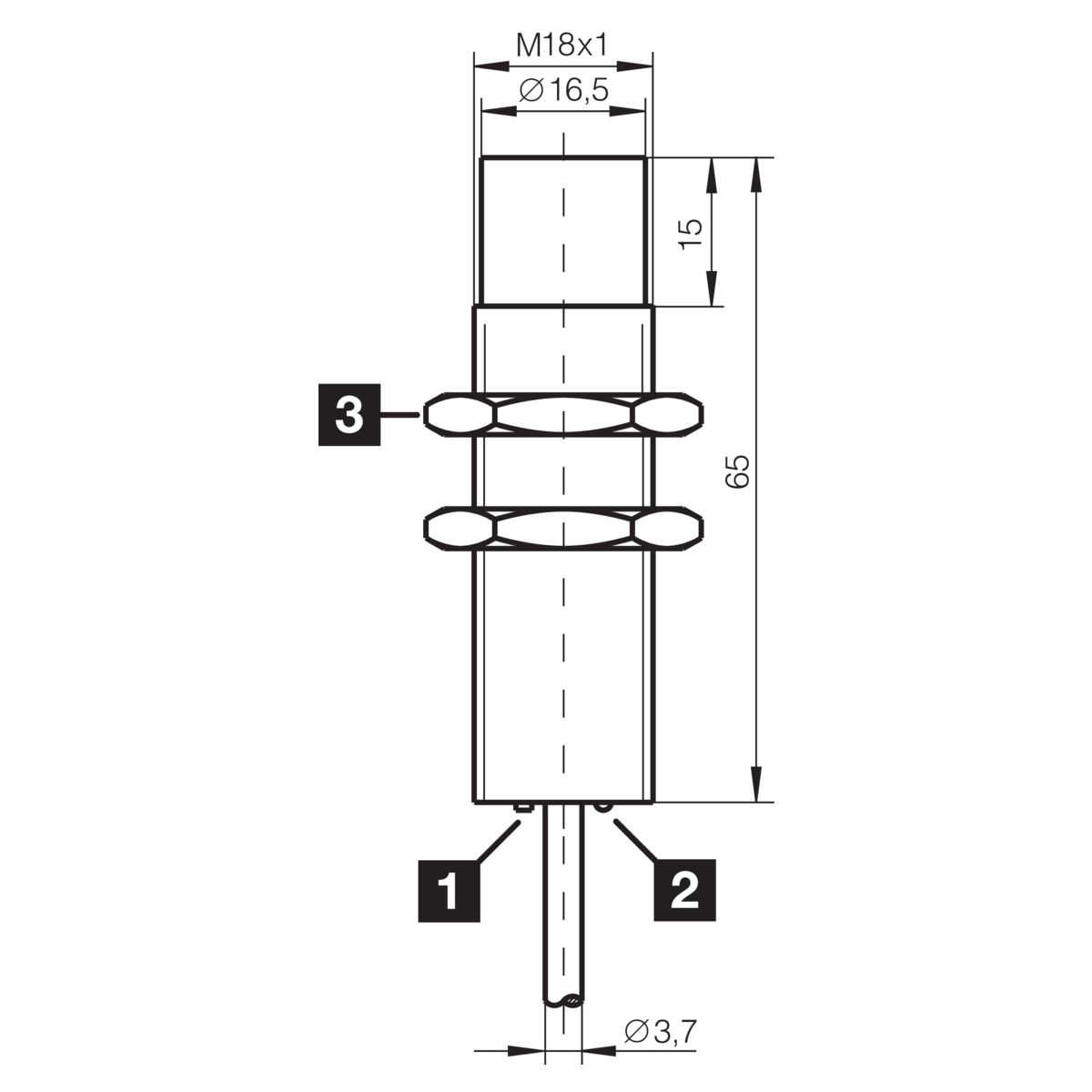

Size	M18 x 1
Protection type	IP 67
Ambient temperature during operation	-30 … +70 °C
Connection	Cable, Connector, 2 m, M12
