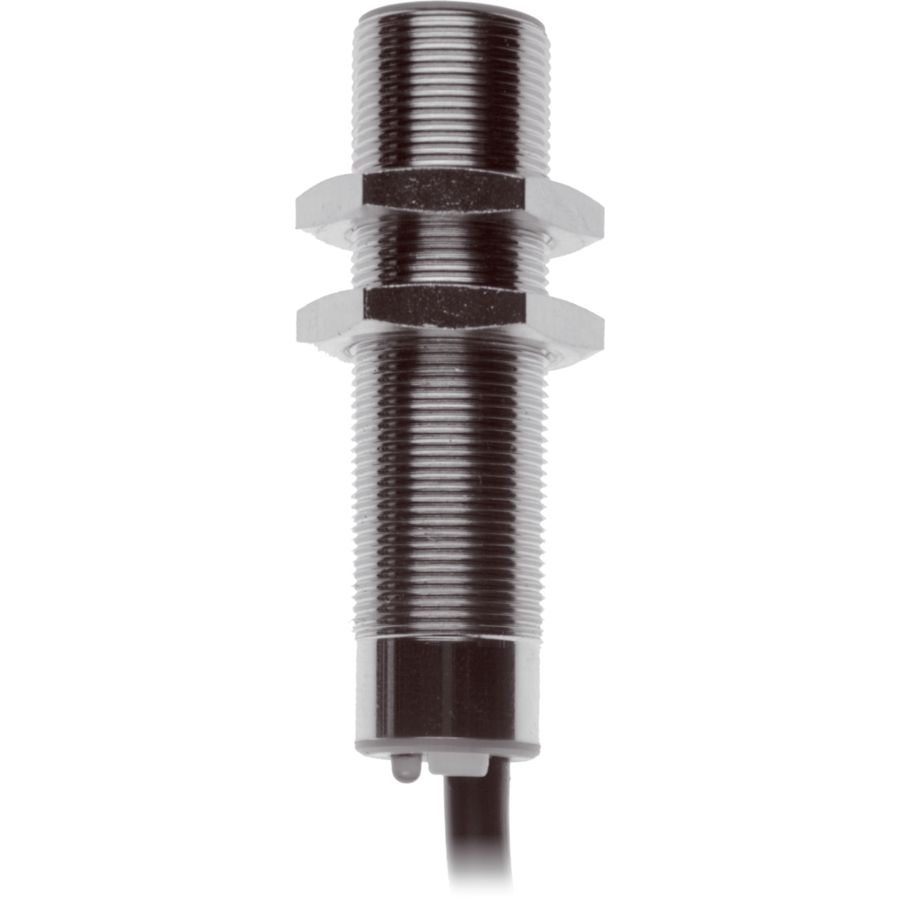

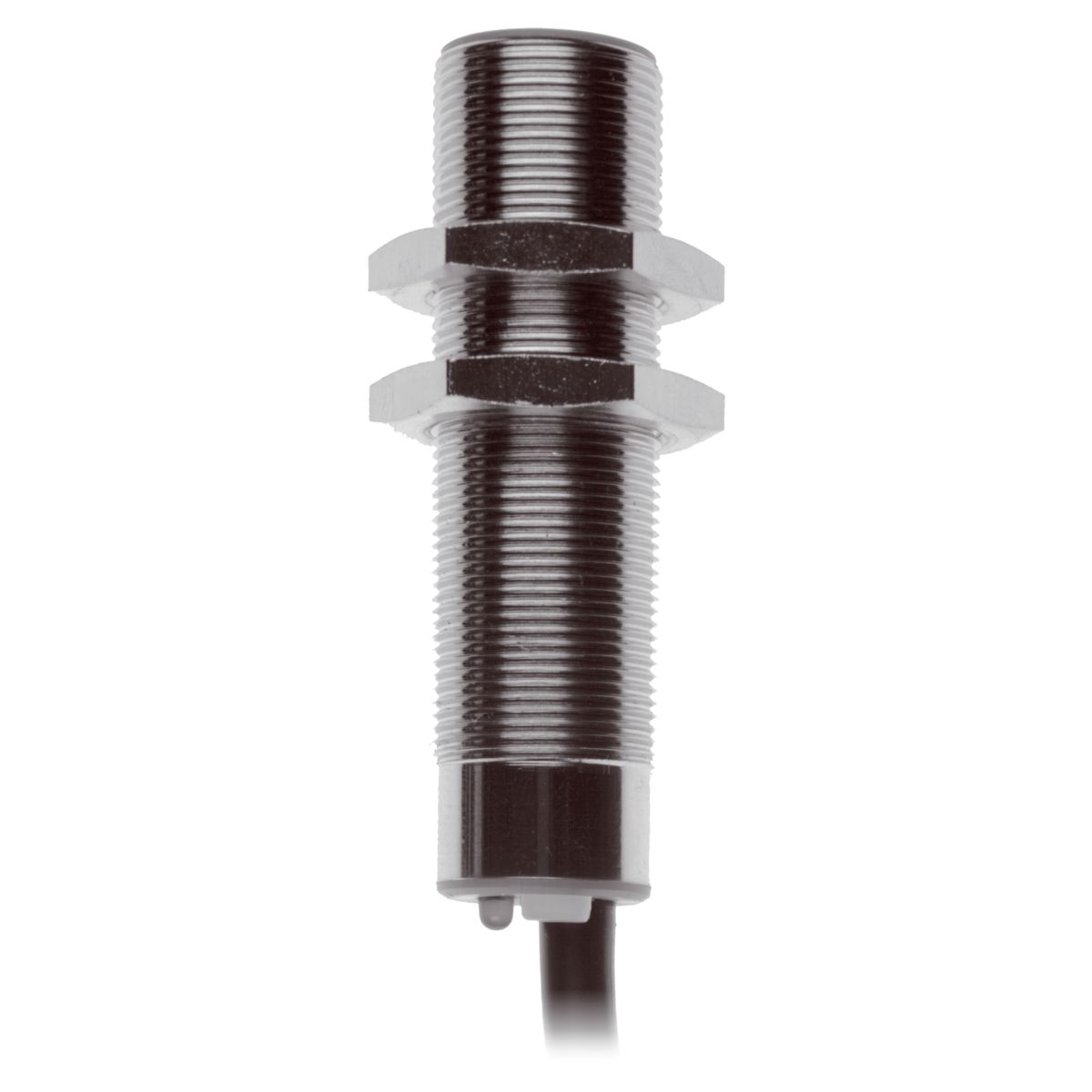

Capacitive Proximity Switch - KDC 18 MB 08 PSL
Part Number: KDC 18 MB 08 PSL
Article Number: 209634
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Capacitive |
|---|---|
| Installation type | Flush |
| Switching distance | 1 mm … 8 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 100 mA, NO |
| No-load current (max.) | 18 mA |
| Evaluation | digital |
| Design | Thread |
| Housing material | Stainless steel |
| Size | M18 x 1 |
| Protection type | IP 67 |
| Ambient temperature during operation | -25 … +85 °C |
| Connection | Cable, 2 m, 3-pin |
