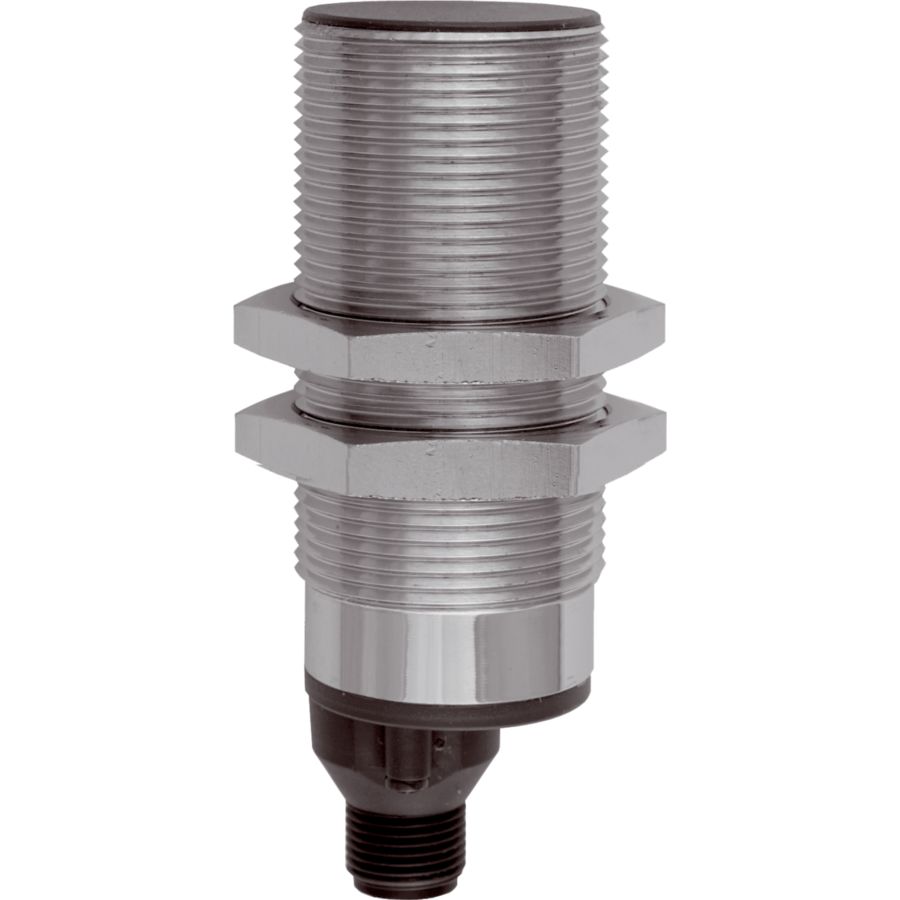

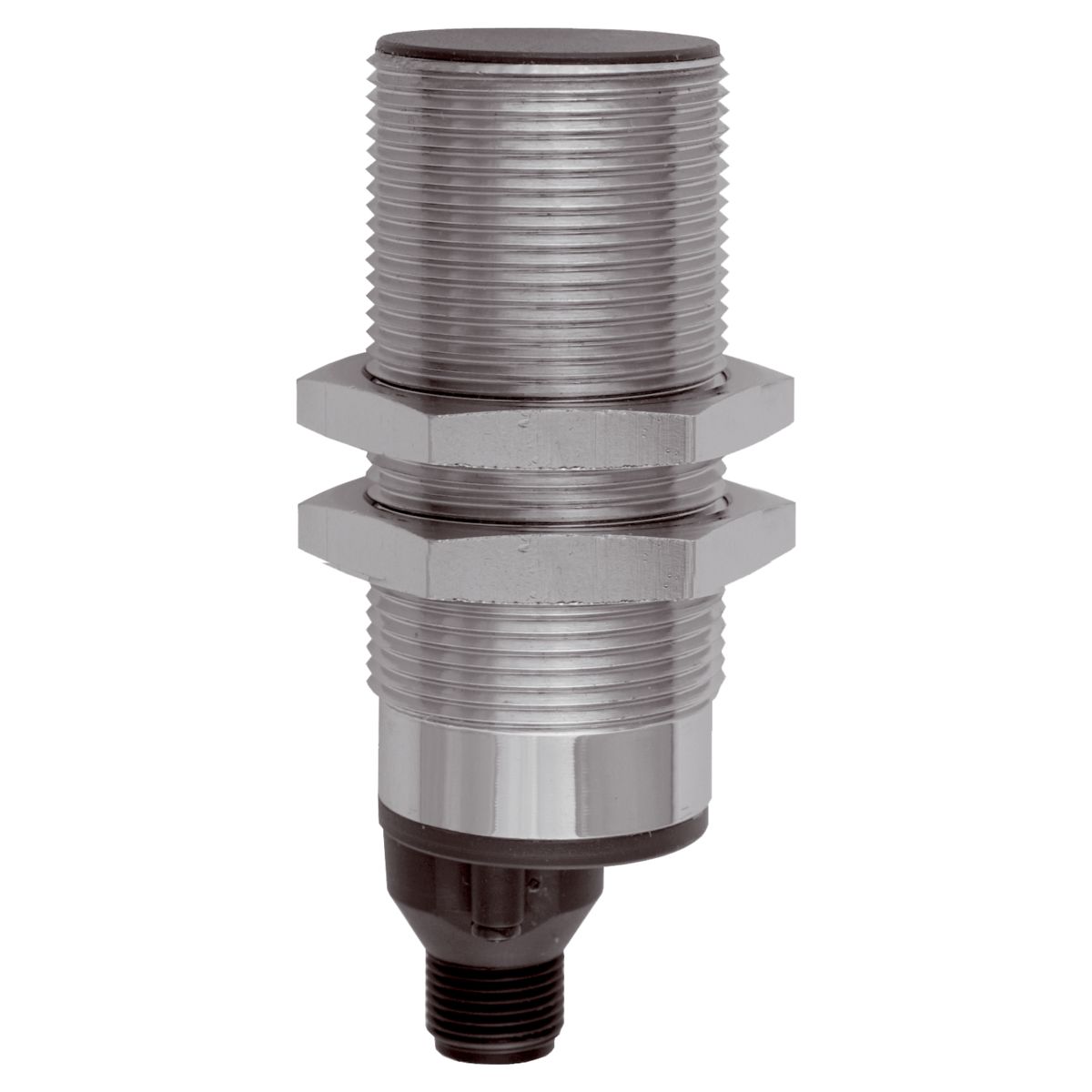

Capacitive Proximity Switch - KDC 30 M 20 PSOK-BSL
Part Number: KDC 30 M 20 PSOK-BSL
Article Number: 200854
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Capacitive |
|---|---|
| Installation type | Flush |
| Switching distance | 20 mm |
| Service voltage | 10 … 35 V DC |
| Switching output | pnp, 300 mA, NO/NC, switchable |
| No-load current (max.) | 10 mA |
| Evaluation | digital |
| Design | Thread |
| Housing material | Stainless steel |

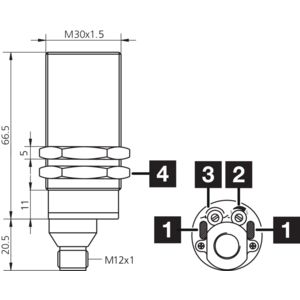

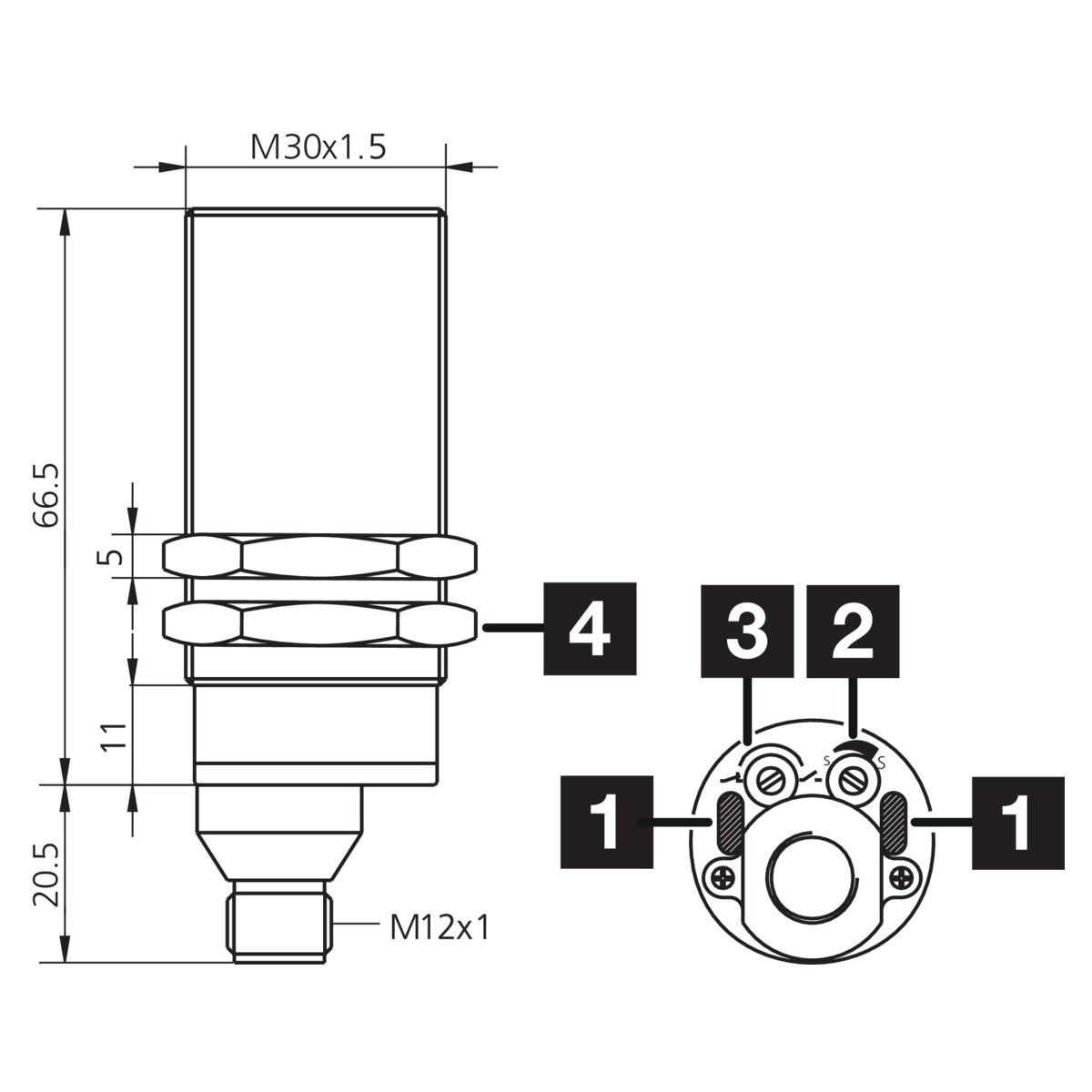

| Size | M30 x 1,5 |
| Protection type | IP 67, IP 64 |
| Ambient temperature during operation | -30 … +70 °C |
| Connection | Connector, M12, 3-pin |
