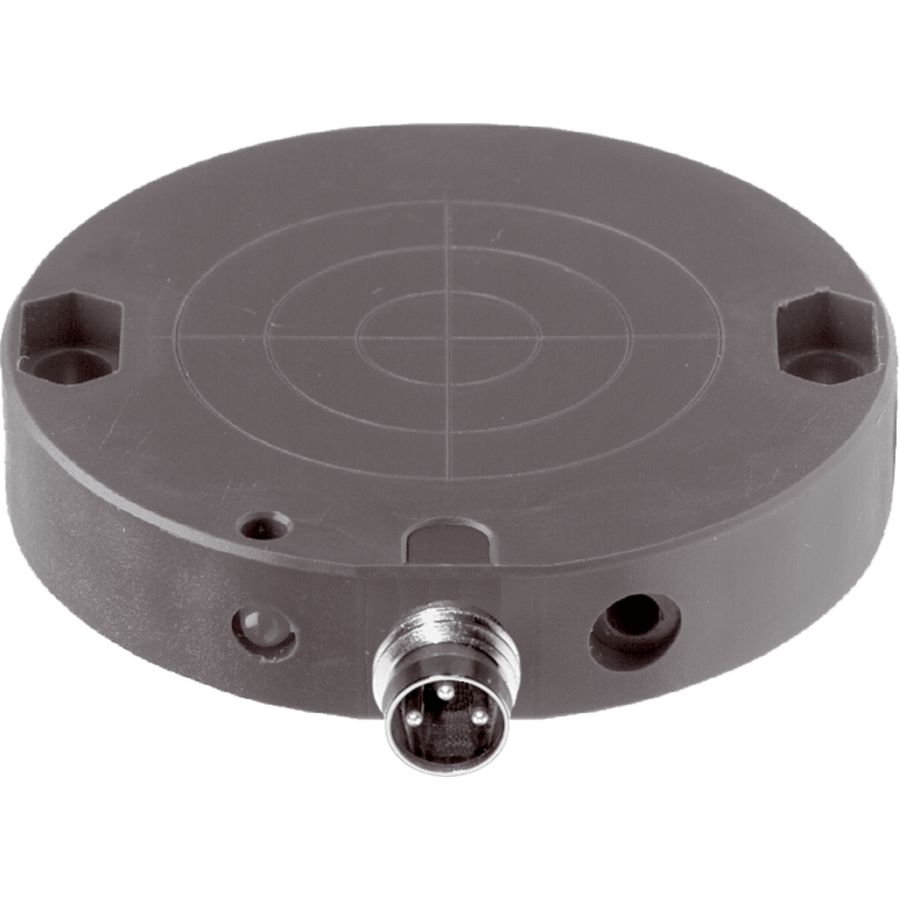

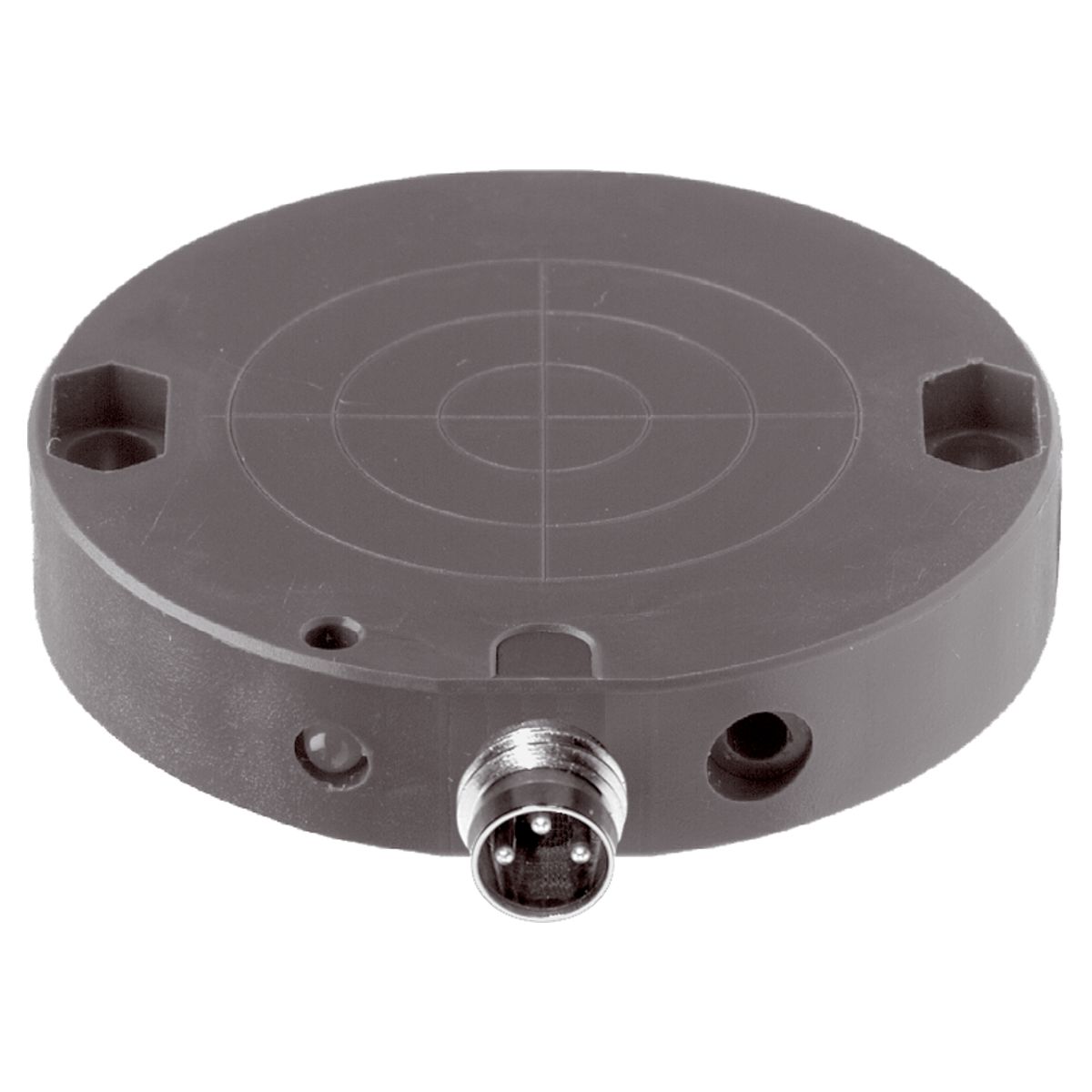

Capacitive Proximity Switch - KDC 50 K 25 PNSOK-TSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Capacitive
Installation type	Flush
Switching distance	2 mm … 25 mm
Service voltage	10 … 30 V DC
Switching output	pnp/npn, 150 mA, NO/NC, switchable
No-load current (max.)	15 mA
Evaluation	digital
Design	Cylinder
Housing material	Plastic
Size	Ø 50 mm
Protection type	IP 67
Ambient temperature during operation	-30 … +70 °C
Connection	Connector, M8, 3-pin
