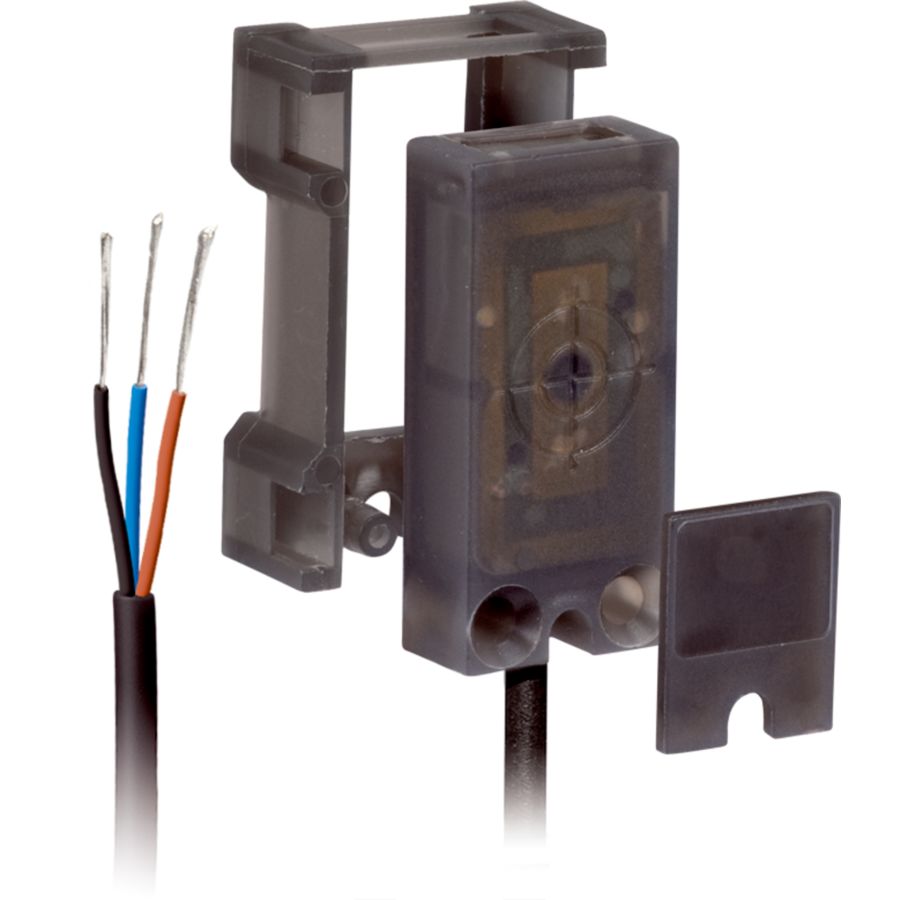

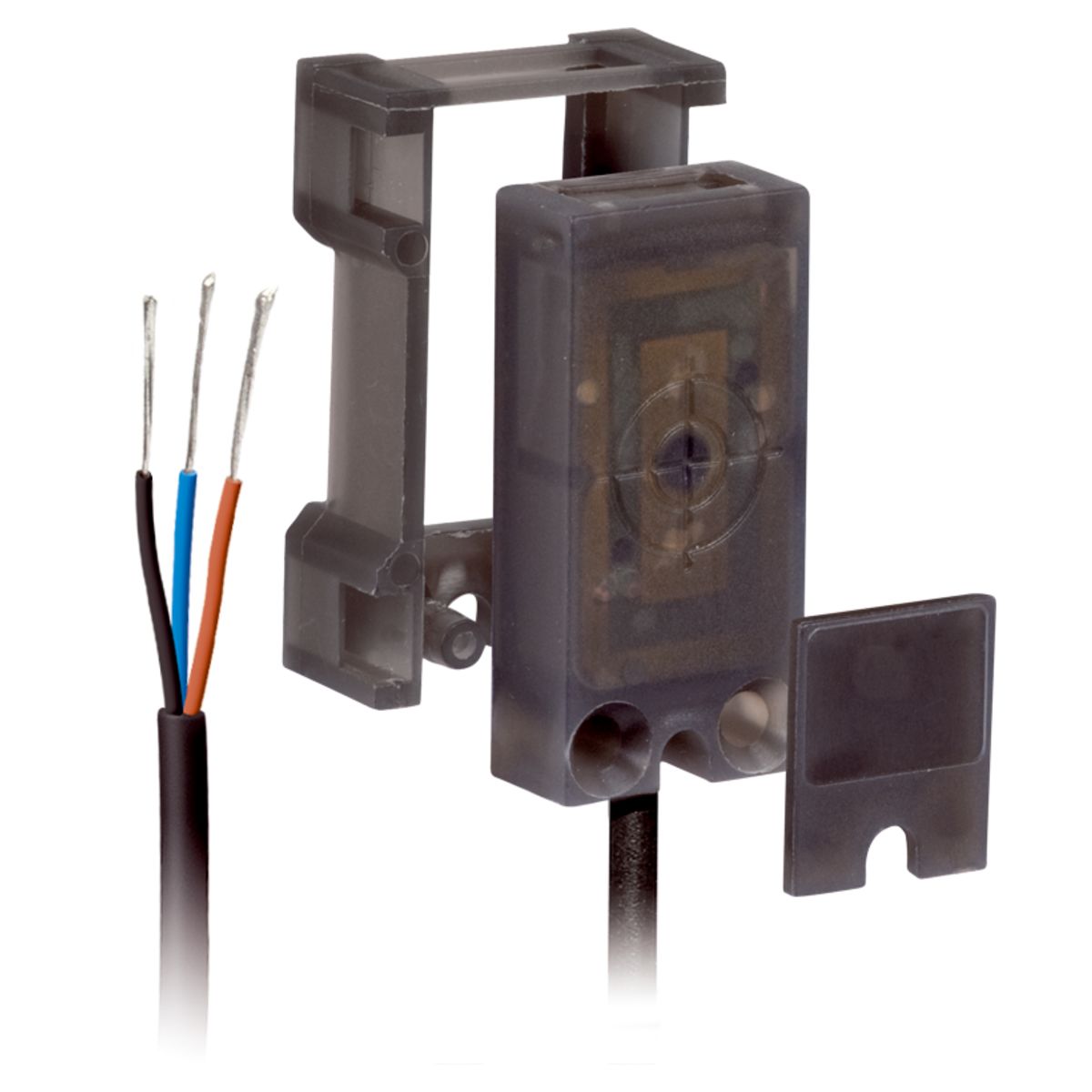

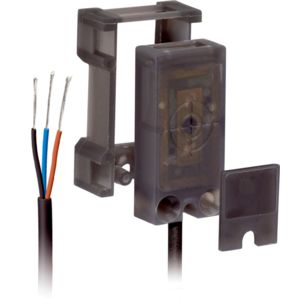

Capacitive Proximity Switch - KDCR 16 K 08 NOLK

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Capacitive
Installation type	Flush
Switching distance	8 mm
Service voltage	12 … 30 V DC
Switching output	npn, 50 mA, NC
No-load current (max.)	10 mA
Evaluation	digital
Design	Cuboid design
Housing material	Plastic

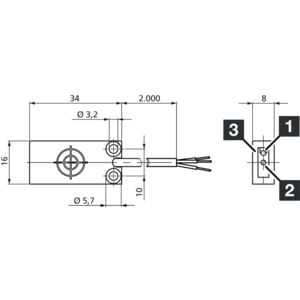

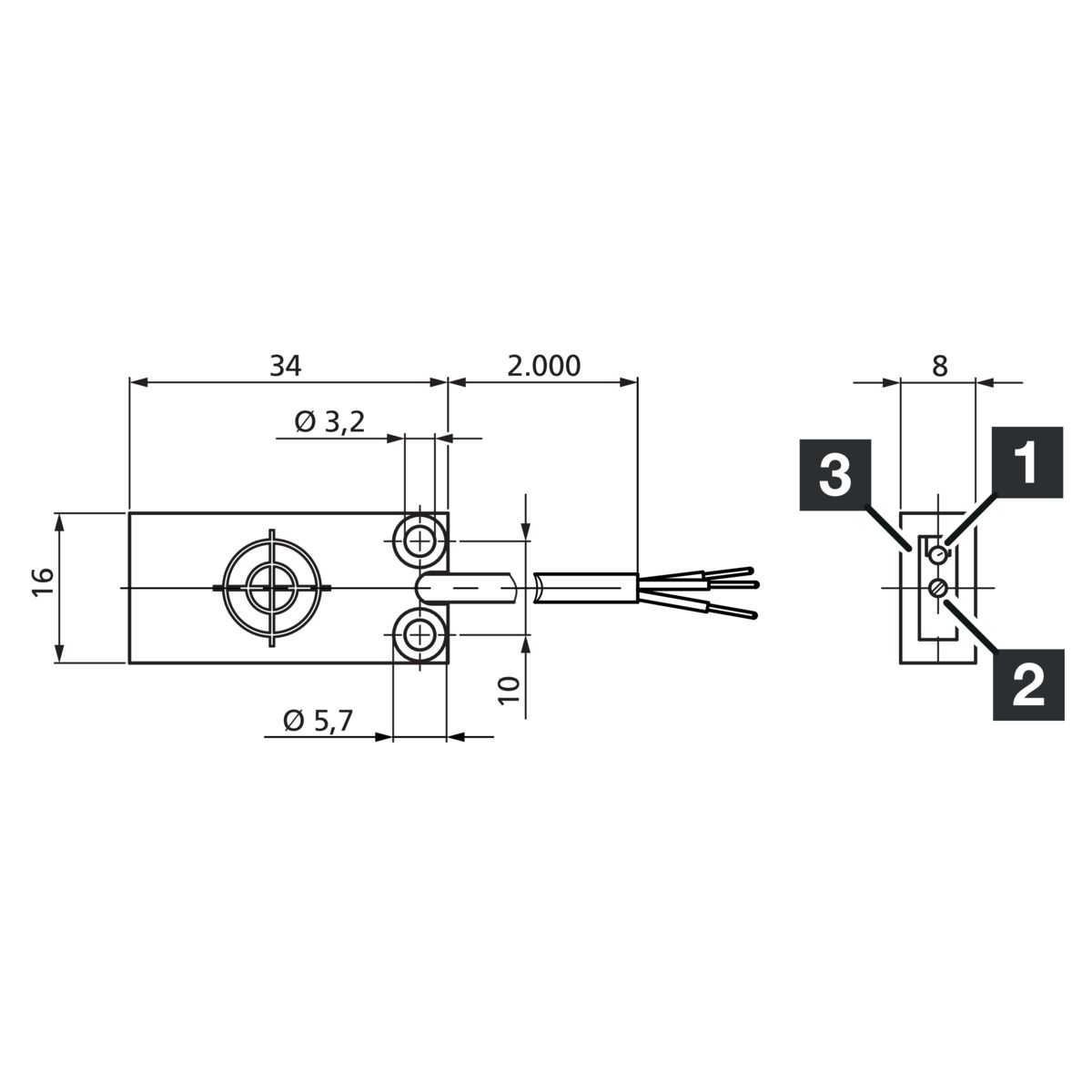

Size	34 x 16 x 8 mm
Protection type	IP 67
Ambient temperature during operation	-30 … +70 °C
Connection	Cable, 2 m
