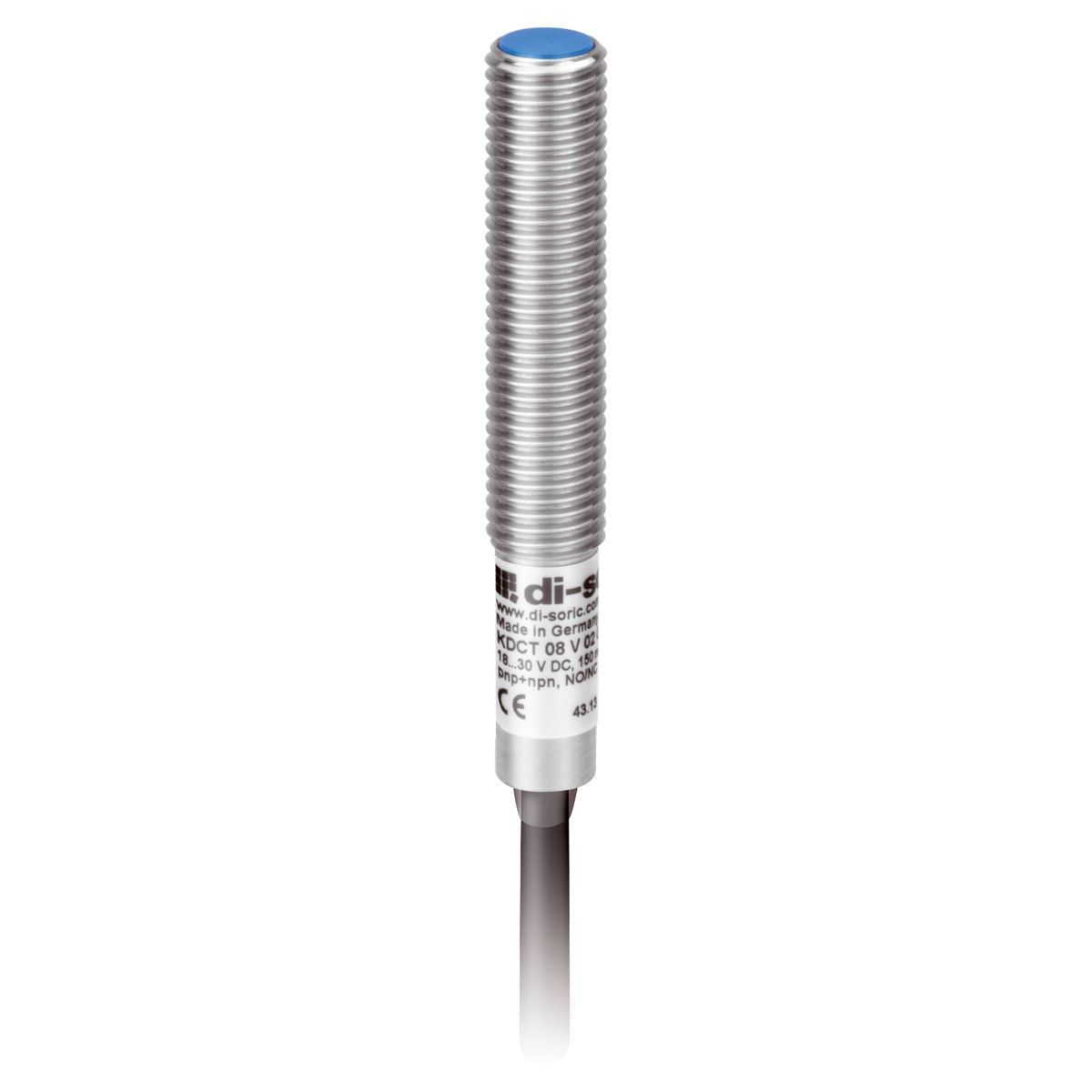

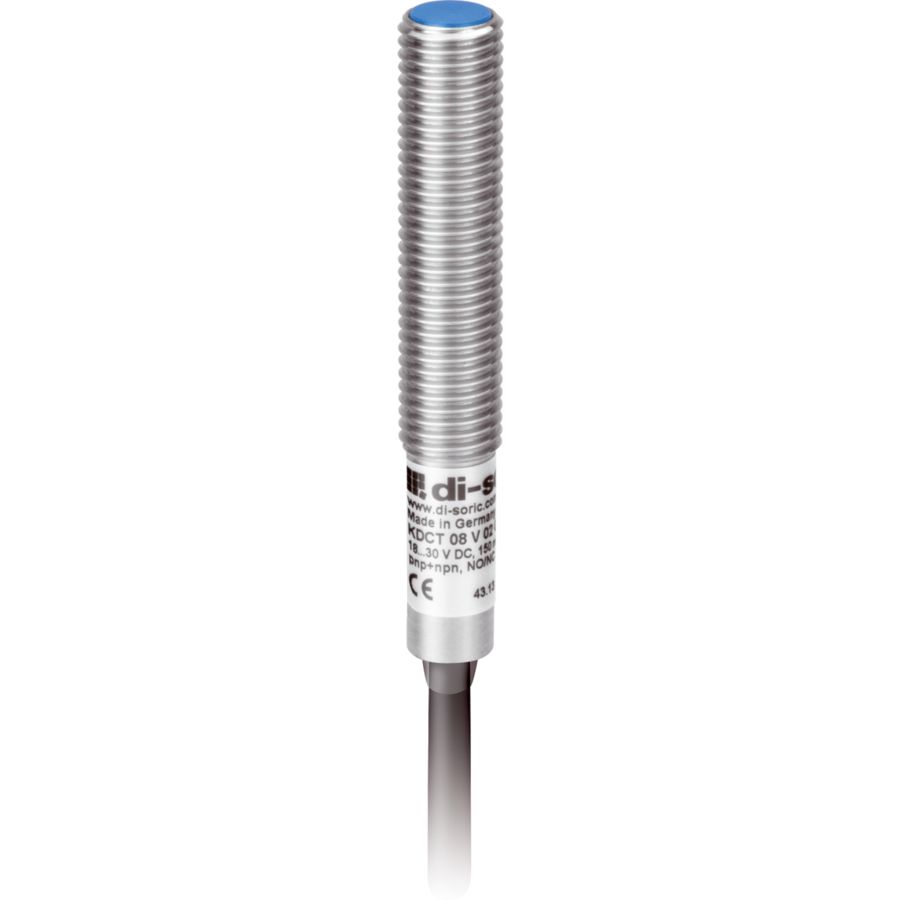

Capacitive Proximity Switch - KDCT 08 V 02 G3-4
Part Number: KDCT 08 V 02 G3-4
Article Number: 208167
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Capacitive |
|---|---|
| Installation type | Flush |
| Switching distance | 2 mm |
| Service voltage | 18 … 30 V DC |
| Switching output | Push-pull, 150 mA, NO/NC, switchable |
| No-load current (max.) | 20 mA (24 V DC) |
| Evaluation | digital |
| Design | Thread |
| Housing material | Stainless steel |
| Size | M8 x 1 |
| Protection type | IP 65 |
| Ambient temperature during operation | -25 … +70 °C |
| Connection | Cable, 2 m |
