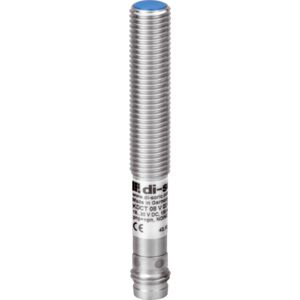

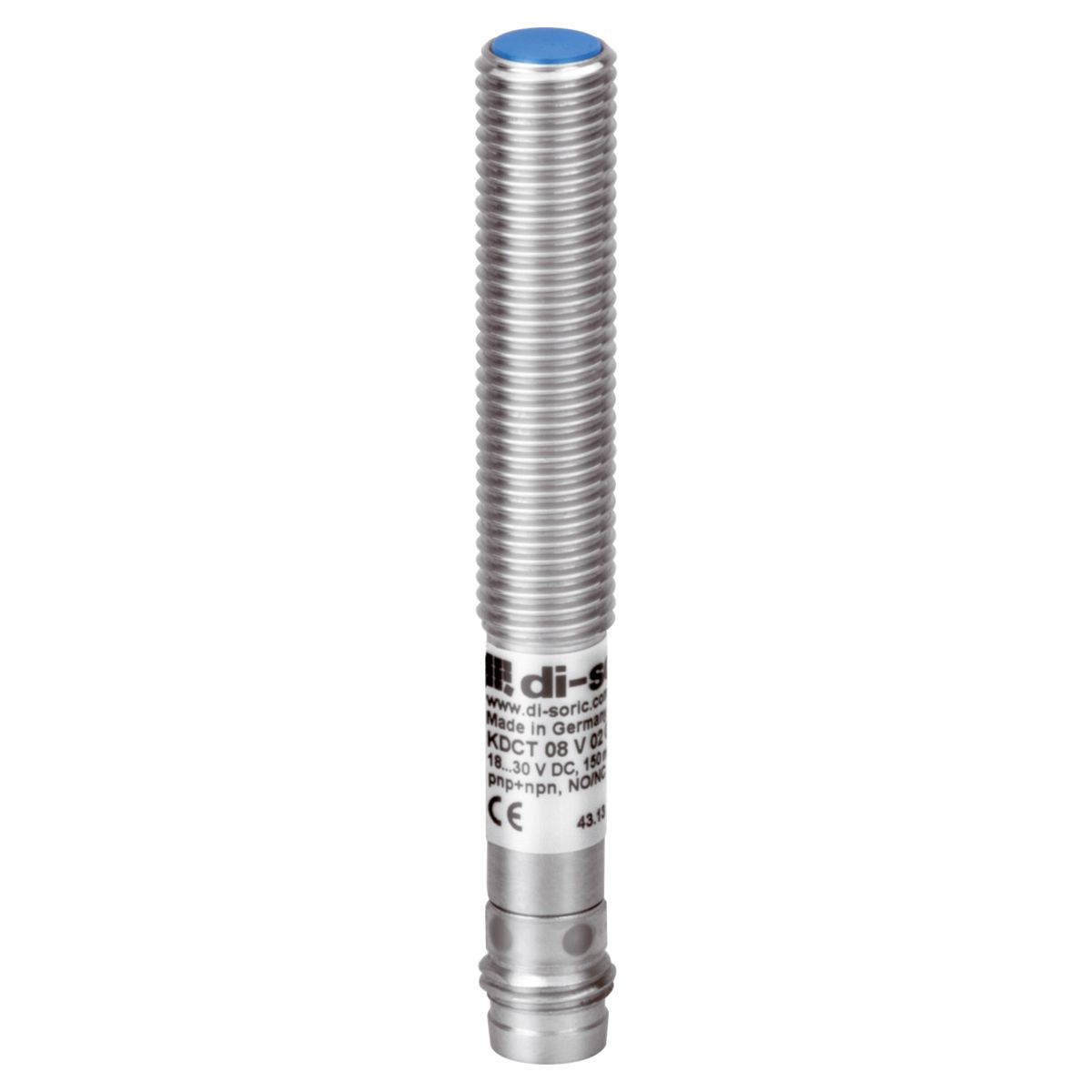

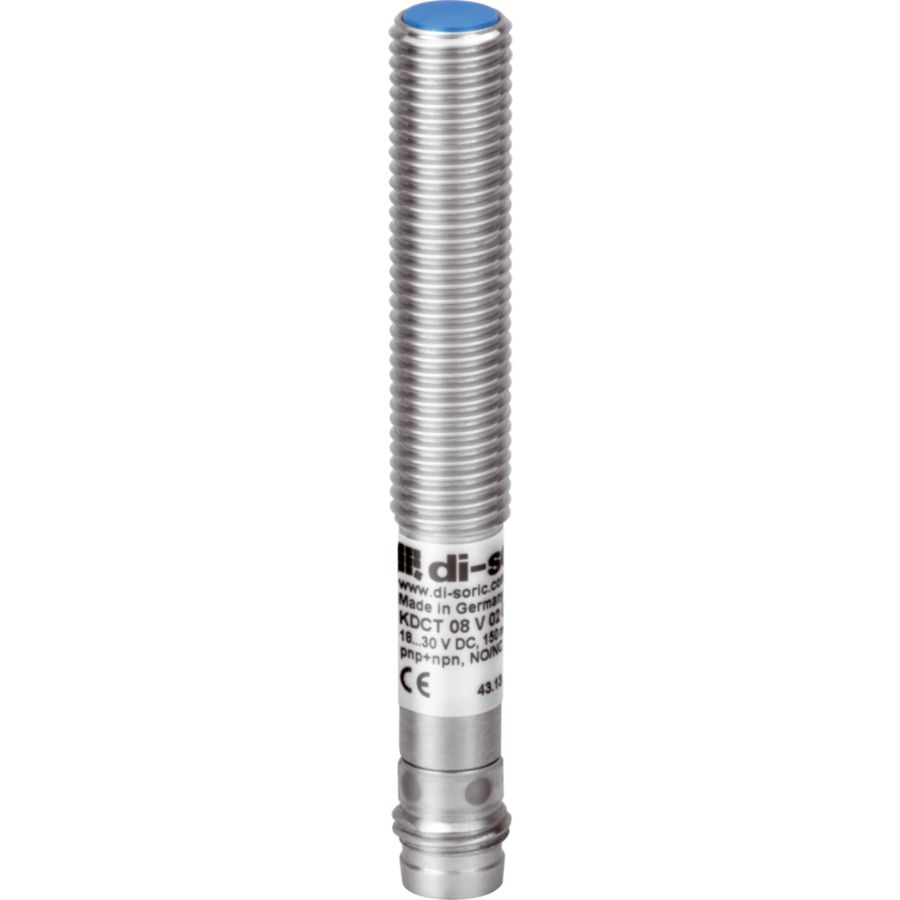

Capacitive Proximity Switch - KDCT 08 V 02 G3-T3

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Capacitive
Installation type	Flush
Switching distance	2 mm
Service voltage	18 … 30 V DC
Switching output	Push-pull, 150 mA, NO/NC, switchable
No-load current (max.)	20 mA (24 V DC)
Evaluation	digital
Design	Thread
Housing material	Stainless steel

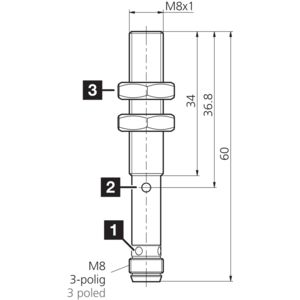

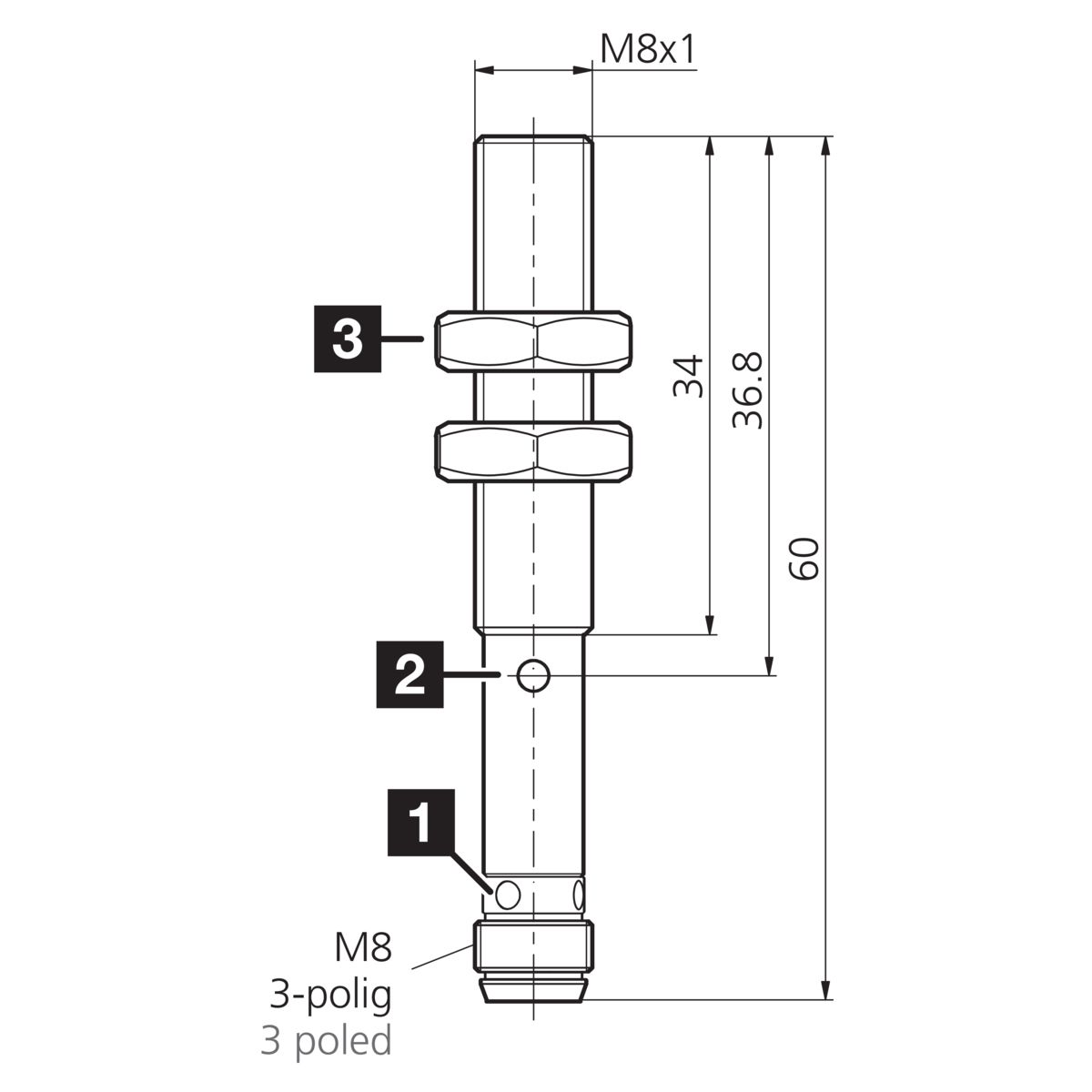

Size	M8 x 1
Protection type	IP 65
Ambient temperature during operation	-25 … +70 °C
Connection	Connector, M8, 3-pin
