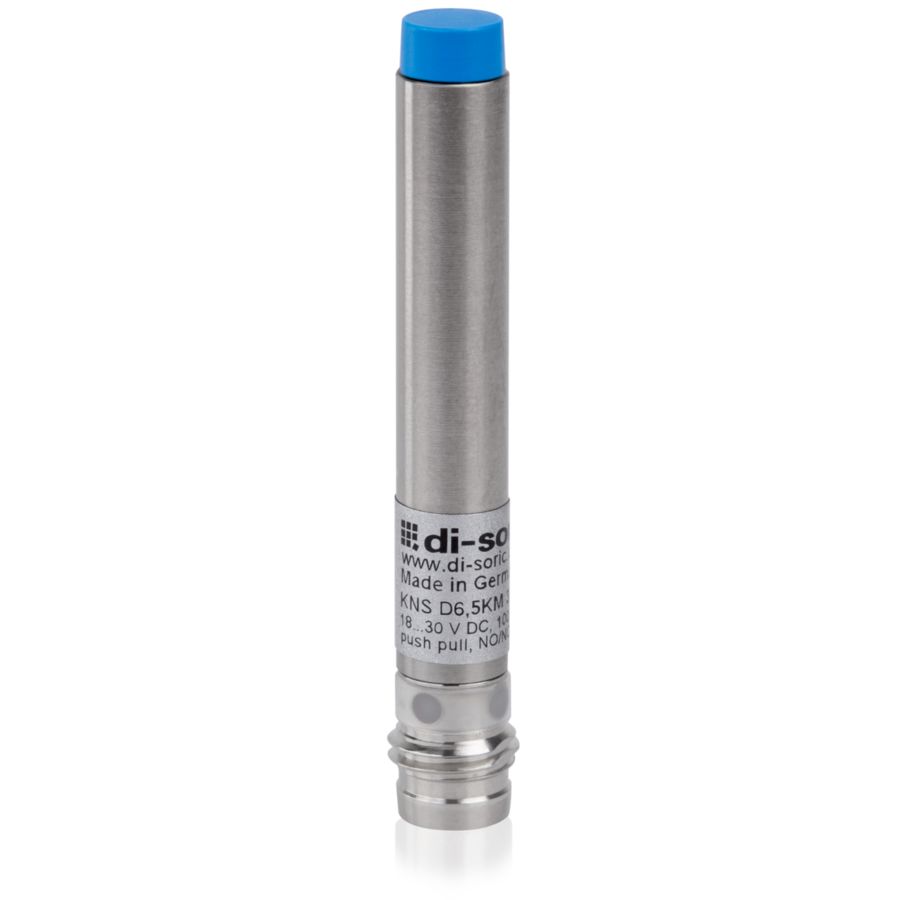

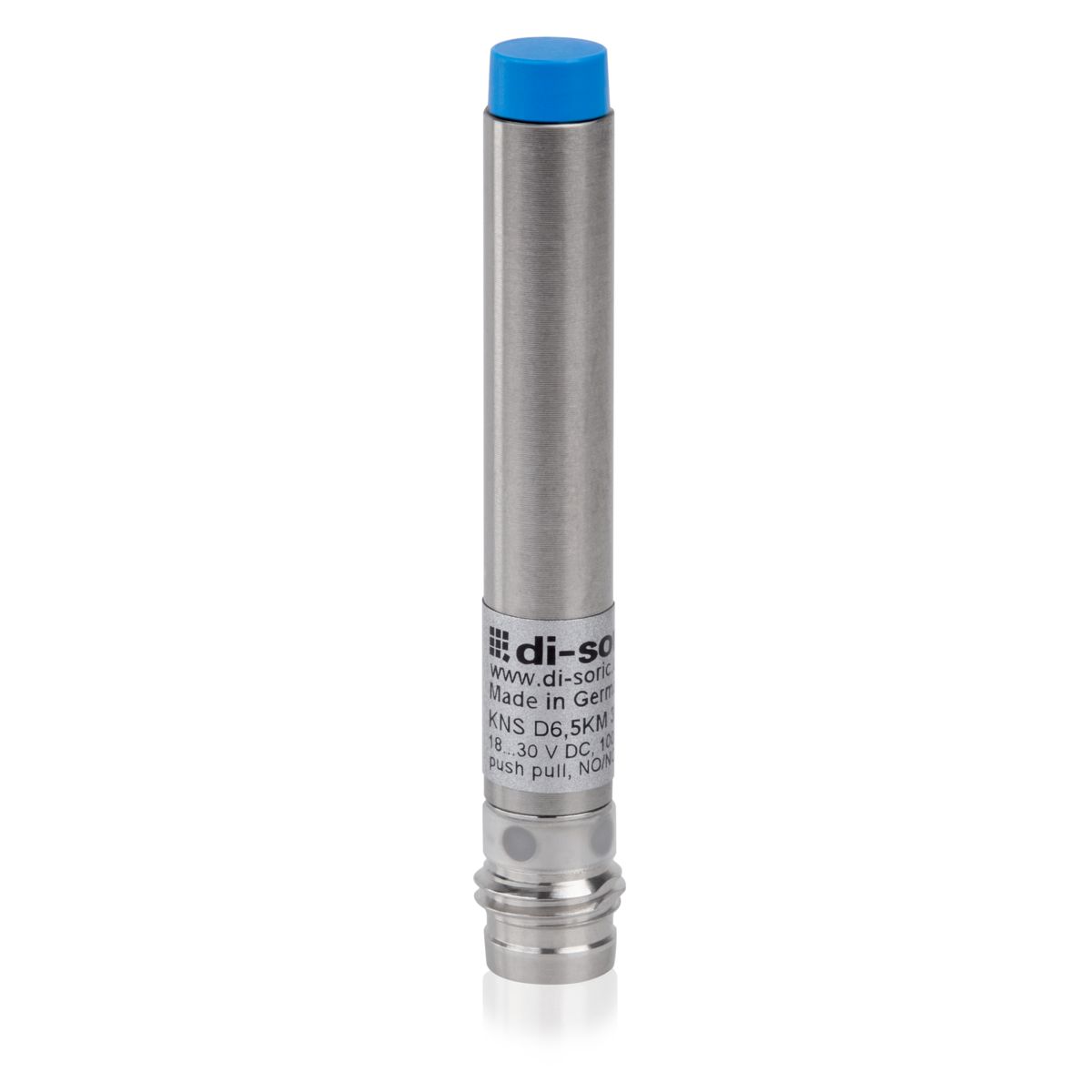

Capacitive Proximity Switch - KNS D6.5KM 3N G3-T3

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Capacitive
Installation type	non-flush
Switching distance	3 mm
Service voltage	18 … 30 V
Switching output	Push-pull, 100 mA, NO/NC
No-load current (max.)	15 mA
Design	Cylinder
Housing material	Brass

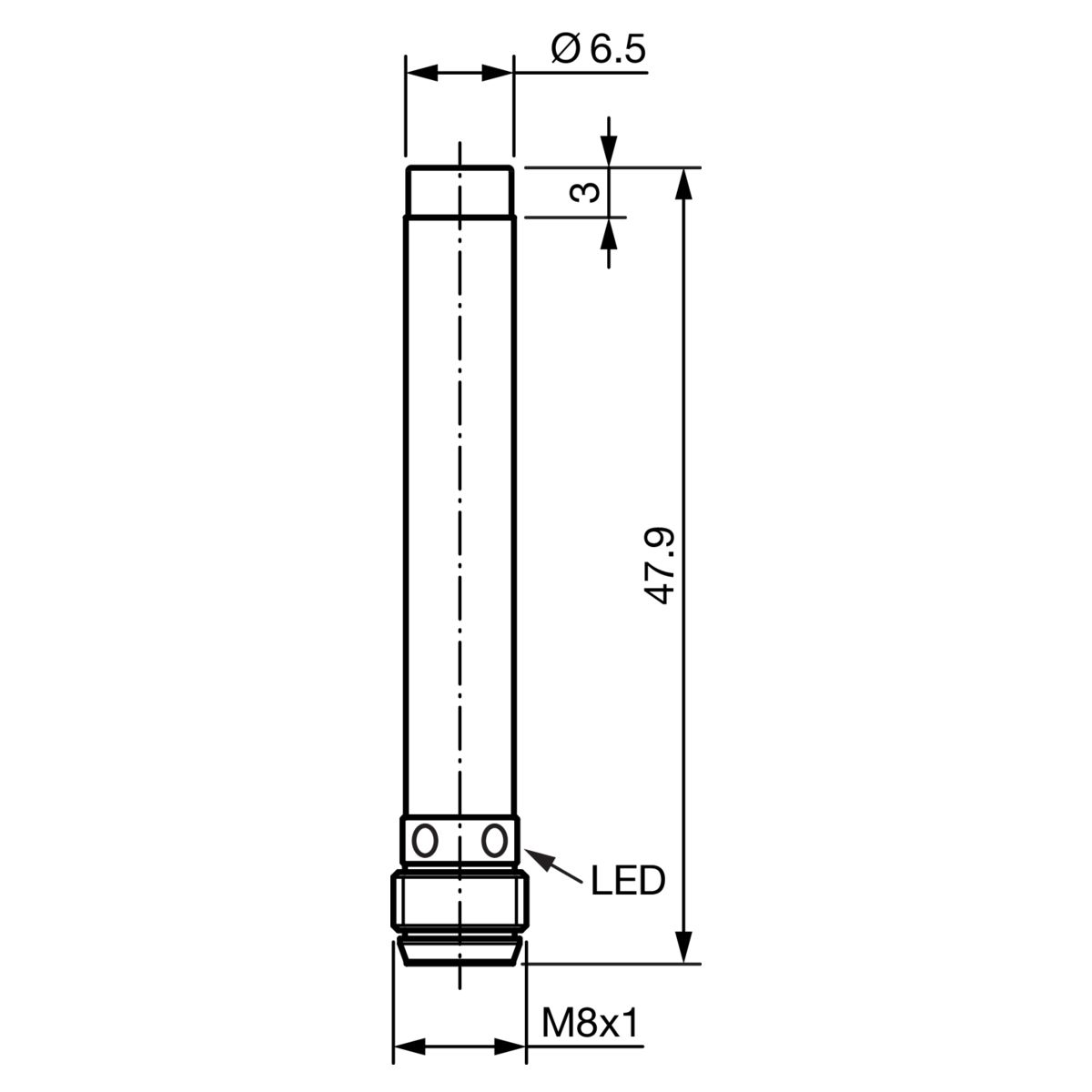

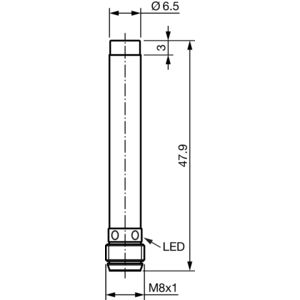

Size	Ø 6,5 mm
Protection type	IP 65, IP 67
Ambient temperature during operation	-25 … +70 °C
Connection	Connector, M8, 3-pin
