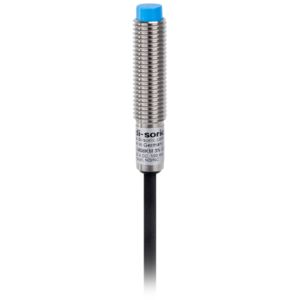

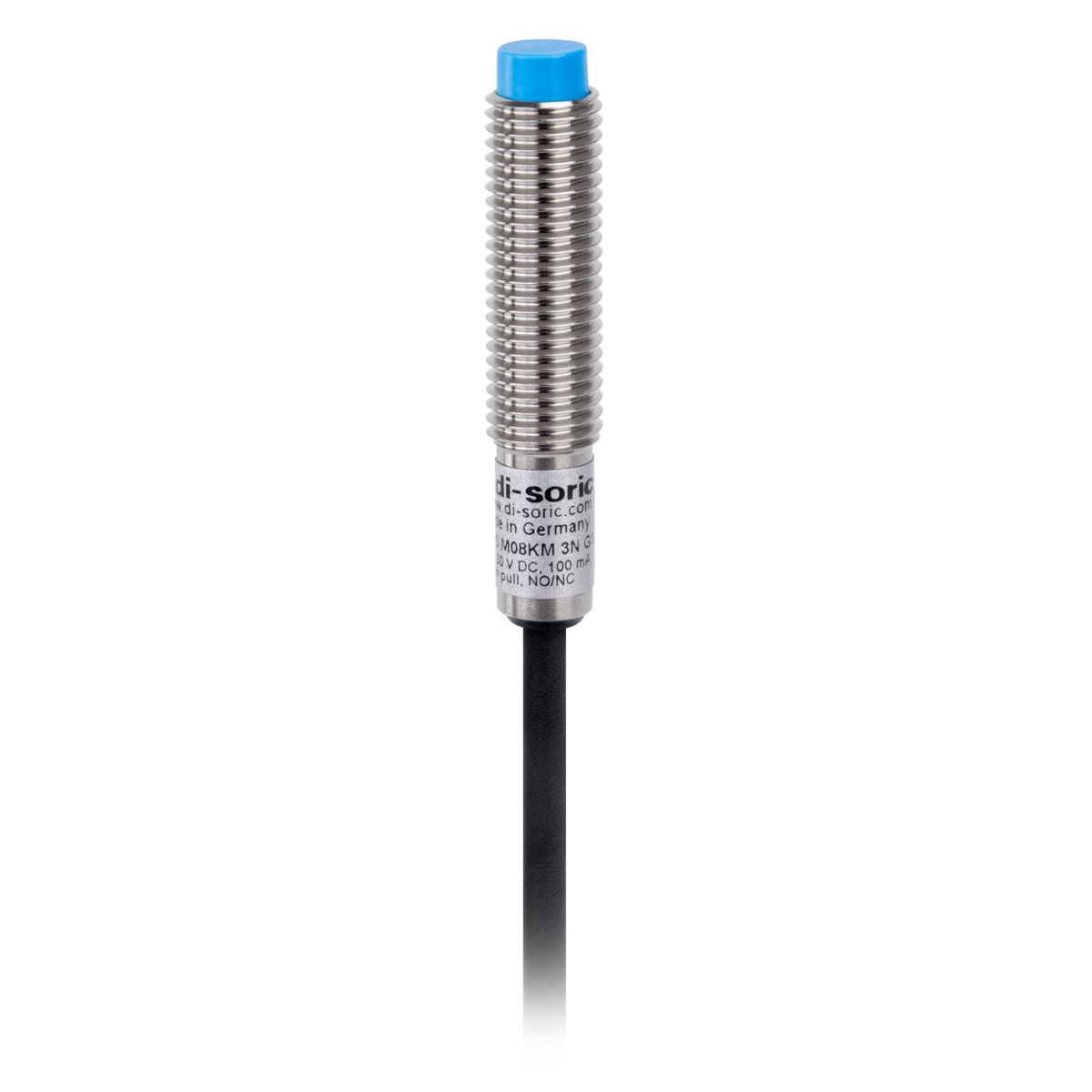

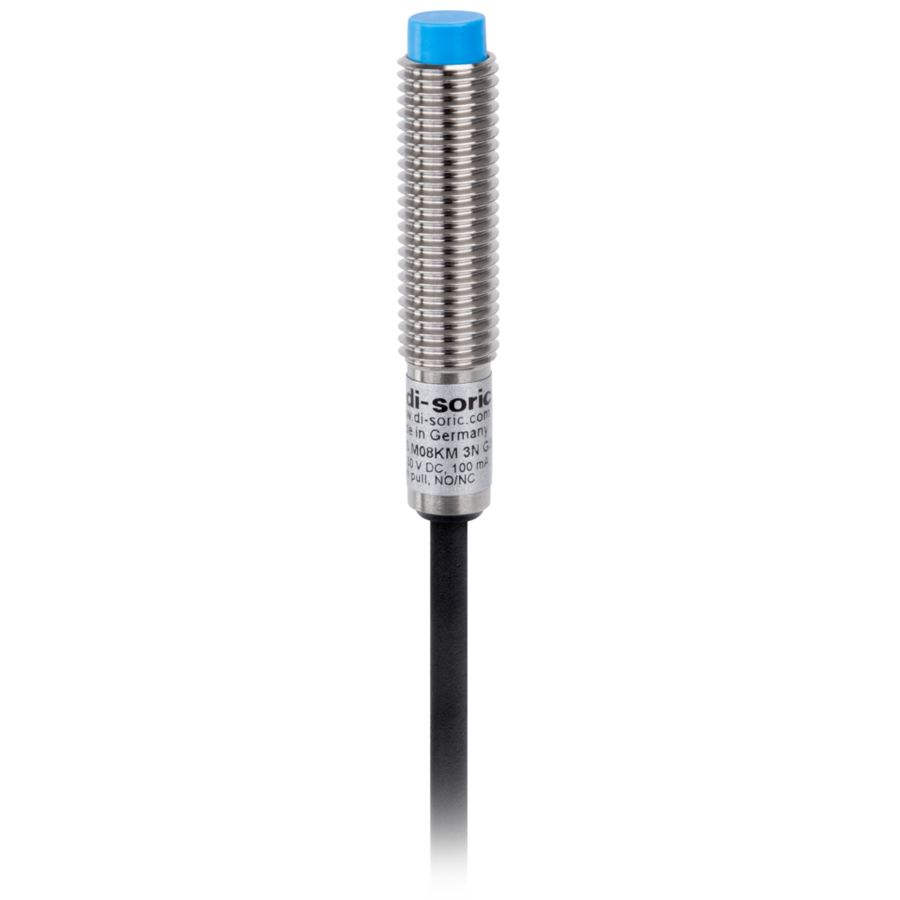

Capacitive Proximity Switch - KNS M08KM 3N G3-2R

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Capacitive
Installation type	non-flush
Switching distance	3 mm
Service voltage	18 … 30 V DC
Switching output	Push-pull, 100 mA, NO/NC, switchable via IO-Link
No-load current (max.)	15 mA (24 V DC)
Design	Thread
Housing material	Brass
Size	M8 x 1
Ambient temperature during operation	-25 … +70 °C
Connection	Cable, 2 m, 3-pin
