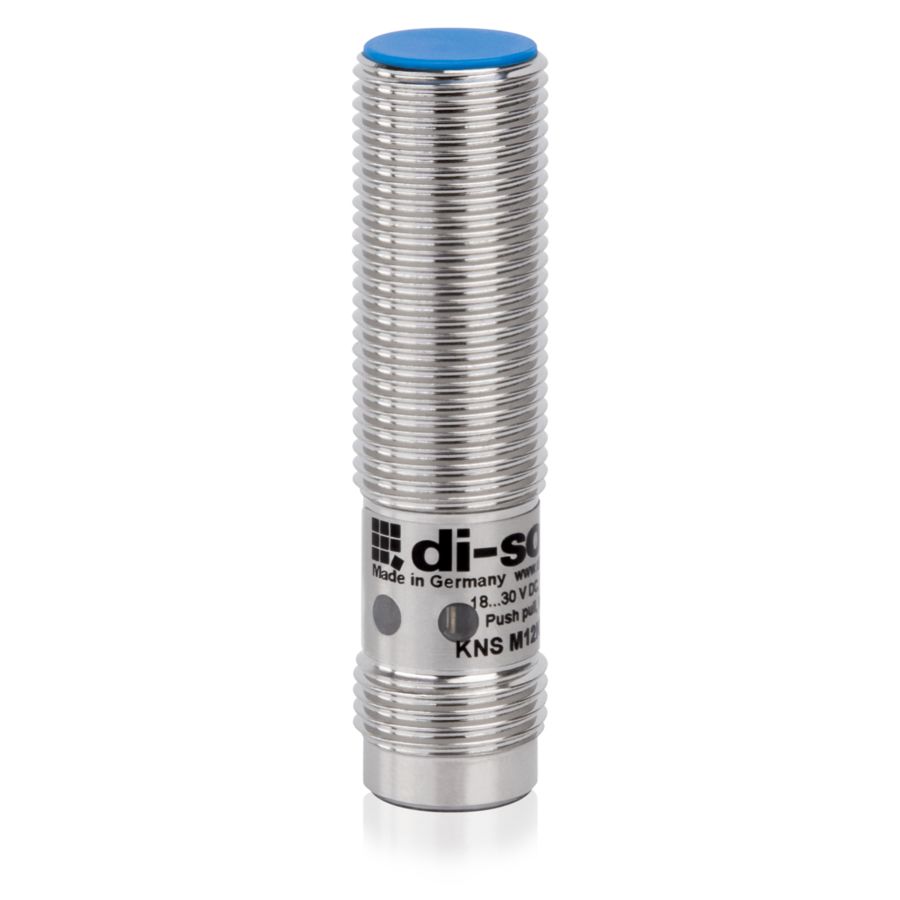

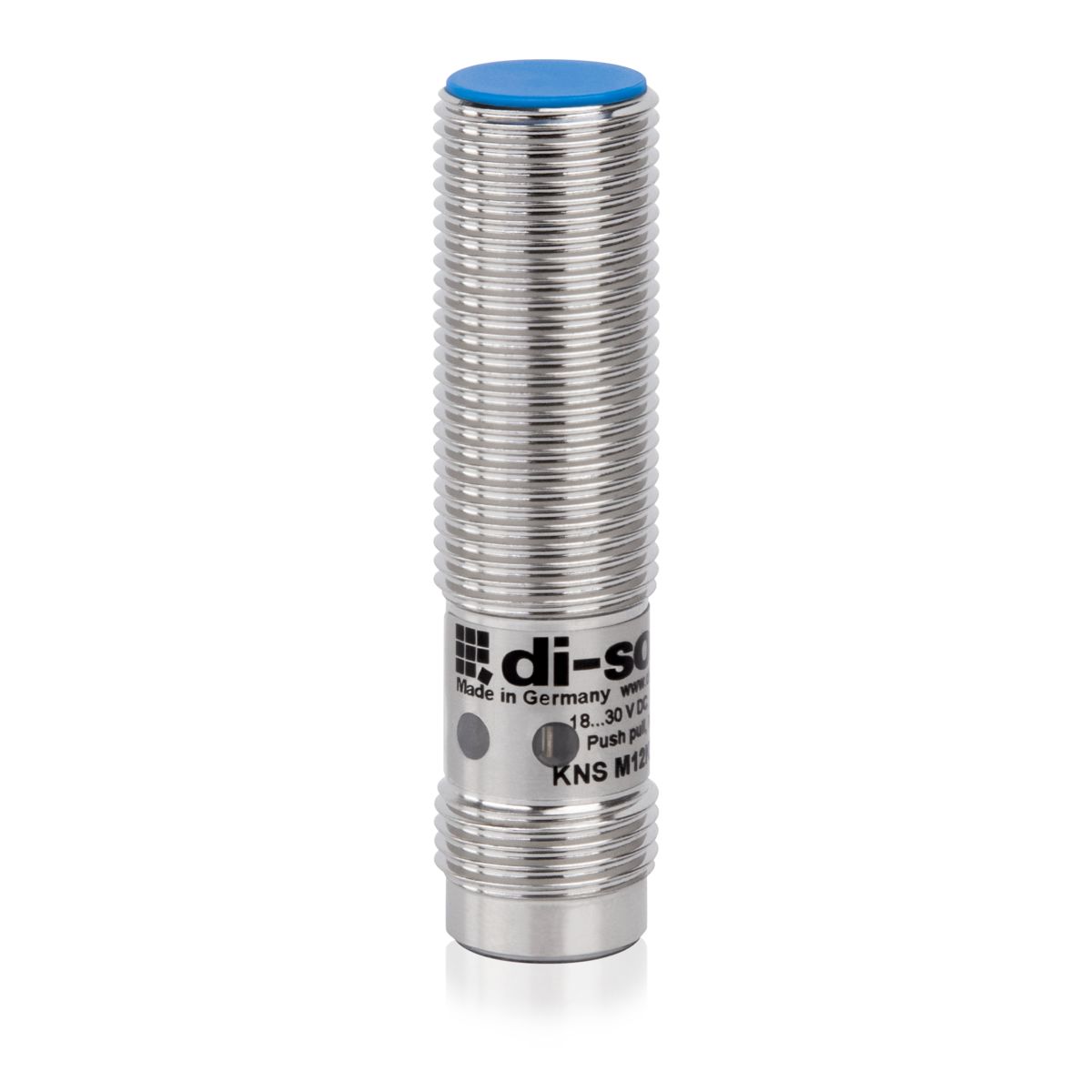

Capacitive Proximity Switch - KNS M12KM 4B G3-B3

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Capacitive
Installation type	Flush
Switching distance	4 mm
Service voltage	18 … 30 V DC
Switching output	Push-pull, 100 mA, NO/NC, switchable via IO-Link
No-load current (max.)	15 mA (24 V DC)
Design	Thread
Housing material	Brass

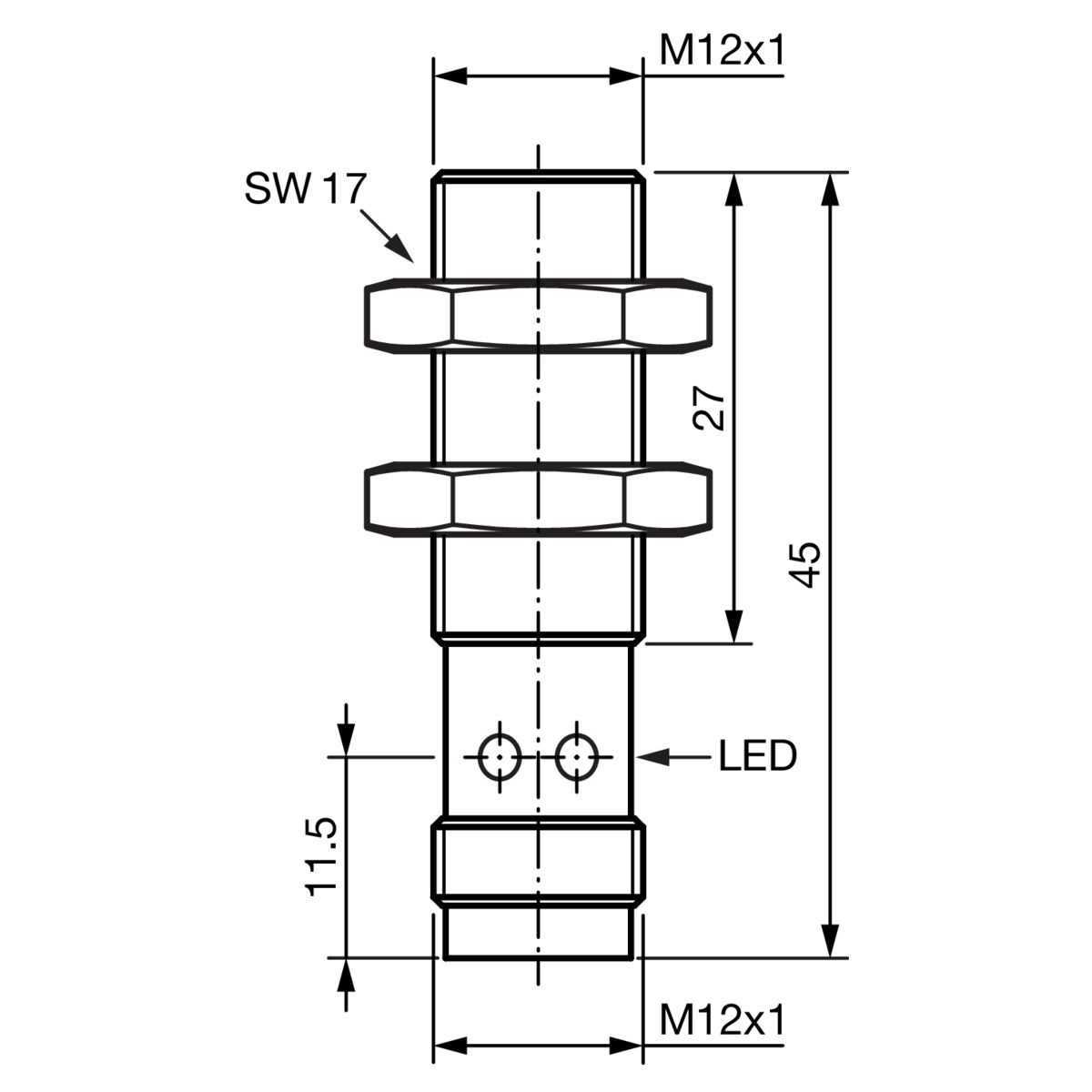

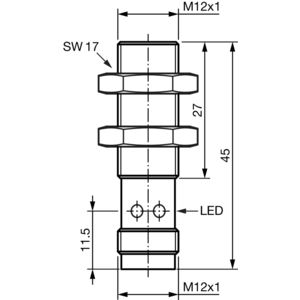

Size	M12 x 1
Protection type	IP 67
Ambient temperature during operation	-20 … +70 °C
Connection	Connector, M12, 3-pin
