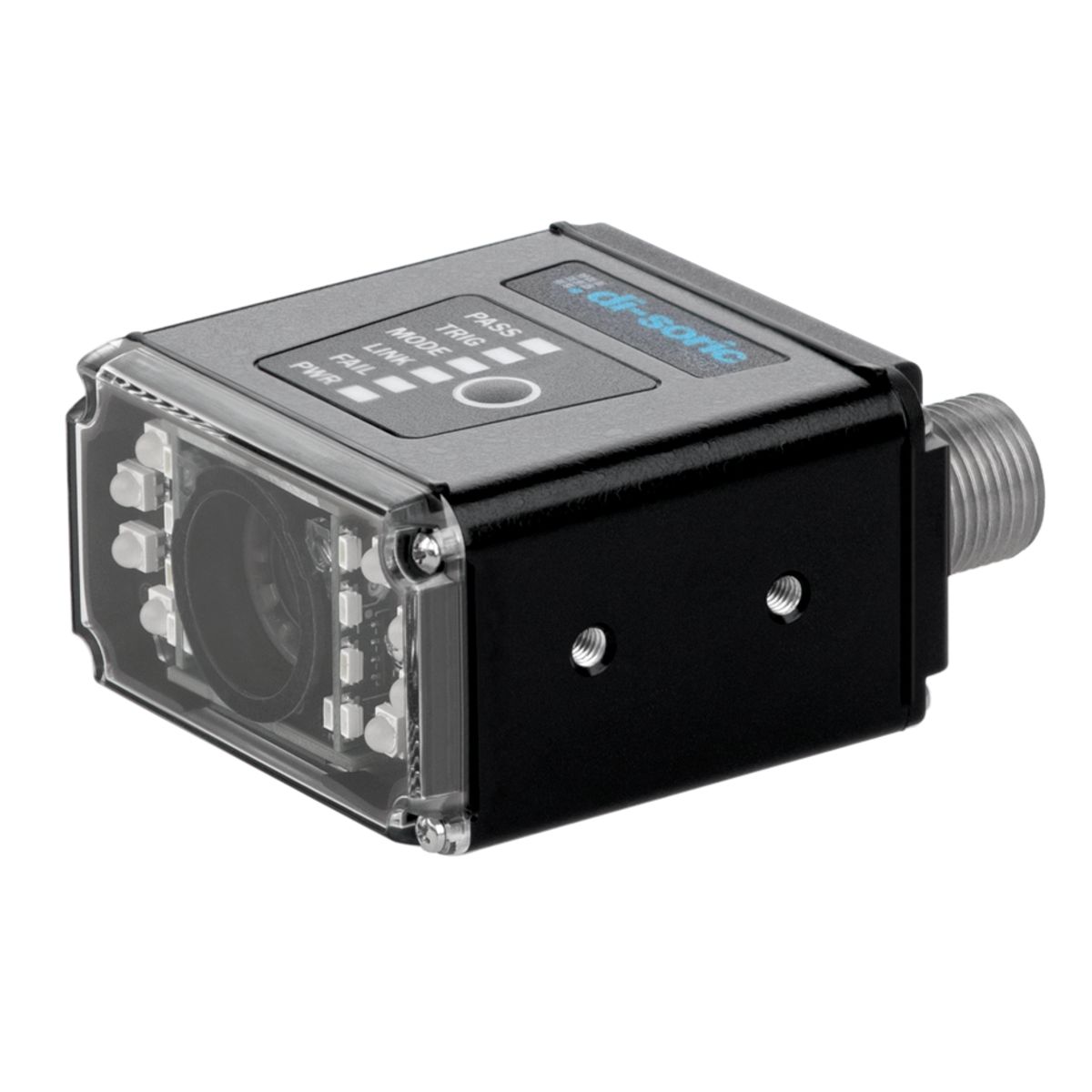

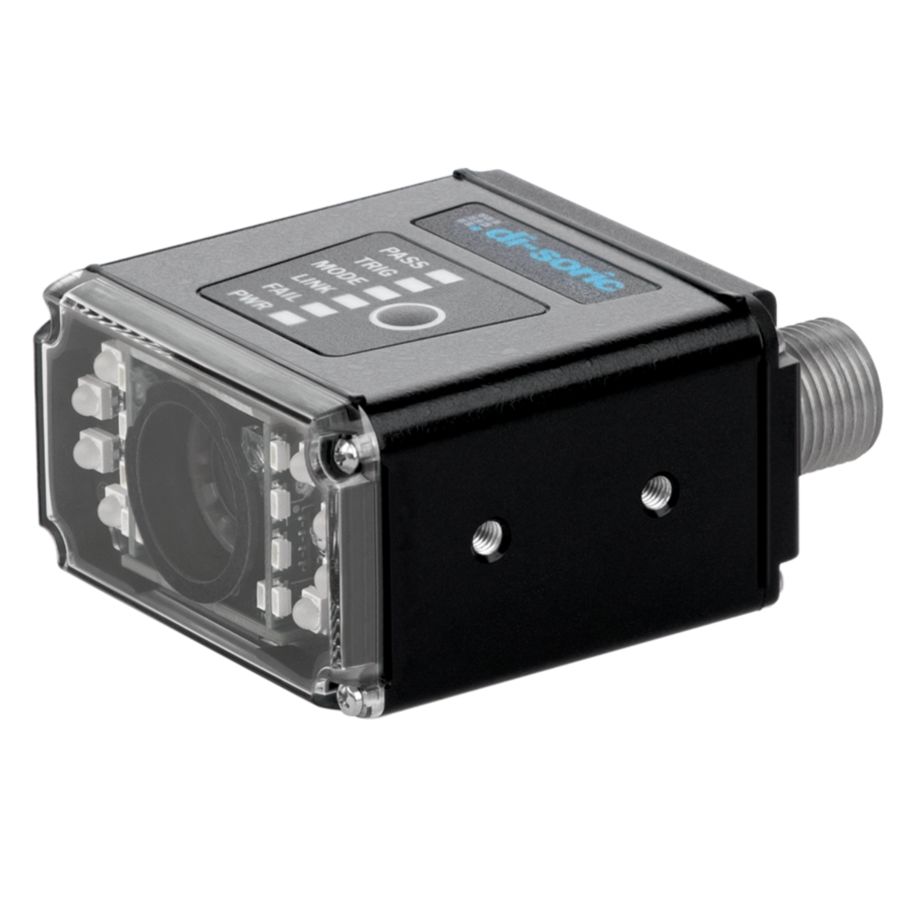

Cs 50 Vision Sensor - CS 50 BM2-4-ES-G5
Part Number: CS 50 BM2-4-ES-G5
Article Number: 210033
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Working distance | 50 … 150 mm |
|---|---|
| Service voltage | 4,75 … 30 V DC |
| Switching output | < 100 mA (Per output, opto-isolated, power limitation via customer) |
| Inspection tasks | Parts recognition, Presence, Measurement, Counting, Logic |
| Interface | RS232, Ethernet, TCP, IP, Profinet |
| Housing material | Aluminum, Black |
| Ambient temperature during operation | 0 … +40 °C |
| Protection type | IP 65, IP 67 |
| Weight | 68 g |
| Internal lights | High power, white, Swappable (red / white / blue / IR) |
| Number of jobs | Unlimited (1.4 GB), 1-255 for operation with Profinet |
| Exposure time | 66 … 58.825 µs |
