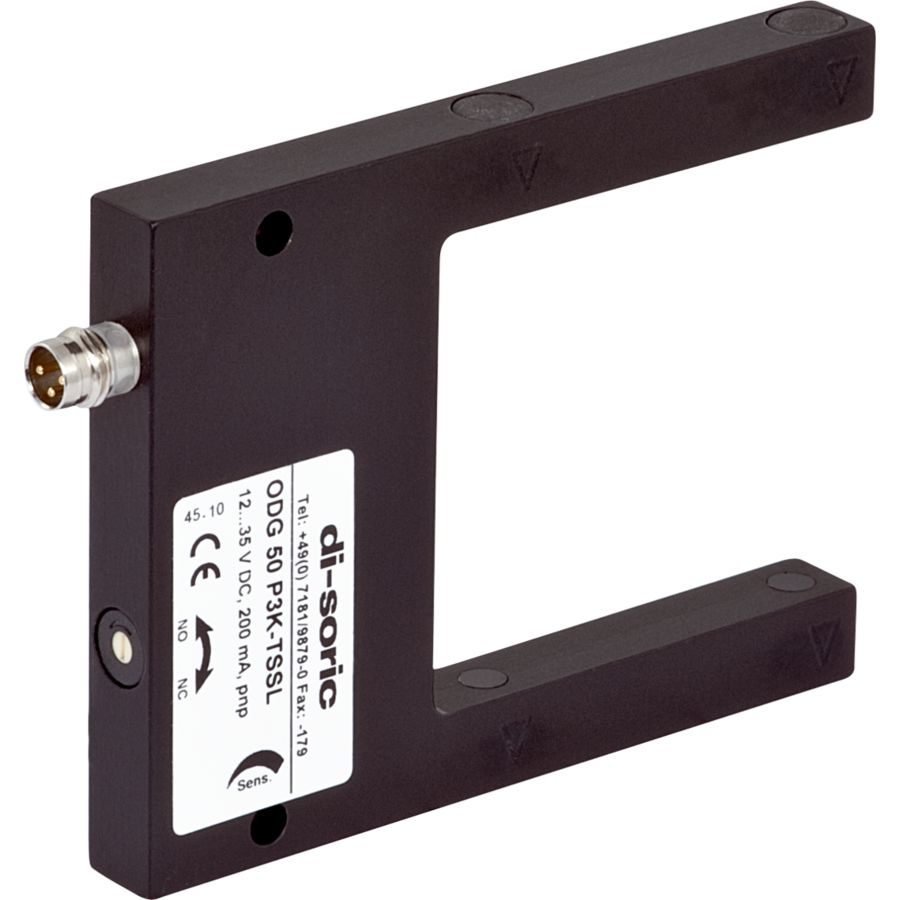

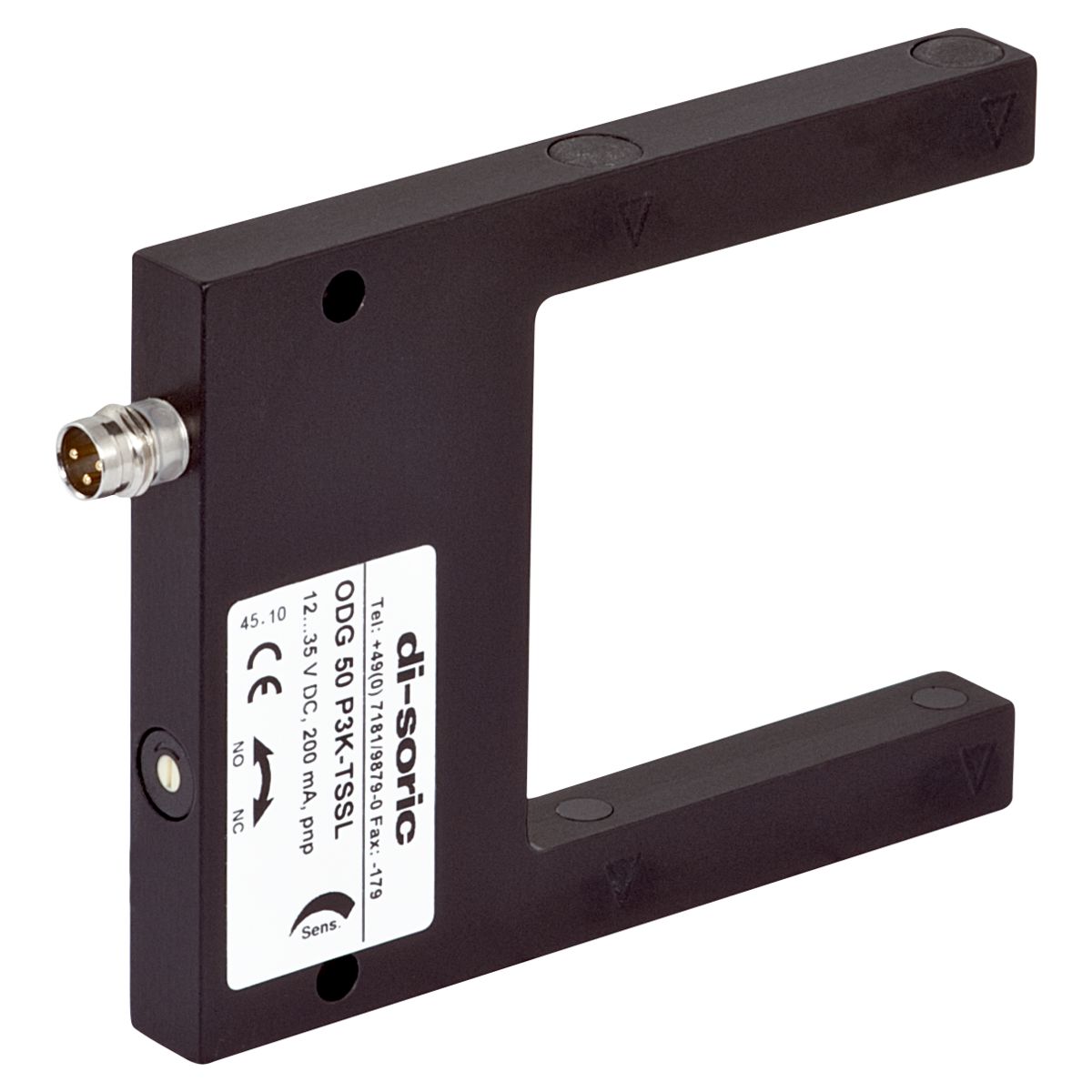

Differential Fork Light Barrier - ODG 50 P3K-TSSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	LED
Light color	Infrared
Fork opening	50 mm
Service voltage	12 … 35 V DC
No-load current (max.)	35 mA
Switching output	pnp, 200 mA, NO/NC
Housing material	Aluminum, Black (Anodized)

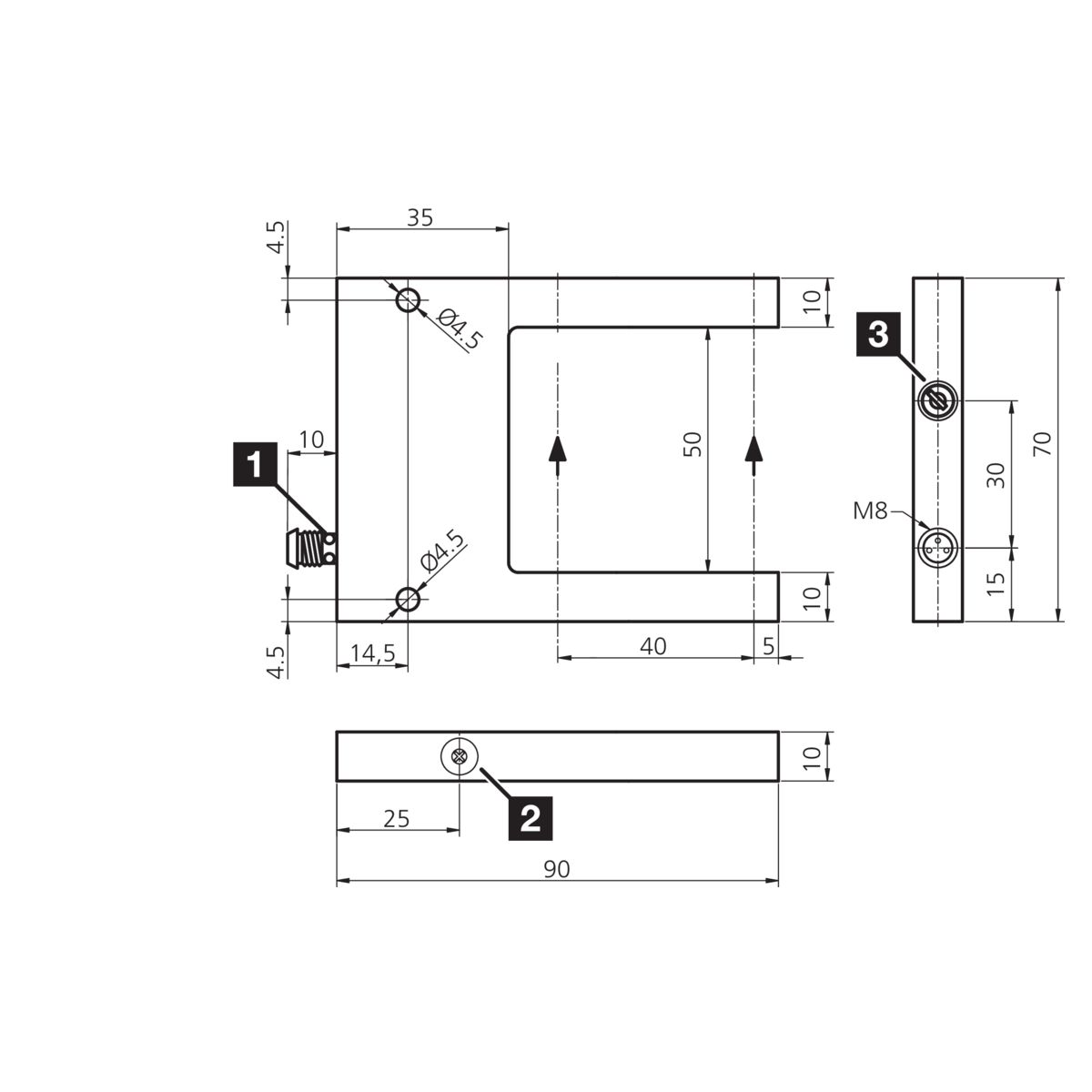

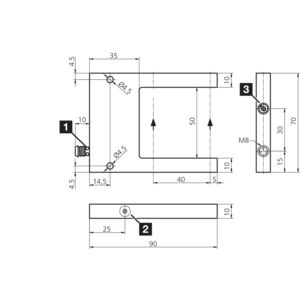

Size	70 x 90 x 10 mm
Ambient temperature during operation	0 … +60 °C
Connection	Connector, M8, 3-pin
