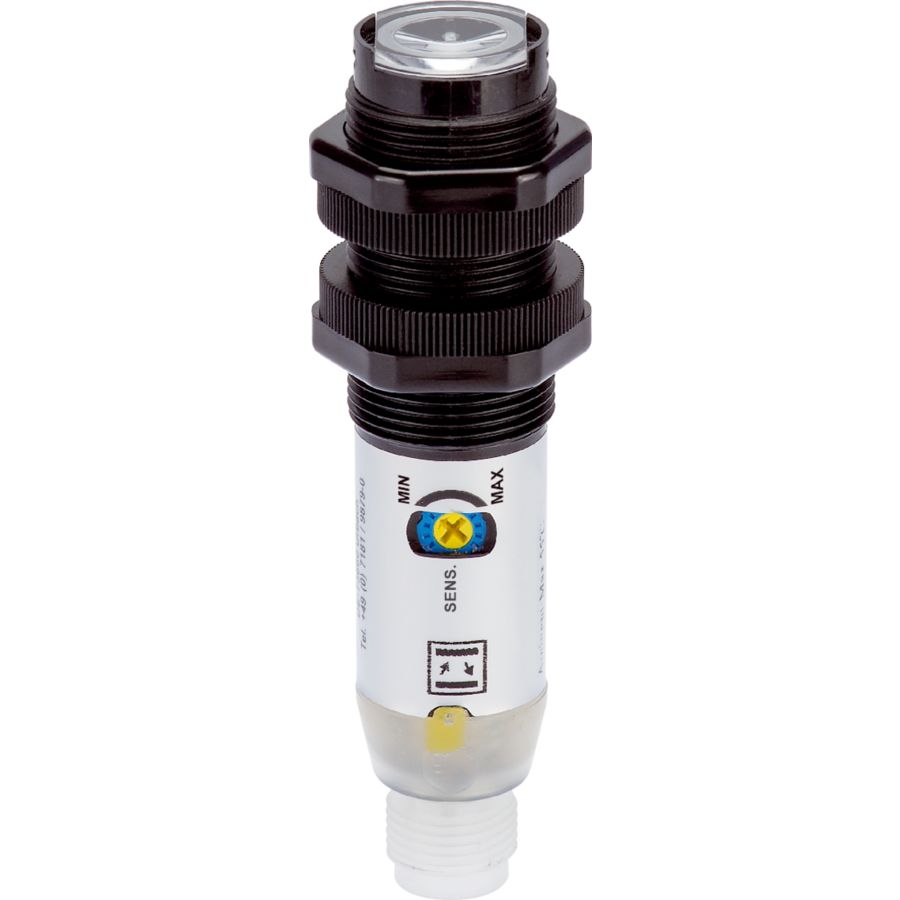

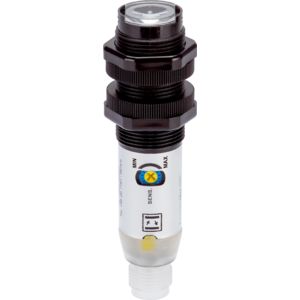

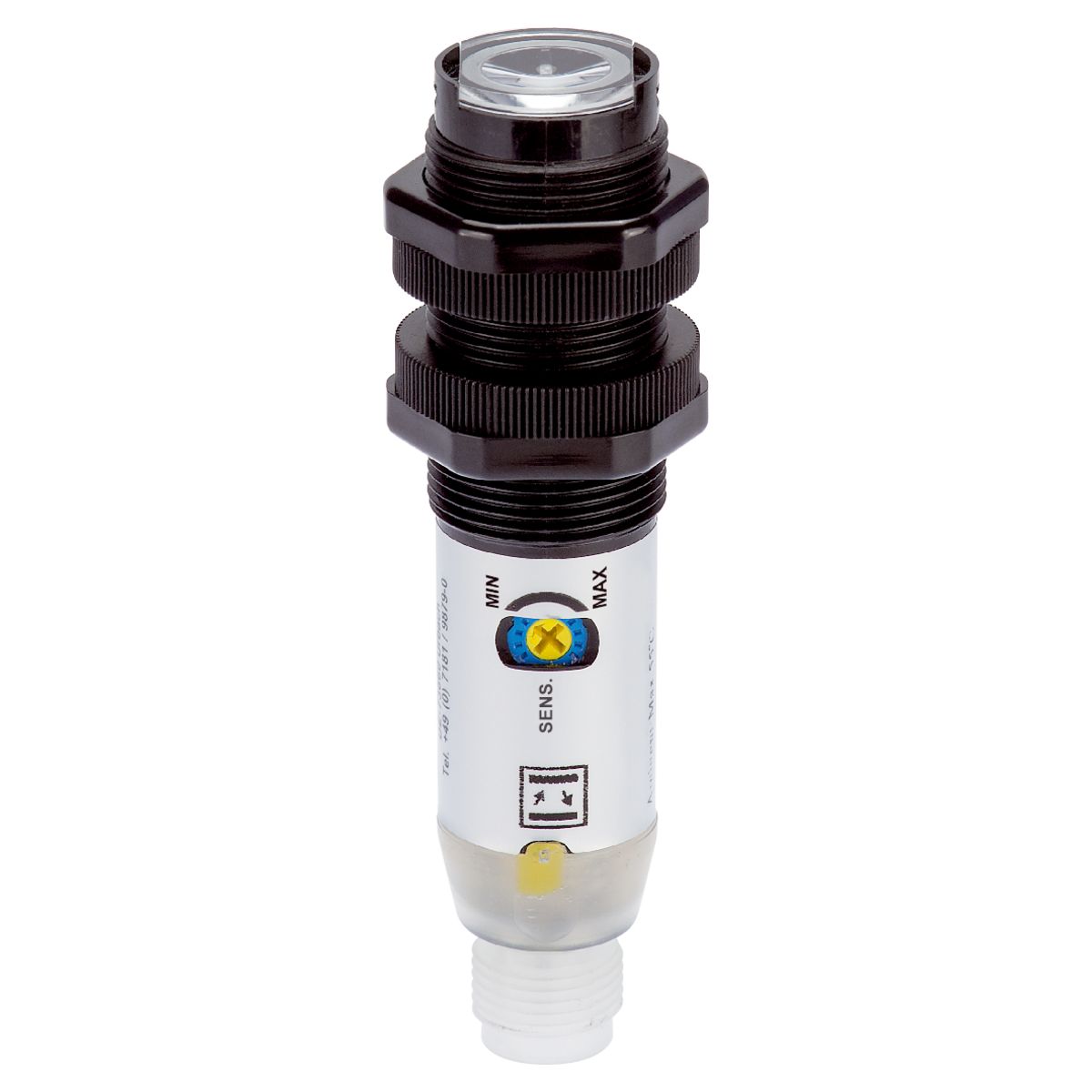

Diffuse Sensor - OT 18-1 K 30 P3-B4
Part Number: OT 18-1 K 30 P3-B4
Article Number: 210026
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Diffuse sensor |
|---|---|
| Transmitter light source | LED |
| Light color | red / 635 nm |
| Scanning range | 10 … 30 mm |
| Service voltage | 10 … 30 V DC |

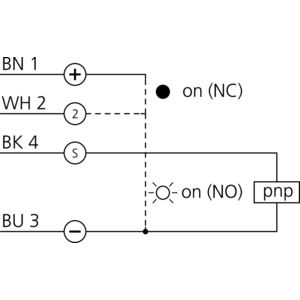

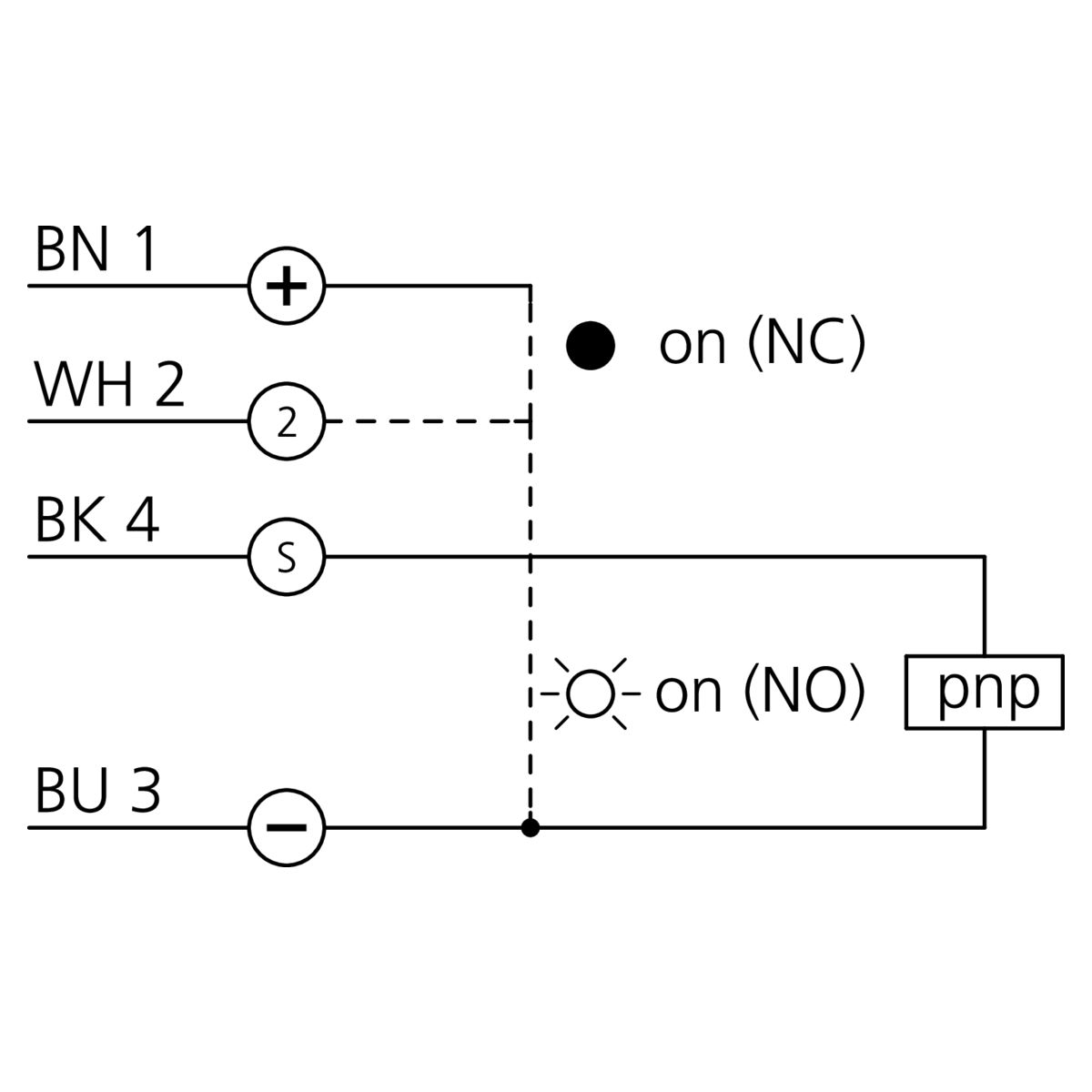

| Switching output | pnp, 100 mA, NO/NC |
| Ambient temperature during operation | -25 … +55 °C |
| Protection class | III, operation on protective low voltage |
| Connection | Connector, M12, 4-pin |
