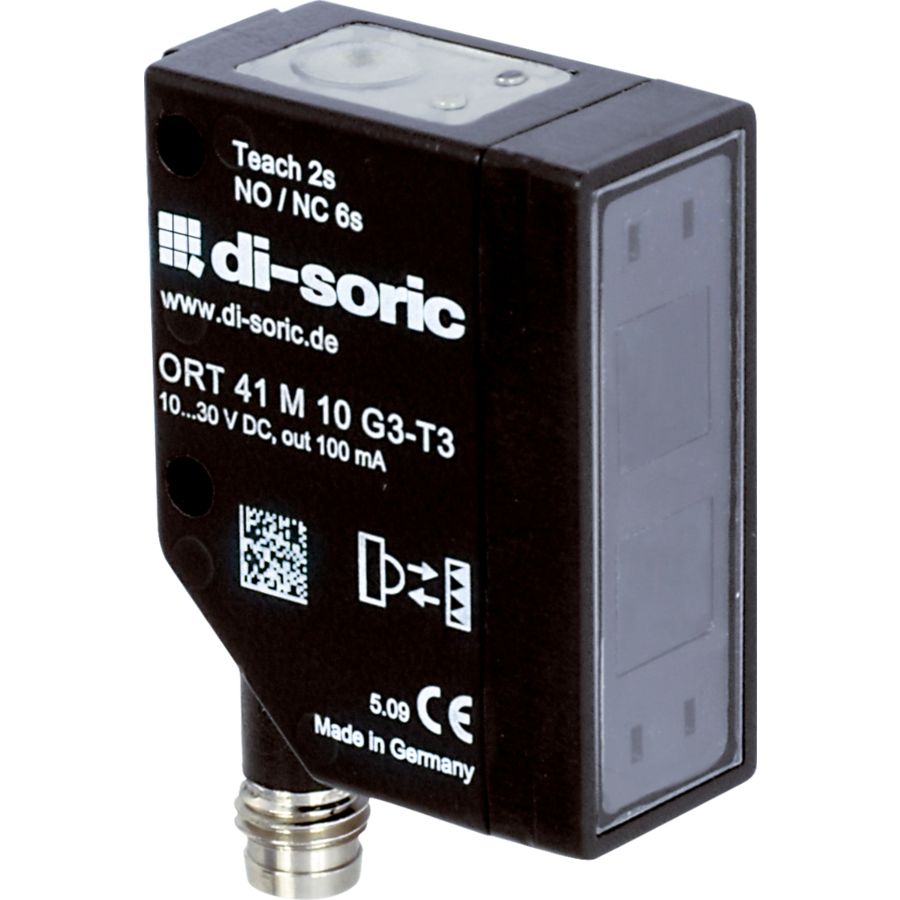

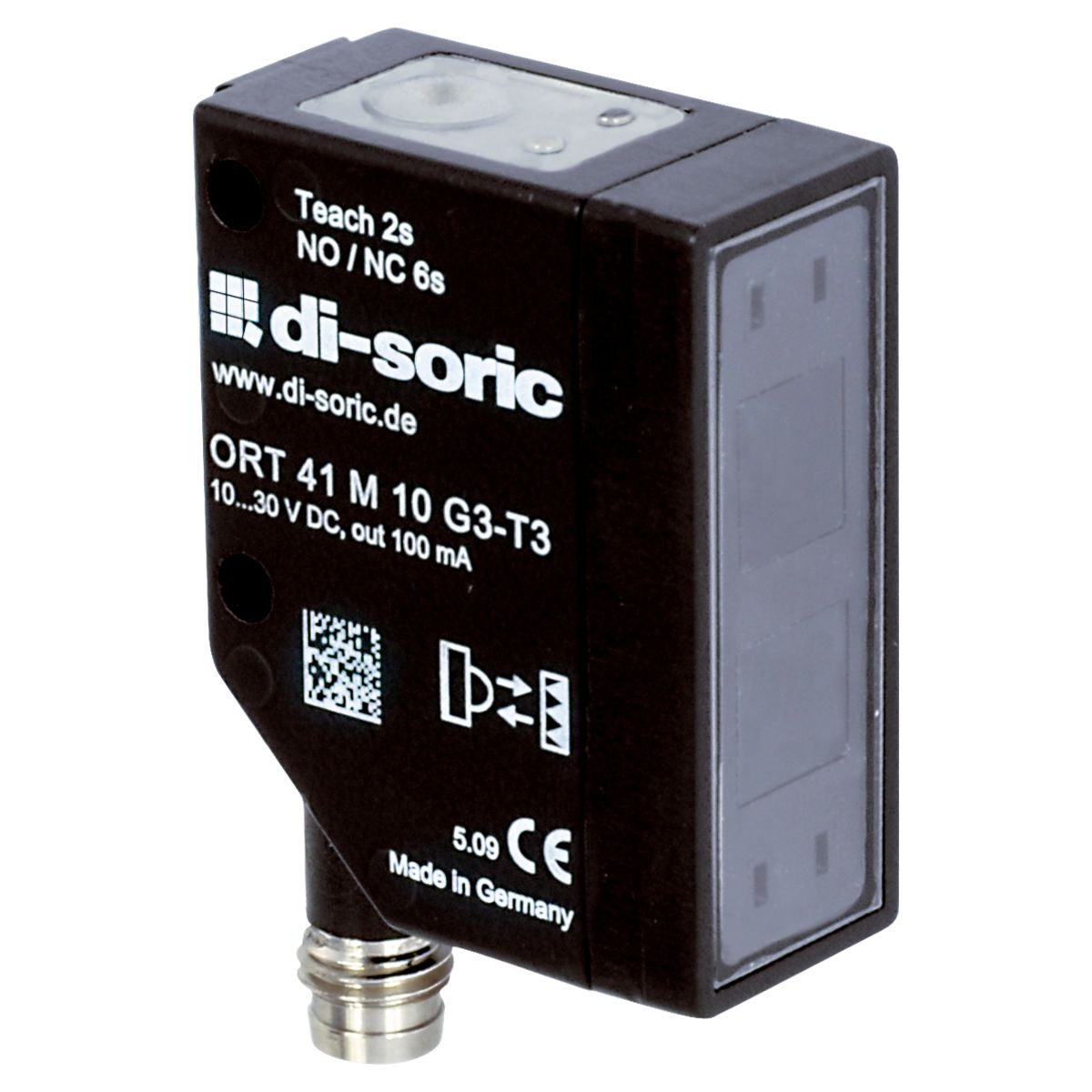

Diffuse Sensor - OTT 41 M 1 G3-T3

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Diffuse sensor
Transmitter light source	LED
Light color	red / 630 nm
Scanning range	100 … 1.000 mm
Service voltage	10 … 30 V DC
Switching output	Push-pull, 200 mA, NO/NC
Ambient temperature during operation	-20 … +60 °C
Protection class	III, operation on protective low voltage
Connection	Connector, M8, 3-pin
