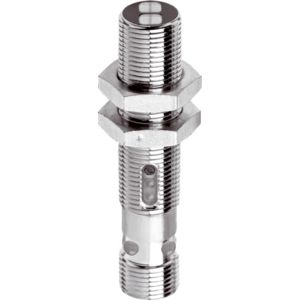

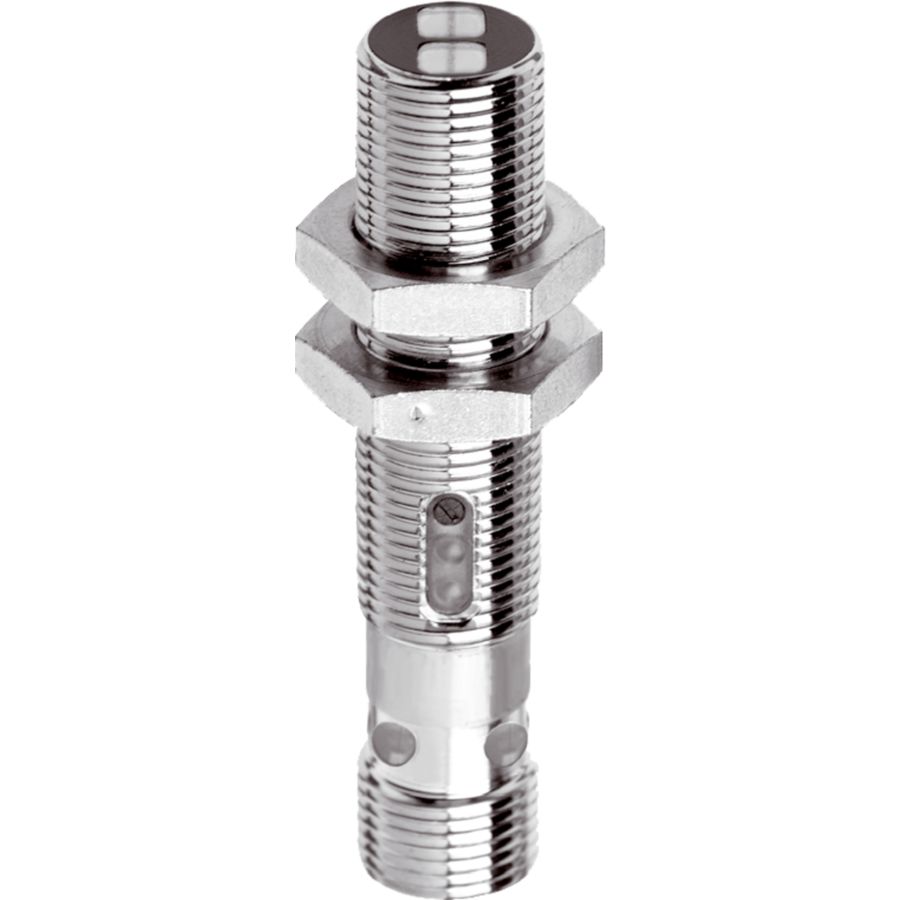

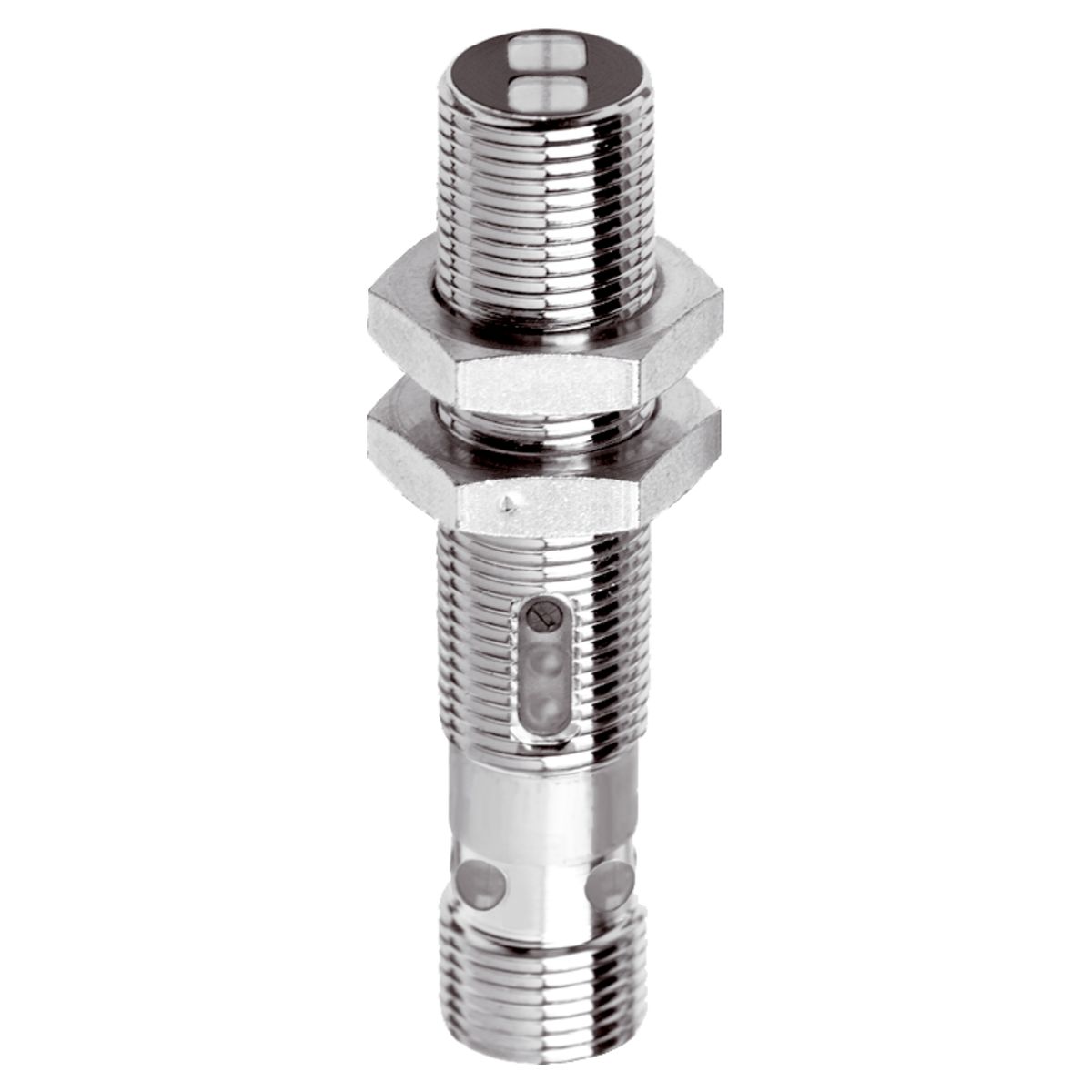

Diffuse Sensor - OTV 12 M 300 P1K-IBSL
Part Number: OTV 12 M 300 P1K-IBSL
Article Number: 201526
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Diffuse sensor |
|---|---|
| Transmitter light source | LED |
| Light color | red / 660 nm |
| Scanning range | 70 … 300 mm |
| Service voltage | 10 … 36 V DC |
| Switching output | pnp, 200 mA, NO |
| Ambient temperature during operation | -25 … +55 °C |
| Protection class | III, operation on protective low voltage |
| Connection | Connector, M12, 4-pin |
