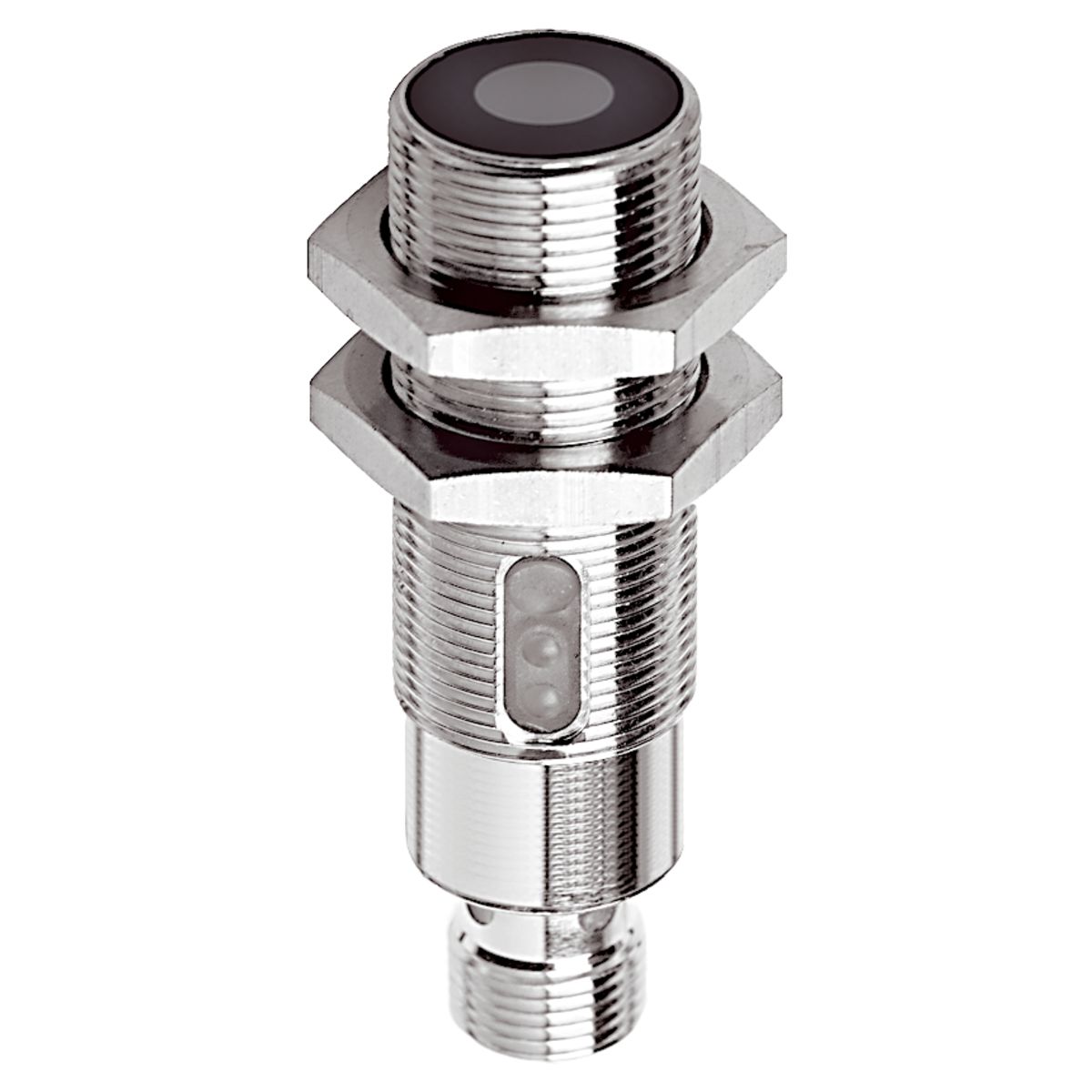

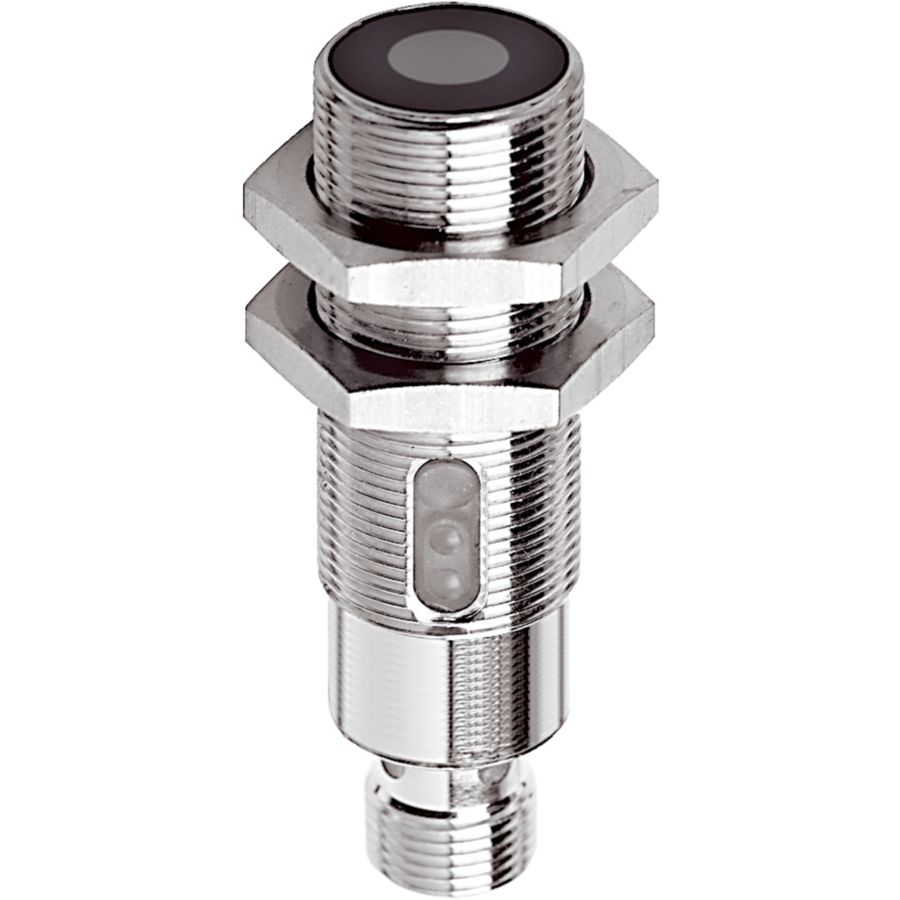

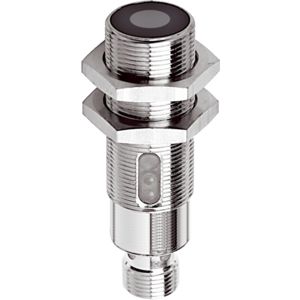

Diffuse Sensor - OTV 18 M 600 N4K-IBSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Diffuse sensor
Transmitter light source	LED
Light color	red / 660 nm
Scanning range	600 mm
Service voltage	10 … 36 V DC

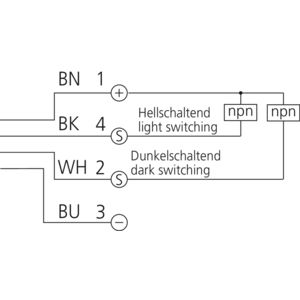

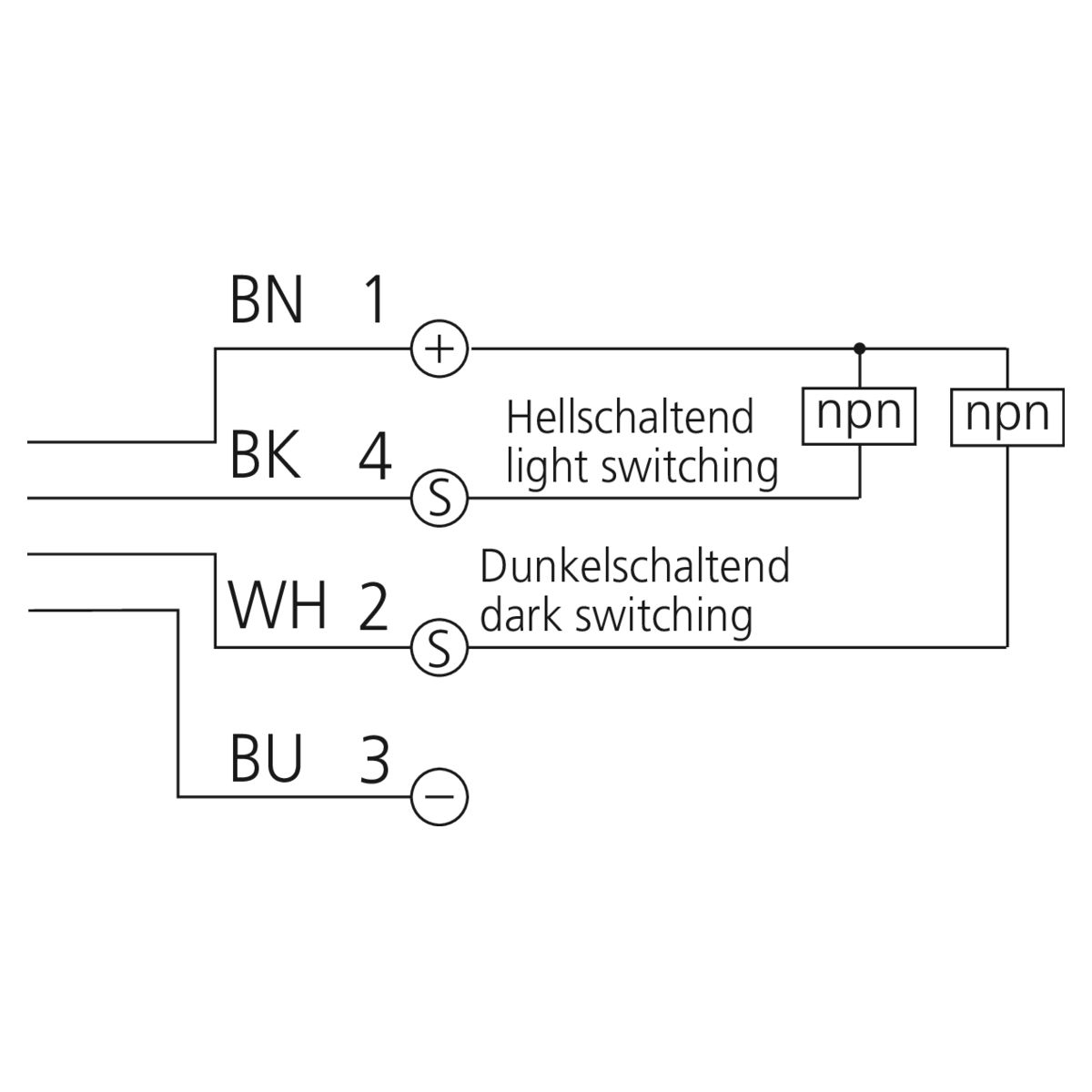

Switching output	npn, 200 mA, antivalent
Ambient temperature during operation	-25 … +55 °C
Protection class	III, operation on protective low voltage
Connection	Connector, M12, 4-pin
