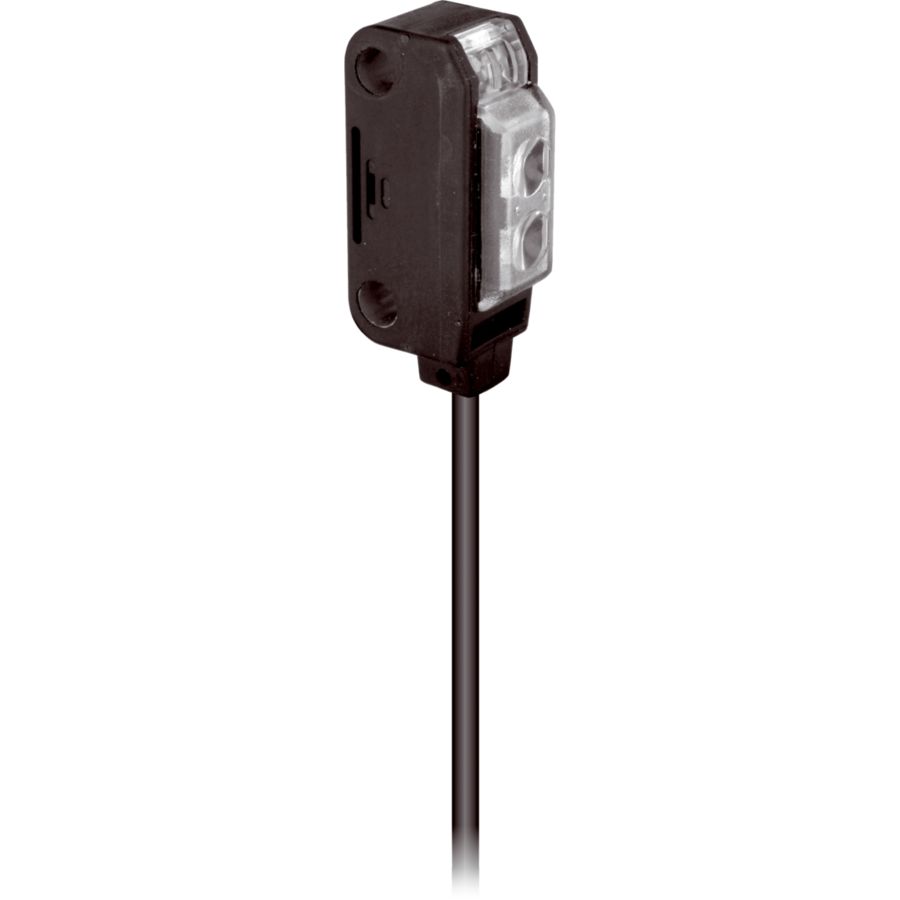

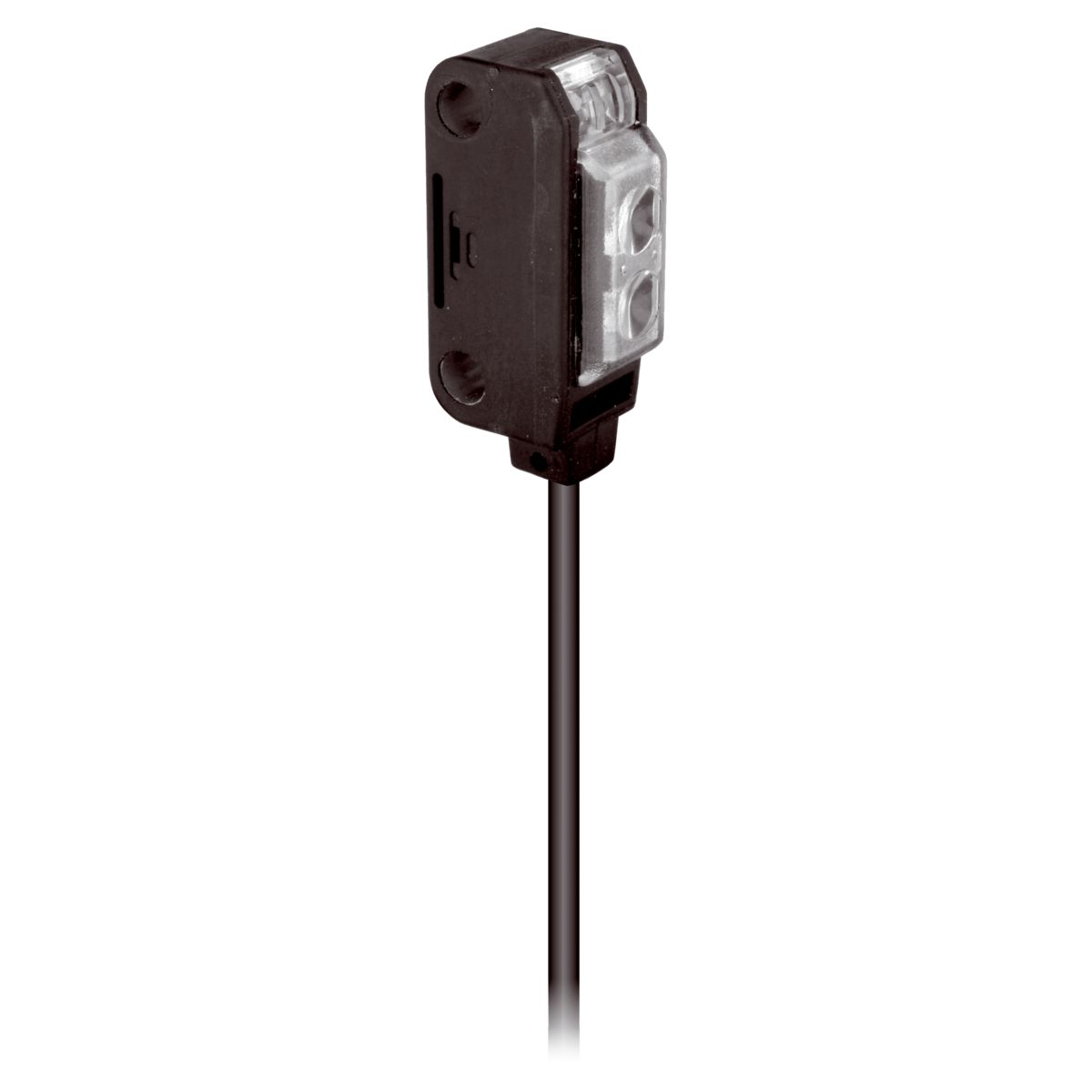

Diffuse Sensor - OTV 22 K 115 P1K
Part Number: OTV 22 K 115 P1K
Article Number: 201534
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Diffuse sensor |
|---|---|
| Transmitter light source | LED |
| Light color | red / 680 nm |
| Scanning range | 90 … 115 mm |
| Service voltage | 12 … 24 V DC |
| Switching output | pnp, 50 mA, NO |
| Ambient temperature during operation | -25 … +55 °C |
| Protection class | III, operation on protective low voltage |
| Connection | Cable, 2 m |
