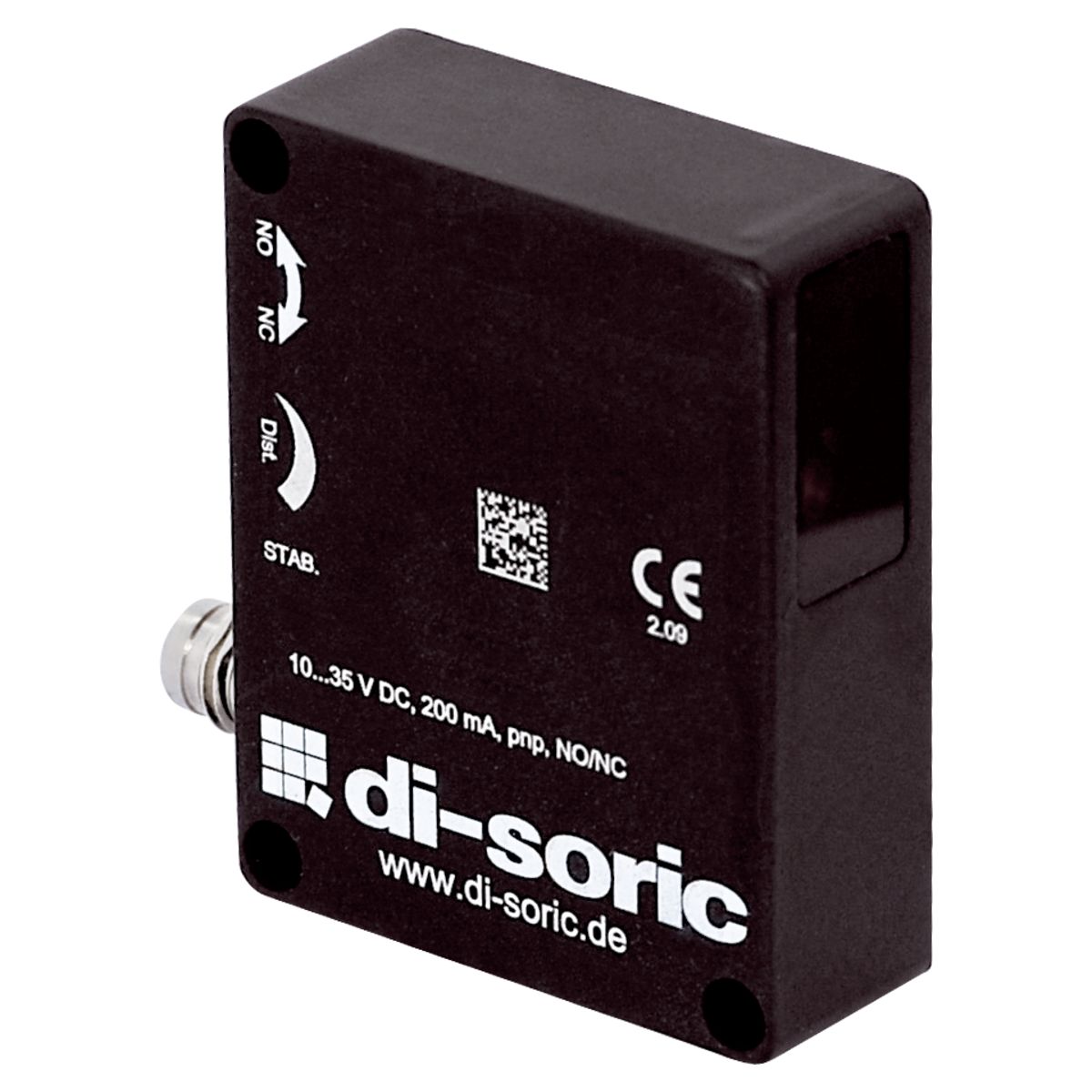

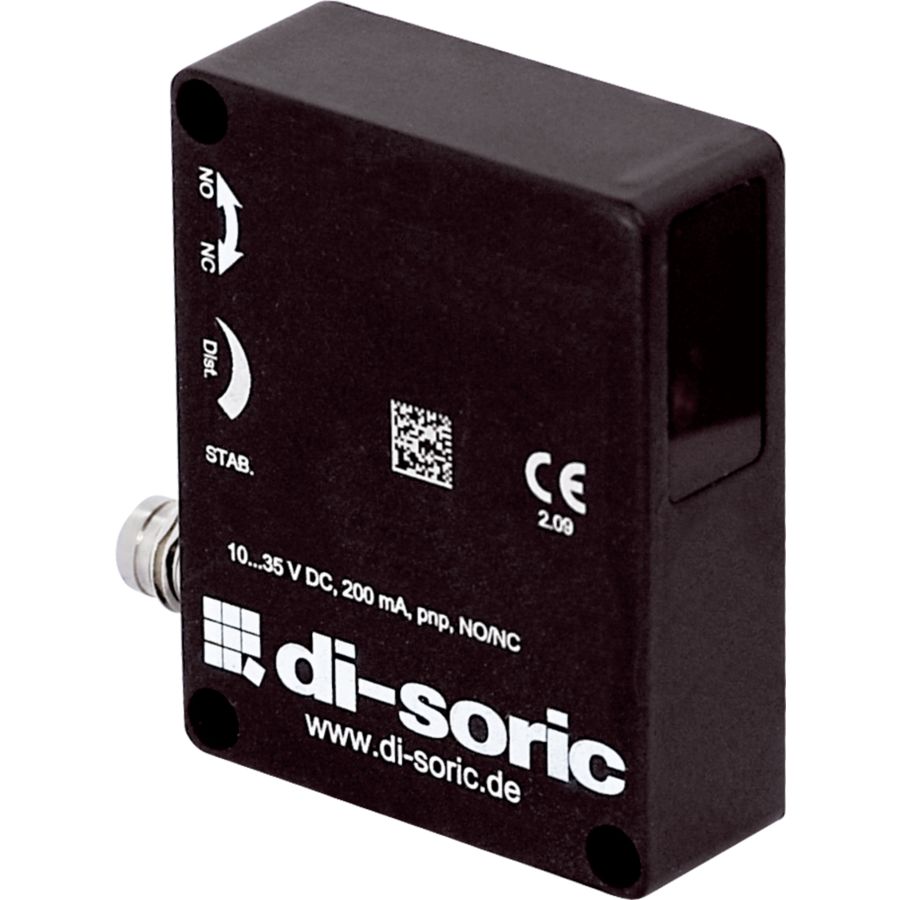

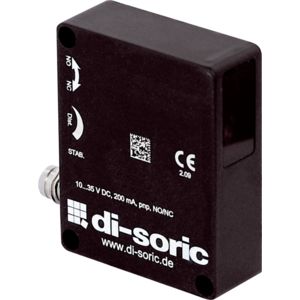

Diffuse Sensor - OTV 50 M 1200 P3K-IBS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Diffuse sensor
Transmitter light source	LED
Light color	Infrared / 880 nm
Scanning range	50 … 1.200 mm
Service voltage	10 … 35 V DC
Switching output	pnp, 200 mA, NO/NC
Ambient temperature during operation	-10 … +60 °C
Protection class	III, operation on protective low voltage
Connection	Connector, M12, 3-pin
