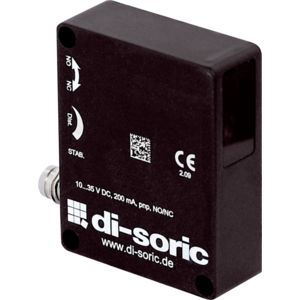

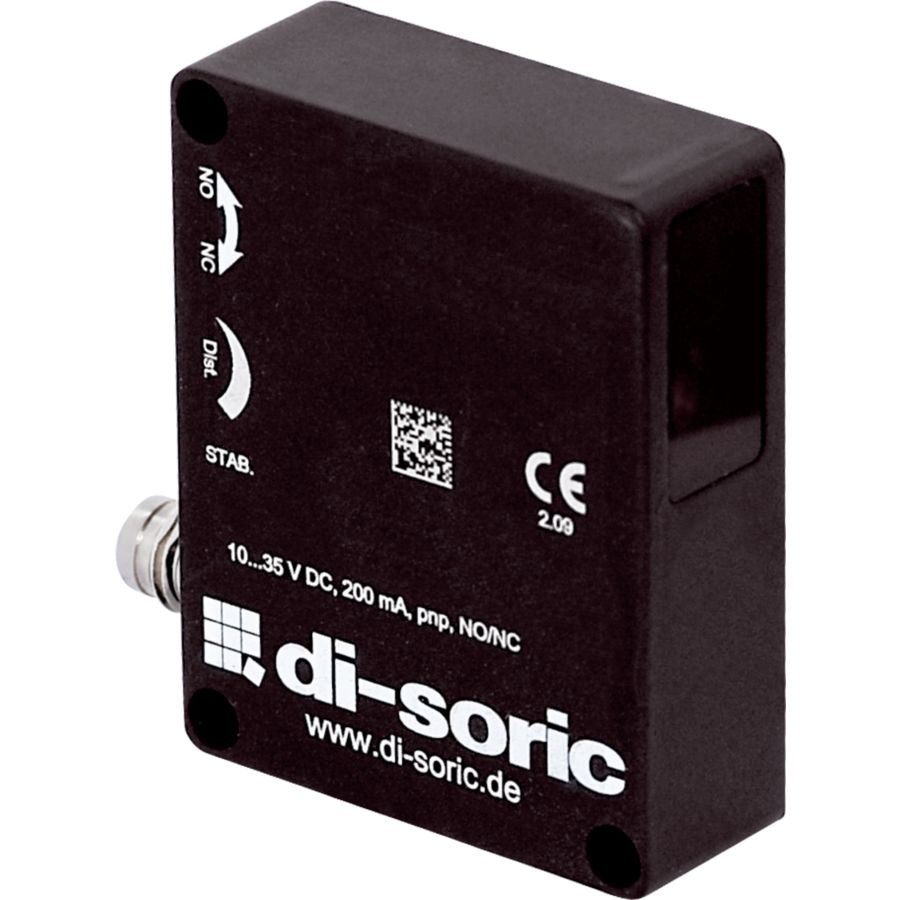

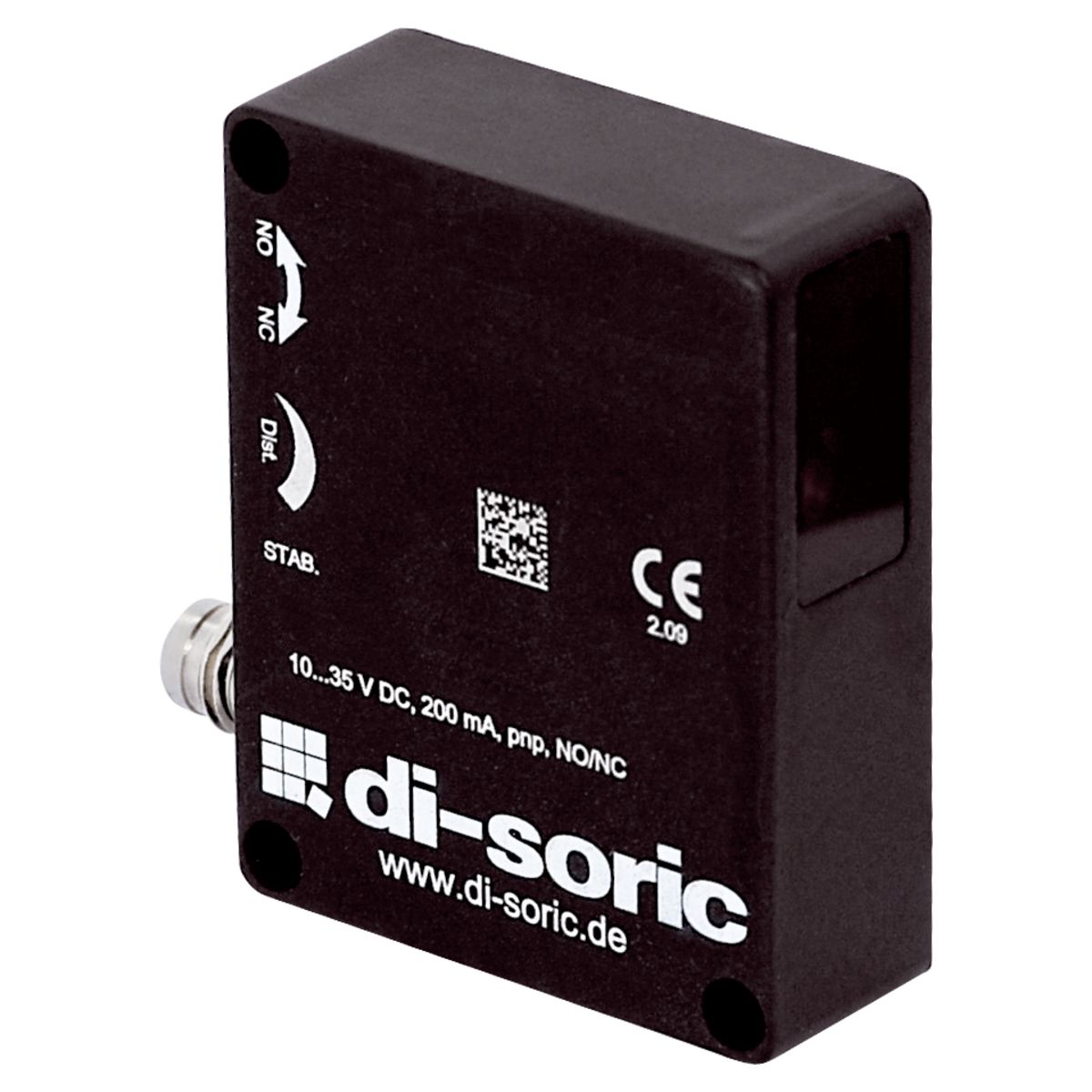

Diffuse Sensor - OTV 51 M 500 P3K-TSSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Diffuse sensor
Transmitter light source	LED
Light color	red / 660 nm
Scanning range	100 … 500 mm
Service voltage	10 … 35 V DC
Switching output	pnp, 200 mA, NO/NC
Ambient temperature during operation	-10 … +60 °C
Protection class	III, operation on protective low voltage
Connection	Connector, M8, 3-pin
