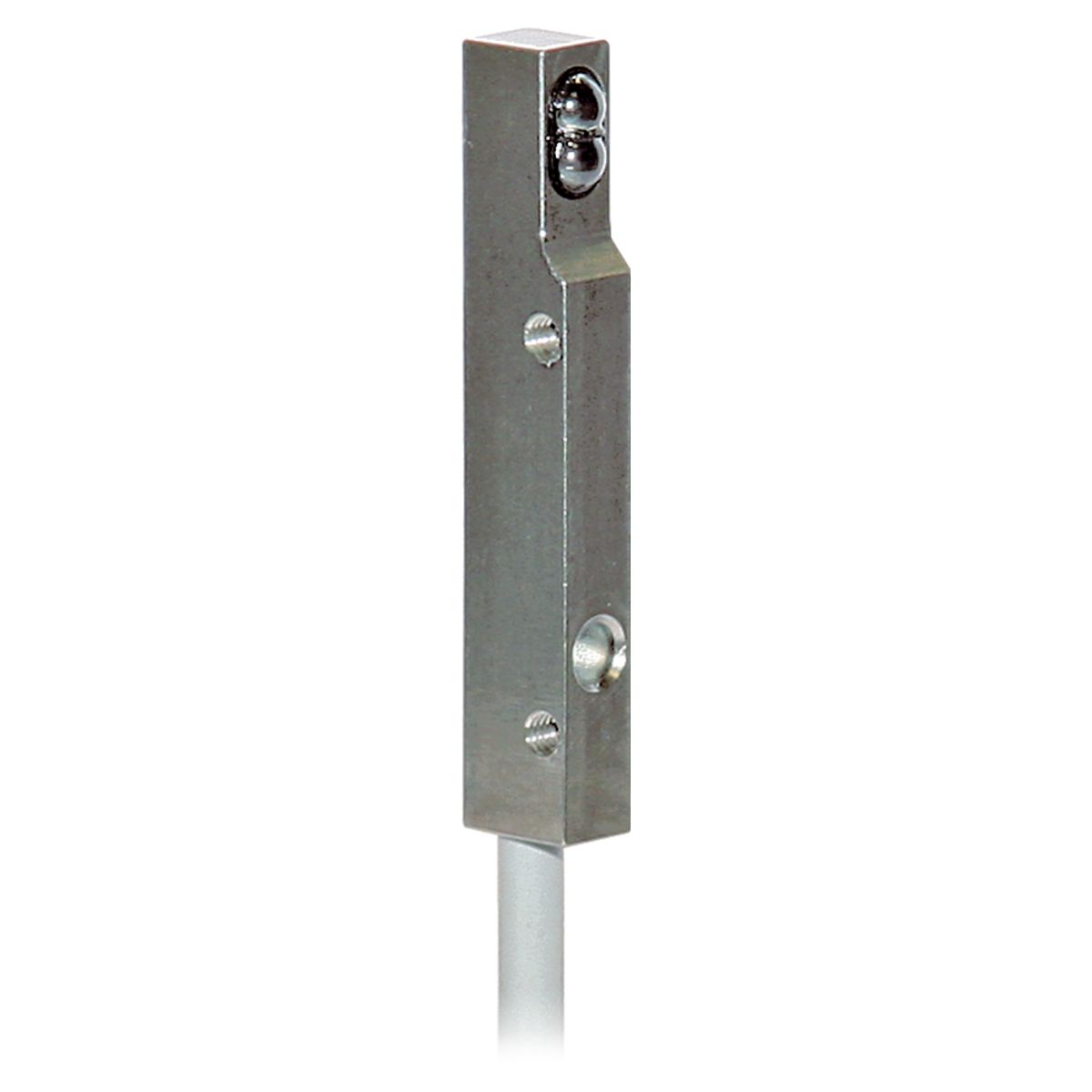

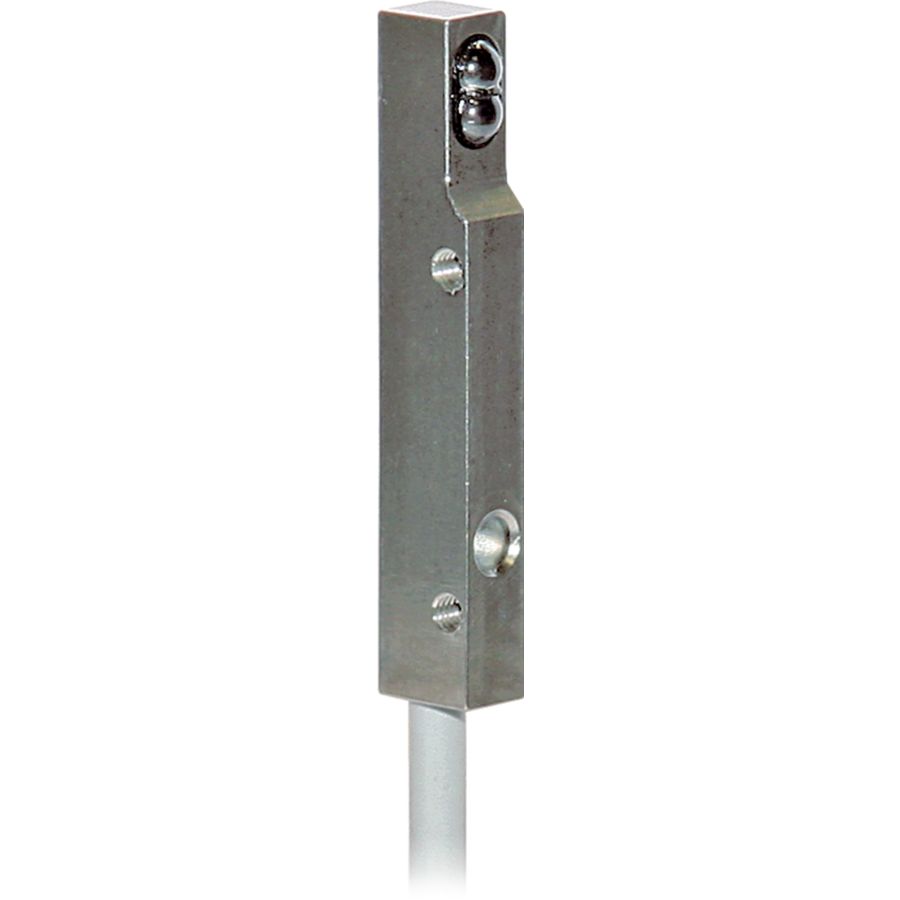

Diffuse Sensor - OTV Q5 M 20 P1LK
Part Number: OTV Q5 M 20 P1LK
Article Number: 203672
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Diffuse sensor |
|---|---|
| Transmitter light source | LED |
| Light color | Infrared / 880 nm |
| Scanning range | 20 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 100 mA, NO |
| Ambient temperature during operation | -25 … +55 °C |
| Protection class | III, operation on protective low voltage |
| Connection | Cable, 2 m |
