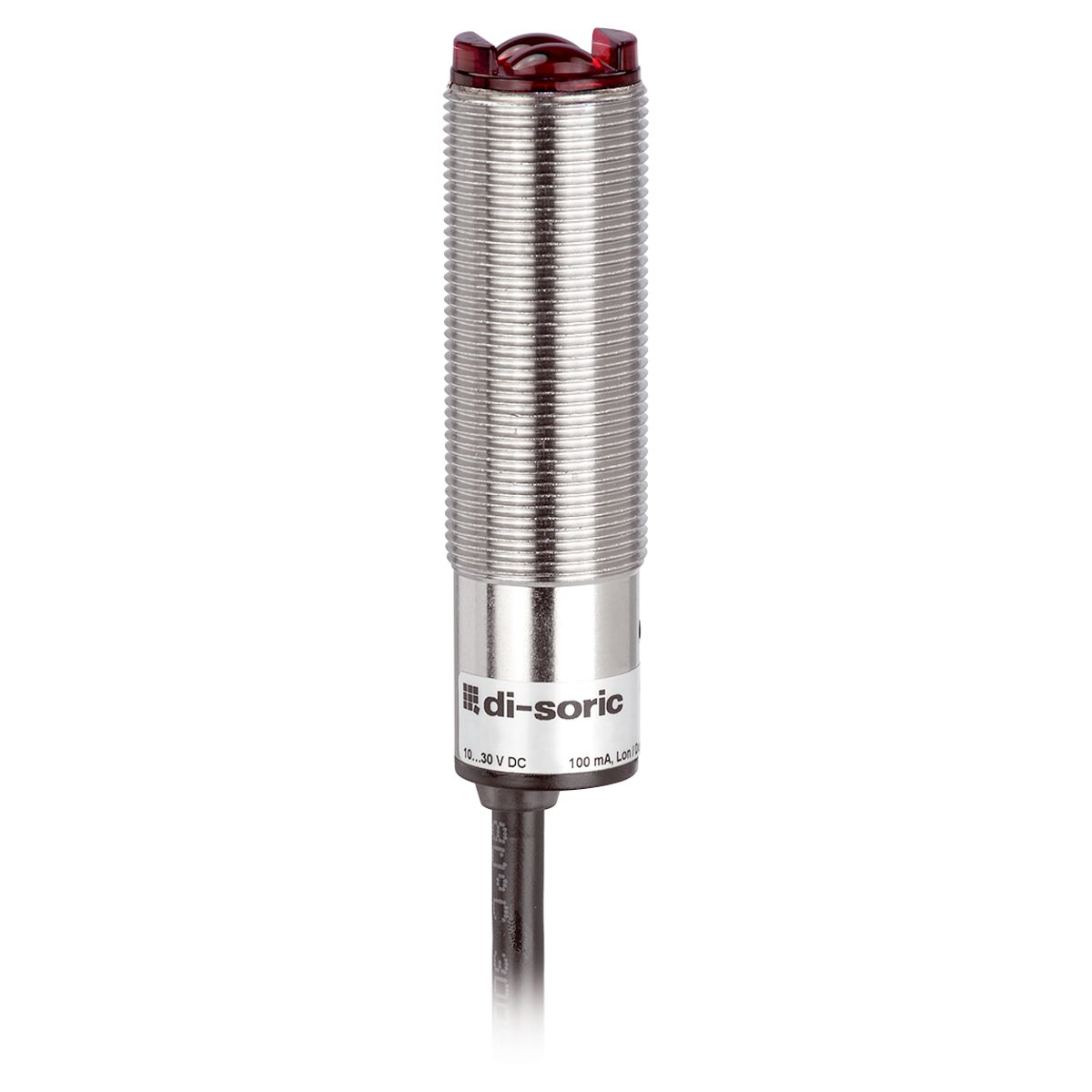

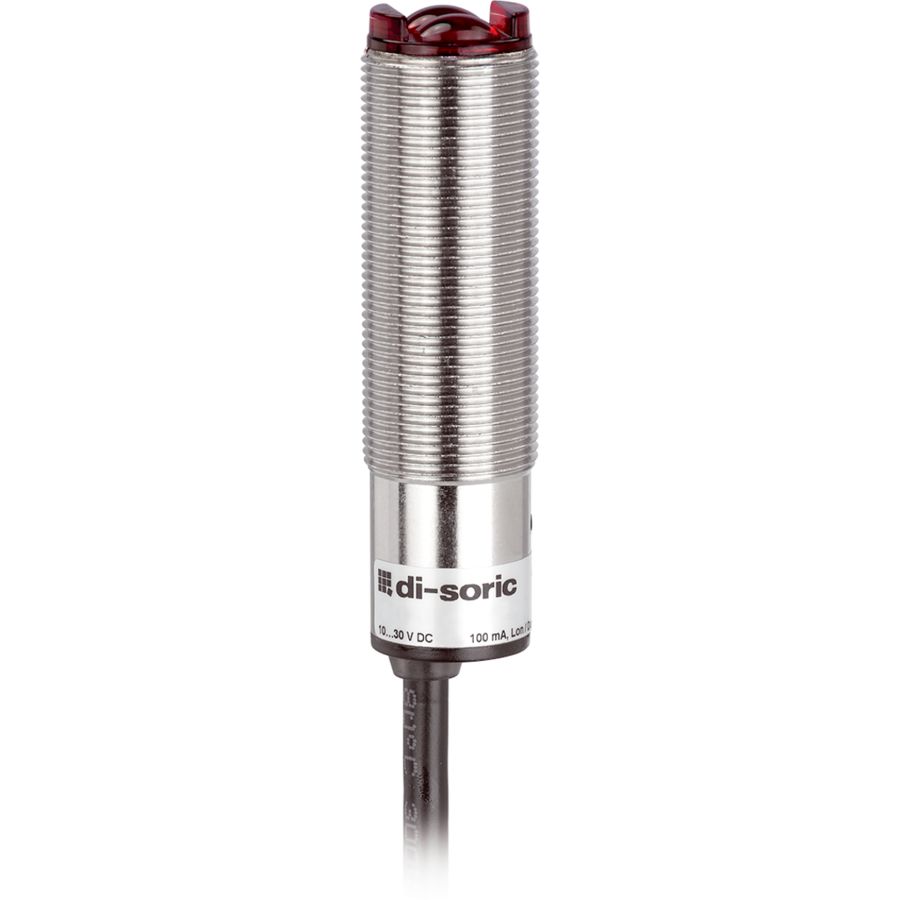

Diffuse Sensor With Background Suppression - OH 18-1 M 130 P4-4

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Diffuse sensor
Transmitter light source	LED
Light color	red / 660 nm
Scanning range	30 … 130 mm
Service voltage	10 … 30 V DC
Switching output	pnp, 100 mA, antivalent
Ambient temperature during operation	-25 … +70 °C
Protection class	III, operation on protective low voltage

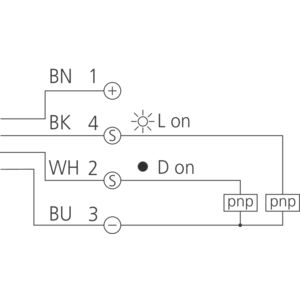

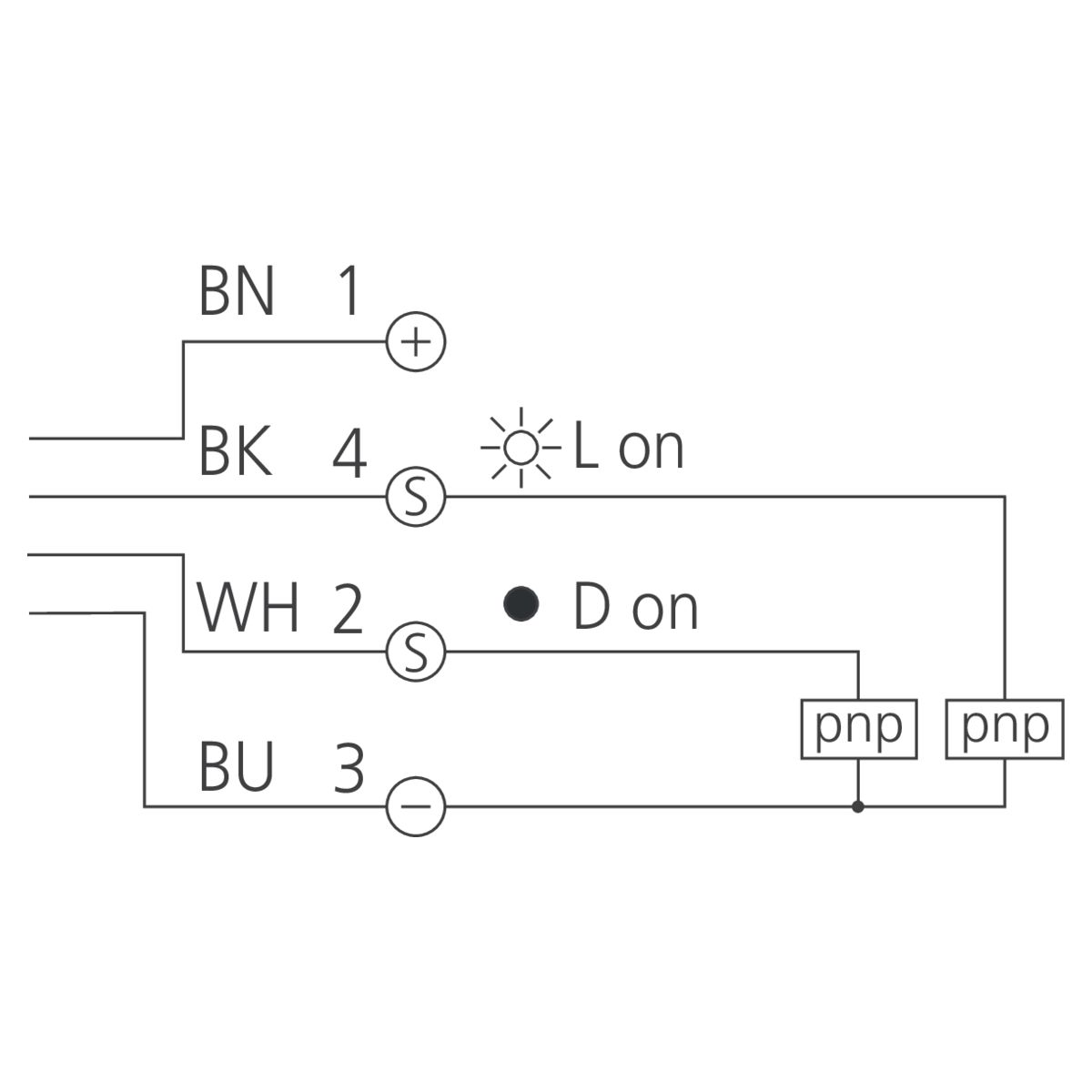

Connection	Cable, 2 m, 4-pin
