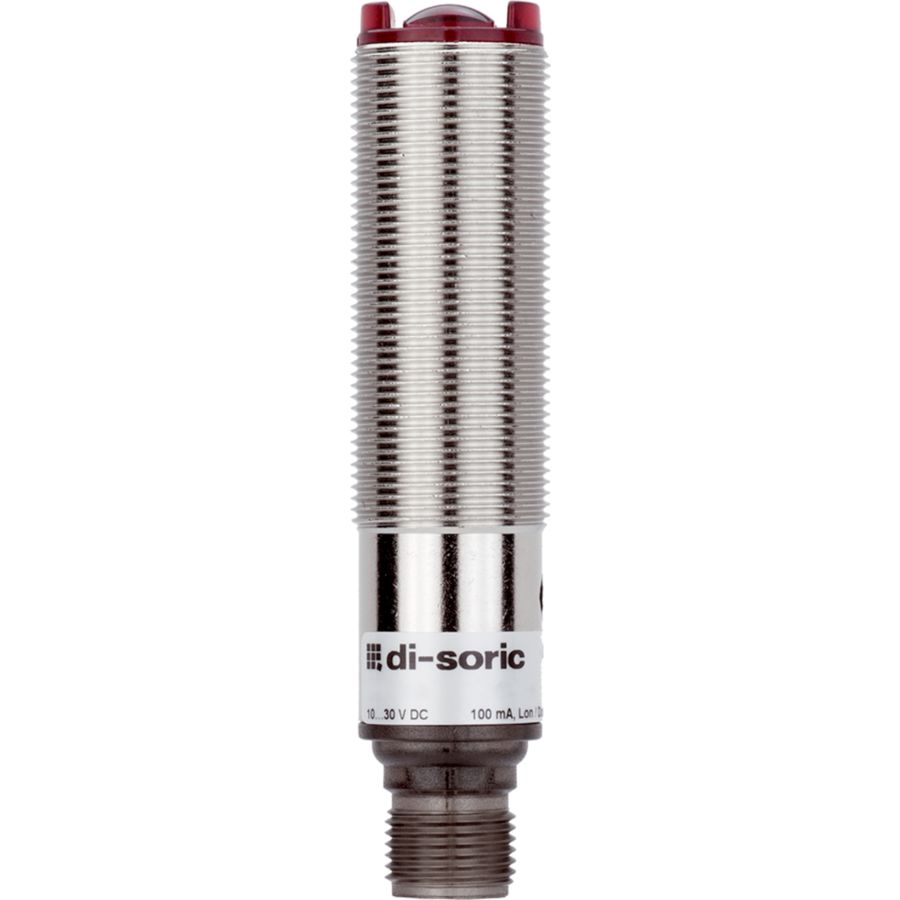

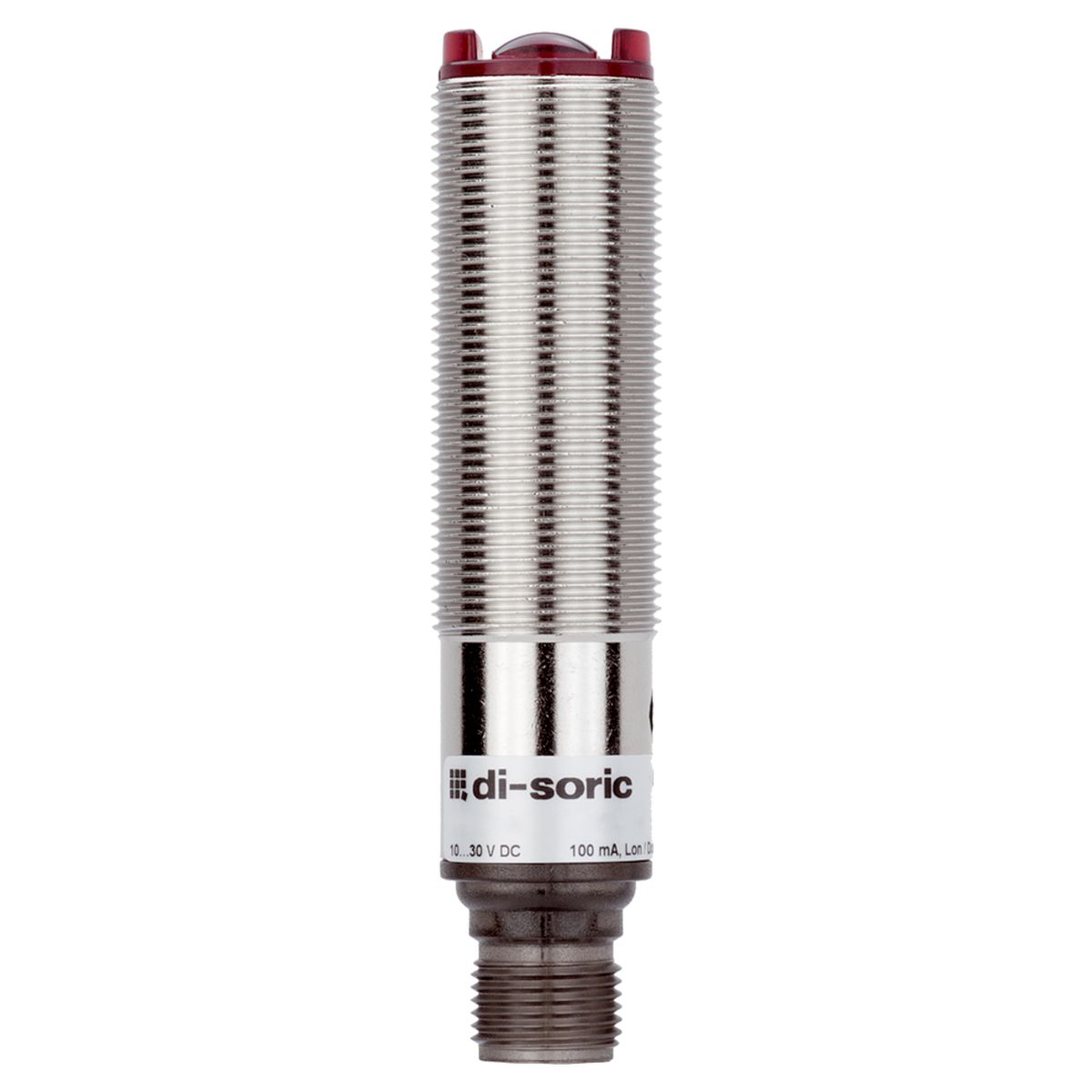

Diffuse Sensor With Background Suppression - OH 18-1 M 130 P4-B4
Part Number: OH 18-1 M 130 P4-B4
Article Number: 208300
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Diffuse sensor |
|---|---|
| Transmitter light source | LED |
| Light color | red / 660 nm |
| Scanning range | 30 … 130 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 100 mA, antivalent |
| Ambient temperature during operation | -25 … +70 °C |
| Protection class | III, operation on protective low voltage |

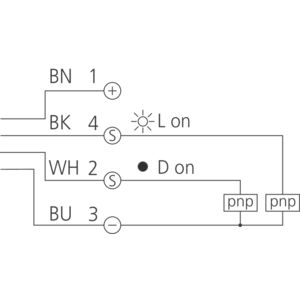

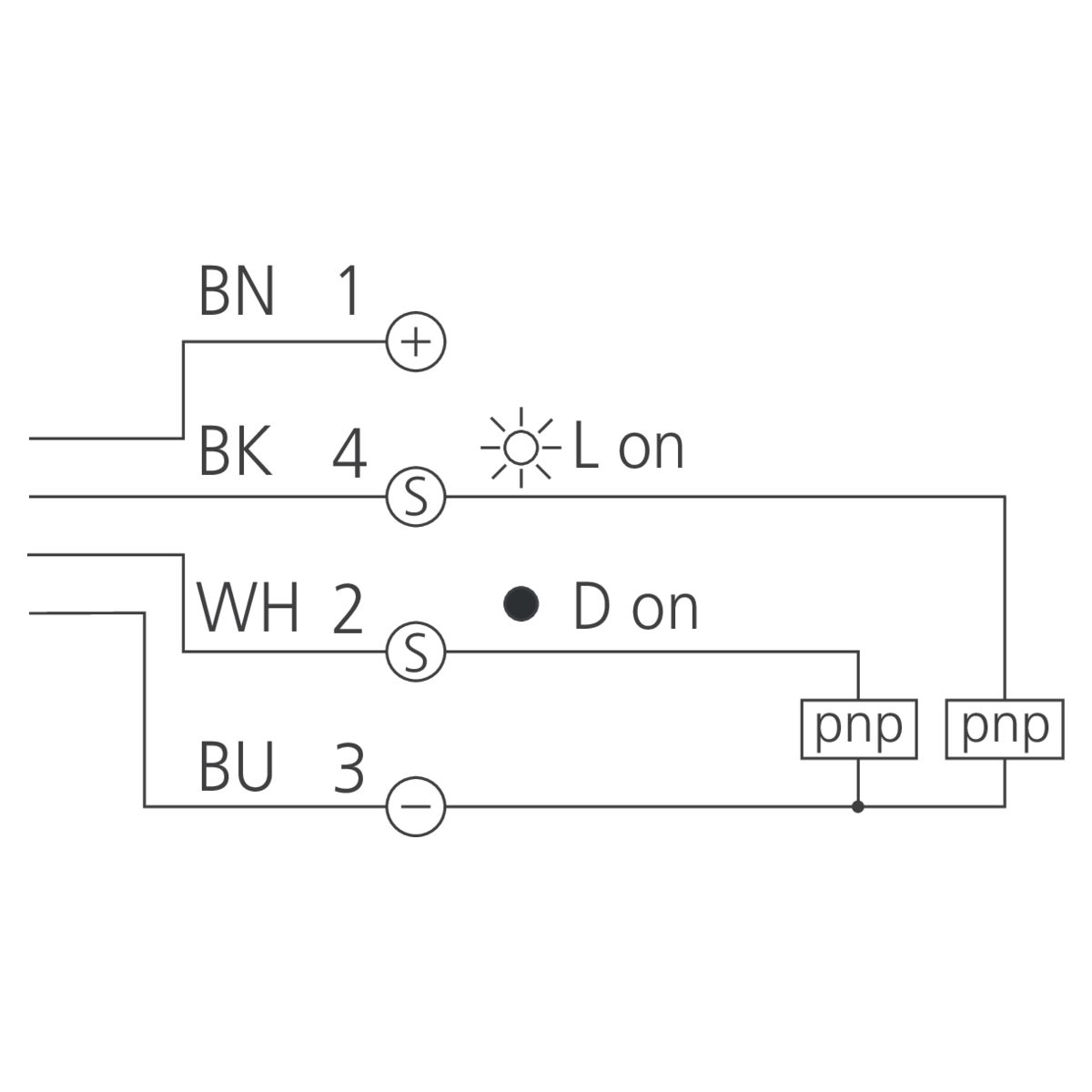

| Connection | Connector, M12, 4-pin |
