Diffuse Sensor With Background Suppression - OH 30 K 400 P3-3
Part Number: OH 30 K 400 P3-3
Article Number: 209232
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Diffuse sensor with background suppression |
|---|---|
| Transmitter light source | LED |
| Light color | Infrared / 850 nm |
| Scanning range | 30 … 400 mm |
| Service voltage | 10 … 30 V DC |

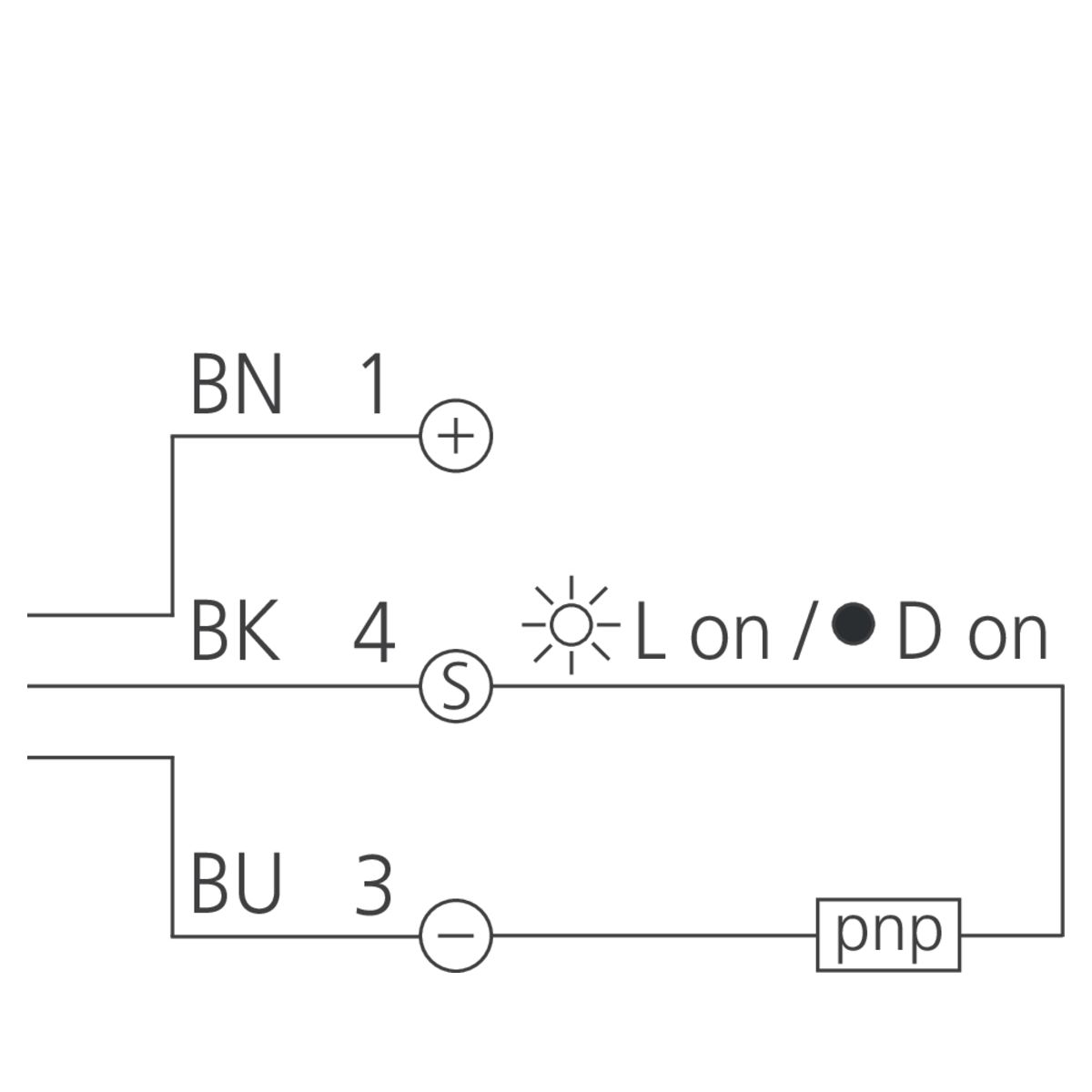

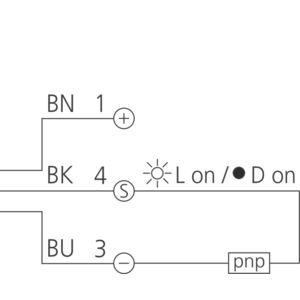

| Switching output | pnp, 100 mA, NO/NC |
| Ambient temperature during operation | -25 … +70 °C |
| Protection class | III, operation on protective low voltage |
| Connection | Cable, 2 m, 3-pin |
