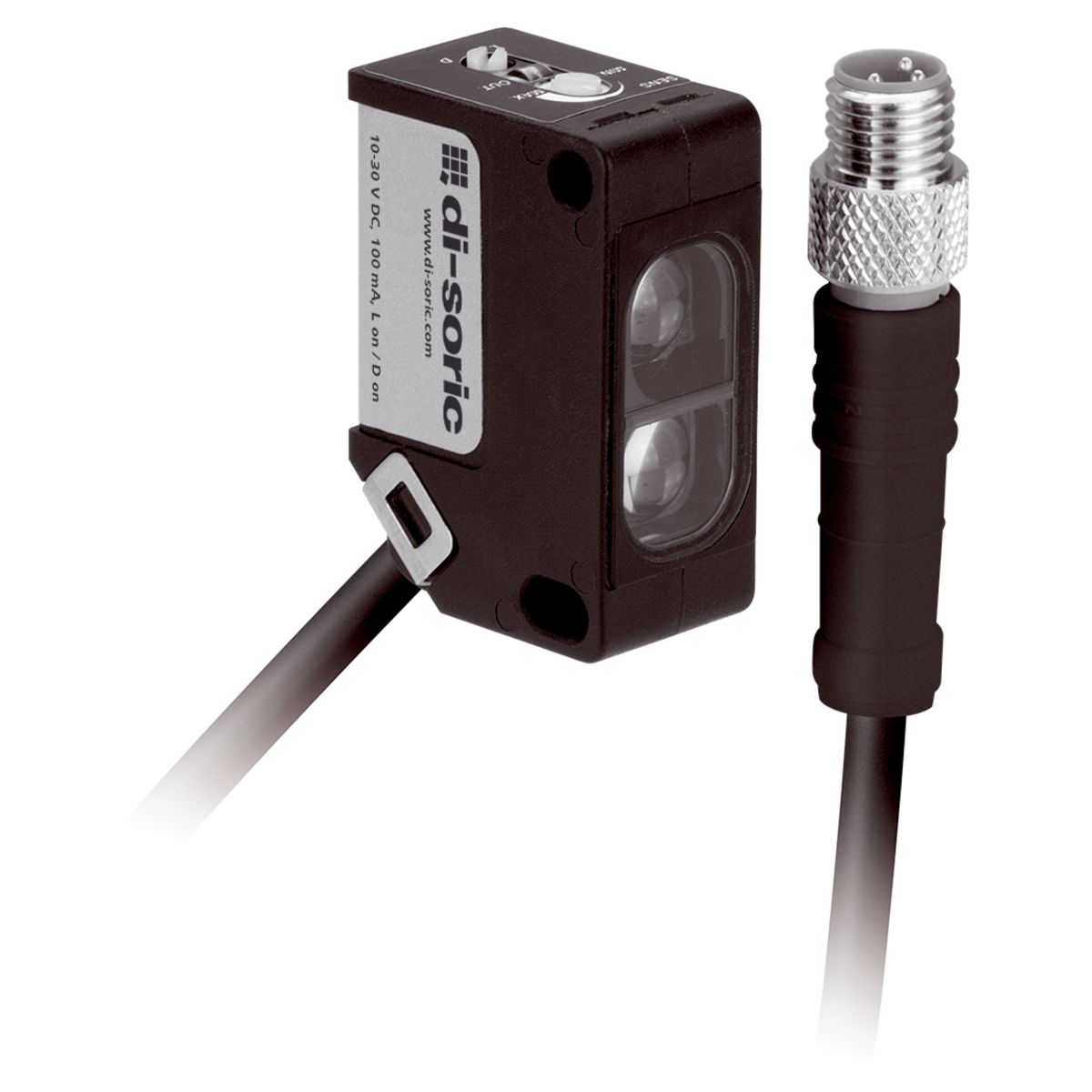

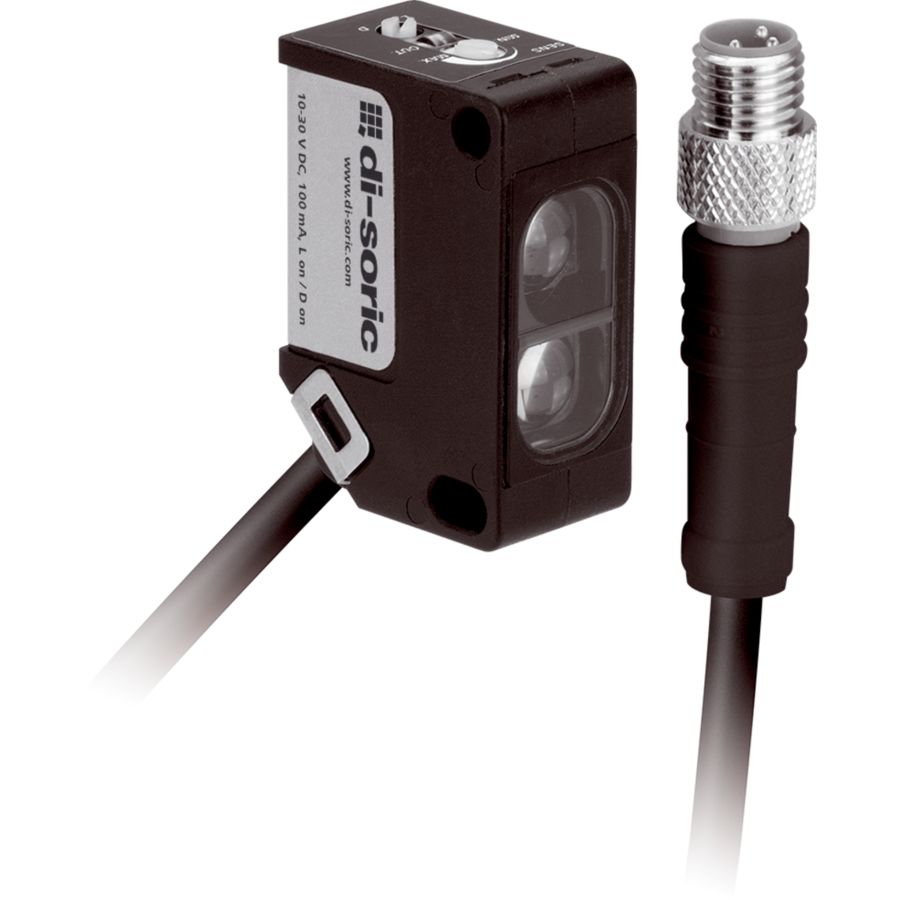

Diffuse Sensor With Background Suppression - OH 31 K 200 P3-K-T3

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Diffuse sensor with background suppression
Transmitter light source	LED
Light color	red / 630 nm
Scanning range	30 … 200 mm
Service voltage	10 … 30 V DC

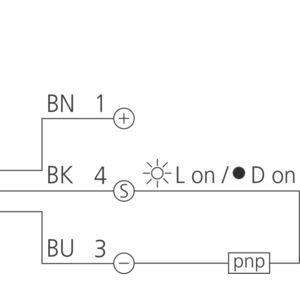

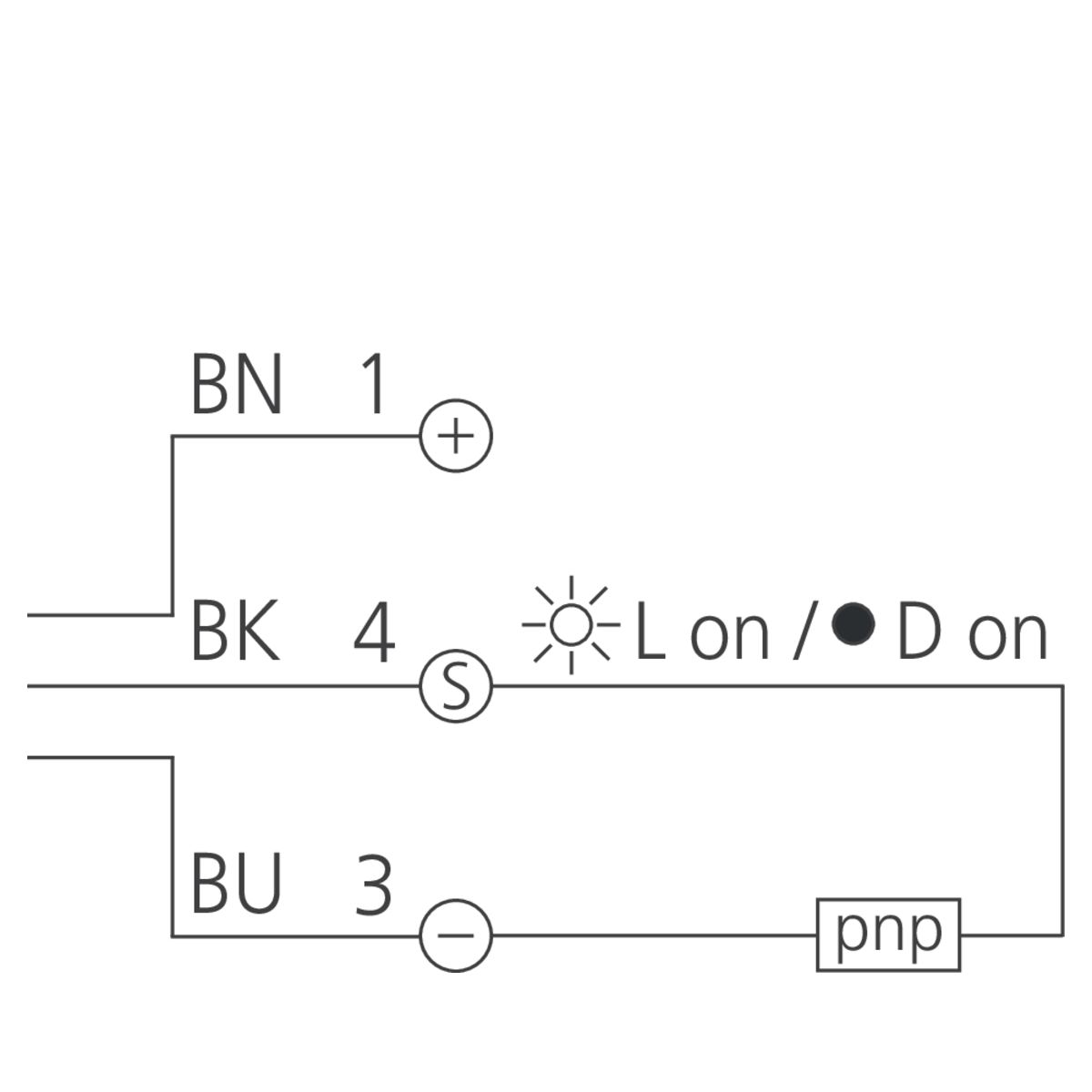

Switching output	pnp, 100 mA, NO/NC
Ambient temperature during operation	-25 … +70 °C
Protection class	III, operation on protective low voltage
Connection	Cable, Connector, 0,2 m, M8, 3-pin
