Fork Light Barrier - OGU 051 G3-T3

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	LED
Light color	red
Fork opening	50 mm
Service voltage	10 … 30 V DC
No-load current (max.)	30 mA
Switching output	Push-pull, 100 mA, NO/NC
Interface	IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Housing material	Die-cast zinc, Black (powder-coated)

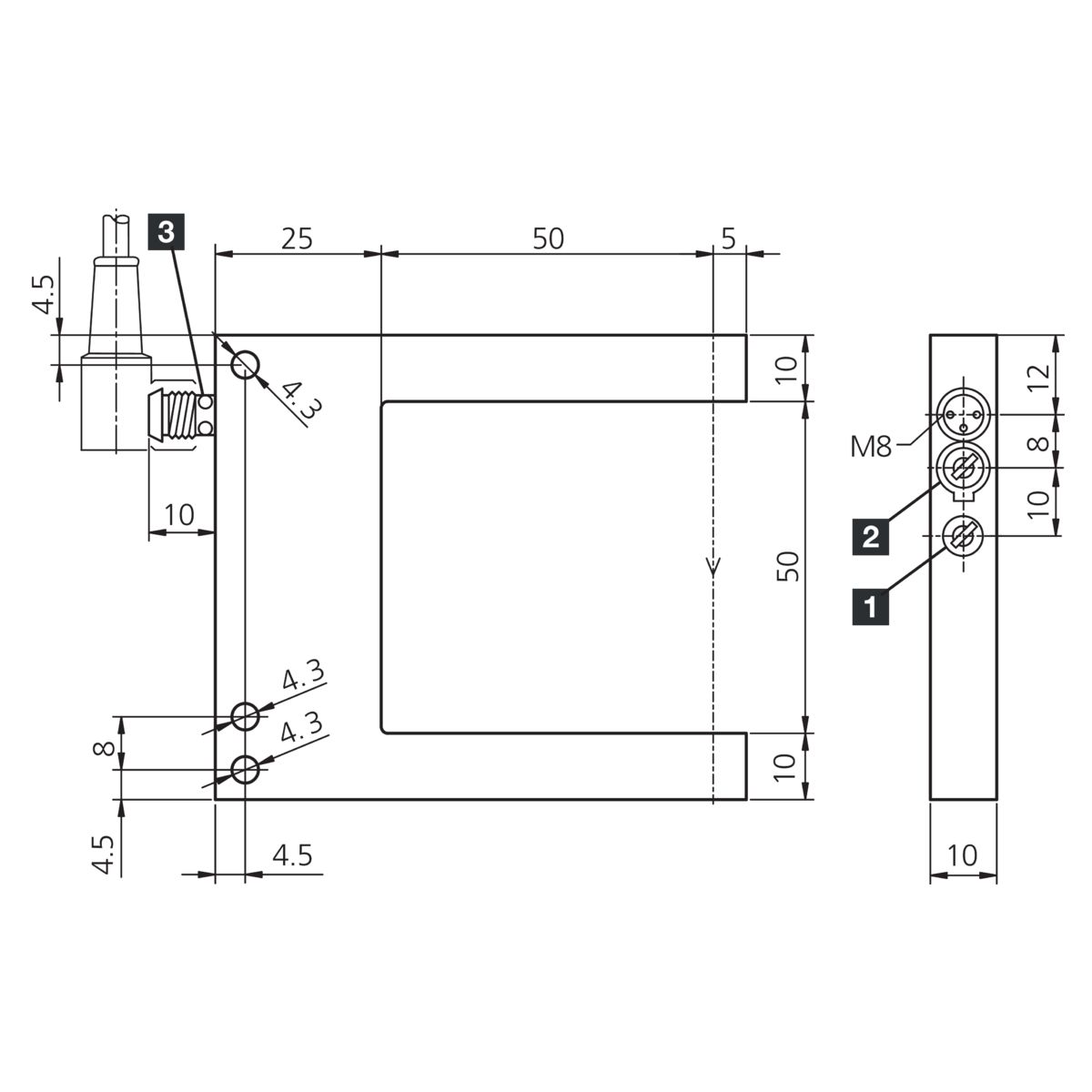

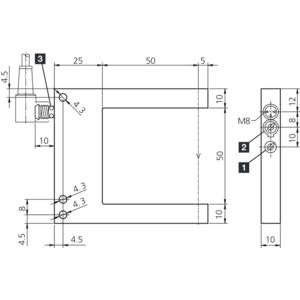

Size	70 x 80 x 10 mm
Ambient temperature during operation	-25 … +60 °C
Connection	Connector, M8, 3-pin
