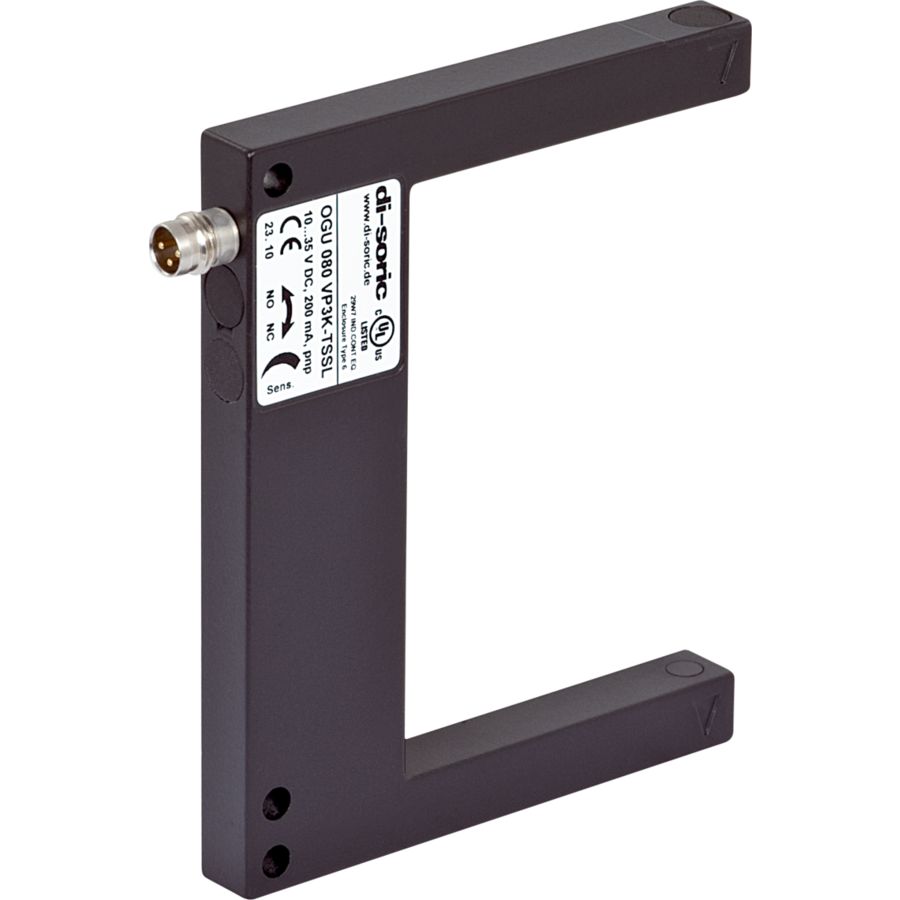

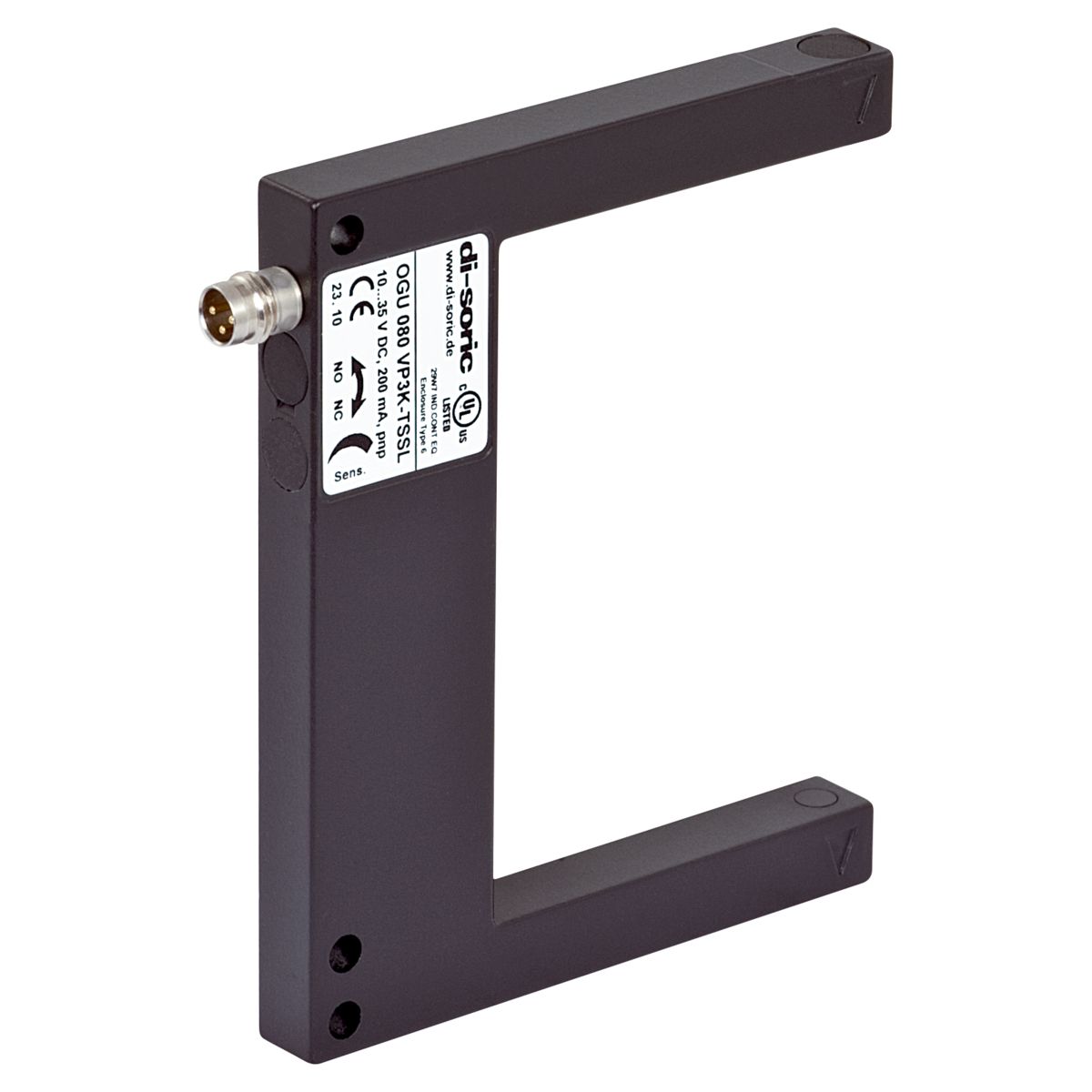

Fork Light Barrier - OGU 080 VP3K-TSSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	LED
Light color	Infrared
Fork opening	80 mm
Service voltage	10 … 35 V DC (Supply Class 2)
No-load current (max.)	30 mA
Switching output	pnp, 200 mA, NO/NC
Housing material	Die-cast zinc, Black (powder-coated)

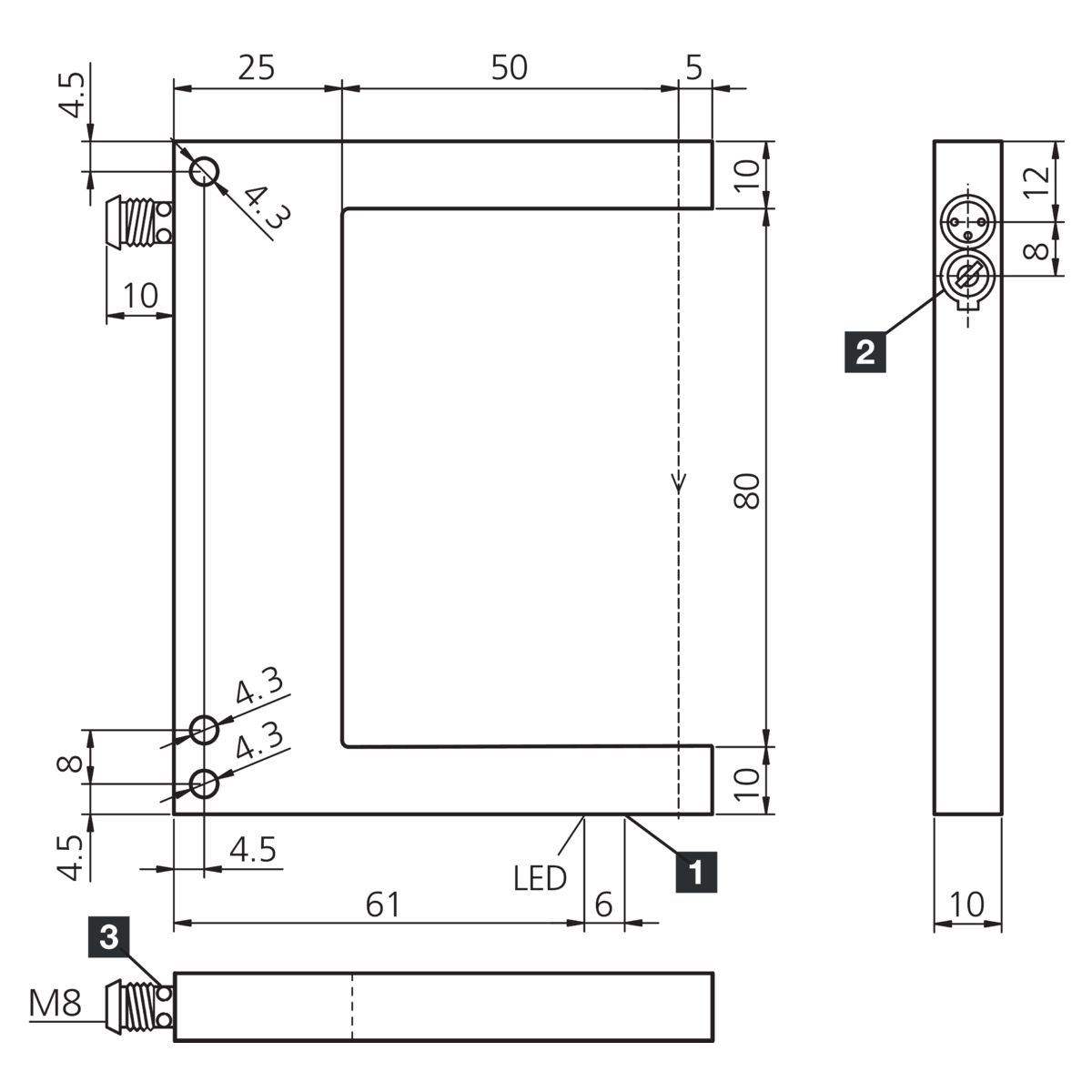

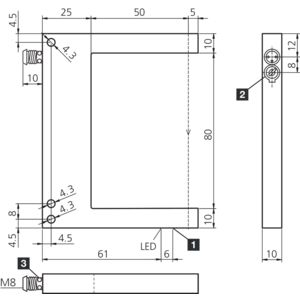

Size	100 x 80 x 10 mm
Ambient temperature during operation	-10 … +60 °C
Connection	Connector, M8, 3-pin
