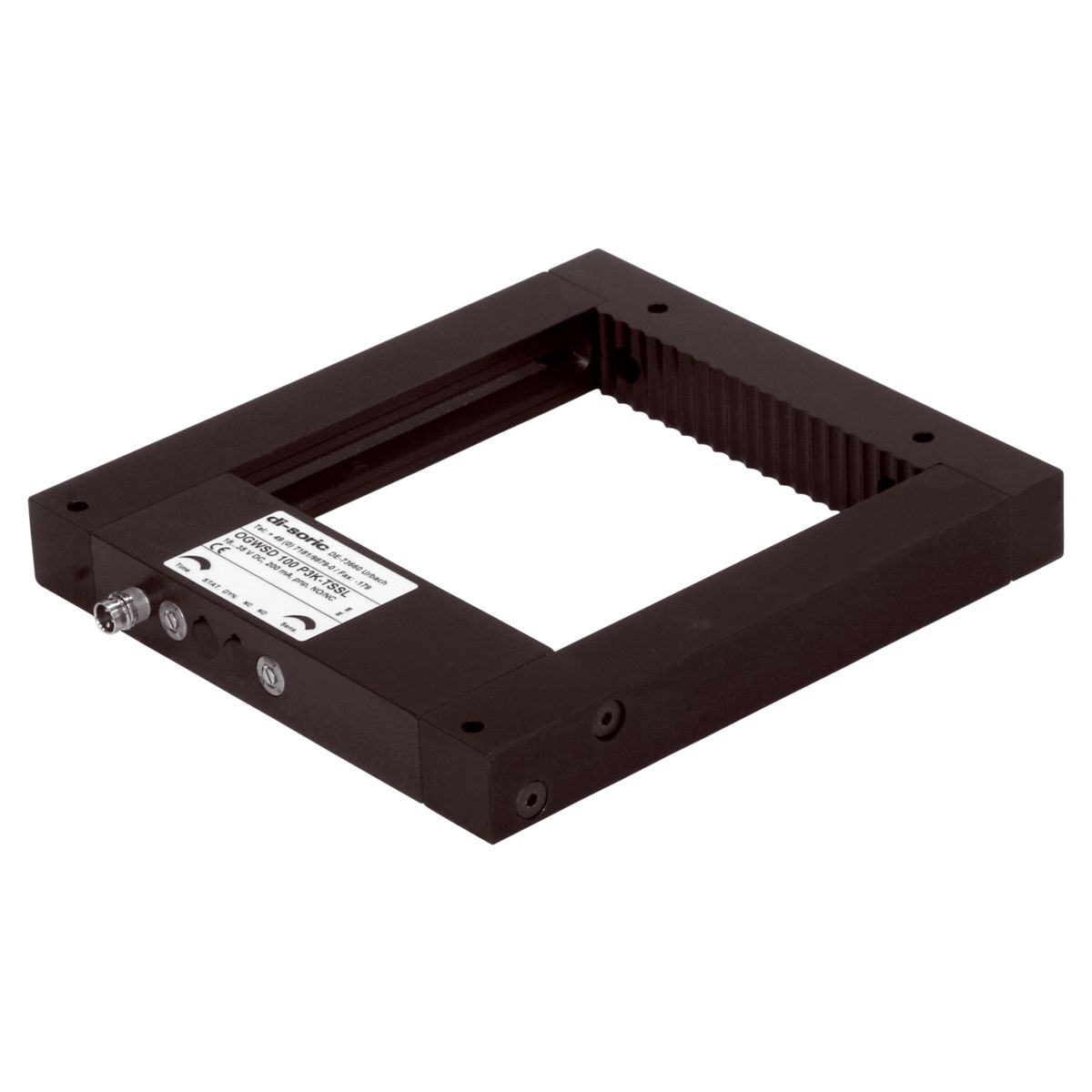

Frame Light Barrier - OGWSD 100 N3K-TSSL
Part Number: OGWSD 100 N3K-TSSL
Article Number: 201400
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Dynamic/static switchable |
|---|---|
| Transmitter light source | LED |
| Light color | Infrared / 940 nm |
| Detection range | 100, 92 mm |
| Service voltage | 18 … 35 V DC |
| Switching output | npn, 200 mA, NO/NC |
| Housing material | Aluminum, Black (Anodized) |
| Connection | Connector, M8, 3-pin |
