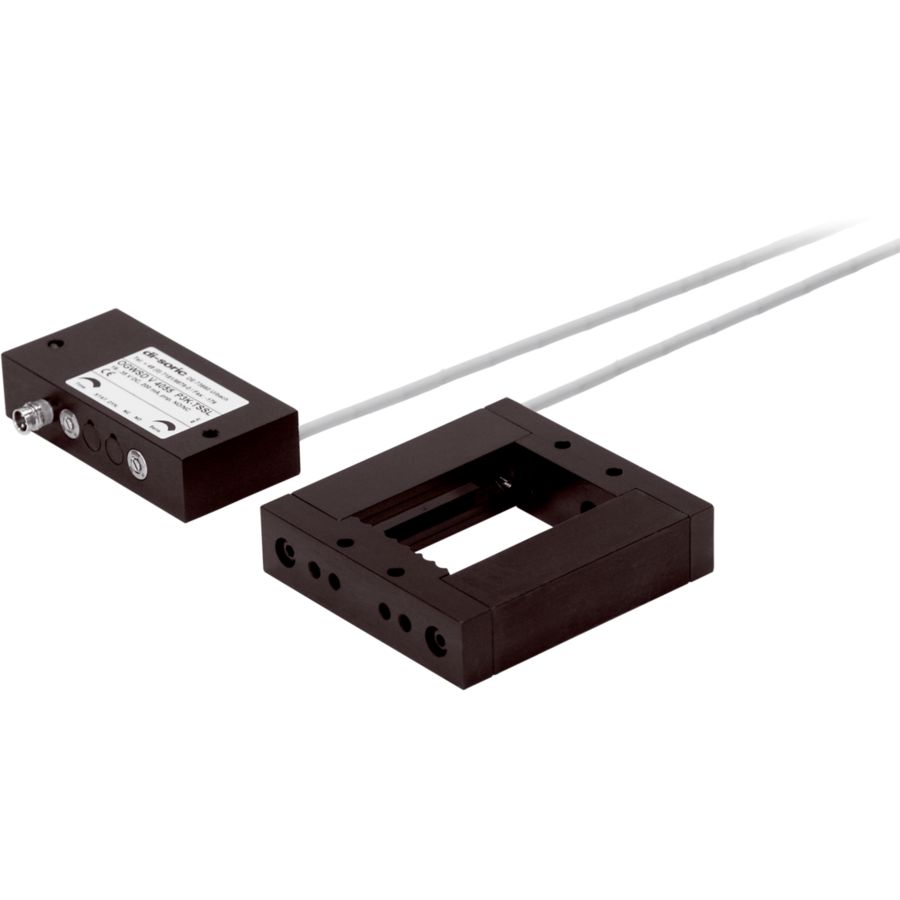

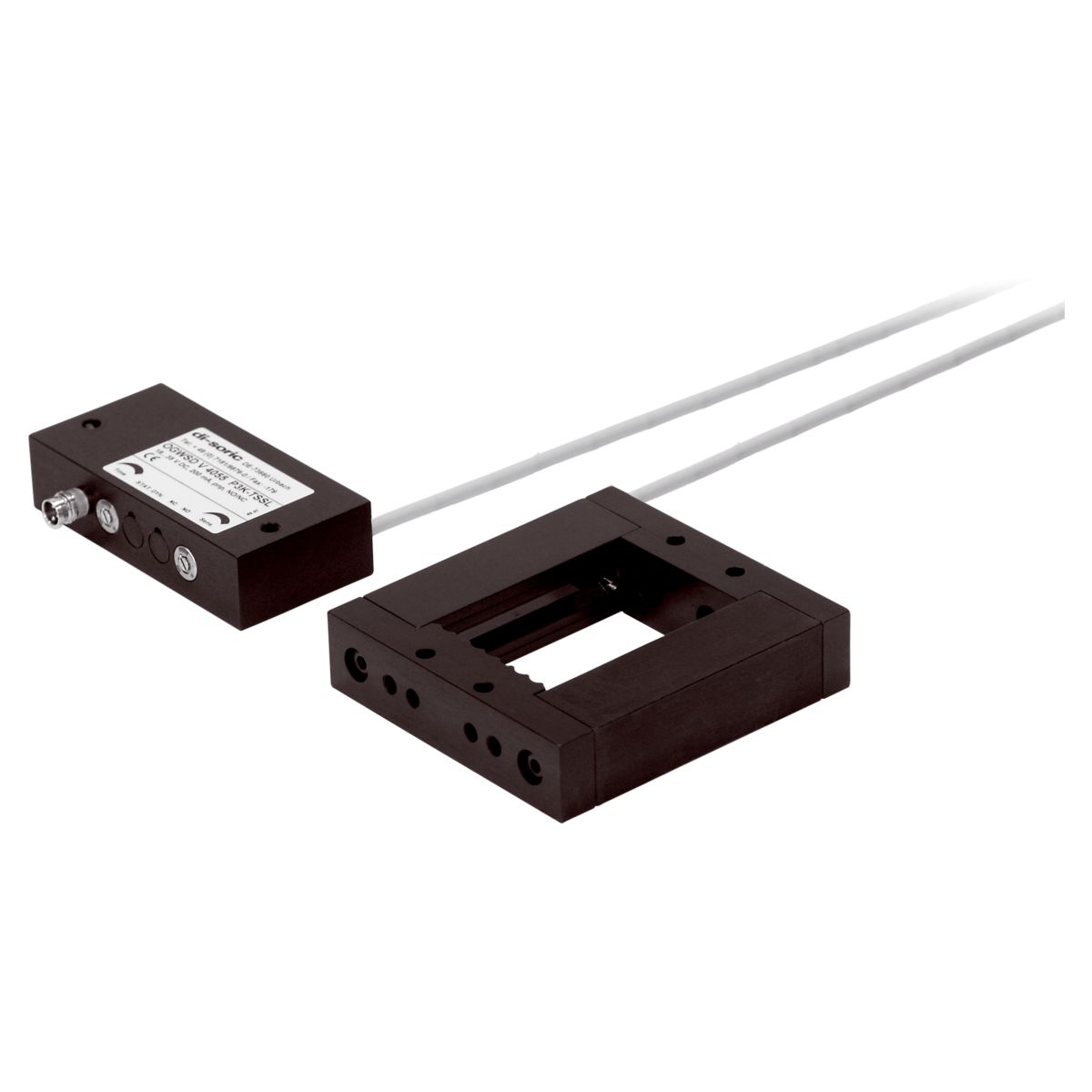

Frame Light Barrier - OGWSD V 4055 P3K-TSSL
Part Number: OGWSD V 4055 P3K-TSSL
Article Number: 201414
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Dynamic/static switchable |
|---|---|
| Transmitter light source | LED |
| Light color | Infrared / 940 nm |
| Detection range | 40, 49 mm |
| Service voltage | 18 … 35 V DC |
| Switching output | pnp, 200 mA, NO/NC |
| Housing material | Aluminum, Black (Anodized) |
| Connection | Connector, M8, 3-pin |
