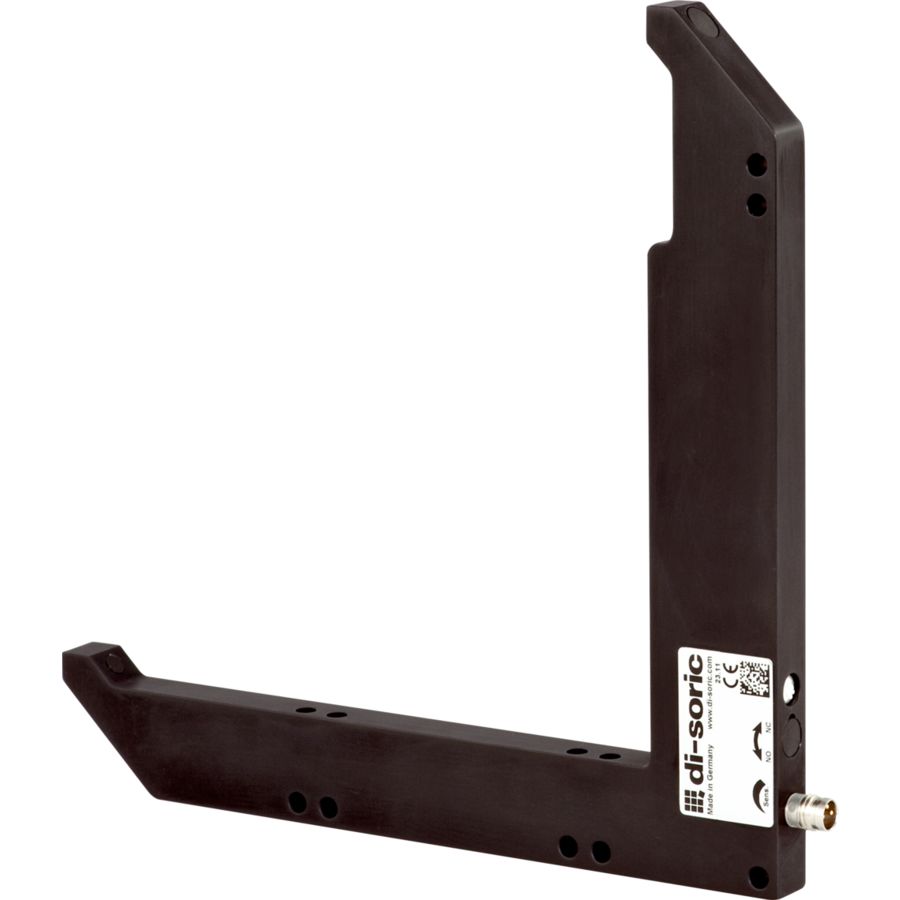

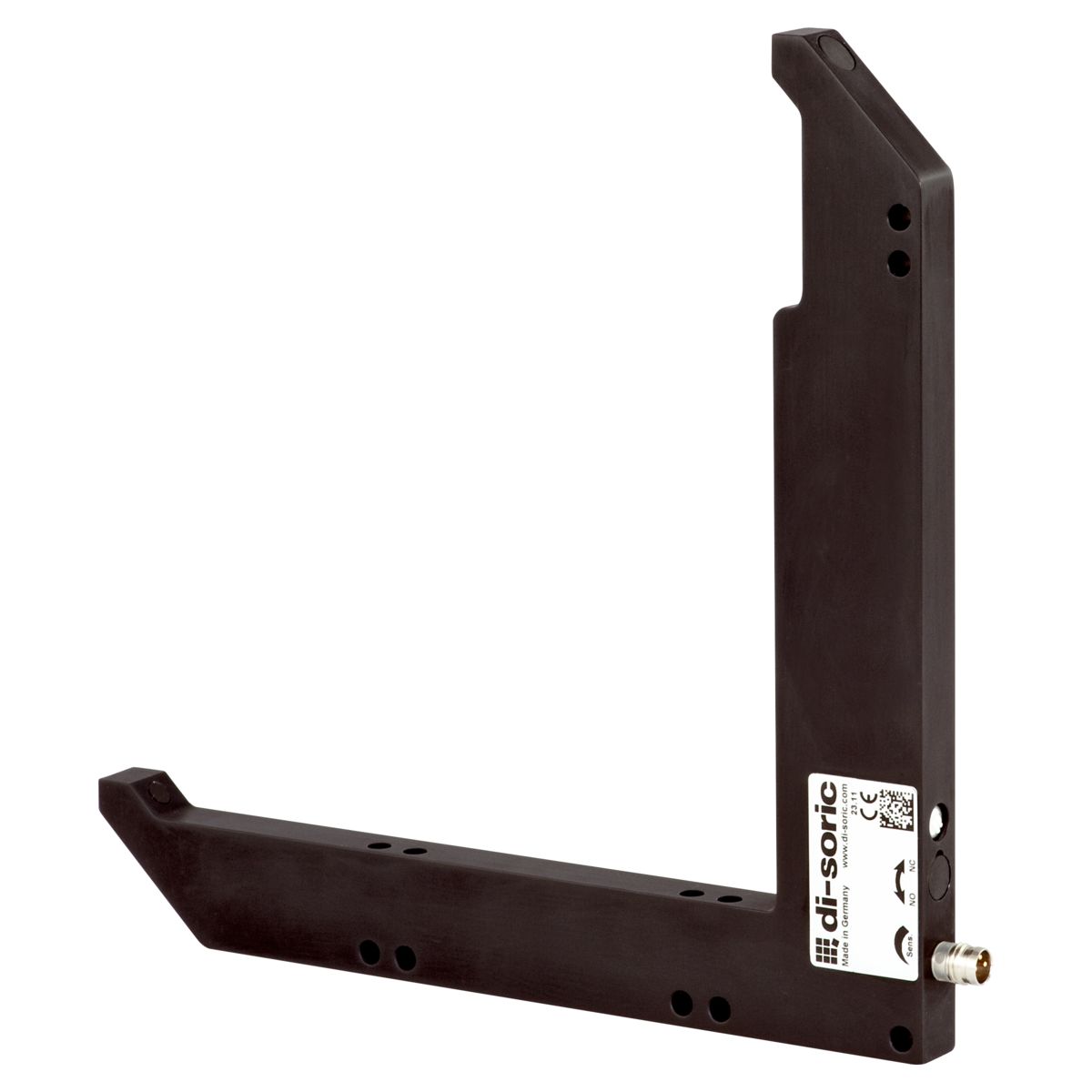

High-performance Angled Light Barrier - OGLP 150 P3K-TSSL
Part Number: OGLP 150 P3K-TSSL
Article Number: 203027
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Operating principle | Optical |
---|---|
Transmitter light source | LED |
Light color | Infrared / 880 nm |
Leg length internal | 150 mm, 150 mm |
Service voltage | 10 … 35 V DC (Supply Class 2) |
No-load current (max.) | 40 mA |
Switching output | (pnp), 200 mA, NO/NC |
Housing material | Aluminum, Black (Anodized) |

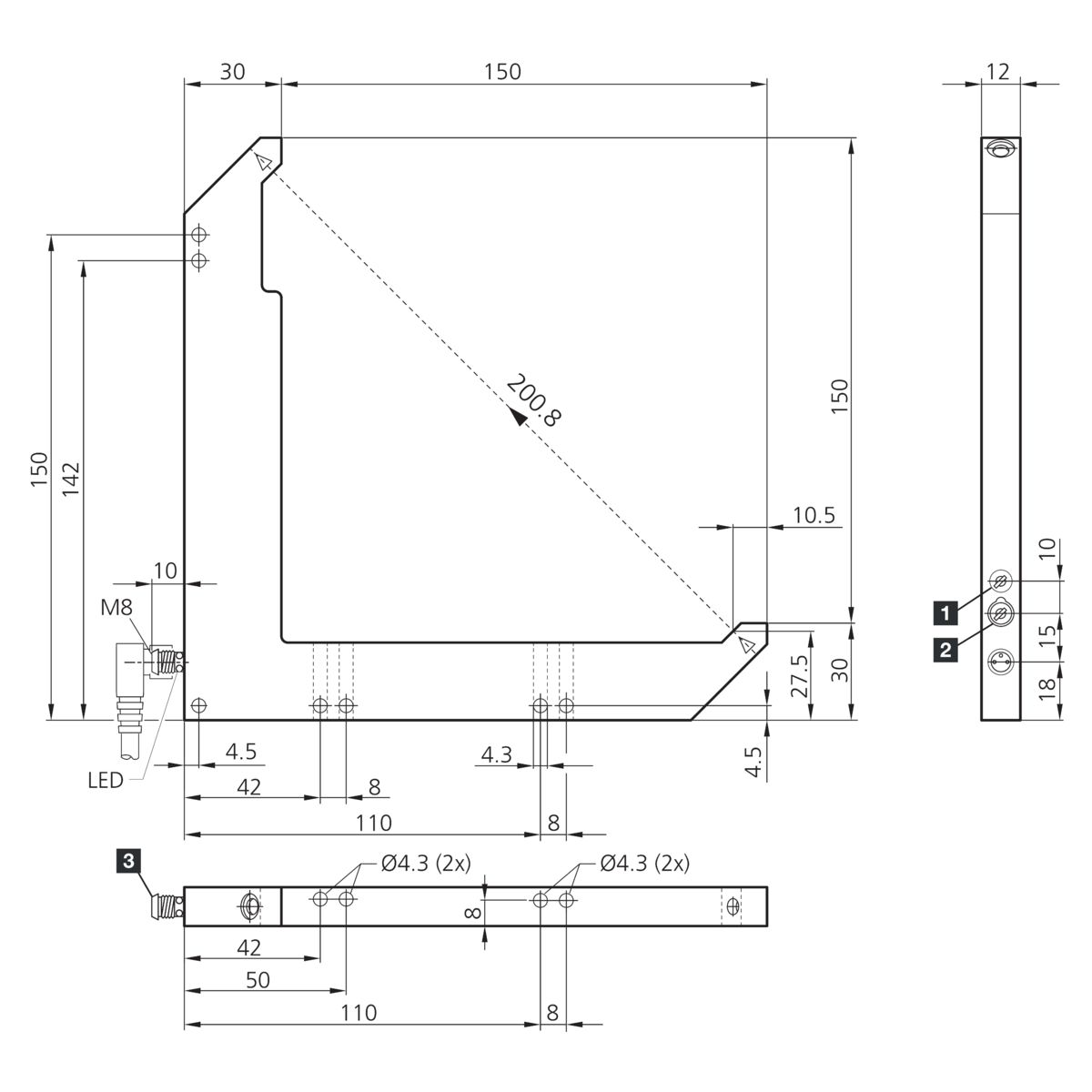

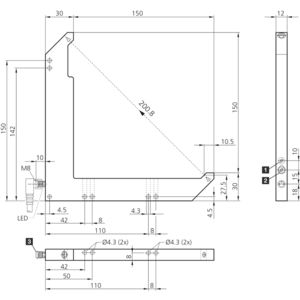

Size | 180 x 180 x 12 mm |
Ambient temperature during operation | -10 … +60 °C |
Protection type | IP 67 |
Connection | Connector, M8, 3-pin |
