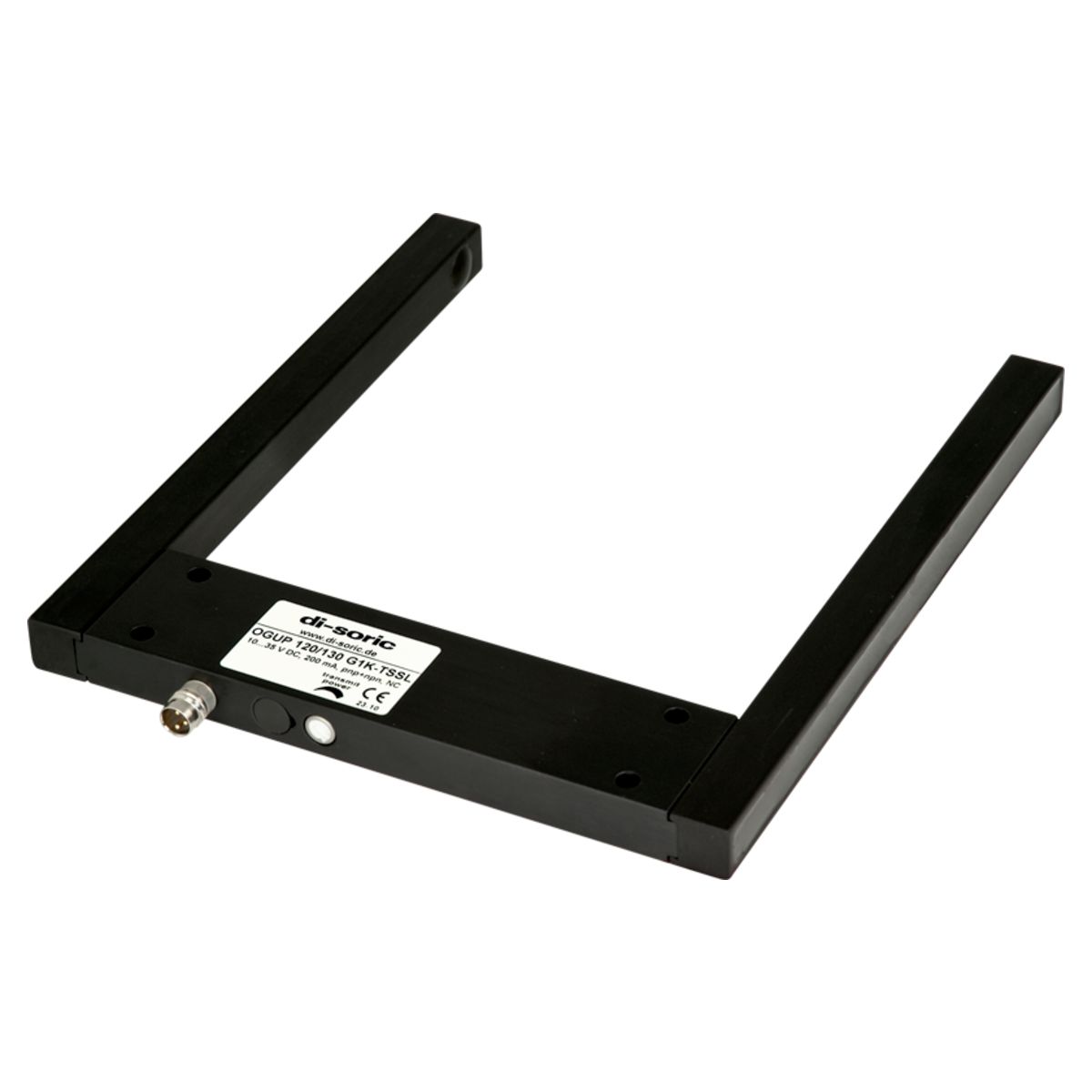

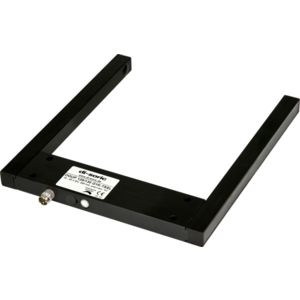

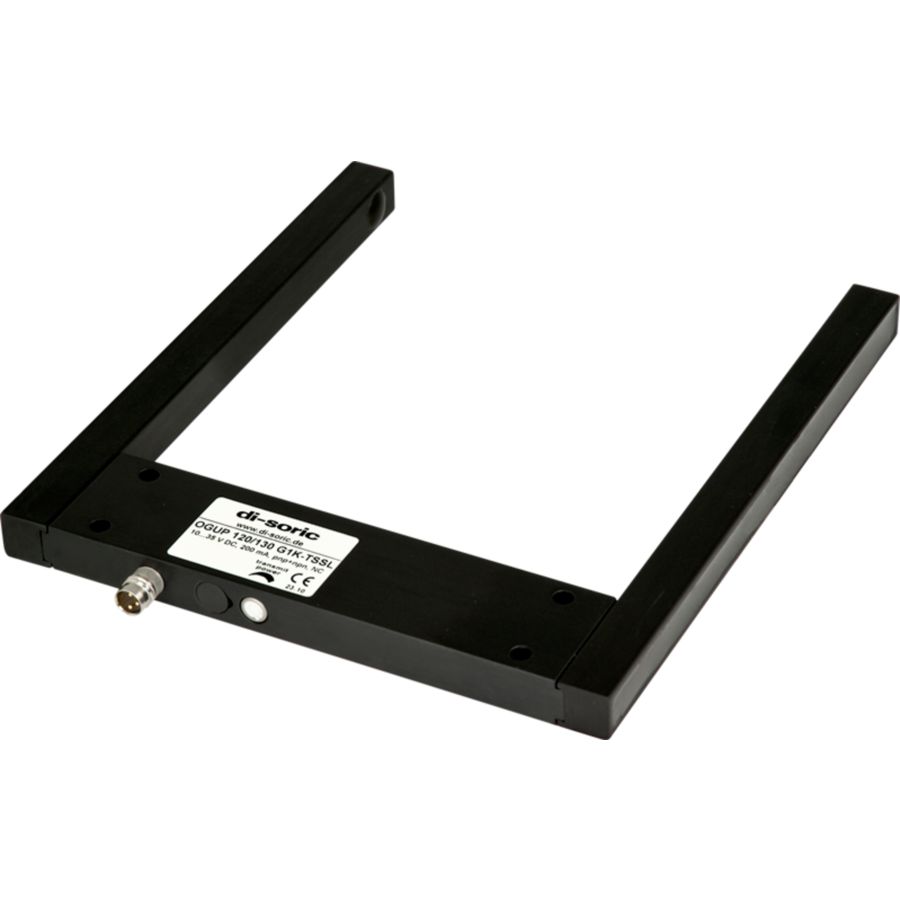

High-performance Fork Light Barrier - OGUP 120/130 G2K-TSSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	LED
Light color	Infrared
Fork opening	120 mm
Service voltage	10 … 35 V DC
No-load current (max.)	50 mA
Switching output	Push-pull, 200 mA, NO (pnp) / NC (npn)
Housing material	Aluminum, Black (Anodized)

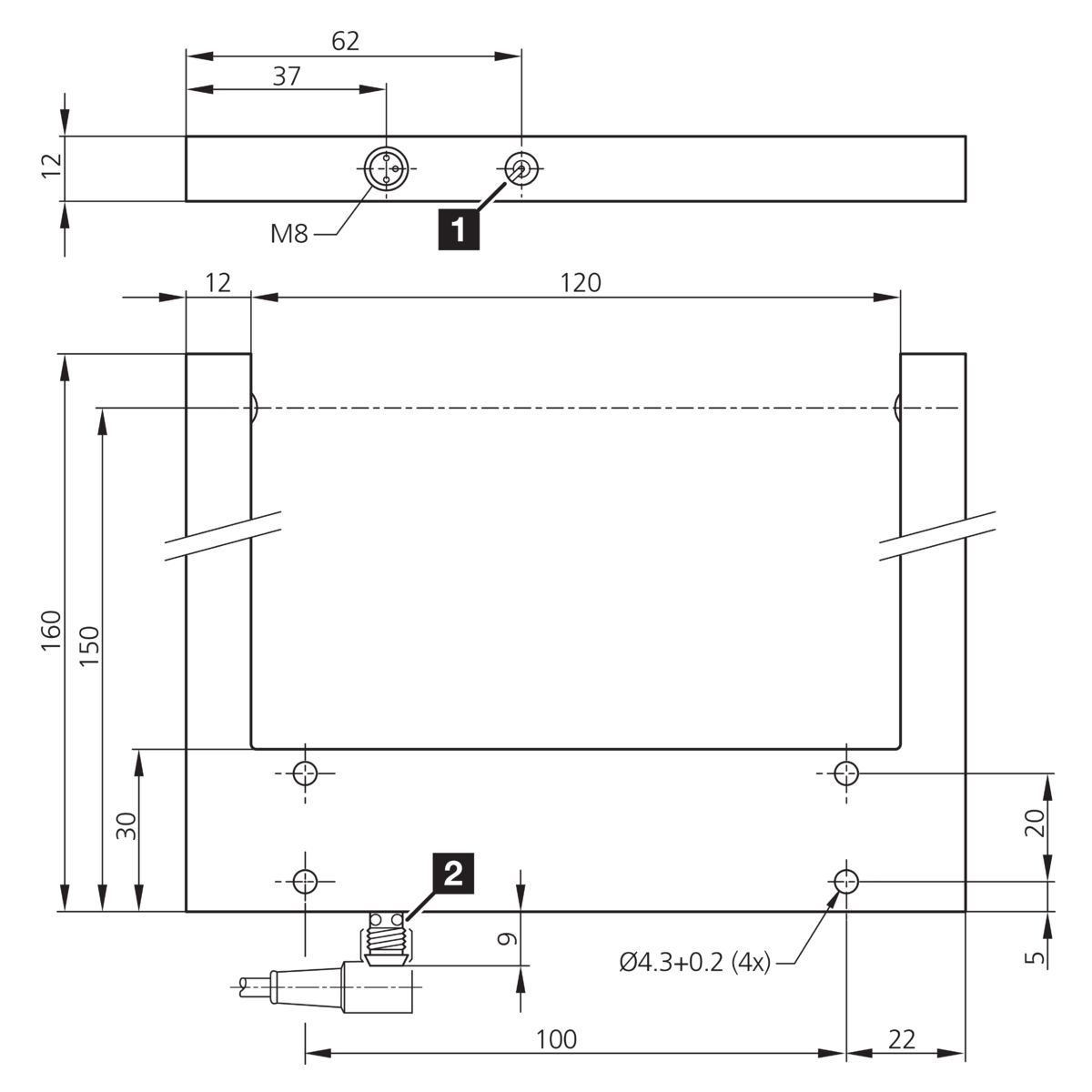

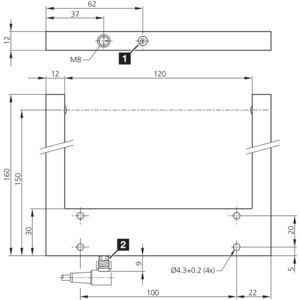

Size	144 x 160 x 12 mm
Ambient temperature during operation	-20 … +60 °C
Connection	Connector, M8, 3-pin
