Inductive Proximity Sensor - D7B 08 VB 02 NS-T3
Part Number: D7B 08 VB 02 NS-T3
Article Number: 209414
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 2 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | npn, 200 mA, NO |
| No-load current (max.) | 10 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | < 100 bar, pressure-resistant, Full-metal casing closed |
| Housing material | Stainless steel, V2A 1.4305 / AISI 303 |

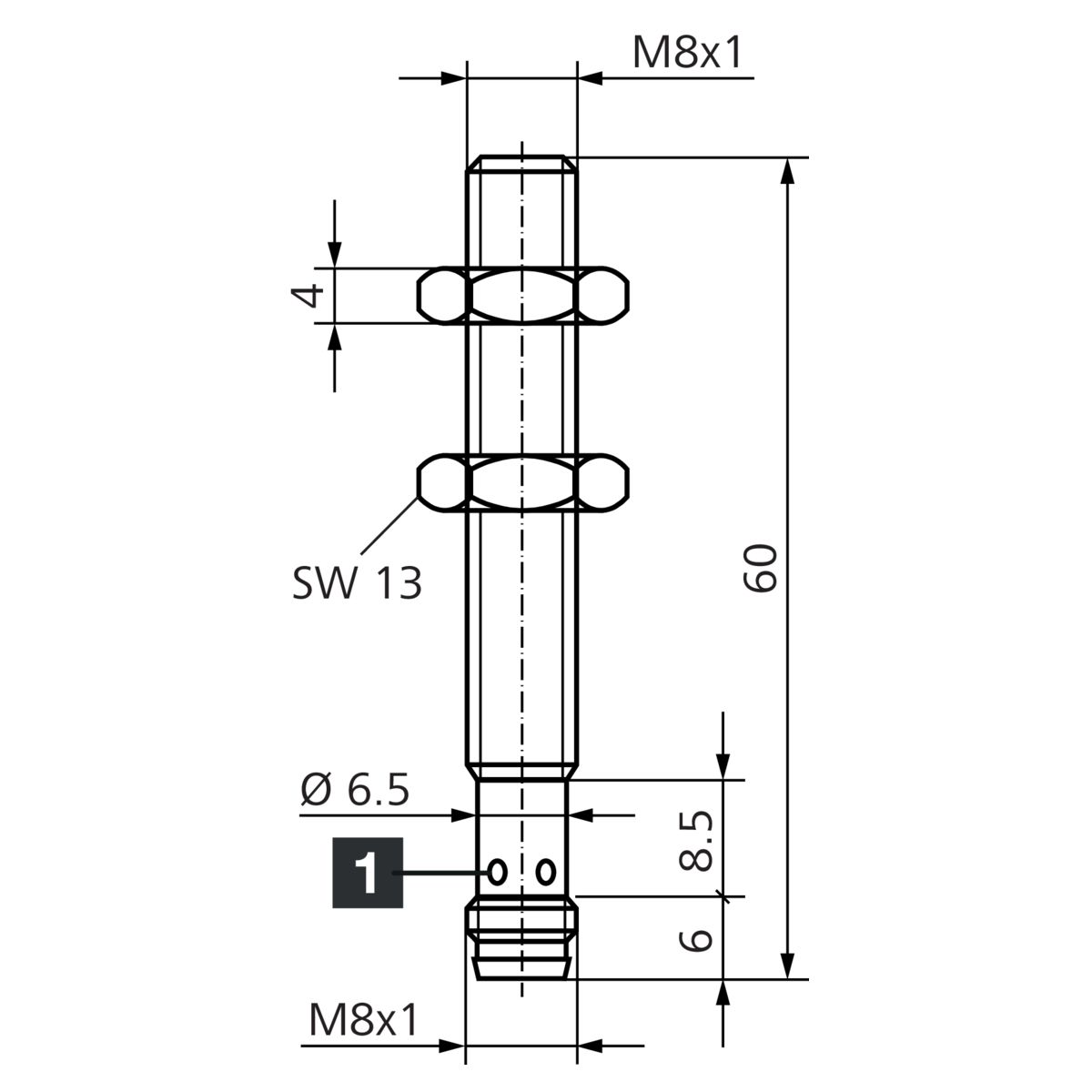

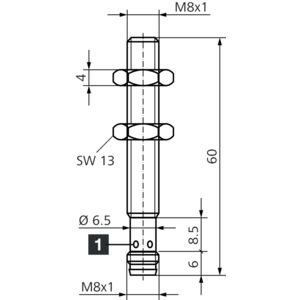

| Size | M8 x 1 |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 3-pin |
