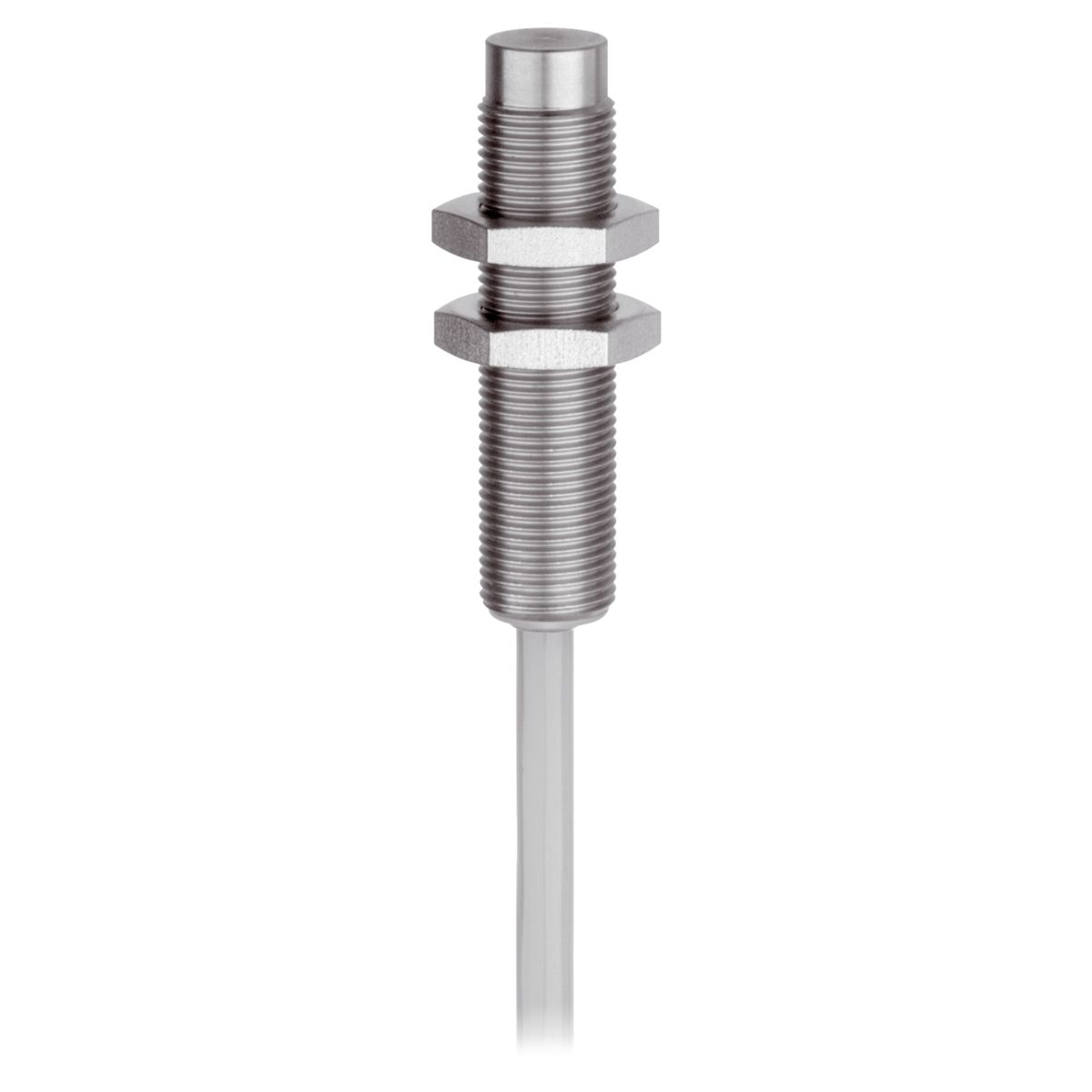

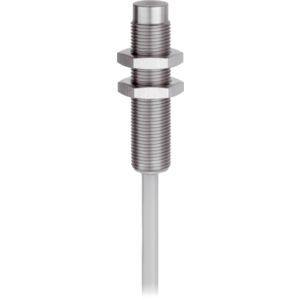

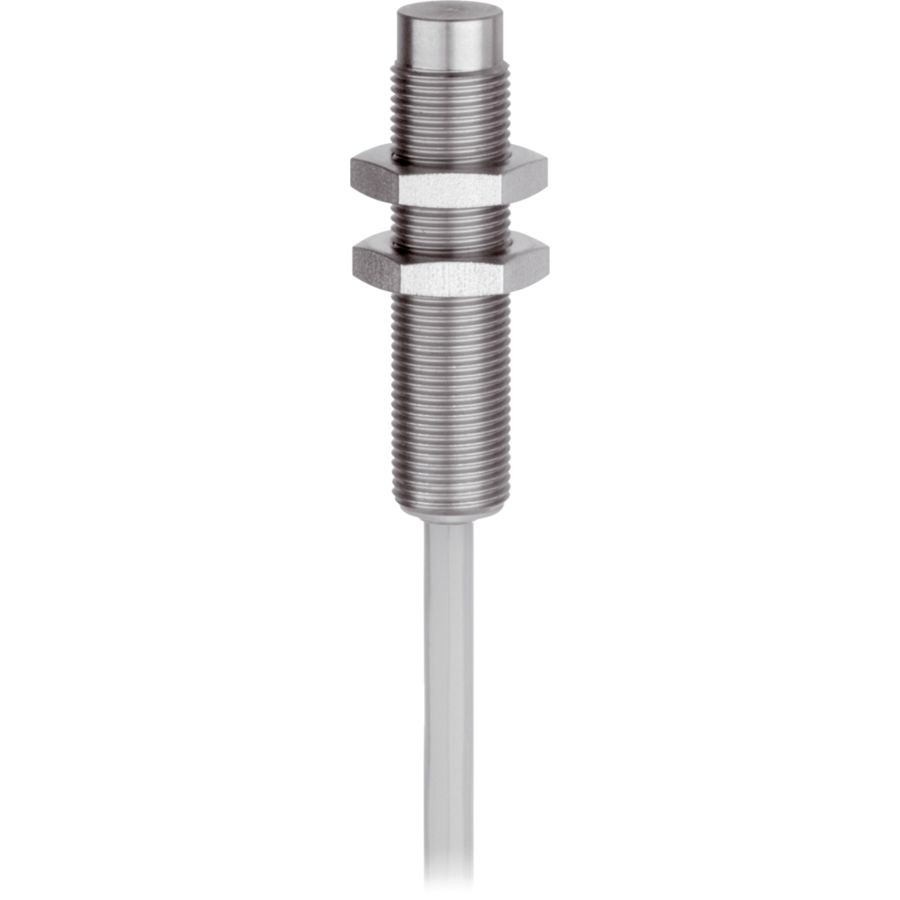

Inductive Proximity Sensor - D7C 12 V 10 PSLK
Part Number: D7C 12 V 10 PSLK
Article Number: 200051
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | non-flush |
| Switching distance | 10 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 200 mA, NO |
| No-load current (max.) | 12 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | < 80 bar, extremely high operating distance, Full-metal casing closed, pressure-resistant |
| Housing material | Stainless steel |
| Size | M12 x 1 |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 69K |
| Connection | Cable, 2 m |
