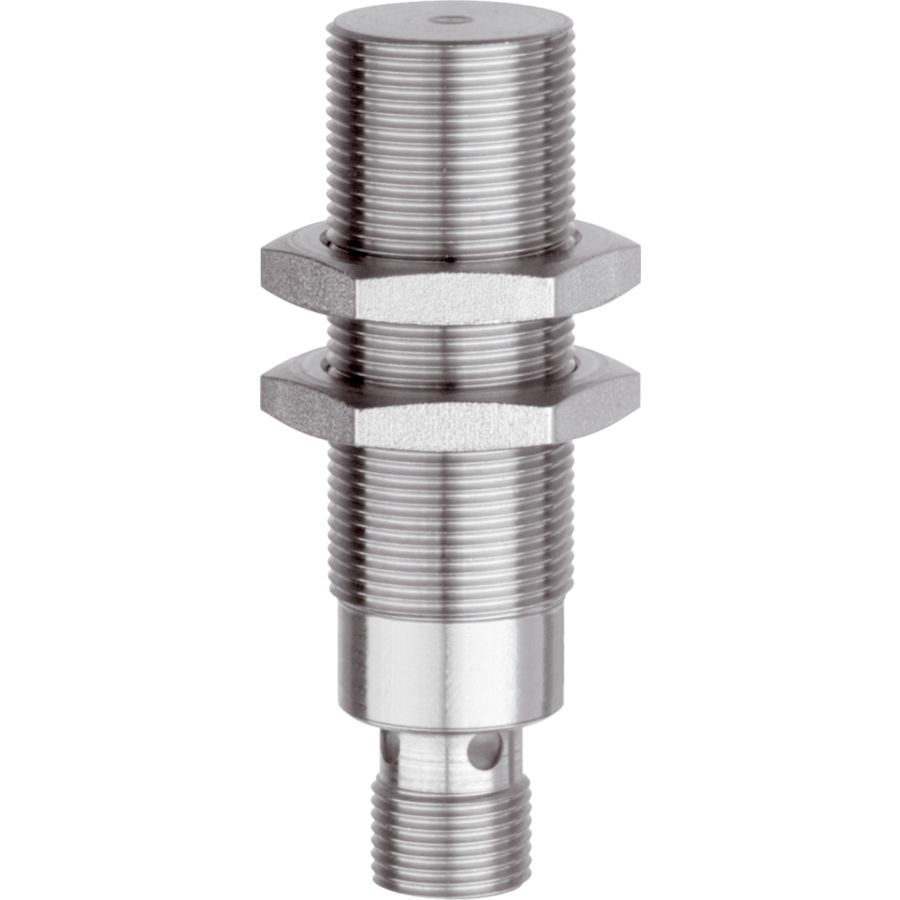

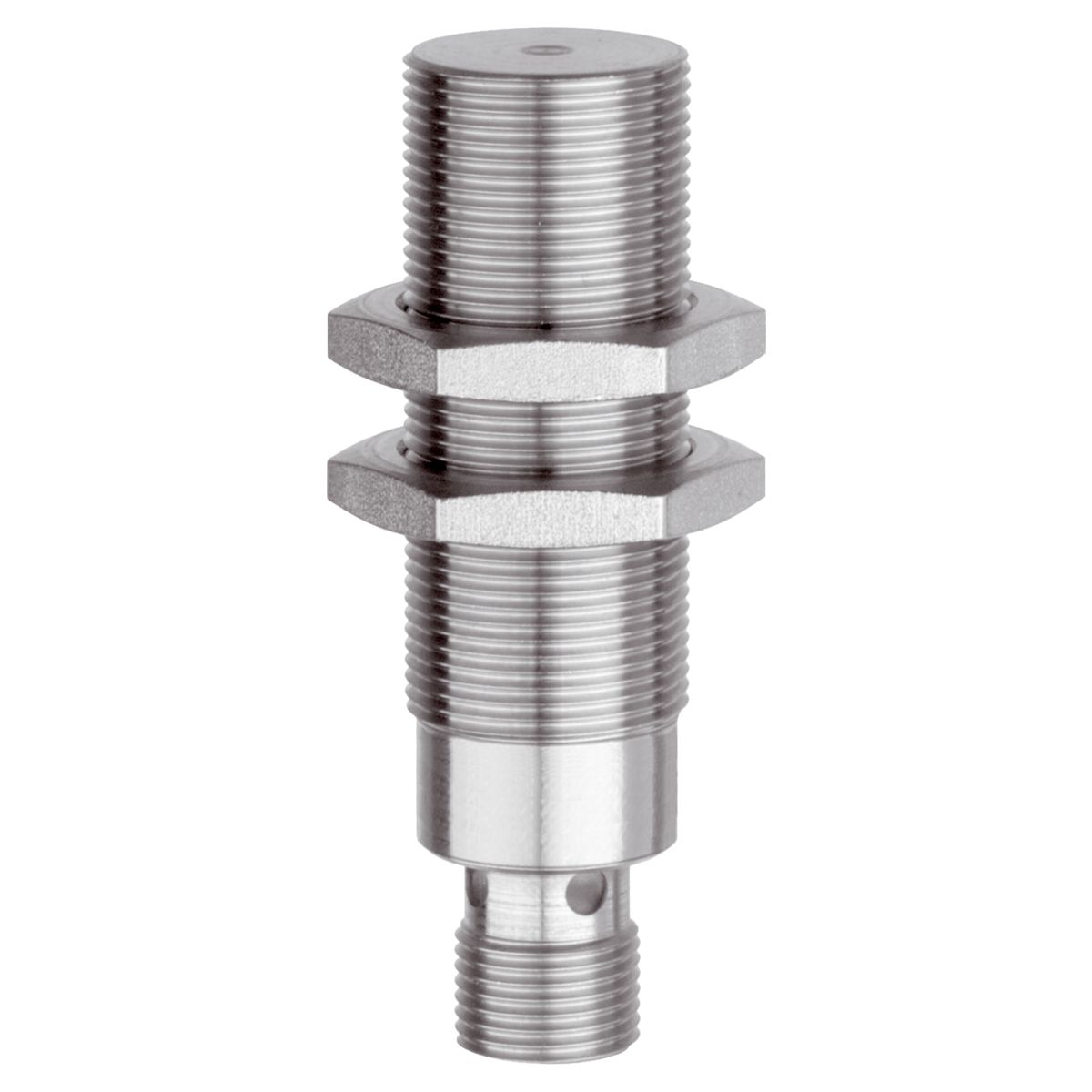

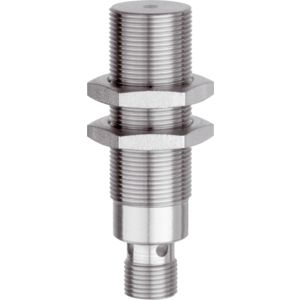

Inductive Proximity Sensor - D7C 18 V 10 POK-IBSL
Part Number: D7C 18 V 10 POK-IBSL
Article Number: 200058
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 10 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 200 mA, NC |
| No-load current (max.) | 12 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | < 60 bar, extremely high operating distance, Full-metal casing closed |
| Housing material | Stainless steel |

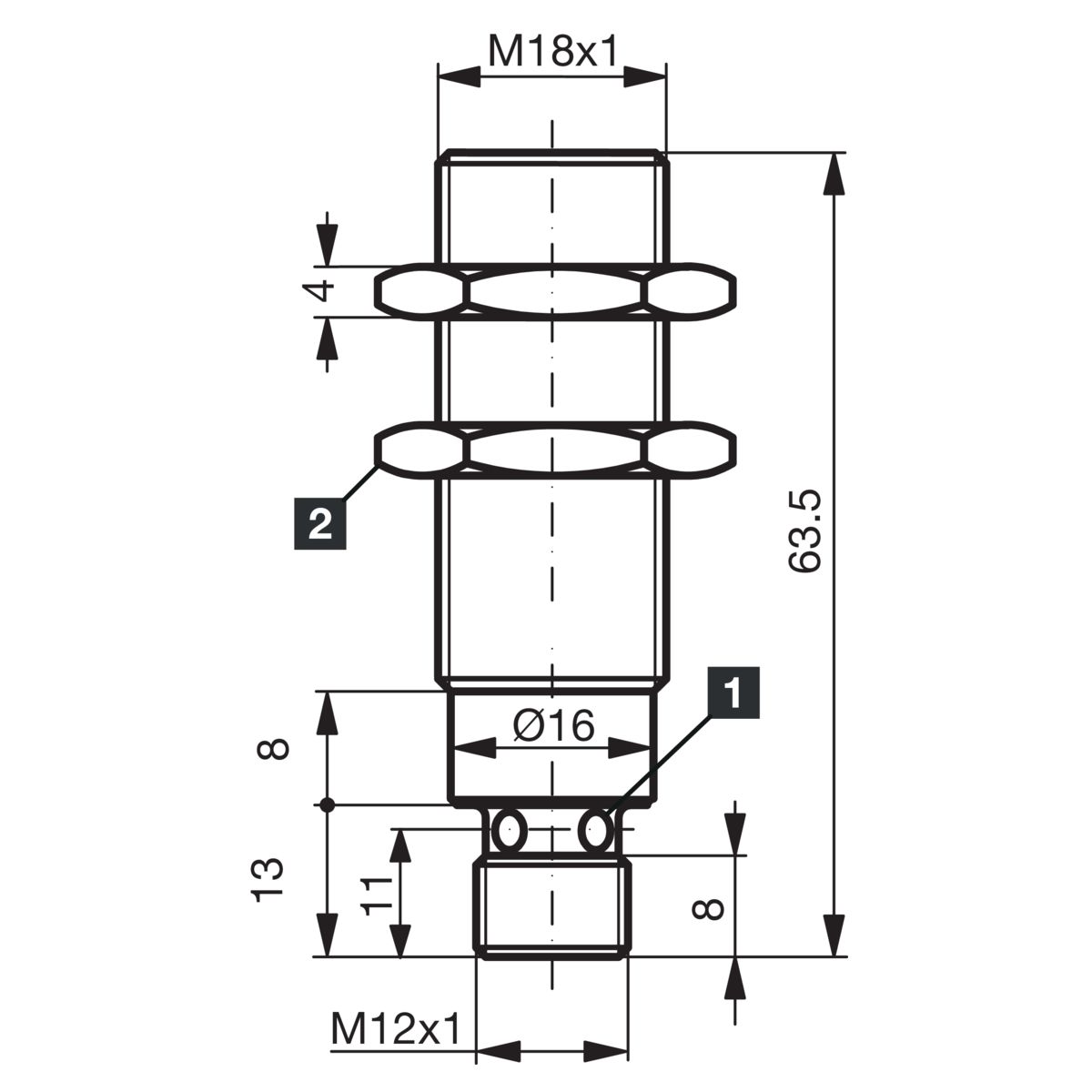

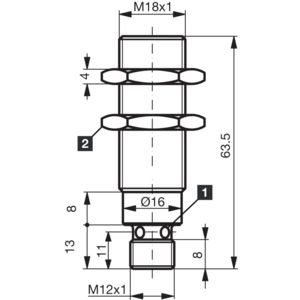

| Size | M18 x 1 |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 68 |

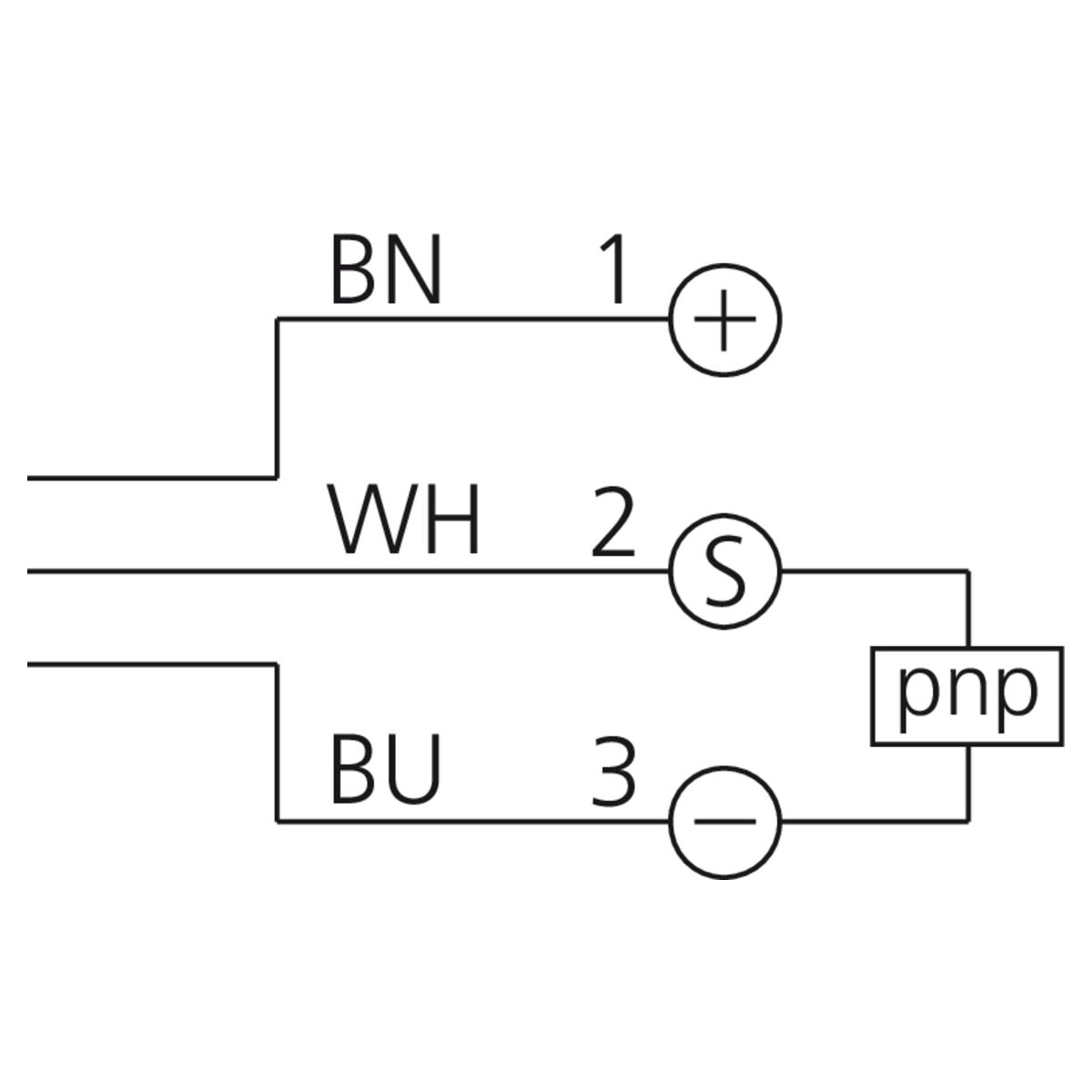

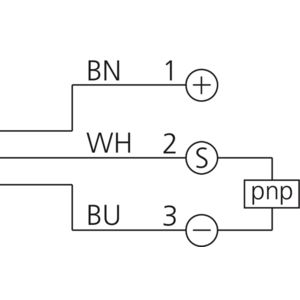

| Connection | Connector, M12, 4-pin |
