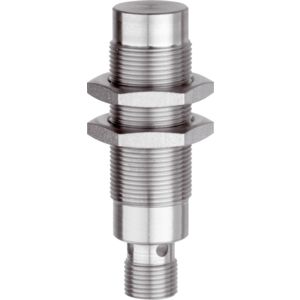

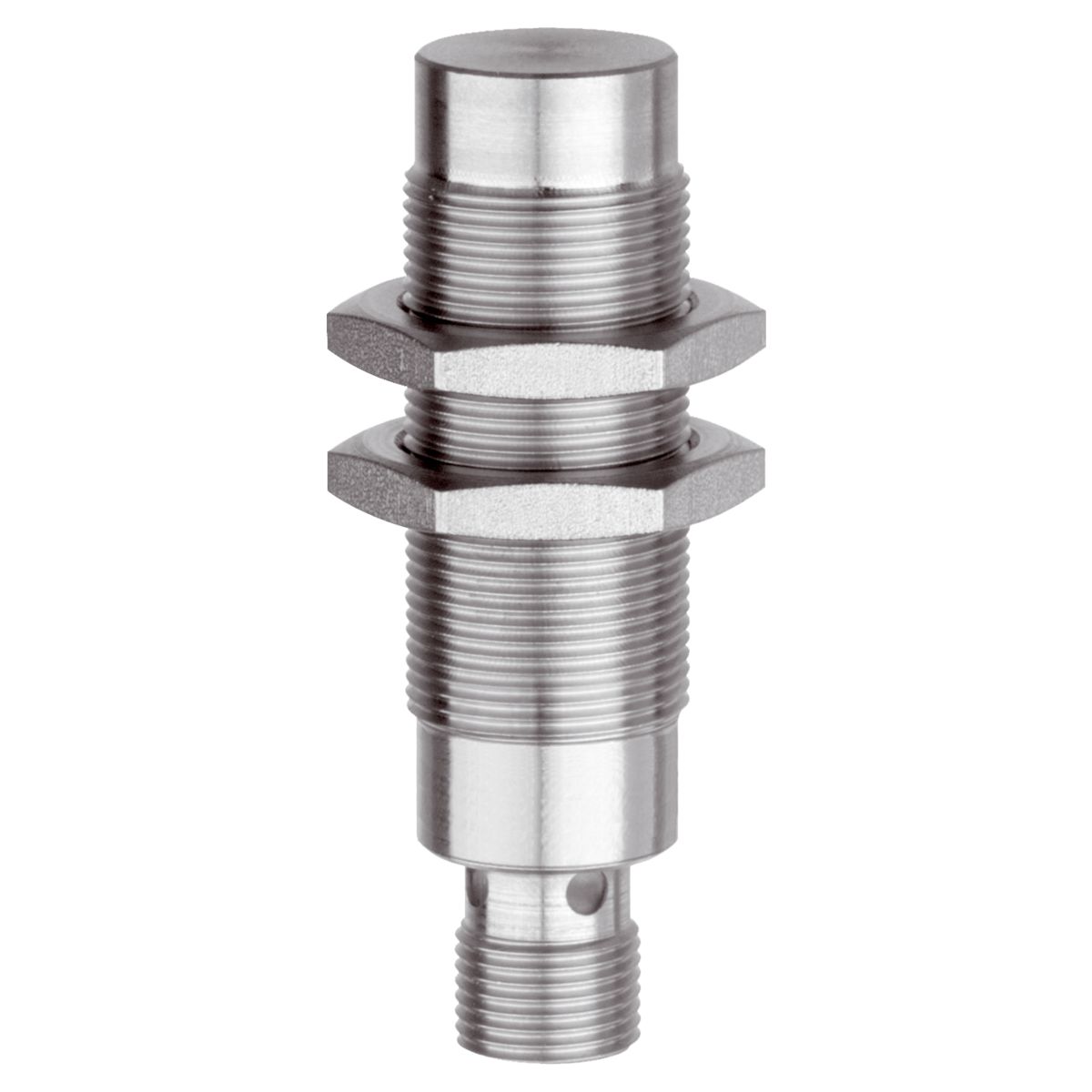

Inductive Proximity Sensor - D7C 18 V 20 POK-IBSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	non-flush
Switching distance	20 mm
Service voltage	10 … 30 V DC

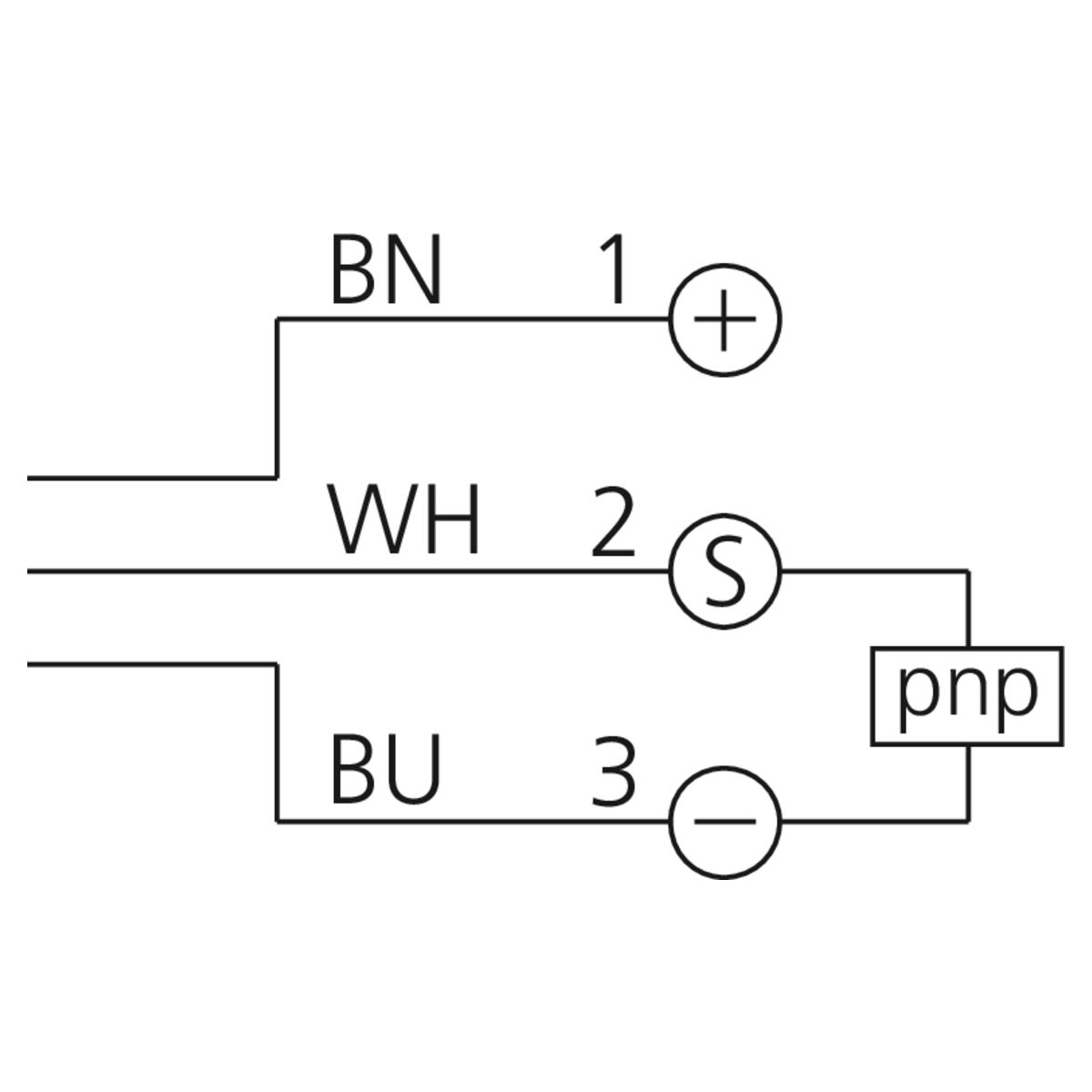

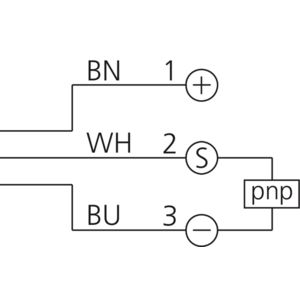

Switching output	pnp, 200 mA, NC
No-load current (max.)	10 mA
Evaluation	digital
Design	Thread
Characteristics	< 60 bar, extremely high operating distance, Full-metal casing closed
Housing material	Stainless steel, V2A 1.4305 / AISI 303

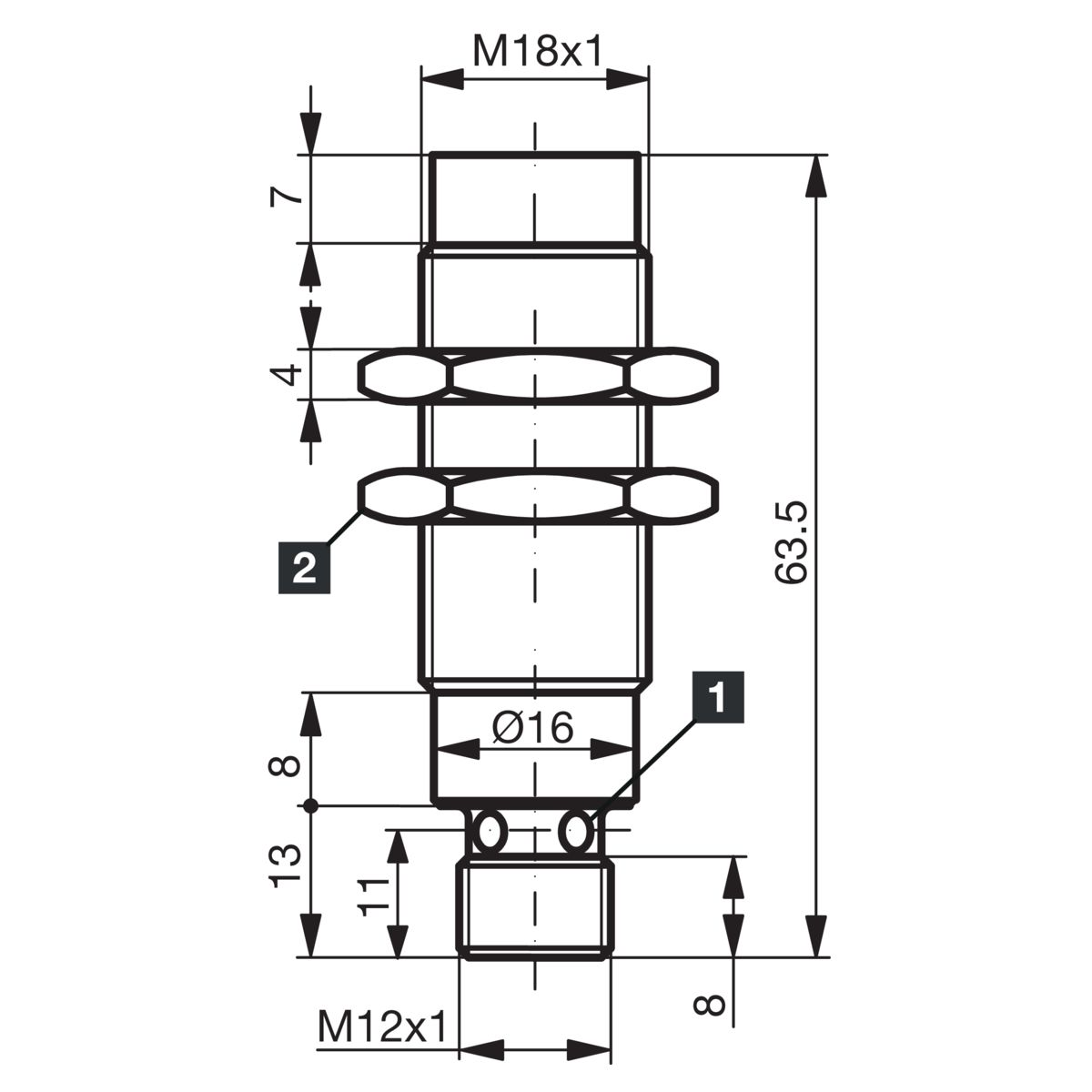

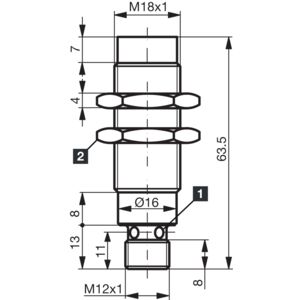

Size	M18 x 1
Ambient temperature during operation	-25 … +85 °C
Protection type	IP 68
Connection	Connector, M12, 4-pin
