Inductive Proximity Sensor - DCB 18 MN 08 NS-3
Part Number: DCB 18 MN 08 NS-3
Article Number: 209360
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | non-flush |
| Switching distance | 8 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | npn, 400 mA, NO |
| No-load current (max.) | 20 mA |
| Evaluation | digital |
| Design | Thread |
| Housing material | Brass, CuZn |

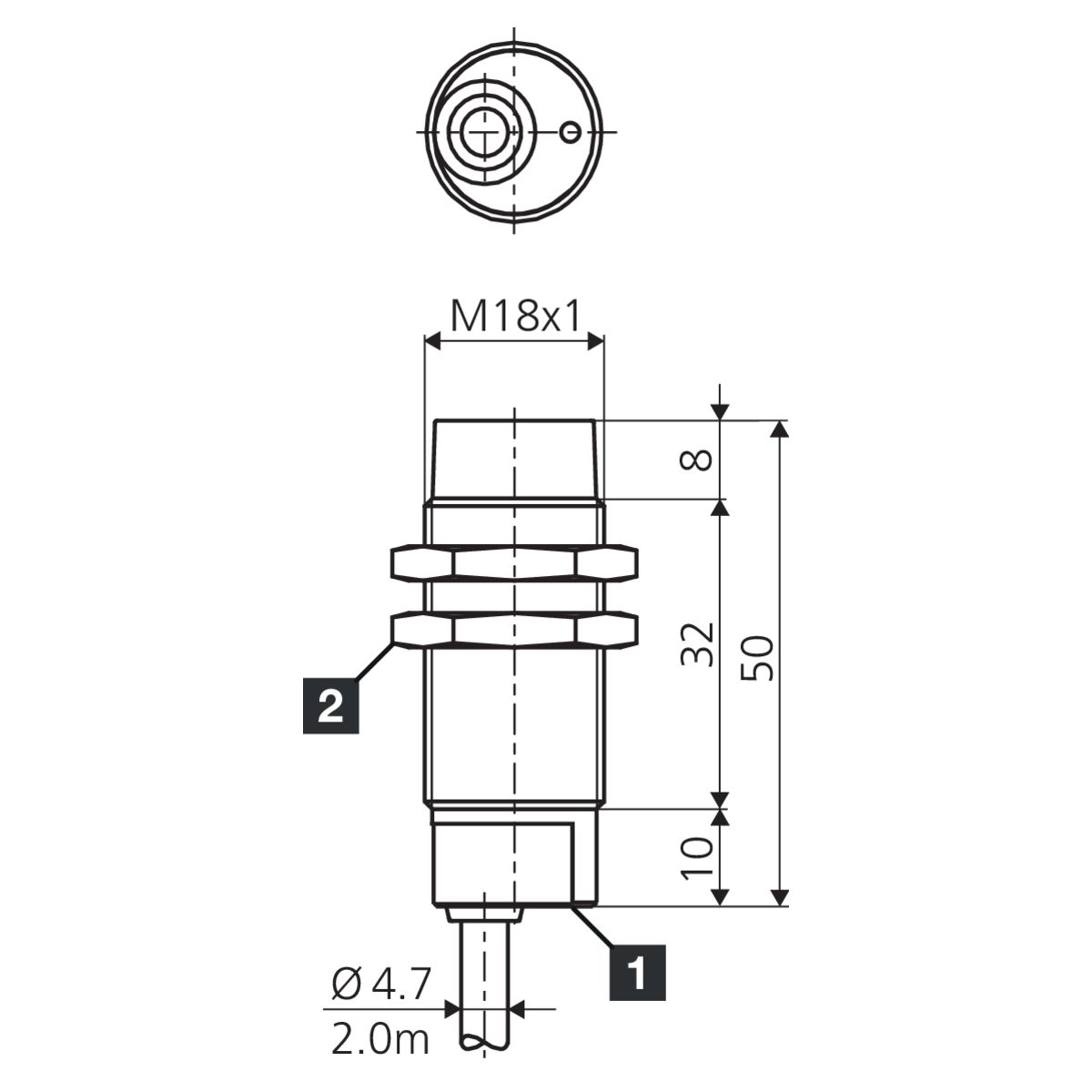

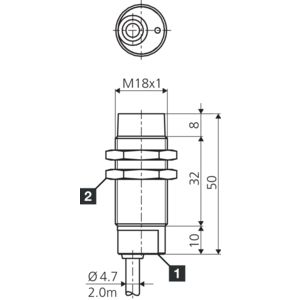

| Size | M18 x 1 |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Cable, 2 m, 3-pin |
