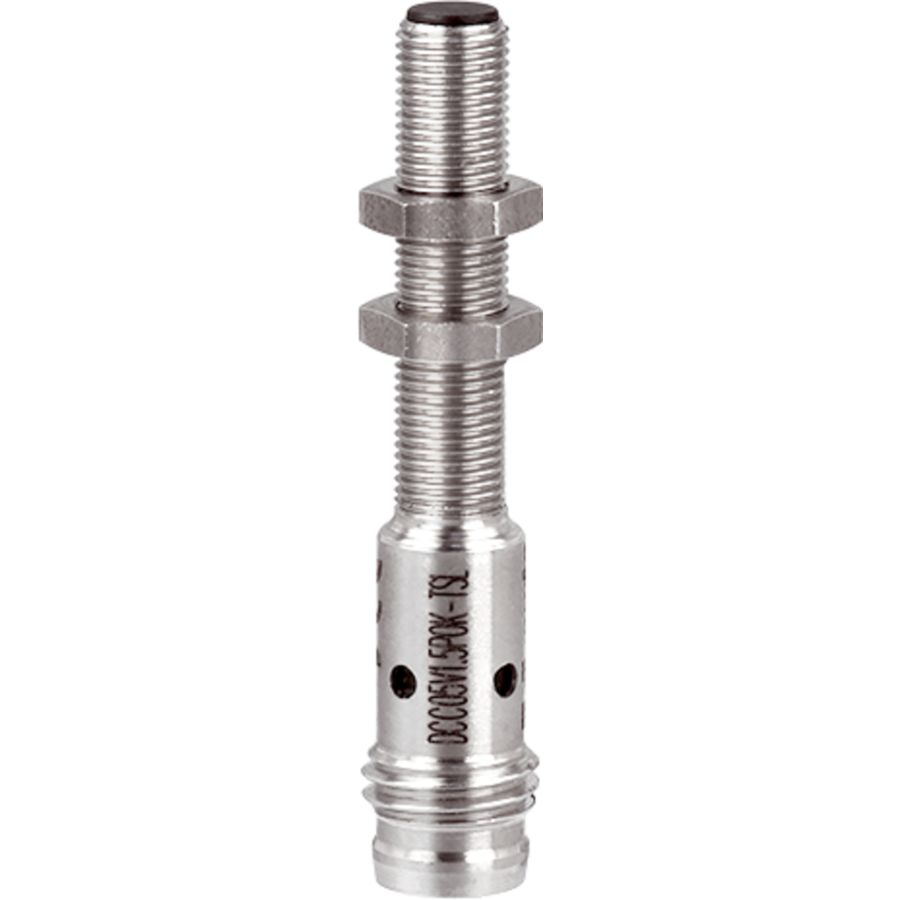

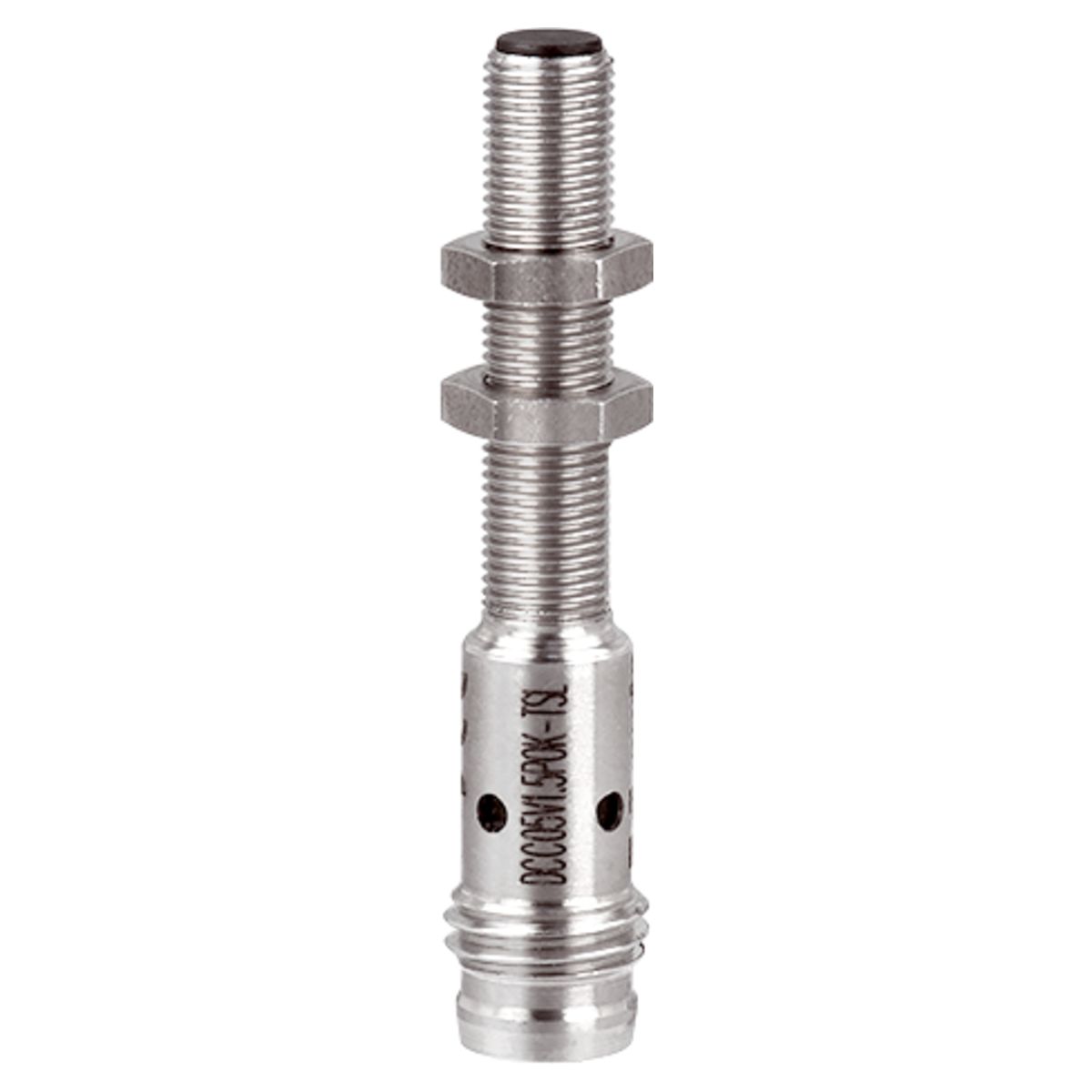

Inductive Proximity Sensor - DCC 05 V 0.8 NSK-TSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	Flush
Switching distance	0,8 mm
Service voltage	10 … 30 V DC
Switching output	npn, 100 mA, NO
No-load current (max.)	10 mA
Evaluation	digital
Design	Thread
Housing material	Stainless steel, V2A 1.4305 / AISI 303

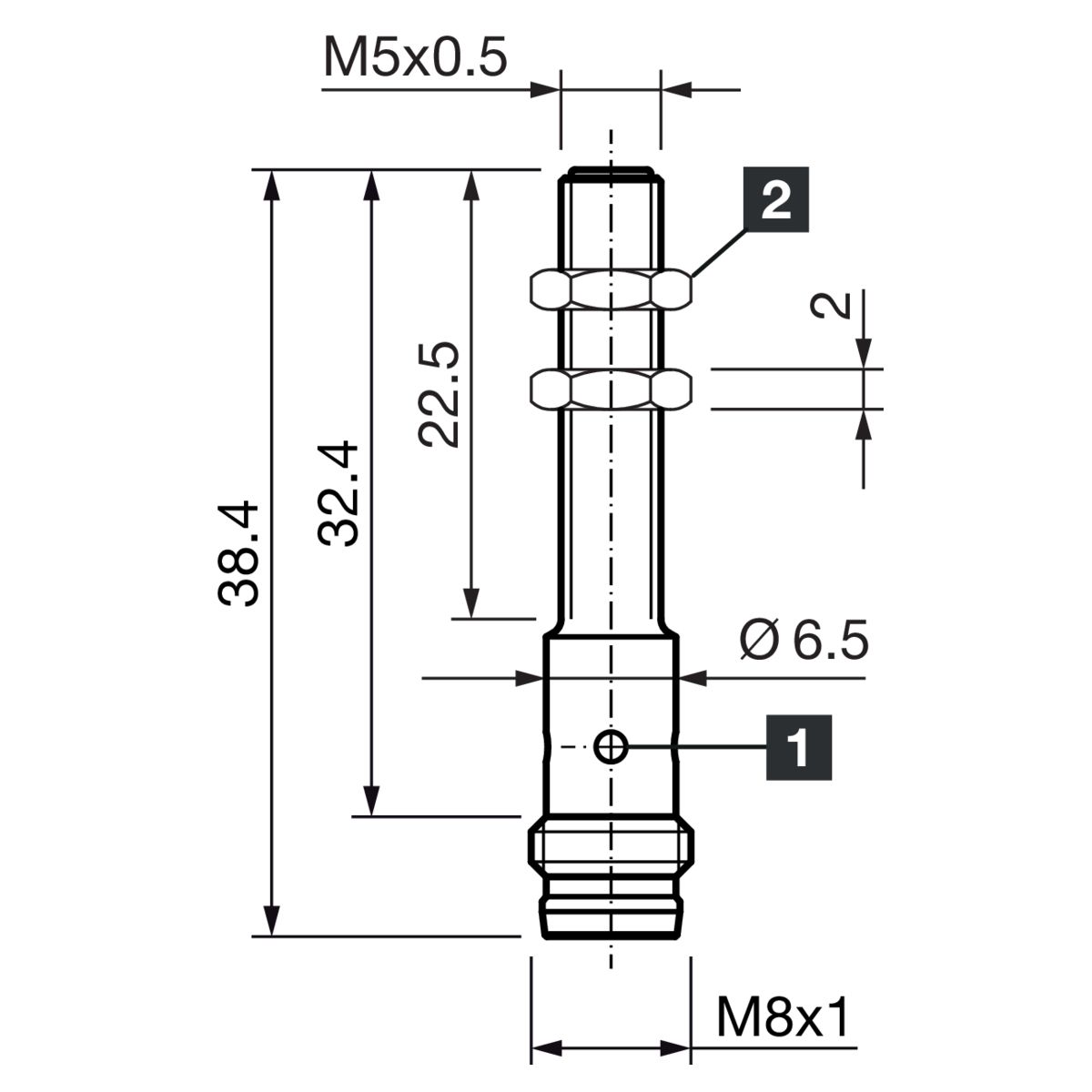

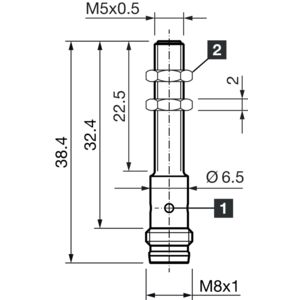

Size	M5 x 0,5
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
