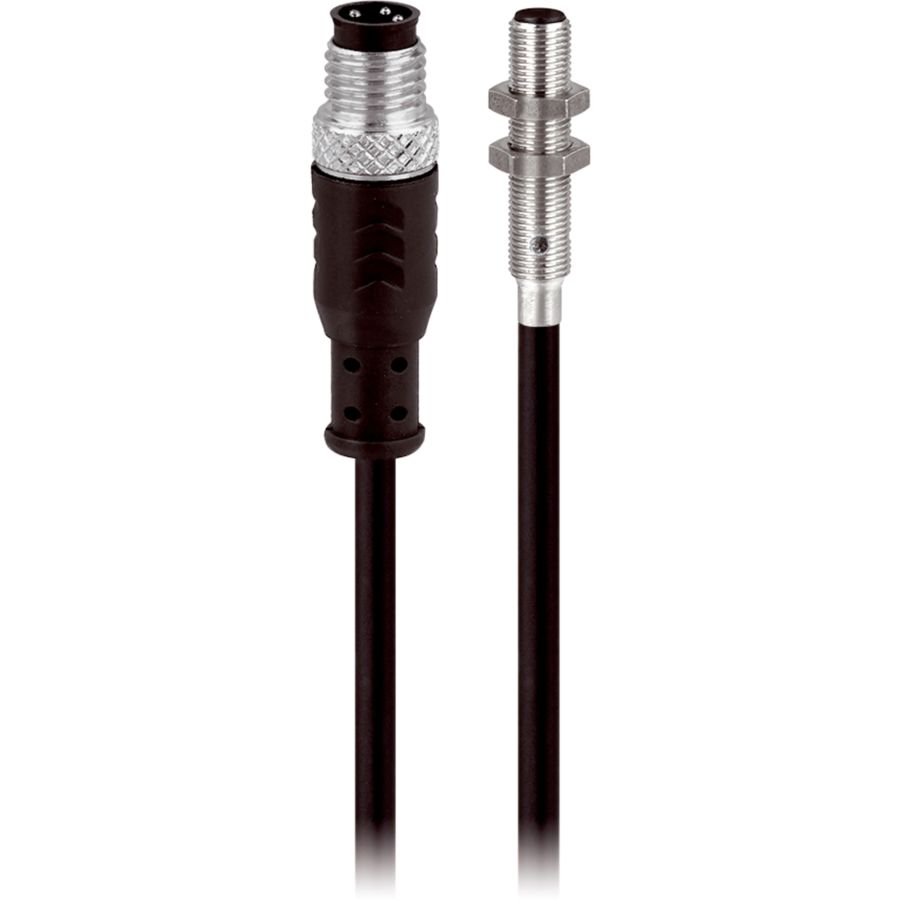

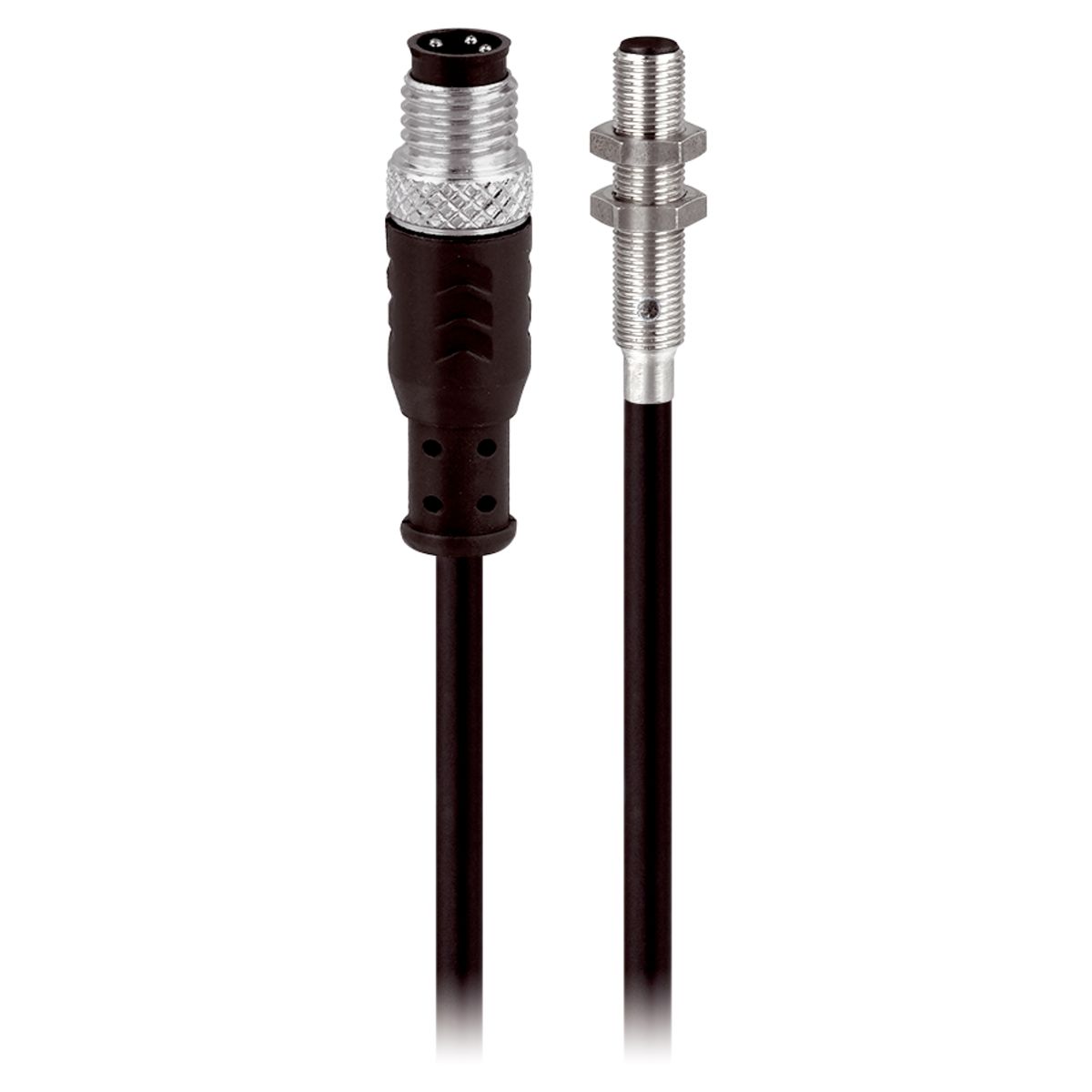

Inductive Proximity Sensor - DCC 05 V 1.5 POK-K-TSL
Part Number: DCC 05 V 1.5 POK-K-TSL
Article Number: 210446
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 1,5 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 100 mA, NC |
| No-load current (max.) | 10 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | increased operating distance |
| Housing material | Stainless steel, V2A 1.4305 / AISI 303 |
| Size | M5 x 0,5 |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Cable, 0,3 m, with device plug, 3-pin |
