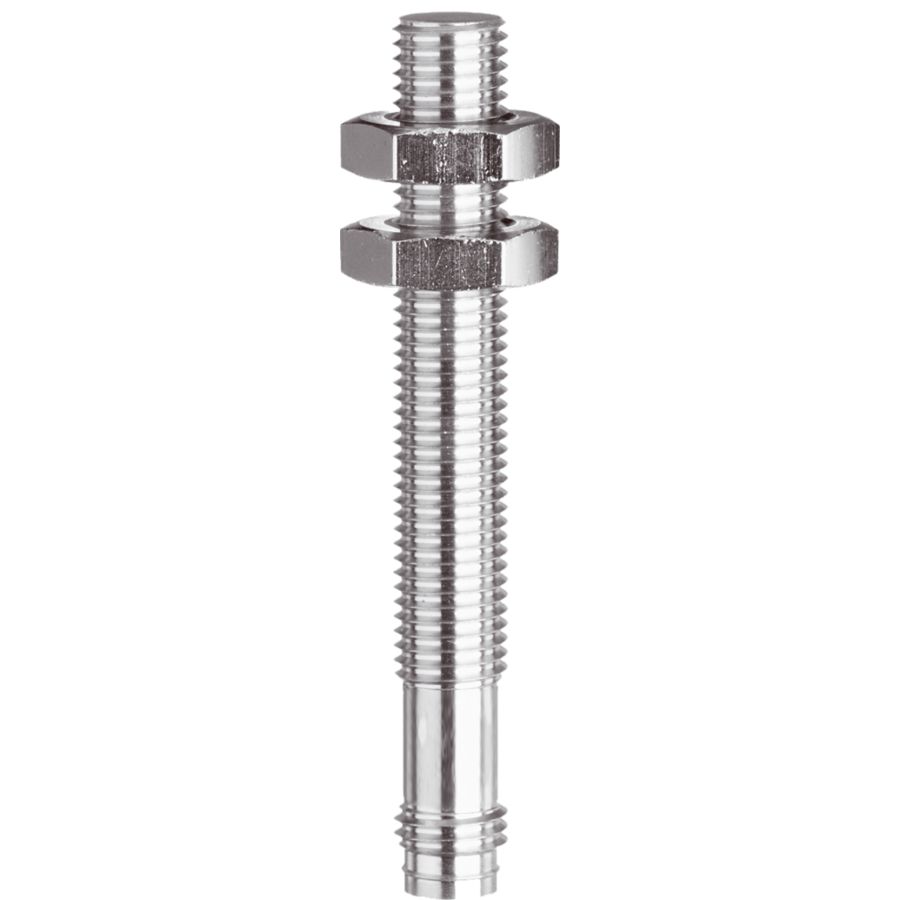

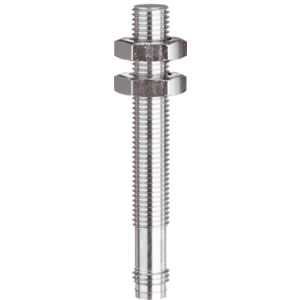

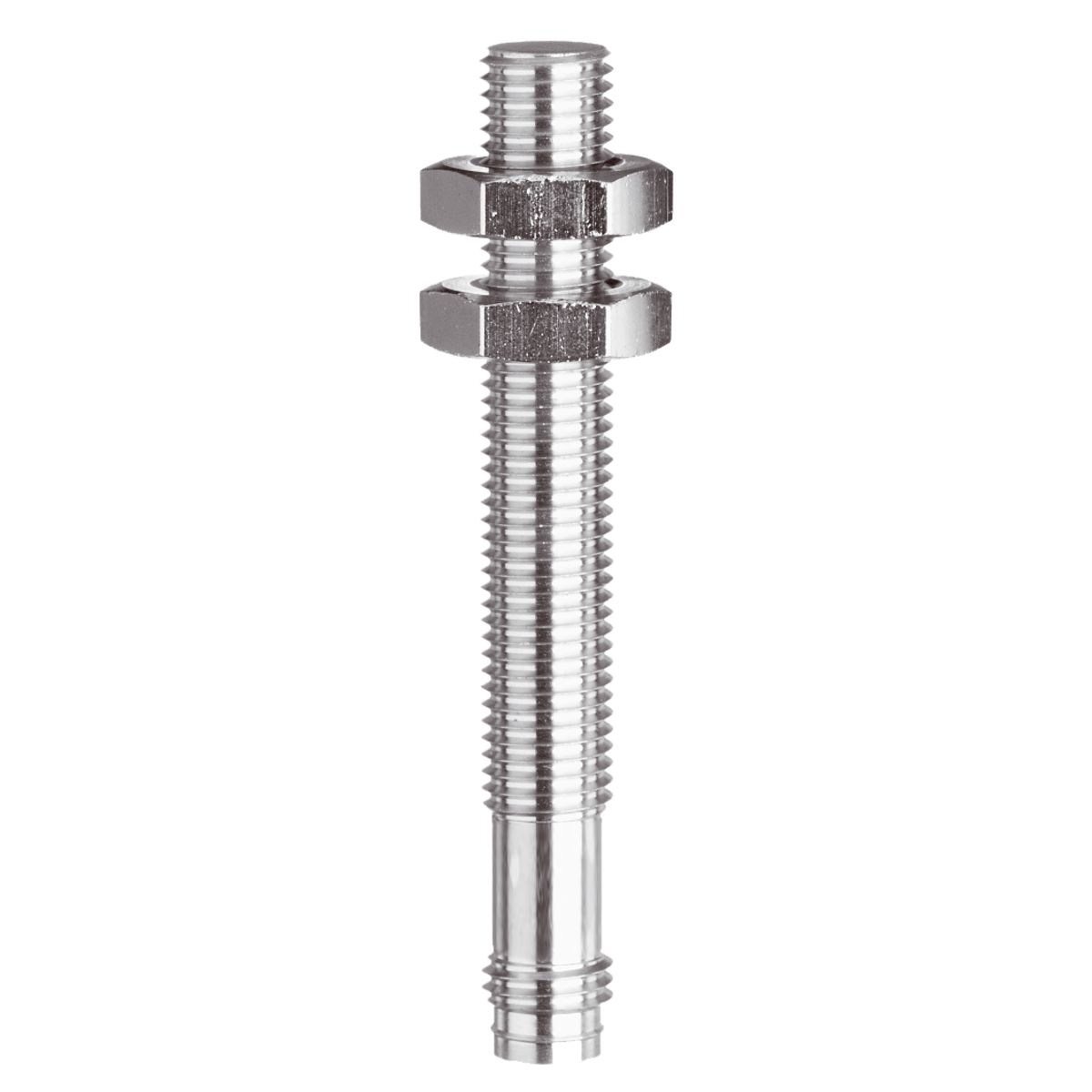

Inductive Proximity Sensor - DCC 08 M 04/10 AK-TSL
Part Number: DCC 08 M 04/10 AK-TSL
Article Number: 202924
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | quasi-flush |
| Switching distance | 0 mm … 4 mm |
| Service voltage | 15 … 30 V DC |
| Analog output voltage | 0 … 10 V |
| No-load current (max.) | 10 mA |
| Evaluation | analog |
| Design | Thread |
| Characteristics | extremely high operating distance |
| Housing material | Brass, CuZn |

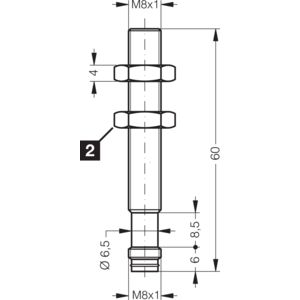

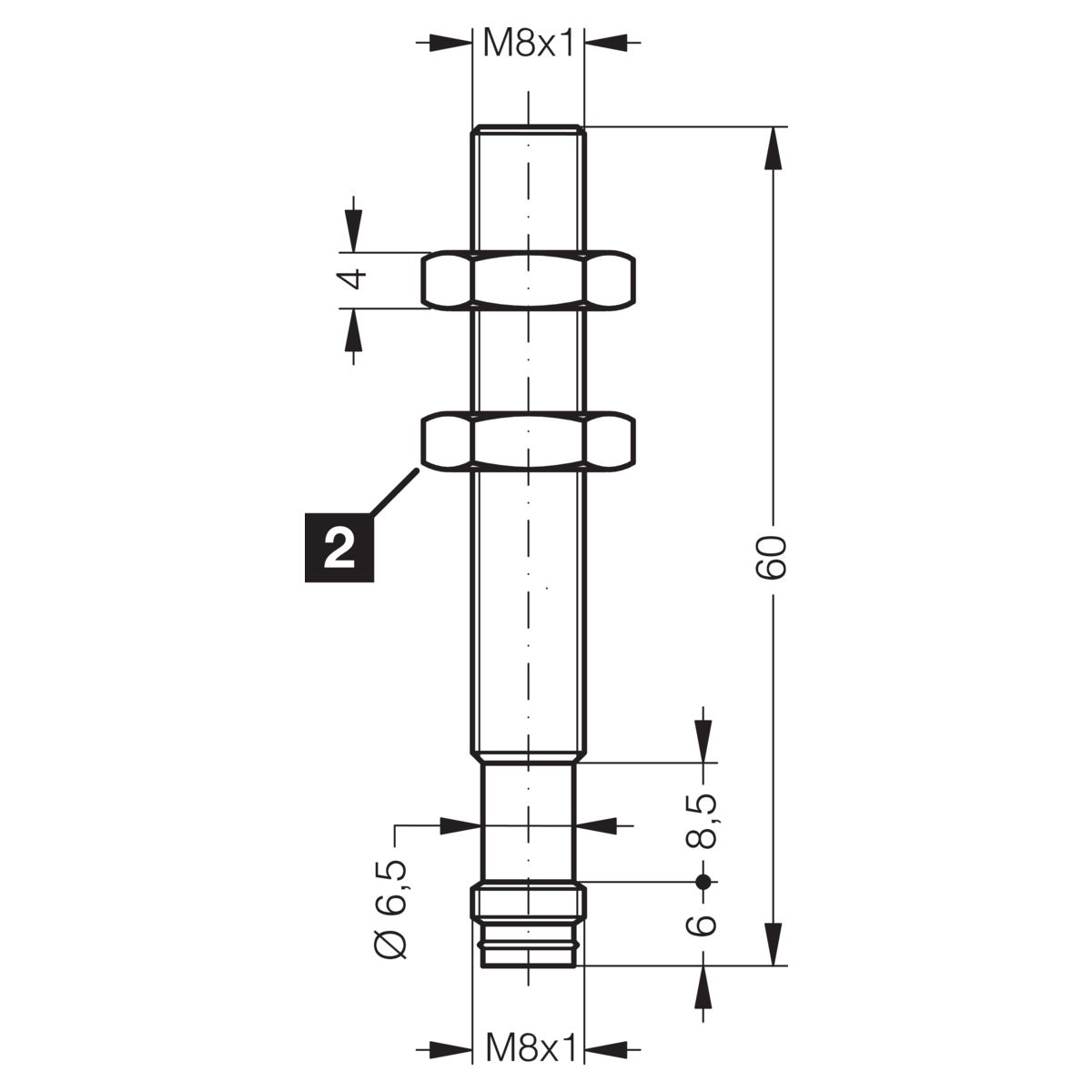

| Size | M8 x 1 |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |

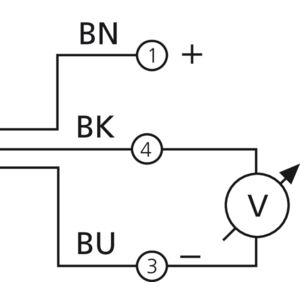

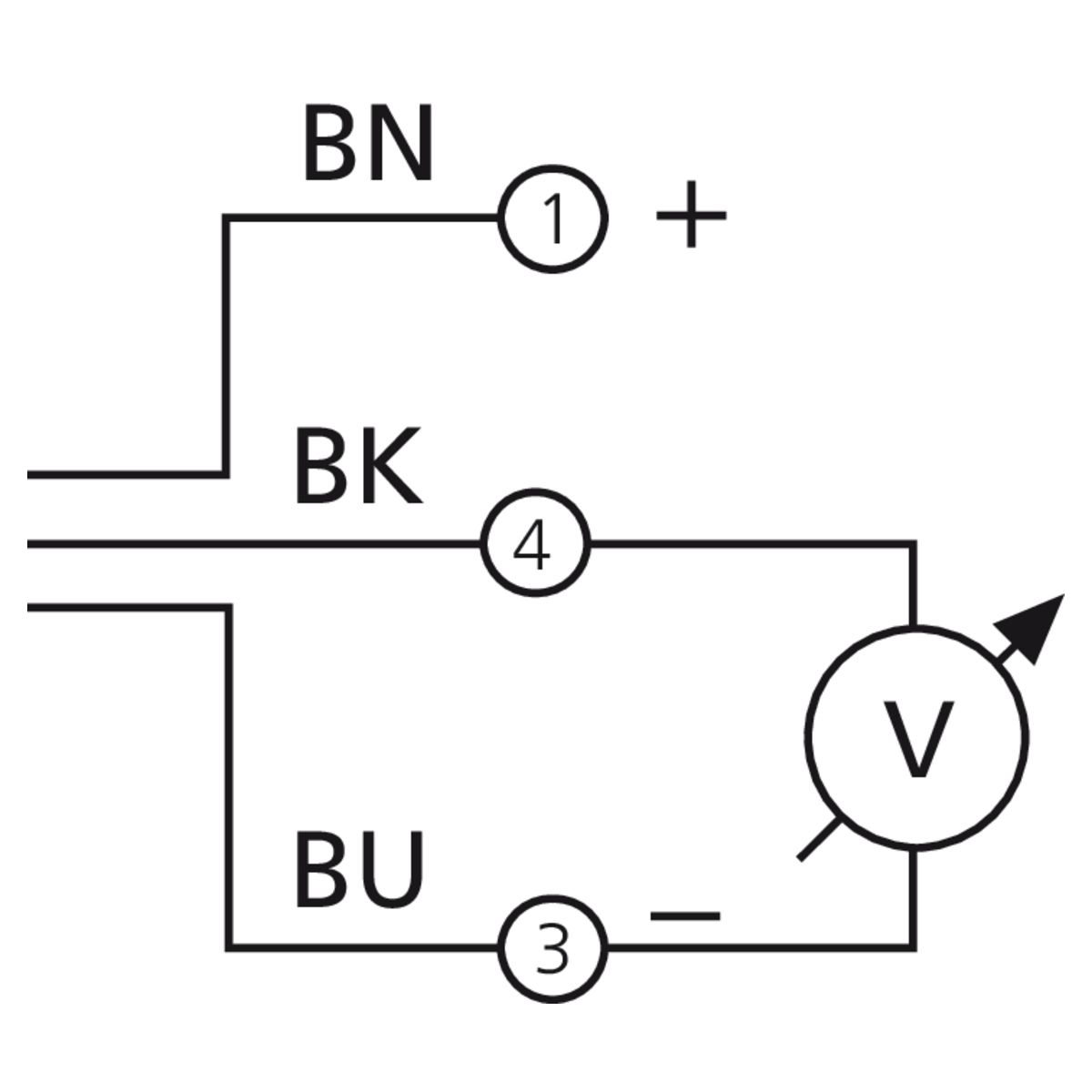

| Connection | Connector, M8, 3-pin |
