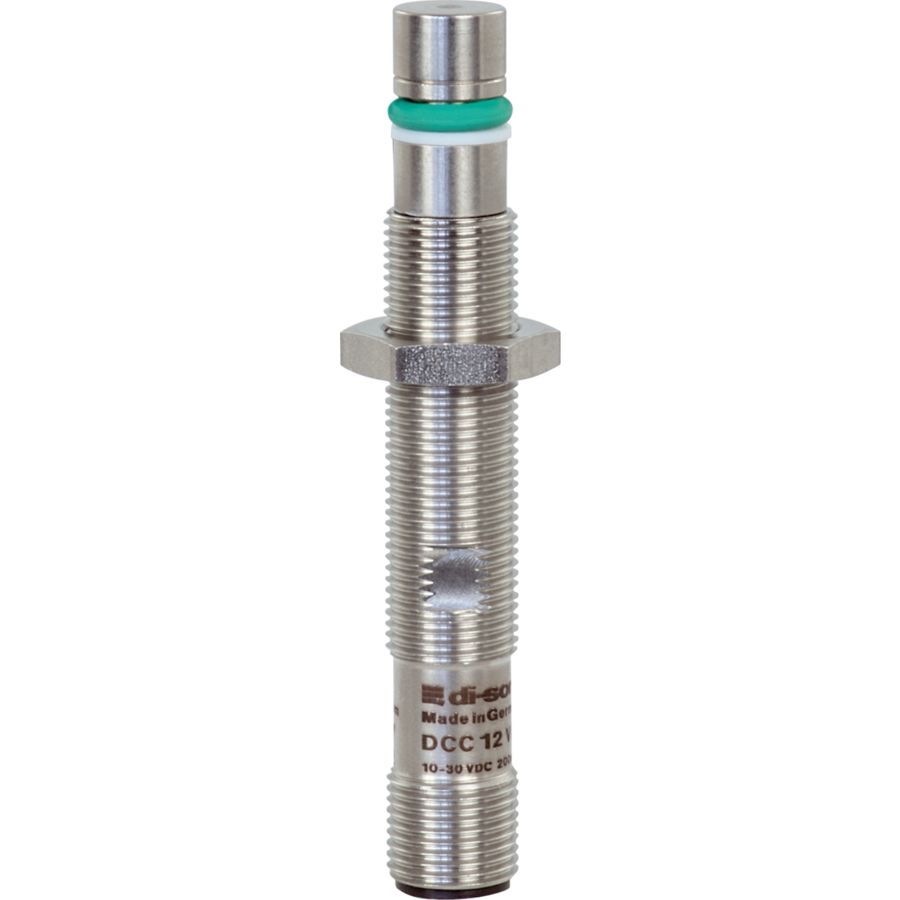

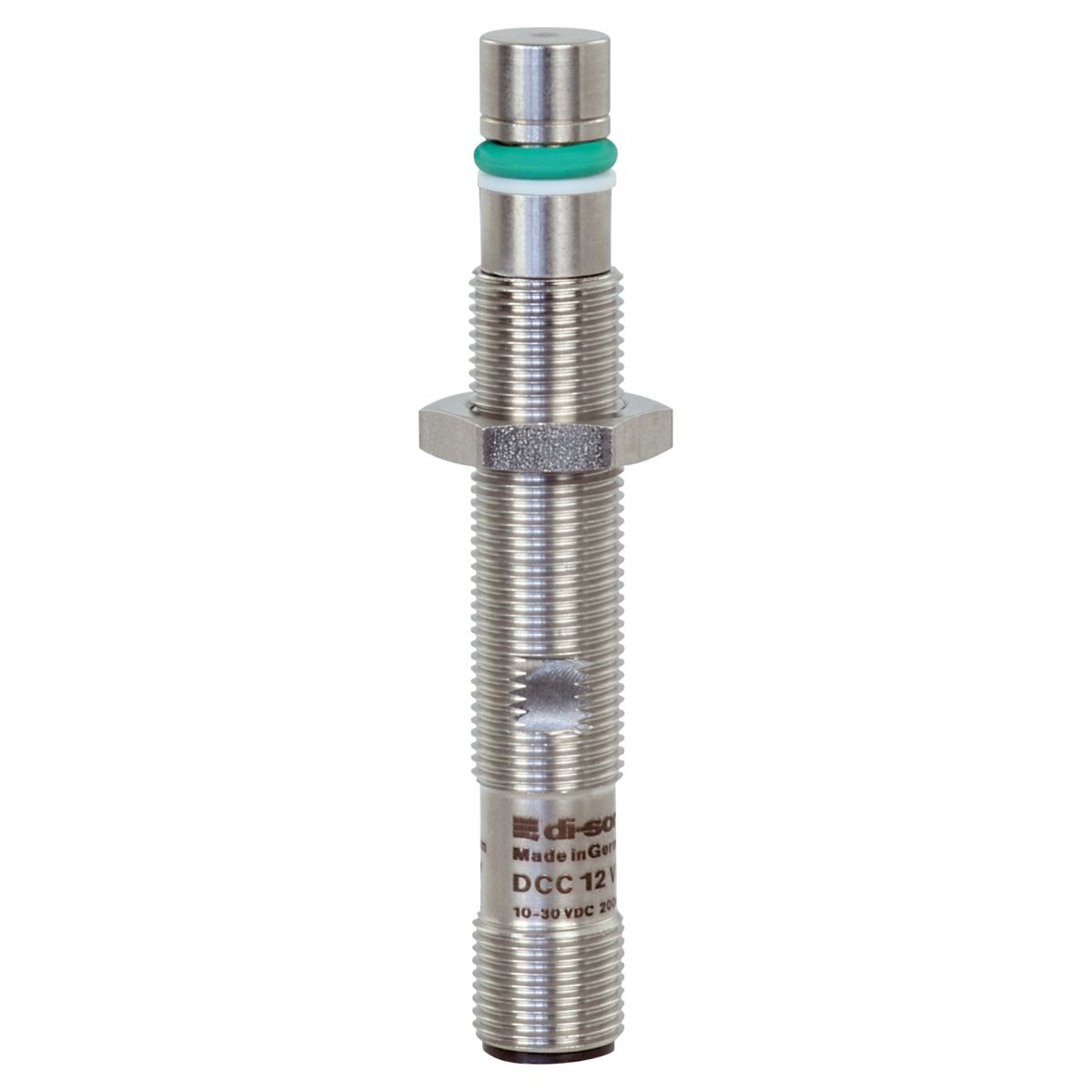

Inductive Proximity Sensor - DCC 12 VHD 2 PS-B3-78-7
Part Number: DCC 12 VHD 2 PS-B3-78-7
Article Number: 207460
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 2 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 200 mA, NO |
| No-load current (max.) | 10 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | < 500 bar, high-pressure resistant |
| Housing material | Stainless steel, V2A 1.4301 / AISI 304 |
| Size | M12 x 1 |
| Ambient temperature during operation | -25 … +100 °C |
| Protection type | IP 68, IP 69K |
| Connection | Connector, M12 |
