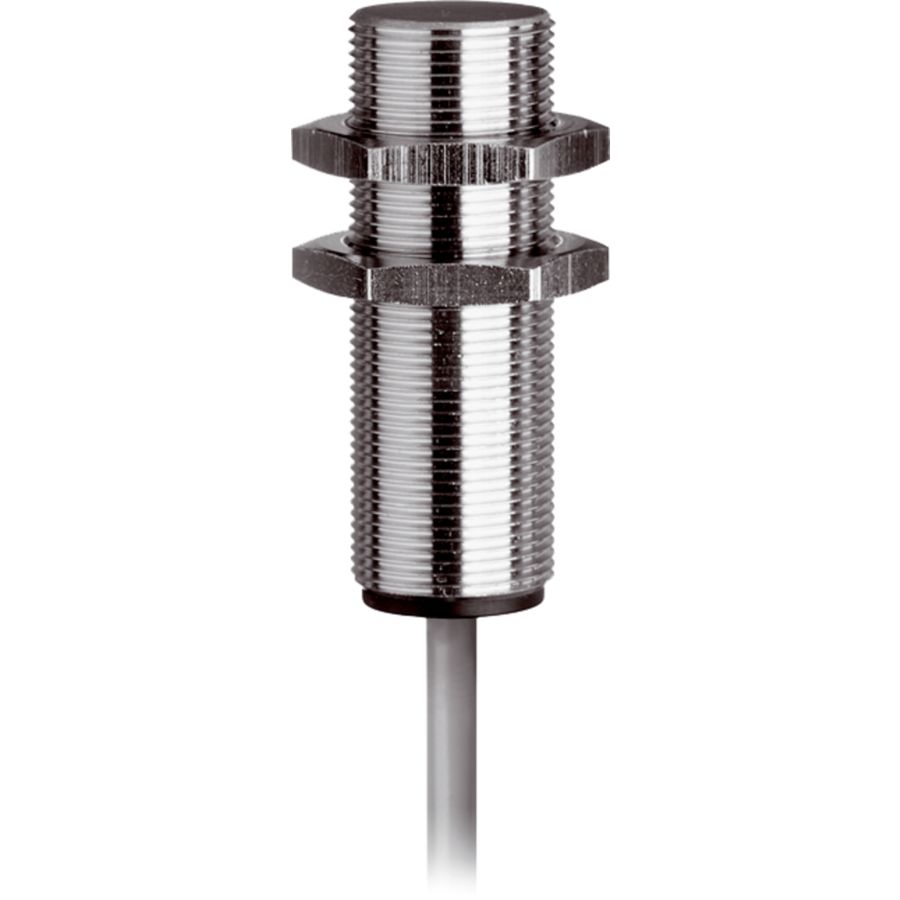

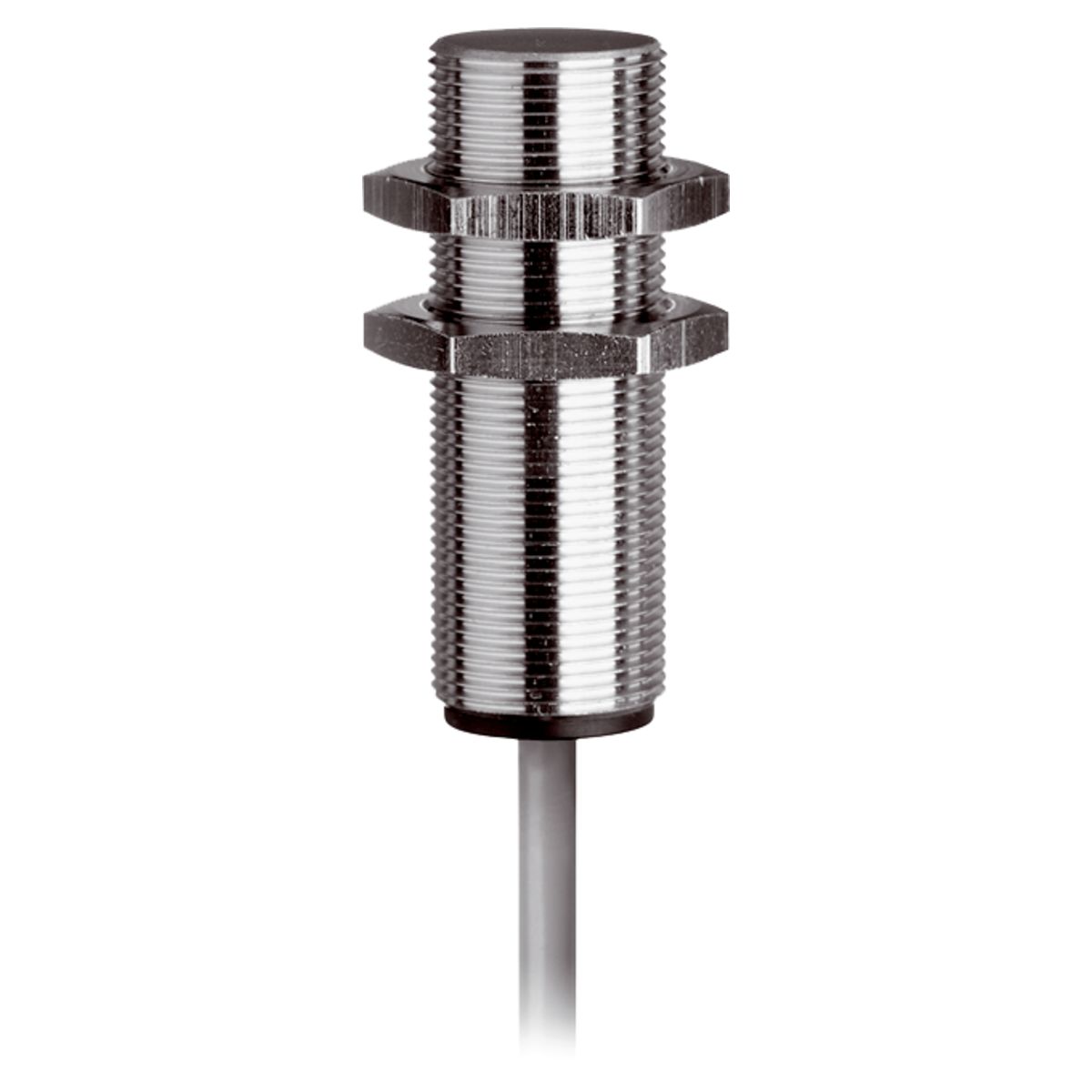

Inductive Proximity Sensor - DCC 18 M 10/10 AIK
Part Number: DCC 18 M 10/10 AIK
Article Number: 202339
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Operating principle | inductive |
---|---|
Installation type | quasi-flush |
Switching distance | 0 mm … 10 mm |
Service voltage | 15 … 30 V DC |
Analog output voltage | 0 … 10 V |
Analog output current | 4 … 20 mA |
No-load current (max.) | 12 mA |
Evaluation | analog |
Design | Thread |
Characteristics | extremely high operating distance |
Housing material | Brass, CuZn |
Size | M18 x 1 |
Ambient temperature during operation | -25 … +70 °C |
Protection type | IP 67 |
Connection | Cable, 2 m, 3-pin |
